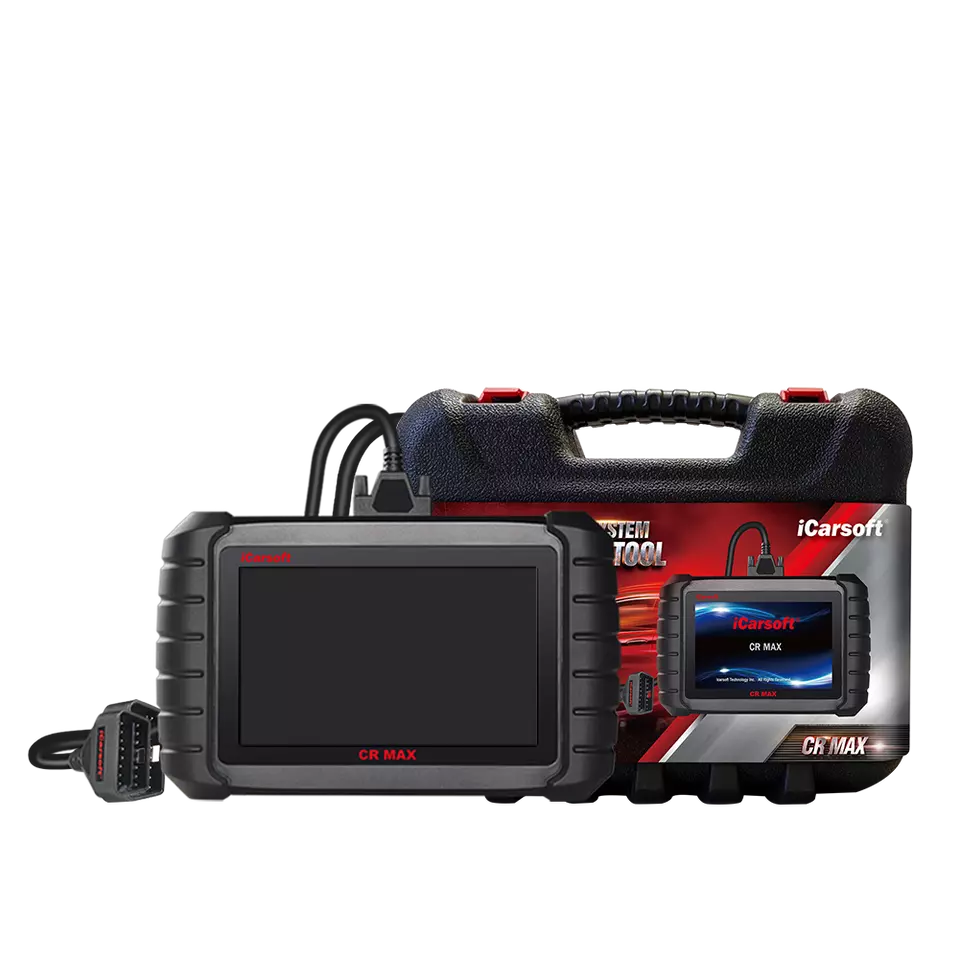

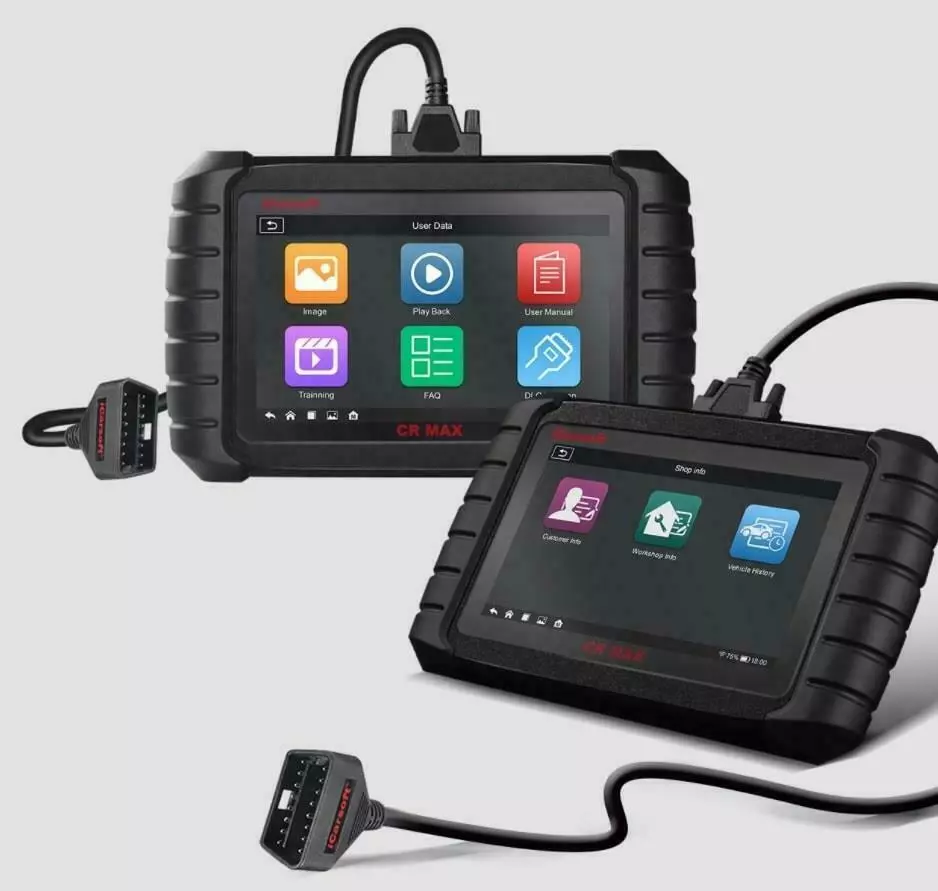

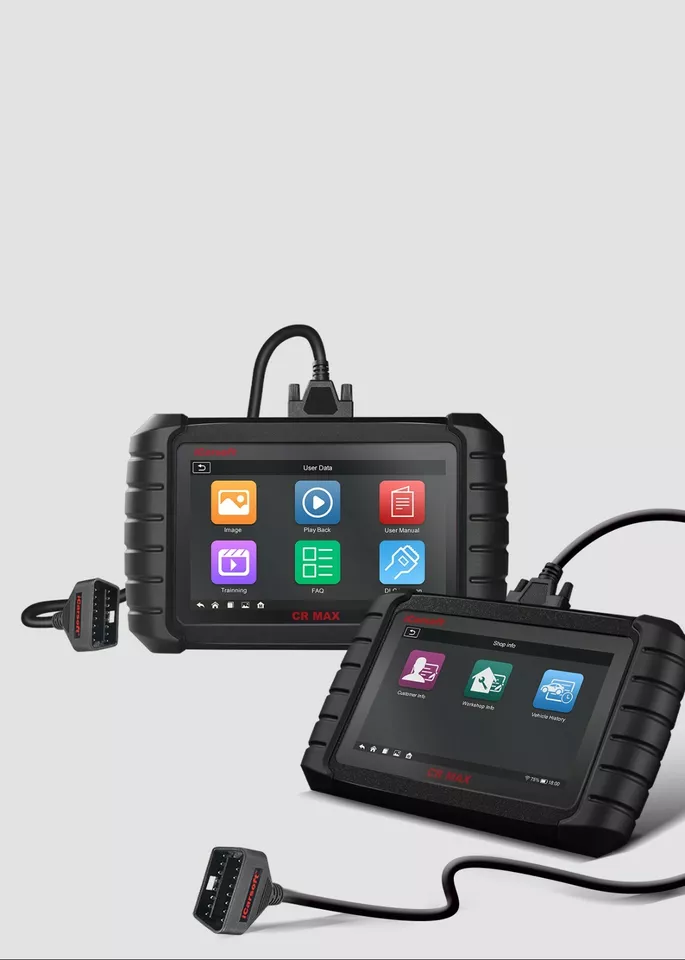

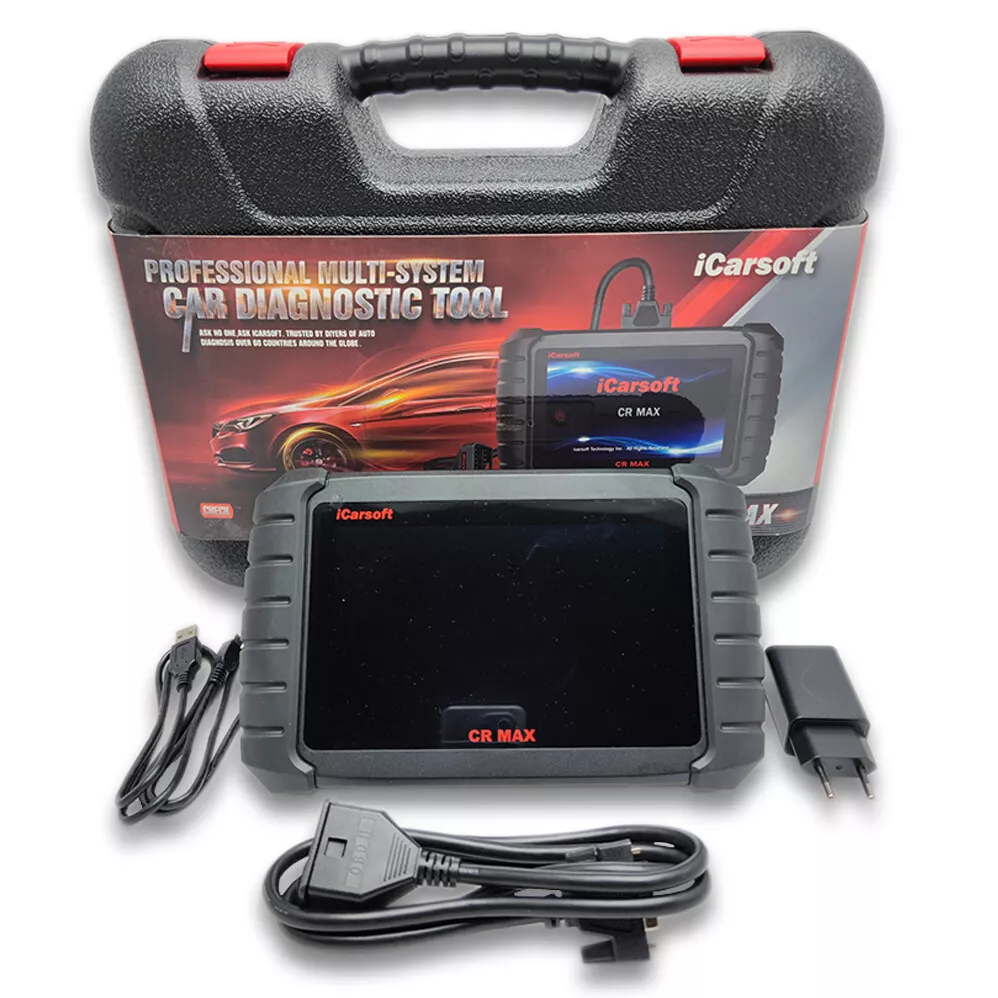

iCarsoft CR MAX Professional Multi Brand & System Car Diagnostic Tools

The iCarsoft CR MAX is an advanced, Android-based diagnostic tablet specially designed for professional auto technicians and serious DIY users. With a 7-inch touchscreen, powerful hardware, and comprehensive software features, it delivers full-system diagnostics and service functions for thousands of vehicle models from around the world.

• Operating System: Android 8.1.0

• Processor: Quad-Core 1.3GHz

• RAM/Storage: 16GB internal memory

• Display: 7-inch LCD Capacitive Touchscreen

• Resolution: 1024 x 600 pixels

• Connectivity: Mini USB 2.0, USB 2.0, Wi-Fi, Bluetooth, OBD II

• Battery: 3.7V / 5000mAh Lithium-Polymer

• Battery Life: Up to 5 hours of continuous use

• Charging Input: 5V/2A power supply

• Dimensions: 240mm × 150mm × 35mm

• Weight: Approx. 750g

• Audio Output: Built-in speaker and buzzer

• Operating Temperature: 0°C – 40°C (32°F – 104°F)

• Storage Temperature: -20°C – 70°C (-4°F – 158°F)

• Operating Humidity: 5% – 95% non-condensing

1. Full System Diagnostics:

• Scan and clear codes for Engine, Transmission, ABS, SRS (airbag), and more

• Displays real-time live data and freeze frame data

• Performs I/M readiness tests, onboard monitor checks, and O2 sensor tests

• View and analyze data via text, graph, analog meter, or progress bar

2. 49 Service Functions Included:

• Oil Reset, EPB Reset, SAS Calibration, DPF Regeneration

• Throttle Reset, Battery Management (BMS), Injector Coding

• ABS Bleeding, Air Suspension Calibration, Gearbox Reset

• EGR Adaptation, Fuel Pump Reset, TPMS Reset, and many others

3. Bi-Directional Control (Active Tests):

• Send commands to vehicle systems for functional testing

• Perform component tests like Injector Actuation, Fan Motor Test, Wiper, HVAC, A/C Compressor, Ignition Coil, Headlight, and more

4. Auto VIN & Auto Scan:

• Automatically detects vehicle make, model, and year for quicker setup

• Smart scanning of all modules with one click

5. ECU Coding & Advanced Functions:

• Access OE-level features like ECU settings, adaptations, and coding (depending on vehicle support)

• Includes advanced diagnostic tools for professionals

6. Live Data & Report Management:

• 4-in-1 live data display modes: Text, Graph, Analog, Progress Bar

• Save and playback data for review or printing reports

7. Software & Updates:

• Pre-installed software with ready-to-use setup

• Free lifetime software updates over Wi-Fi

• Easy menu navigation and quick startup

8. Protocol Compatibility:

• Supports ISO9141-2, ISO14230-2, ISO15765, KWP2000, J1850 VPW, J1850 PWM

• Supports CAN, CAN FD, SAE J2610, GM UART, Honda Diag-H, TP2.0, TP1.6

1. European Models:
BMW, Mini, VW, Audi, Mercedes-Benz, Citroen, Peugeot, Volvo, Jaguar, Land Rover, Opel, Fiat, Renault, Alfa Romeo, Lancia, Smart, SAAB, Skoda, SEAT, Vauxhall, Dacia

2. Asian Models:
Toyota, Lexus, Honda, Acura, Nissan, Infiniti, Mazda, Mitsubishi, Subaru, Hyundai, Kia, Isuzu, Suzuki, Daewoo, Scion

3. American Models:
Ford (US), GM (Chevrolet, Buick, Cadillac), Chrysler, Dodge, Jeep

4. Australian Models:
Holden, Ford Australia

• Multi-language support: 15+ languages including English, Spanish, German, French, Italian, Dutch, Portuguese, Russian, Polish, and more

• Covers over 10,000 vehicle models globally

• Supports both gasoline and diesel vehicles that are OBD II/EOBD compliant

• Compact and rugged design ideal for workshop or mobile use

• No subscription fees or hidden charges for updates

• Certain functions may require special access codes or advanced ECU support from the manufacturer

• While the tool supports a wide range of vehicles and functions, coverage can vary by make, model, and year

• Manufacturer reserves the right to update software or hardware without prior notice
