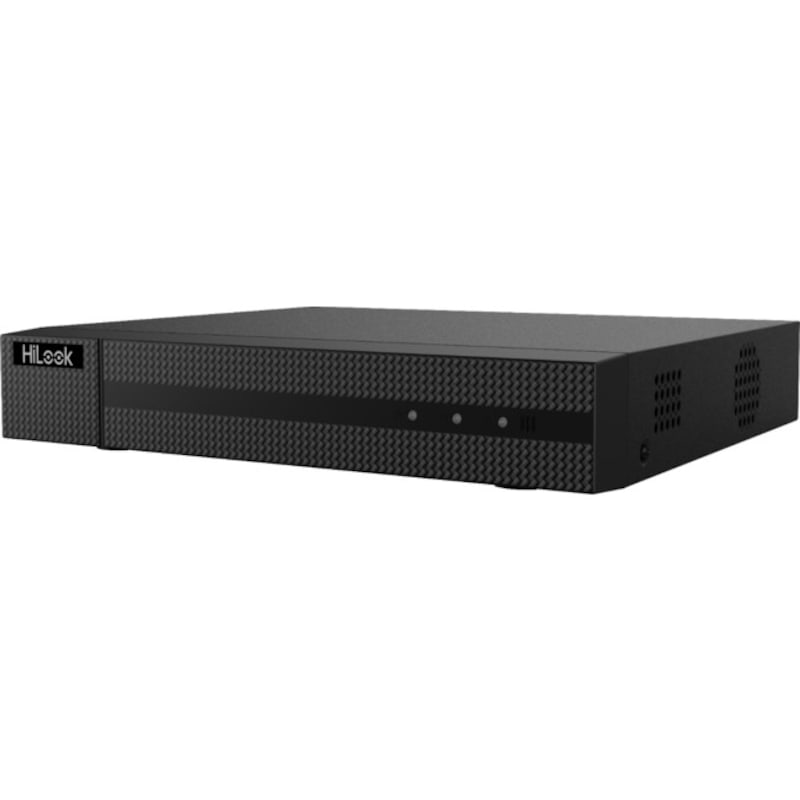

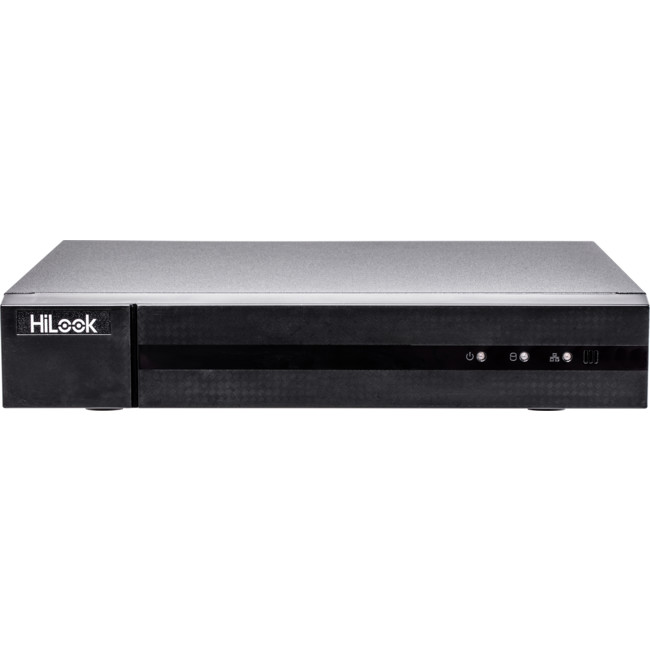

HILOOK 204U-M1 4Ch Hybrid 5 In 1 Network DVR 5Mp 1U H.265

HILOOK 204U-M1 4Ch Hybrid 5 In 1 Network DVR 5Mp 1U H.265

Be the first to review this product

Hurry! 4 items left!

Price	$206.95
	Collect 618 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Features

HiLook 4CH HD DVR, HD-TVI/AHD/CVI/CVBS/IP 5 in 1, 2-ch IP video input(up to 6MP), 5MP@12fps,4MP@15fps,3MP@18fps,1080p@25fps, 1x SATA

Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 6-ch IP camera inputs (up to 8 MP)
Up to 8 MP@8 fps encoding capability

Specifications

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Recording

Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

Frame Rate

Main stream:

8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Video Bitrate 32 Kbps to 10 Mbps

Dual-Stream Support

Stream Type Video, Video & Audio

Audio Compression G.711u

Audio Bitrate64 Kbps

Video And Audio

IP Video Input

2-ch (up to 6-ch)

Enhanced IP mode on:

4-ch (up to 8-ch), each up to 4 Mbps

Up to 8 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

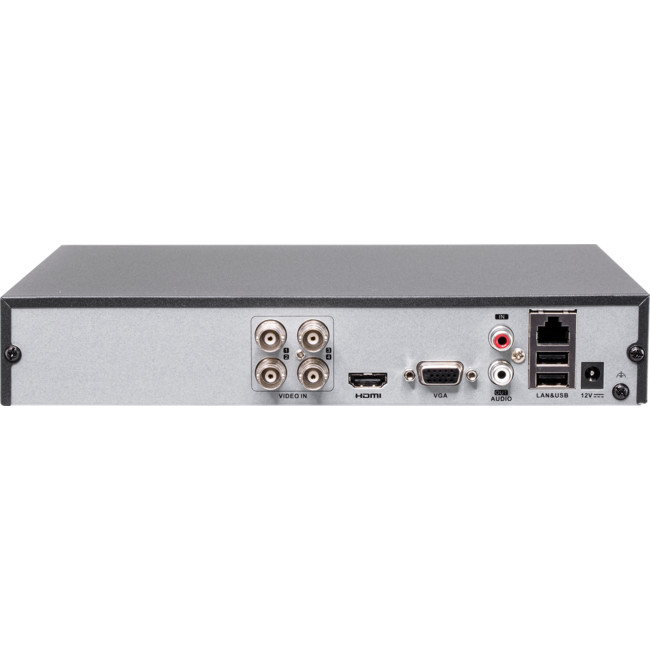

Analog Video Input

4-ch BNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection

HDTVI Input

8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input

5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input

8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

CVBS InputPAL/NTSC

HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output ModeHDMI/VGA simultaneous output

Audio Input

1-ch, RCA (2.0 Vp-p, 1 K)

4-ch via coaxial cable

Audio Output1-ch, RCA (Linear, 1 K)

Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K) (using the first audio input)

Synchronous Playback4-ch

Network

Total Bandwidth96 Mbps

Remote Connection32

Network ProtocolTCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network Interface1, RJ45 10M/100M self-adaptive Ethernet interfac

Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

SATA1 SATA interface

CapacityUp to 10 TB capacity for each disk

Alarm In/OutN/A

USB Interface2 × USB 2.0

General

Power Supply12 VDC, 1.5 A

Consumption≤ 15 W (without HDD)

Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity10% to 90%

Dimension (W × D × H)265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)

Weight≤ 1.16 kg (without HDD, 2.6 lb.)

Weight: 1.35
