High Mid Low level indicator DC 12V Water Liquid Level Controller Sensor Switch

High Mid Low level indicator DC 12V Water Liquid Level Controller Sensor Switch

Price	$27.01
	Collect 27 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:

1 Working voltage: DC 12V
2 Standby current 6MA
3 Working current 32MA
4 Size: 63mm X 29mm X 19mm
5 Weight: 20 g
6 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

There are two purposes for connecting the NO and NC ports of the relay:

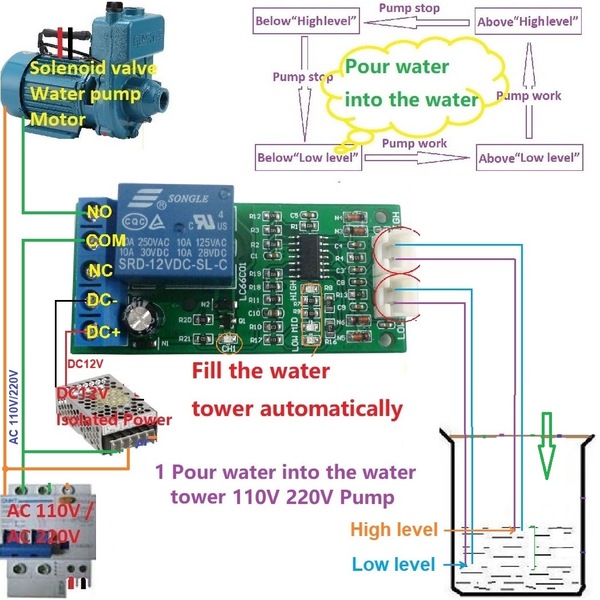

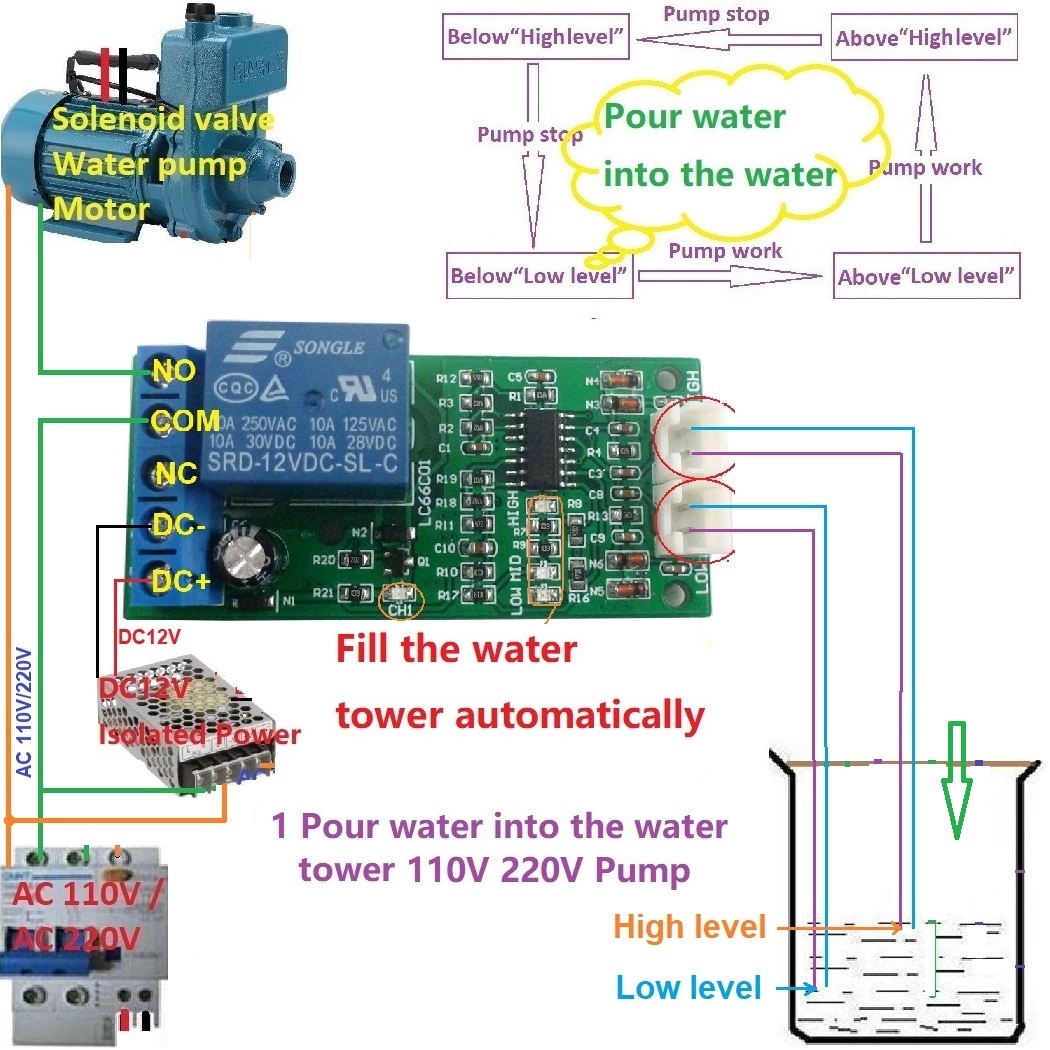

The water pump is connected to the COM NC port to automatically fill the water tower

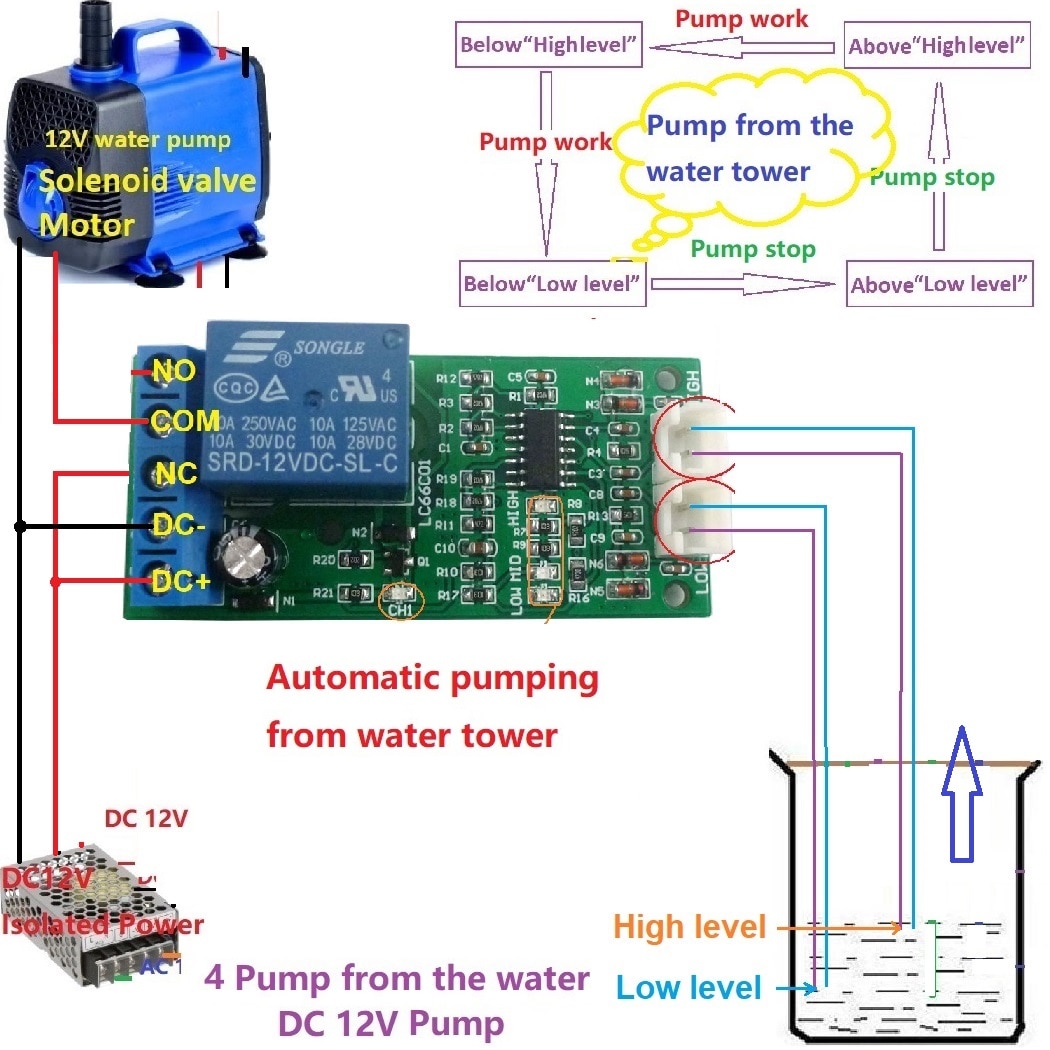

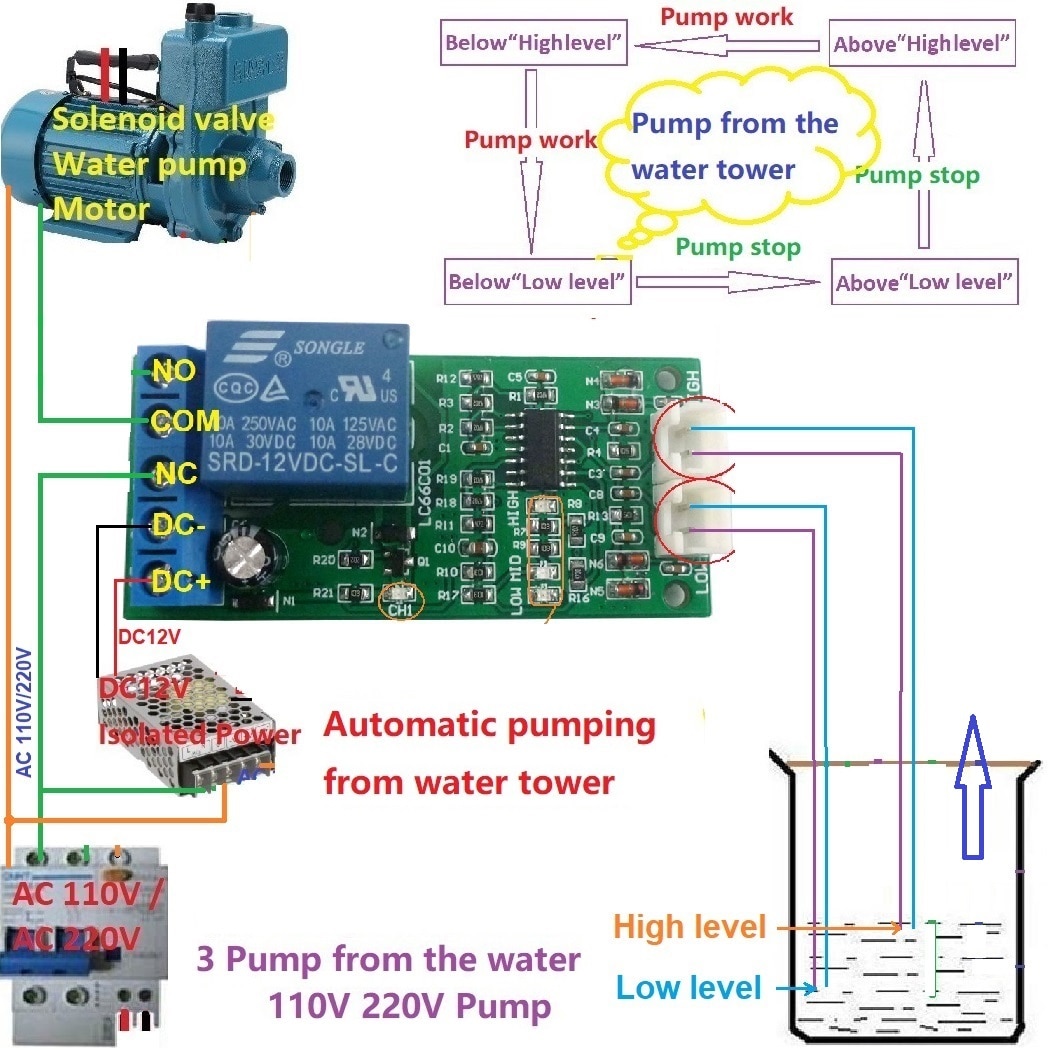

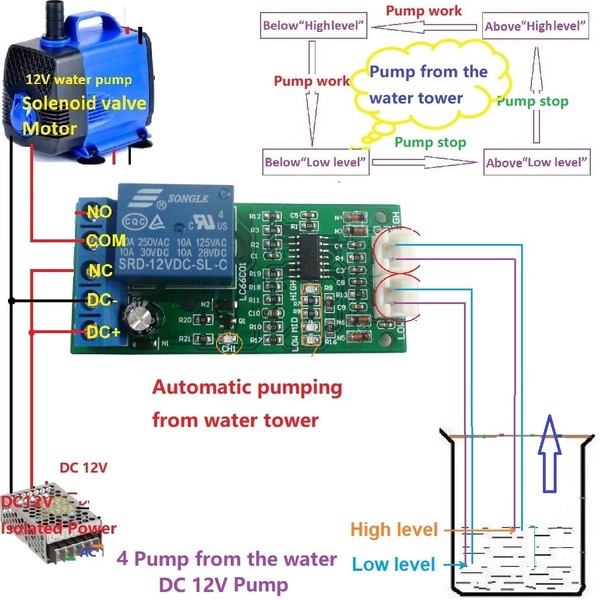

The water pump is connected to the COM NO port to automatically pump water from the water tower

Note:

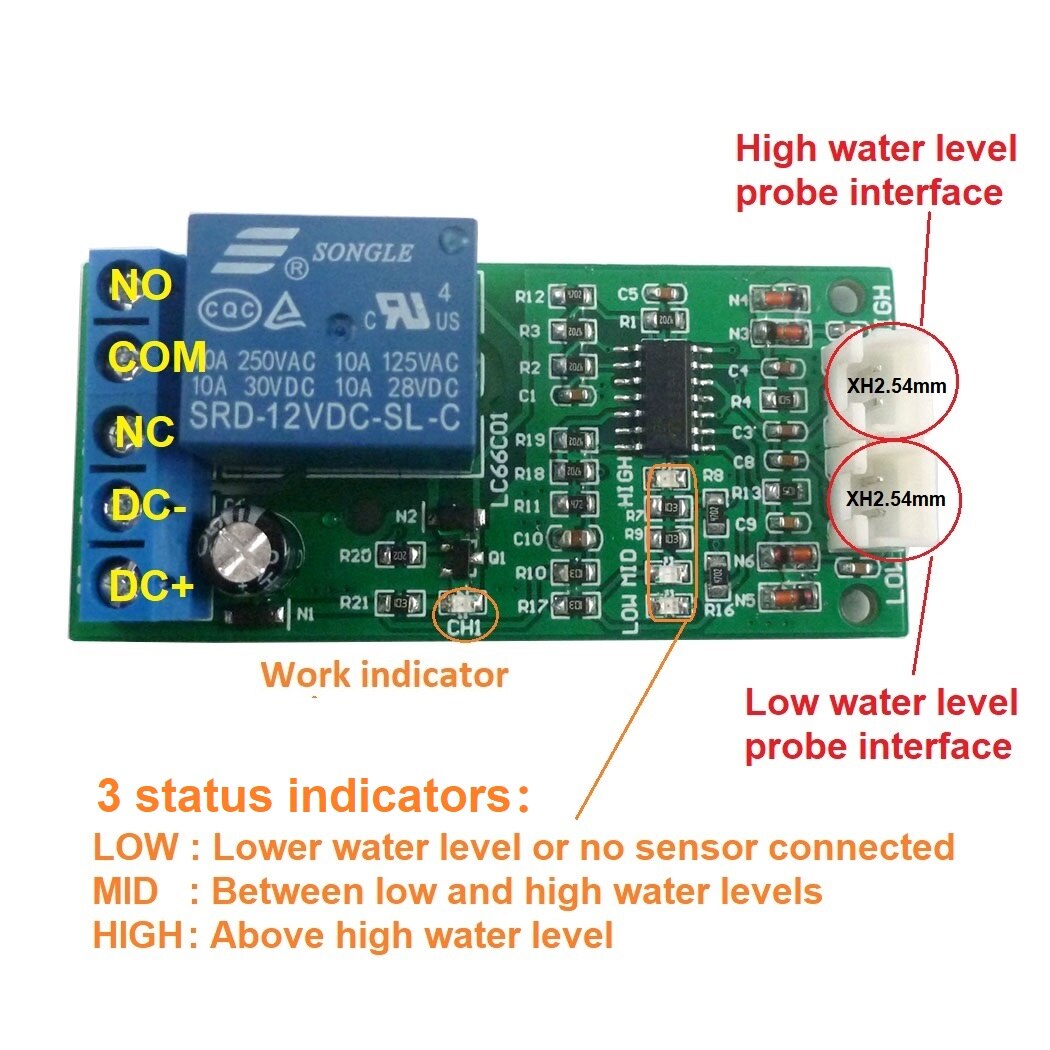

1 Package does not contain probe (wire).2P Male XH2.54mm Pitch Wire Cable can be used as a probe,which can be purchased separately or prepared by yourself.
2 For safety, use an DC power supply with good isolation

Application:

Home water tower automatic water supply system
Aquarium Fish tank Water Changer System
Fill the water tower automatically
Automatic pumping from water tower
Conductive liquid automatic control
Automatic feeding system for poultry and livestock
Farm automatic water supply system
And other occasions that require automatic water supply and water exchange.
Solenoid valve water pump motor automatic control

Package inlcuded:

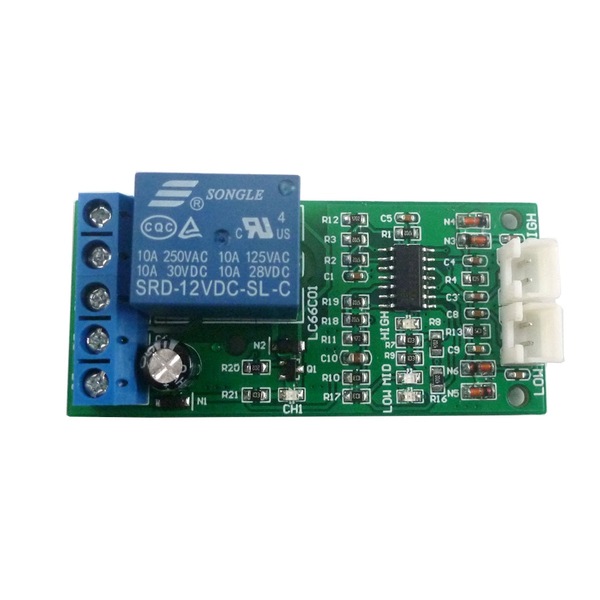

1 x DC 12V LOW MID HIGH indicators LC66C01 Automatic pumping and pouring controller Module(The probe is 2P Male XH2.54mm Pitch Wire Cable, which can be purchased separately or prepared by yourself.)
