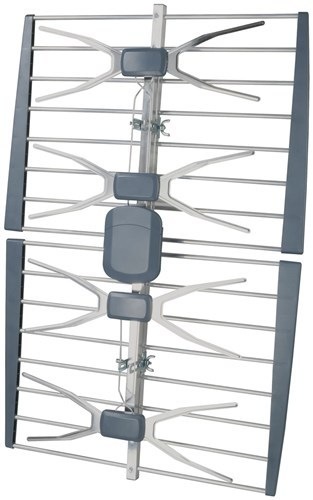

Heavy 12.5dB Duty UHF Phased Array F Connector Pole Mount TV Antenna

Heavy 12.5dB Duty UHF Phased Array F Connector Pole Mount TV Antenna

Price	$158.40
	Collect 474 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/01/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	See delivery details

Quantity

Add to wishlist

This heavy duty UHF phased array is ideal for problem digital reception areas where you may not have direct line of sight to the transmitter or there may be multipath issues due to reflected signals.

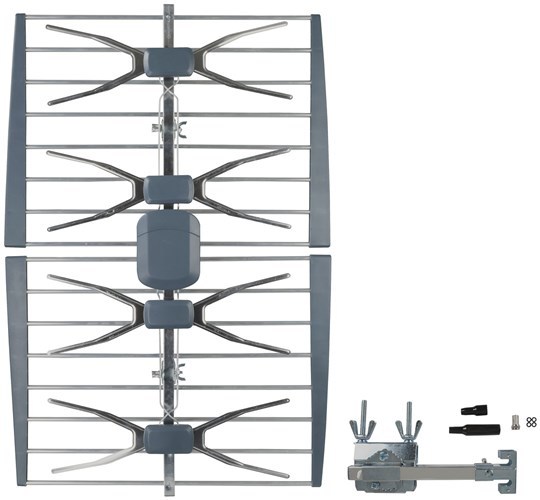

It is capable of receiving either horizontal or vertical signals by changing the orientation of the heavy duty mounting bracket/U-bolt assembly.
The LTE filter provides protection against 4G/LTE telephone communications.

Specifications

Gain: 12.5dB
Wind load (N): 78
Frequency (MHz): 519-694
Beamwidth (Hor): +/-25 degrees
Weight(Kg): 1.65
Channels: 27-51
Beamwidth (Ver): +/-20 degrees
Size (mm): 815 x 545
F connector: yes
Front to Back ratio: 22dB
No of Elements: 4
Impedance: 75 Ohm
Length : 815mm
Width : 545mm
Mounting Method : Pole Mount
Attachment / Securing Method : U-Bolt
Packaged Volume : 44.84l
Packaged Weight : 2.37kg
Packaged Length : 83.5cm
Packaged Width : 54.8cm
Packaged Height : 9.8cm
Antenna Type : Phased Array
Usage Location : Outdoor
UHF Frequency Range : 519MHz, 694MHz
UHF Channel Range : 27ch, 51ch
UHF Gain : 12.5dB
Antenna Assembly : Bolt Together

GTIN: 9319236712740
