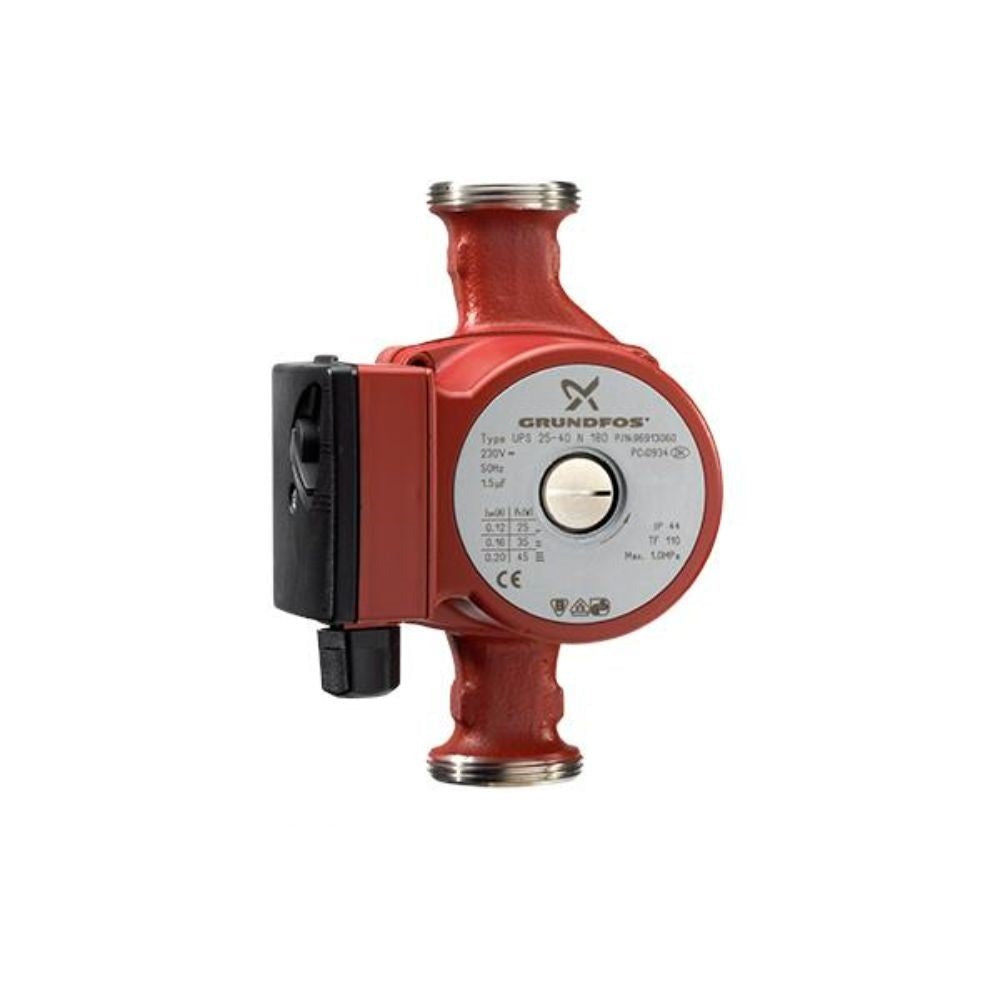

Grundfos UPS20-60-N-150 Hot Water Circulator Pump 240V 90 Watt 20MM (96913096)

Speed no

3

Head max

60 dm

TF class

110

Approvals on nameplate

CE,EAC,WEEE,RCM

Materials

Pump housing

Stainless steel

DIN W.-Nr. 1.4301

Impeller

Composite, PES/PP

Installation

Amb. max at 80 dgr C liquid

80 °C

Maximum operating pressure

10 bar

Pipe connection

G 1 1/4

Pressure rating

PN 10

Port-to-port length

150 mm

Liquid

Pumped liquid

Water

Liquid temperature range

2 .. 110 °C

Selected liquid temperature

60 °C

Density

983.2 kg/m³

Electrical data

Power input in speed 1

35 W

Power input in speed 2

60 W

Max. power input

90 W

Mains frequency

50 Hz

Rated voltage

1 x 240 V

Current in speed 1

0.15 A

Current in speed 2

0.25 A

Current in speed 3

0.37 A

Capacitor size - run

2 µF

Enclosure class (IEC 34-5)

IP44

Insulation class (IEC 85)

H

Built-in motor protection

NONE

Thermal protec

Impedance protected

Controls

Pos term box

9H

Others

Net weight

2.8 kg

Gross weight

3 kg

Shipping volume

0.004 m³

Country of origin

RS

Custom tariff no.

8413709062
