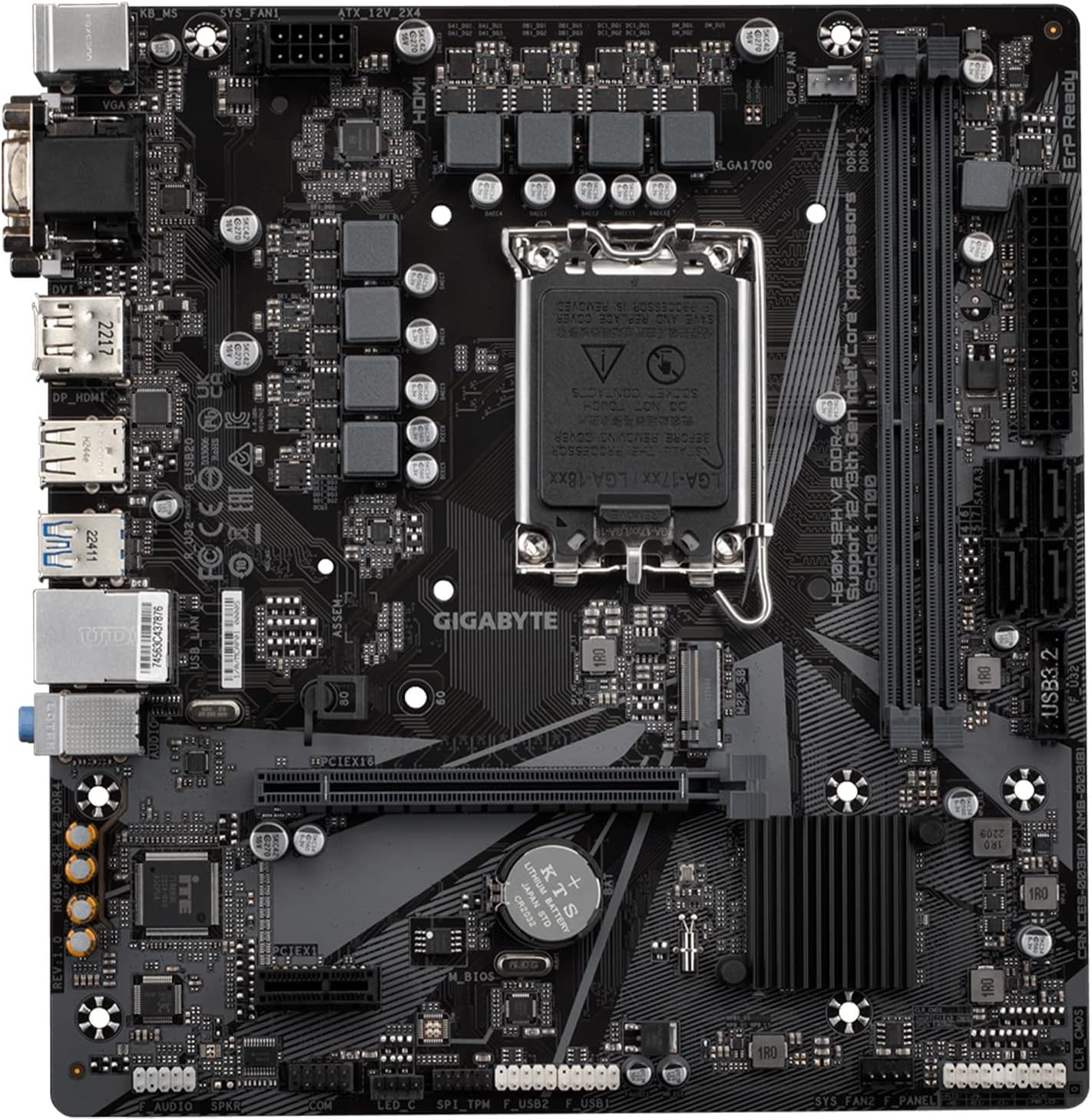

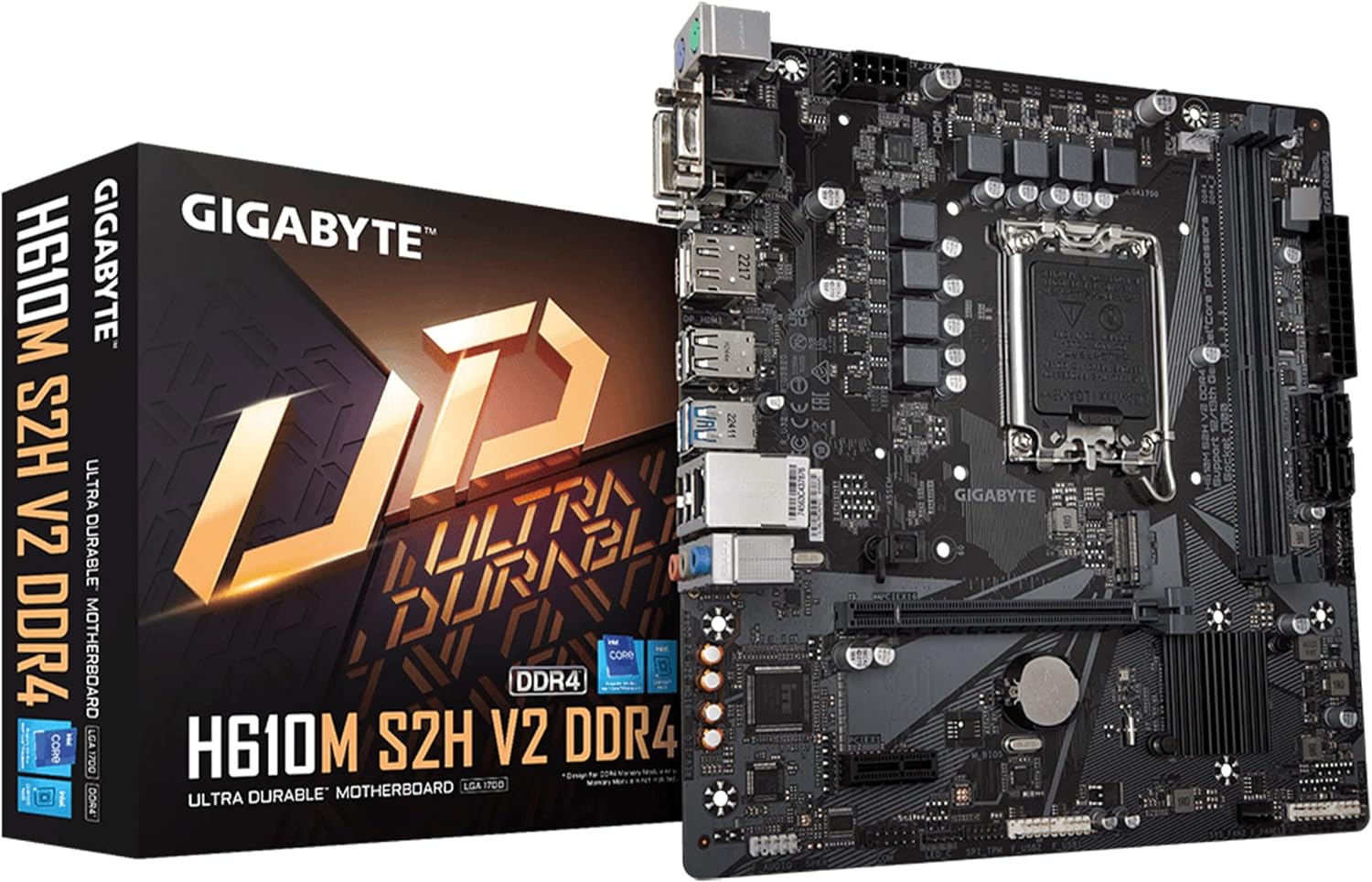

Gigabyte H610M S2H V2 DDR4 LGA 1700 Micro ATX Motherboard

H610M S2H V2 DDR4 (rev. 1.0)

Intel® H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, DisplayPort / HDMI / DVI-D/ D-Sub Ports for Multiple Display, Anti-Sulfur Resistor,  Smart Fan 6.

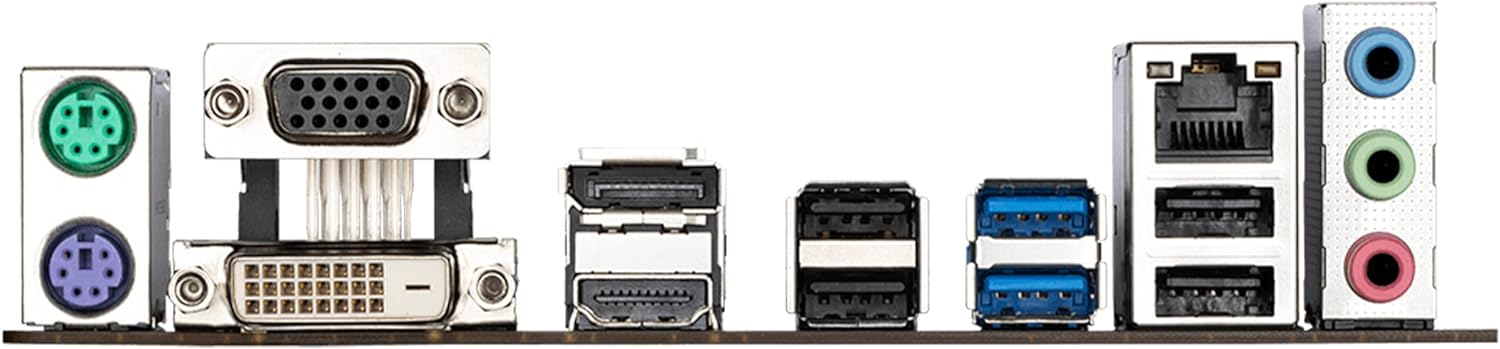

- DisplayPort / HDMI / DVI-D / D-Sub Ports for Multiple Display

- High Quality Audio Capacitors and Audio Noise Guard

- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

- GIGABYTE APP Center, Simple and Easy Use

- Anti-Sulfur Resistors Design.

Cleaner and more efficient power delivery to the CPU with better thermal performance ensures stability under high CPU frequencies and heavy loading.

- 6+1+1 Phases Low RDS(on) MOSFETs

- Solid capacitors to improve transient response and minimise oscillation.

- 8-pin Solid Pin CPU Power Connector.

Faster Speed

32GB Capacity

Multi-Tasking

RAM Intensive

Quick Response

Lower Usage

The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore, with 2 DIMMs per channel, the total memory capacity is 64GB, which was only available on high-end desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive applications such as rendering and video editing.

The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore, with 2 DIMM per channel, the total memory capacity is 64GB, which was only available on High-End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive applications such as rendering and video editing.

Cooling Features

High Current Support - Each fan headers support PWM and DC fan and Water cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection

Precision Control - Up to 7 temperature/fan speed control points for precise fan curve

Dual Curve Mode - Slope/Stair dual mode for different user scenarios

Fan Stop - The fan can stop entirely below the user's specified temperature point

With new Intel Hybrid technology, GIGABYTE exclusively creates two new "CPU Upgrade" in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.

GbE LAN features a network bandwidth management application that helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximise their system's potential.

Enjoy true HD display capability using today's HD displays and TVs' most commonly integrated digital TV technologies.

* Maximum support of 3 independent displays at one time.

GIGABYTE motherboards use high-end audio capacitors. These capacitors help deliver high-resolution and high-fidelity audio, providing gamers with the most realistic sound effects.

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

*Photo for reference only.

H610 motherboards feature solid-plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages

- Larger contact area for electricity

- More metal quantity to sustain higher power and generated heat

- Ultra-durable and longer lifespan.

Sulphur compounds in the air can penetrate tiny onboard resistors, creating a chemical change and causing them to open or short. If either of these occurs, the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design, GIGABYTE gives Ultra-Durable Motherboards a whole new meaning.

During initial setup, the BIOS is essential for users to allow for the most optimal settings. With a new GUI and easier-to-use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

* Photos are for reference only. Product features may vary by model.

GIGABYTE APP CENTER is a useful portal for all GIGABYTE MB utilities and drivers. You can choose any utility you want to install from APP CENTER and keep updated with the latest versions.

GIGABYTE's EasyTune is a simple, easyGIGABYTE'sterface for fine-tuning system settings or adjusting system and memory clocks and voltages in a Windows environment.

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behaviour; these are the possibilities of the System Information Viewer.

SKU # AC75019 | Model # H610M S2H V2 DDR4
