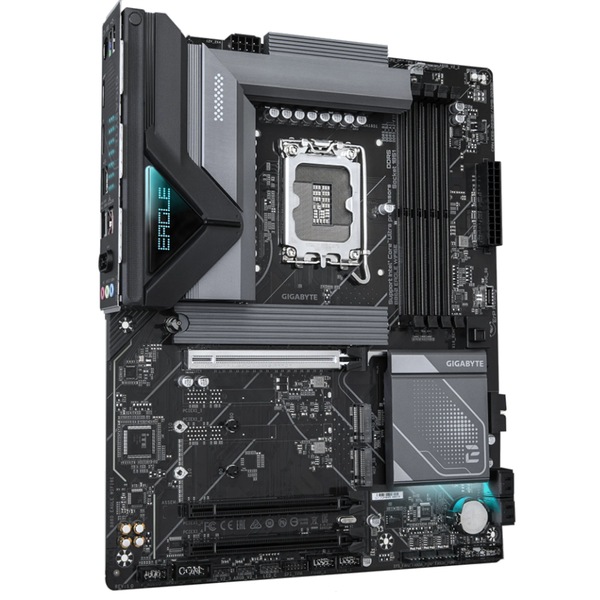

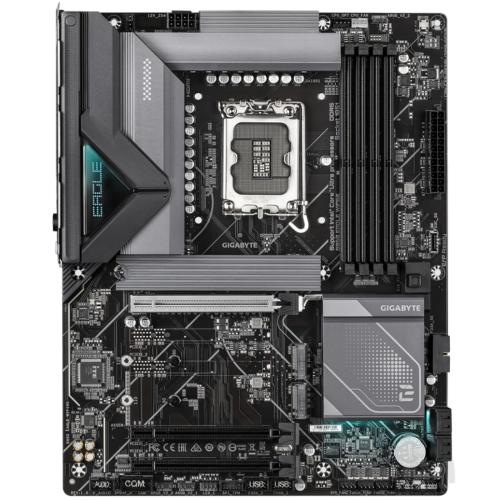

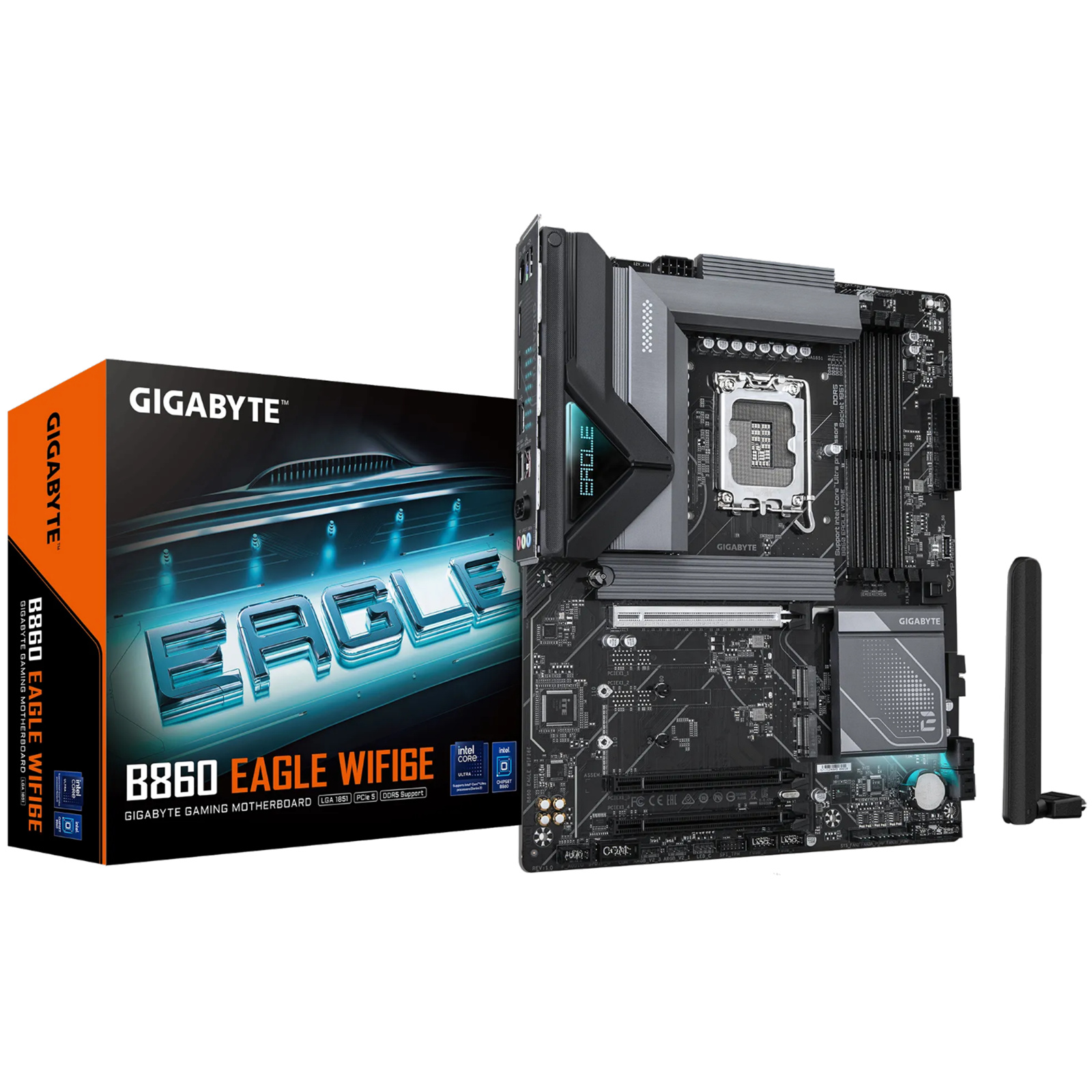

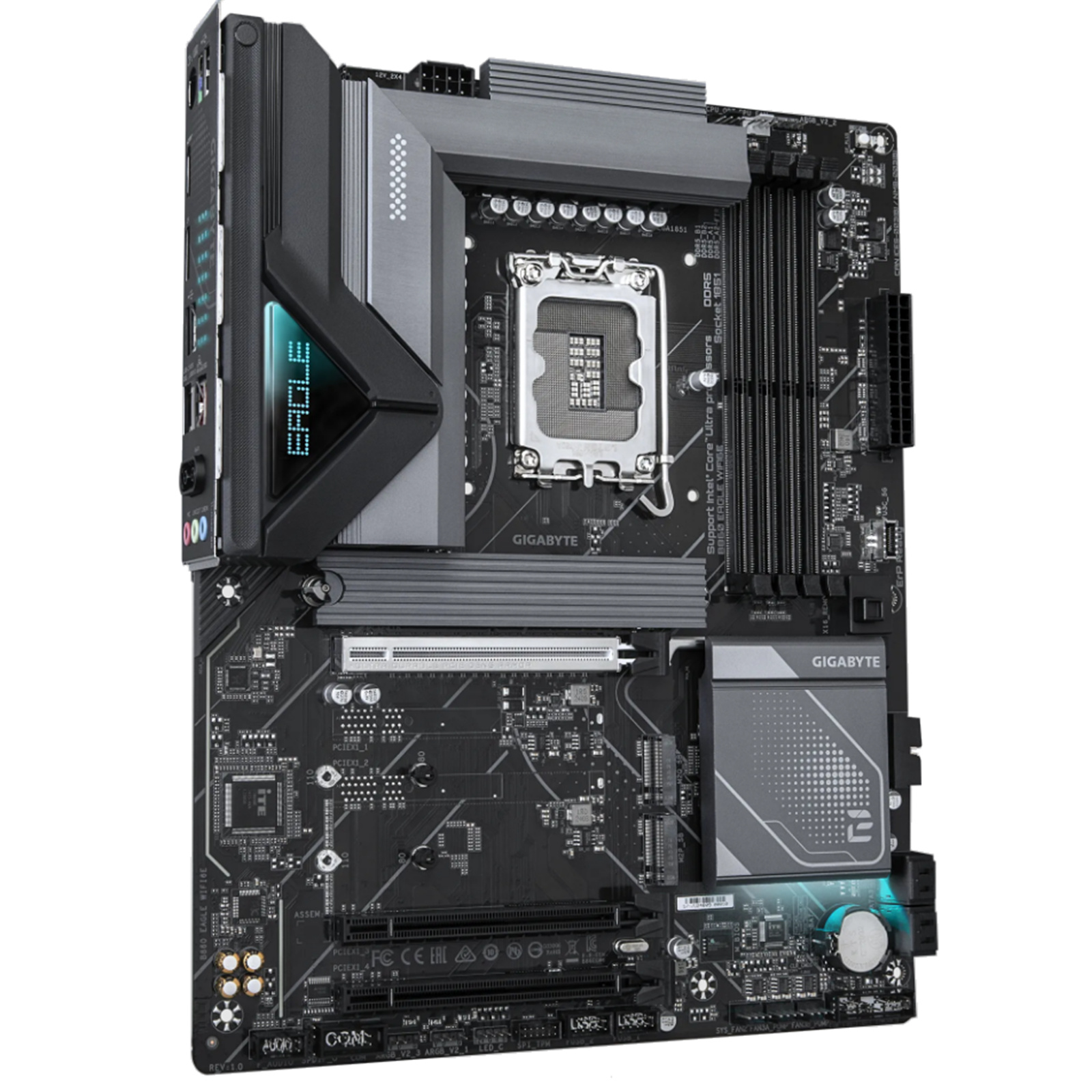

Gigabyte B860 EAGLE WIFI6E ATX Motherboard For Intel LGA1851 - B860 Chipset - 3x [B860 EAGLE WIFI6E]
2x

Gigabyte B860 EAGLE WIFI6E ATX Motherboard For Intel LGA1851 - B860 Chipset - 3x [B860 EAGLE WIFI6E]

Limited Stock!
Price
$378.40
Collect 756 Everyday Rewards points
2x points on every order when you spend $100+
Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply
Log in to MyDeal to link your card
Shipping
Unable to calculate delivery for , please Contact Us Delivery unavailable to Change

24-48 hour dispatch
Quantity
Maximum item limit (20) has been reached.

Gigabyte B860 EAGLE WIFI6E ATX Motherboard For Intel LGA1851 - B860 Chipset - 3x M.2, 4x DDR5, 2x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Header, Wifi 6E + BT

Infinite Memory Performance
Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Steady Power
Better Play GAMING Series, steady power keeps your gaming smooth.
Hybrid Digital VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.

Comprehensive Thermal
GAMING motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
4X larger surface area for enhanced heat dissipation
- With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance.
Multi-cut design with channels for improved airflow
- More grooves, more airflow.
- Better airflow, cooler system.
True one-piece heatsink design
- Outperforms competitors' multi-piece solutions
- Integrated design and expanded surface area deliver exceptional cooling performance

M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

RL-ILM design
The RL-ILM (Reduced Load-independent loading mechanisms) significantly improves thermal performance up to 4°C and avoids possible bending of the CPU IHS (integrated heat spreader), allowing overclockers and enthusiasts to push their CPUs beyond the limit without any worries.

Smart Fan 6
Superior cooling performance and whisper-quiet operation for your gaming rig.

Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

Future Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

Born from Ultra Durableâ„¢
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.

CPU
LGA1851 socket: Support for Intel ® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset
Intel ® B860 Express Chipset
Memory
Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_3/4)
Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB headers
- 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

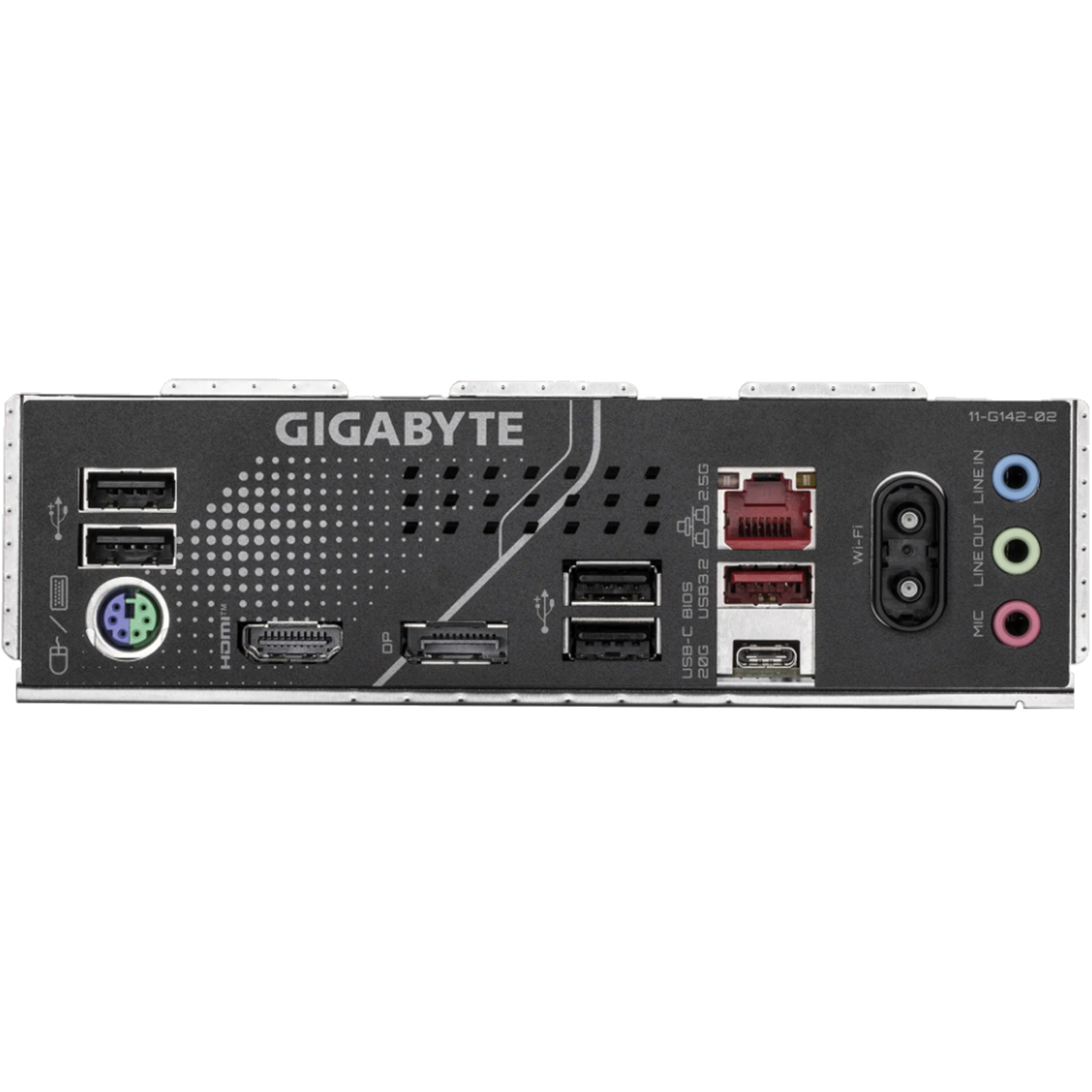

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU.
I/O Controller
iTE®I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
* The Intel® NPU driver is only supported on Windows 11.
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
- MPN: B860 EAGLE WIFI6E
GTIN: 889523046203
