FritsJurgens FJS3+ System 3 Fully Sprung Concealed Pivot Set

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned.

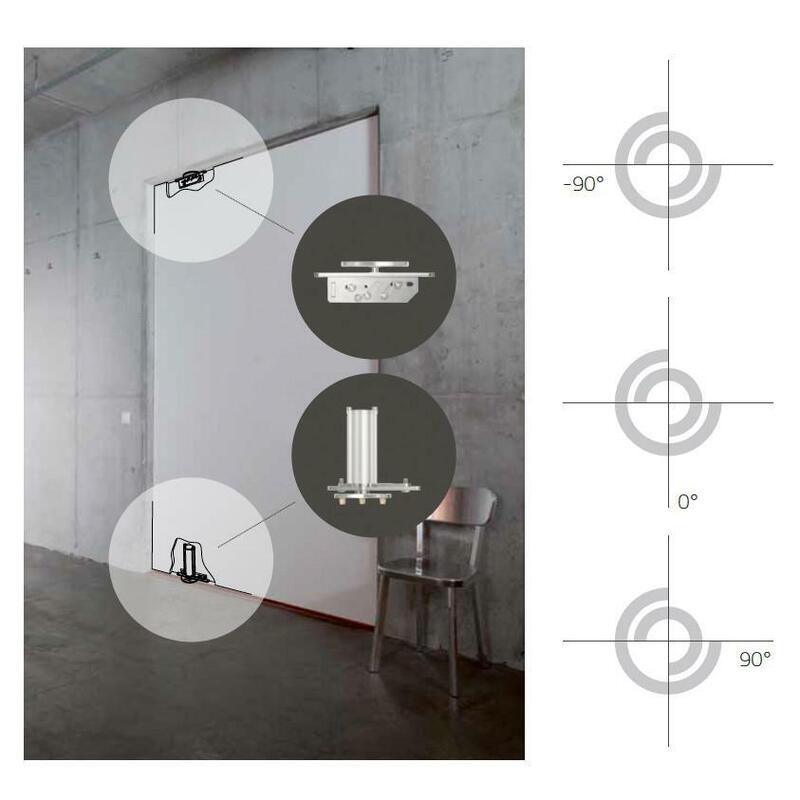

Perfection all around with the System 3 pivoting door hinge of FritsJurgens. FritsJurgens System 3 pivoting door hinge has three functions: rotation, closing and hold positions. System 3 can turn through 360? and is characterised by a hold position at every quarter of a circle.

Features:

• No structural elements in floor and ceiling
• Load-bearing capacity: up to 500 kg
• Minimum door thickness: 40mm
• Quick and simple to install
• Maintenance free
• For new and existing situations
• Easily adjustable with the door in place
• Suitable for timber, steel, framed glass and massive cladded doors
• For double action doors
• For internal and external doors
• For commercial and residential environments
• Hold positions at 0?, 90?, 180? and 270?
• Self-opening
• Self-closing
• Patented spring system

Specifications:

• Max Door Weight: 500kg
• Max Door Weight at closing force: 40kg, 70kg, 110kg, and 200kg
• Max Door Width: 1300mm, 1600mm, 2000mm, and 3000mm

Each Set Includes:

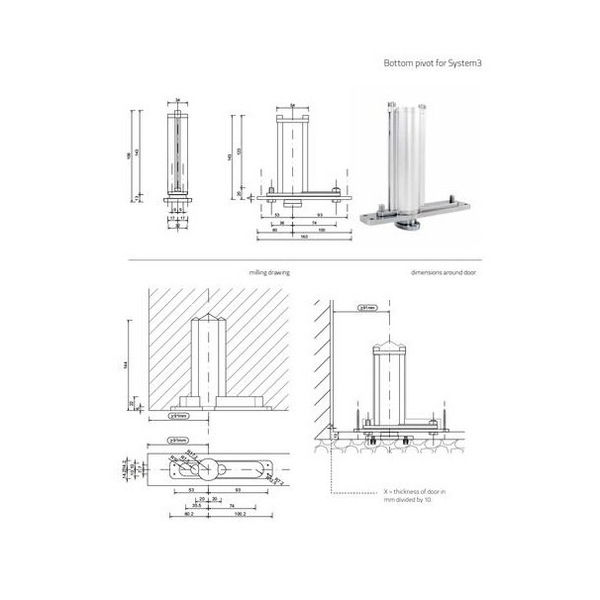

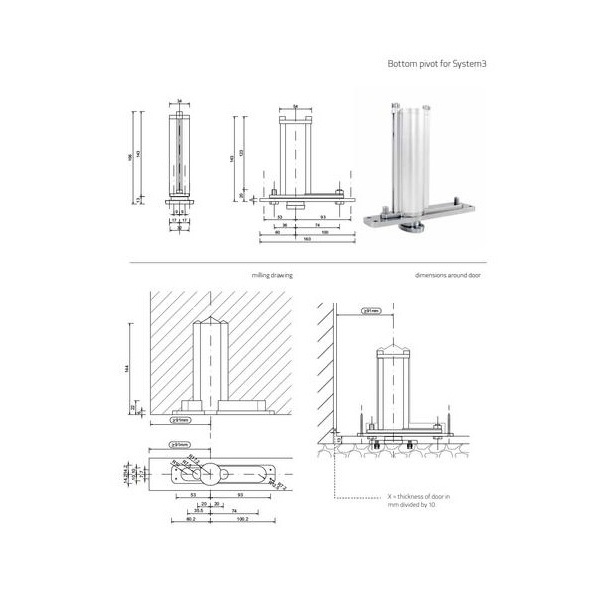

• 1 x bottom pivot
• 1 x FJATC9001 top pivot
• 1 x FJPP6040T ceiling plate
• 1 x FJVP8040B floor plate
• 1 x S01 adjustment spanner
• 1 x fitting template
• 1 x fitting adhesive
• 1 x fitting instructions
• 1 x 250mm allen key
