FLUKE 115 CAT III 600V AC DC Voltage Current Resistance Capacitance Multimeter

FLUKE 115 CAT III 600V AC DC Voltage Current Resistance Capacitance Multimeter

Hurry! 1 items left!

Price	$379.90
	Collect 379 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	See delivery details

Quantity

Add to wishlist

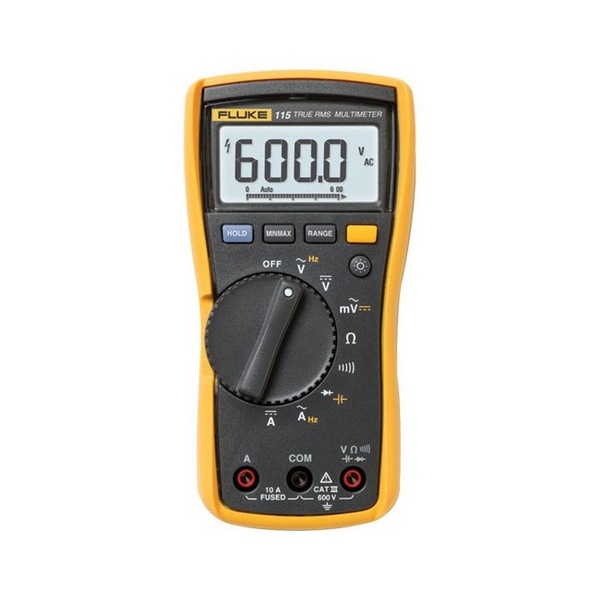

Fluke 115 Multimeter

Compact true-rms meter for field service technicians. The Fluke 115 is the solution for a wide variety of electrical and electronic testing applications.

Large white LED backlight to work in poorly lit areas
Resistance and continuity
Min/Max/Average to record signal fluctuations
CAT III 600 V safety rated

Safety conformance:
All inputs are protected to CE, IEN61010-1 CAT III 600V. UL, CSA, TÜV listed and VDE.

Specifications

Maximum voltage between any terminaland earth ground

600 V

Surge protection

6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2

Display

Digital:

6,000 counts, updates 4 per second

Bar graph

33 segments, updates 32 per second

Operating Temperature

-10 °C to + 50 °C

Storage Temperature

-40 °C to + 60 °C

Battery type

9 volt Alkaline, NEDA 1604A/ IEC 6LR61

Battery Life

400 hours typical, without backlight

Accuracy Specifications

DC millivolts

Range:	600.0 mV
Resolution:	0.1 mV
Accuracy:	± ([% of reading] + [counts]): 0.5% + 2

DC volts

Range/Resolution:	6.000 V / 0.001 V
Range/Resolution:	60.00 V / 0.01 V
Range/Resolution:	600.00 V / 0.1 V
Accuracy:	± ([% of reading] + [counts]): 0.5% + 2

AC millivolts1 true-rms

Range:	600.0 mV
Resolution:	0.1 mV
Accuracy:	1.0 % + 3 (dc, 45 Hz to 500 Hz)2.0 % + 3(500 Hz to 1 kHz)

AC volts1 true-rms

Range/Resolution:	6.000 V / 0.001 V
Range/Resolution:	60.00 V / 0.01 V
Range/Resolution:	600.0 V / 0.1 V
Accuracy:	1.0 % + 3 (dc, 45 Hz to 500 Hz)2.0 % + 3(500 Hz to 1 kHz)

Continuity

Range:	600 Ω
Resolution:	1 Ω
Accuracy:	Beeper on < 20 Ω, off > 250 Ω; detectsopens or shorts of 500 μs or longer.

Ohms

Range/Resolution:	600.0 Ω / 0.1 Ω
Range/Resolution:	6.000 kΩ / 0.001 kΩ
Range/Resolution:	60.00 kΩ / 0.01 kΩ
Range/Resolution:	600.0 kΩ / 0.1 kΩ
Range/Resolution:	6.000 MΩ / 0.001 MΩ
Accuracy:	0.9 % + 1
Range/Resolution:	40.00 MΩ / 0.01 MΩ
Accuracy:	1.5 % + 2

Diode Test

Range/Resolution:	2.00 V / 0.001 V
Accuracy:	0.9% + 2

Capacitance

Range/Resolution:	1000 nF / 1 nF
Range/Resolution:	10.00 µF / 0.01 µF
Range/Resolution:	100.0 µF / 0.1 µF
Range/Resolution:	9999 µF / 1 µF
Range/Resolution:	100 µF to 1000 µF
Accuracy:	1.9% + 2
Range/Resolution:	> 1000 µF
Accuracy:	5% + 20%

Lo-Z Capacitance

Range:	1 nF to 500 µF
Accuracy:	10% + 2 typical

AC amps true-rms (45 Hz to 500Hz)

Range/Resolution:	6.000 A / 0.001 A
Range/Resolution:	10.00 A / 0.01 A
Accuracy:	1.5% + 3
	20 A overload for 30-seconds max

DC amps

Range/Resolution:	6.000 A / 0.001 A
Range/Resolution:	10.00 A / 0.01 A
Accuracy:	1.0% + 3
	20 A overload for 30-seconds max

Hz (V or A input)2

Range/Resolution:	99.99 Hz / 0.01 Hz
Range/Resolution:	999.9 Hz / 0.01 Hz
Range/Resolution:	9.999 kHz / 0.001 kHz
Range/Resolution:	50 kHz / 0.01 kHz
Accuracy:	0.1% + 2

Notes:
1) All ac voltage ranges exept Auto - V / Lo-Z are specified from 1% to 100% of range. Auto - V / Lo-Z is s?nk1S11P

Specifications:

12 Months

GTIN: 095969324182
