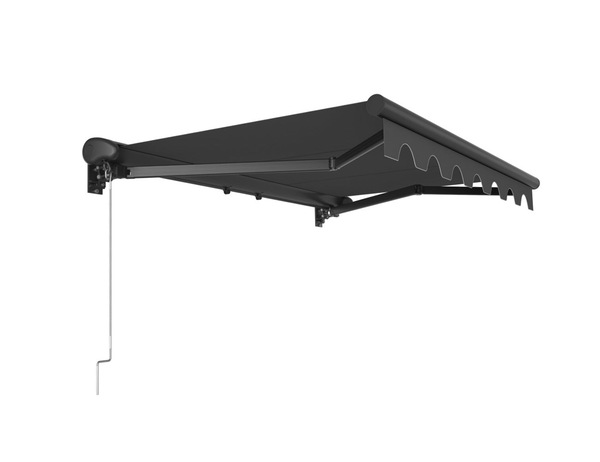

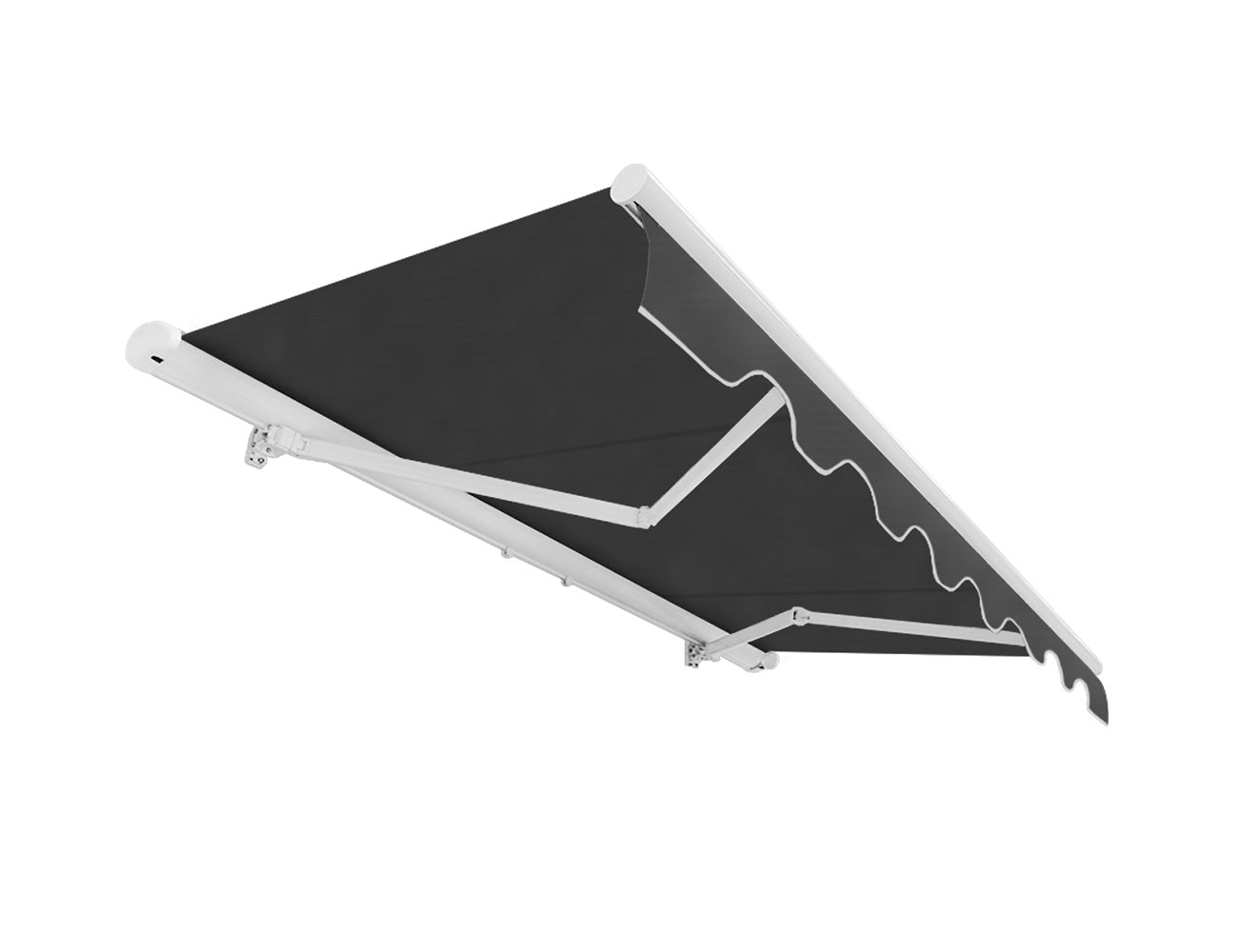

Etna Half Cassette Motorised Retractable Awning(valance removable)

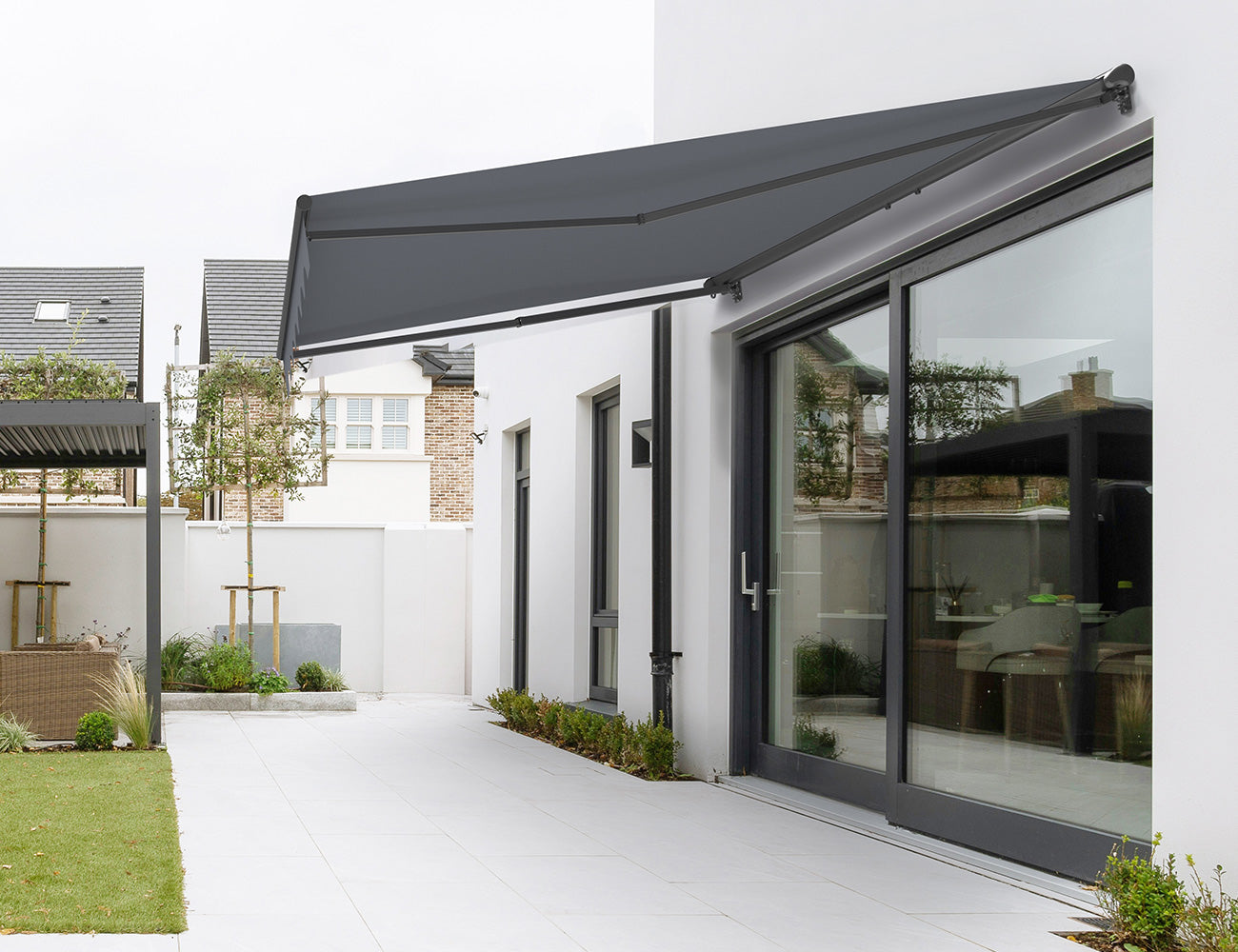

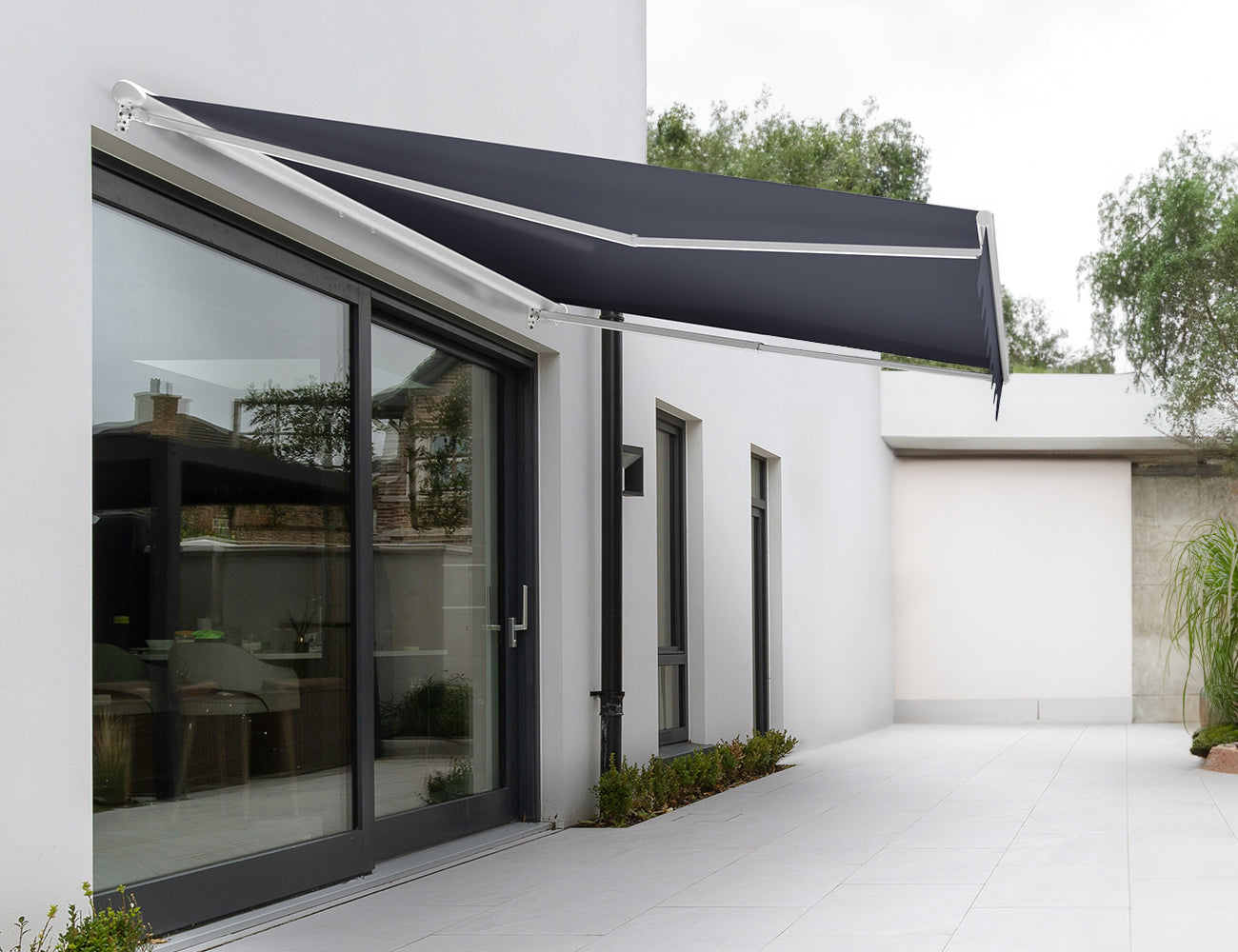

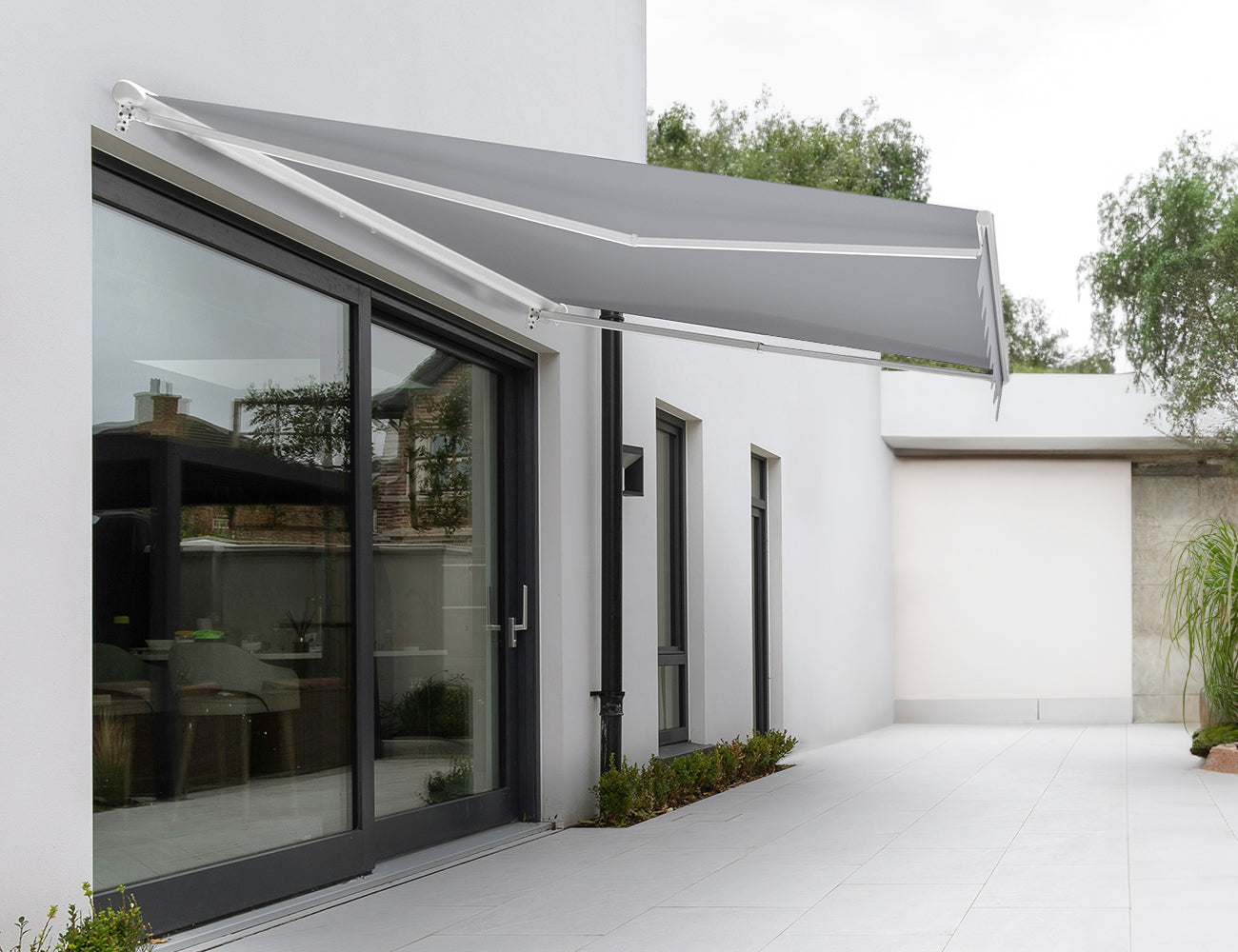

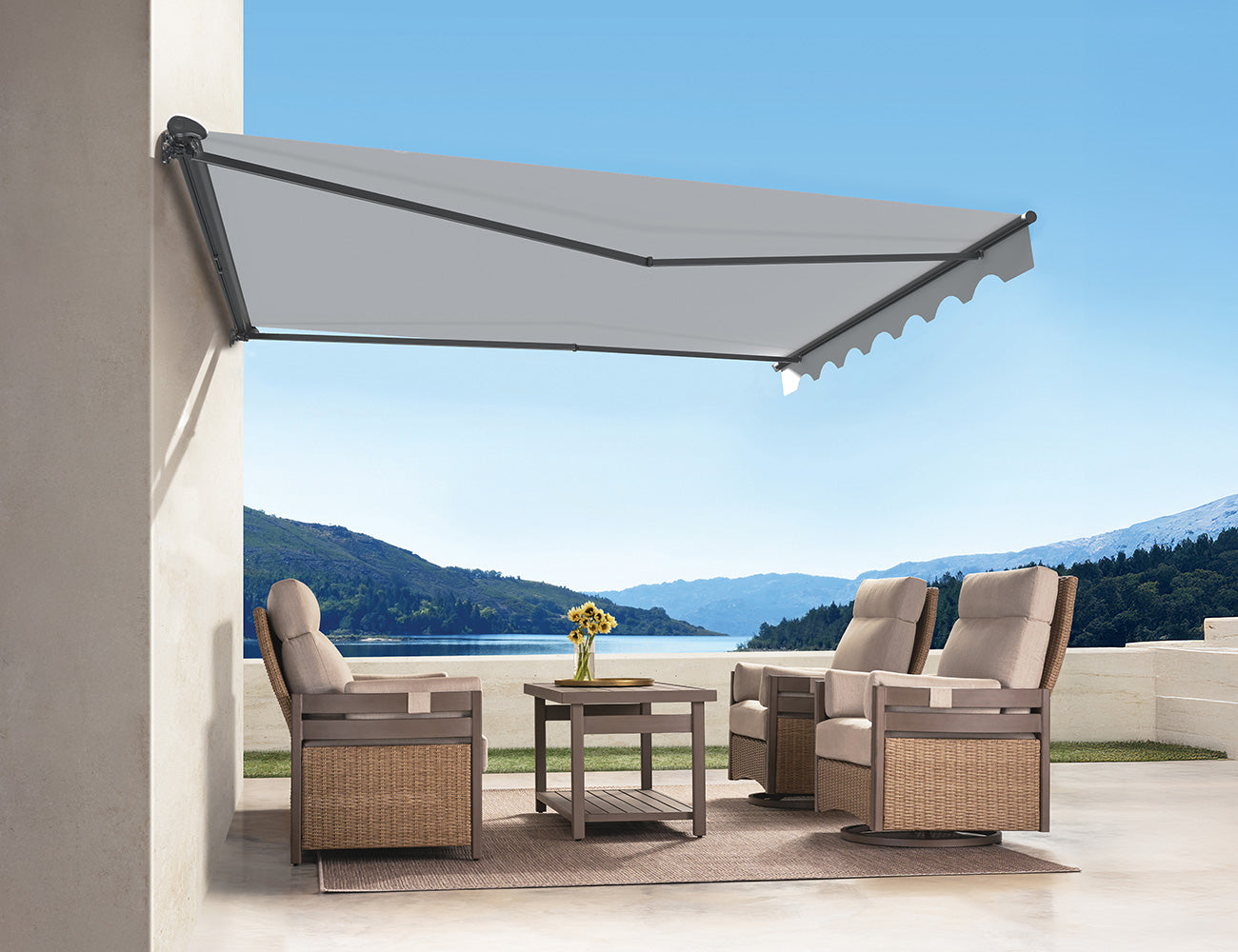

Shade your space in an instant with our half-cassette awning. Crafted to last, this awning has the ability to be fully retracted into a cover that protects it from the elements when it’s not in use. It’s perfect for mounting against a solid wall structure to create a reprieve from the sun’s UV rays mid-summer, or shielding your guests from unexpected showers.

 With a simple, sleek design, a half-cassette awning can be installed on concrete, solid brick, or wood walls, and seamlessly blends into any outdoor aesthetic. Made from high-quality materials, it’s a dream to keep clean and features built-in LED light strips, making it perfect for gatherings that last well past sunset. Invest in a lasting, functional design and purchase a half-cassette retractable awning now

Features:

• Half cassette cover for partial canopy protection
• Easy to clean and maintain
• Anti-UV, mildew and fade resistant fabric
• Canopy blocks 95% of light, and 99% of UV rays
• Adjustable angle: 0 - 30 degrees
• Can be installed on concrete, solid brick, or wood walls
• Up to 50km/h wind resistance
• 5-year warranty on the frame and electric motors
• Fade Resistant for 5 Year Minimum
• Fabric UV protection factor 50+
• Automatic light-off after awning is retracted

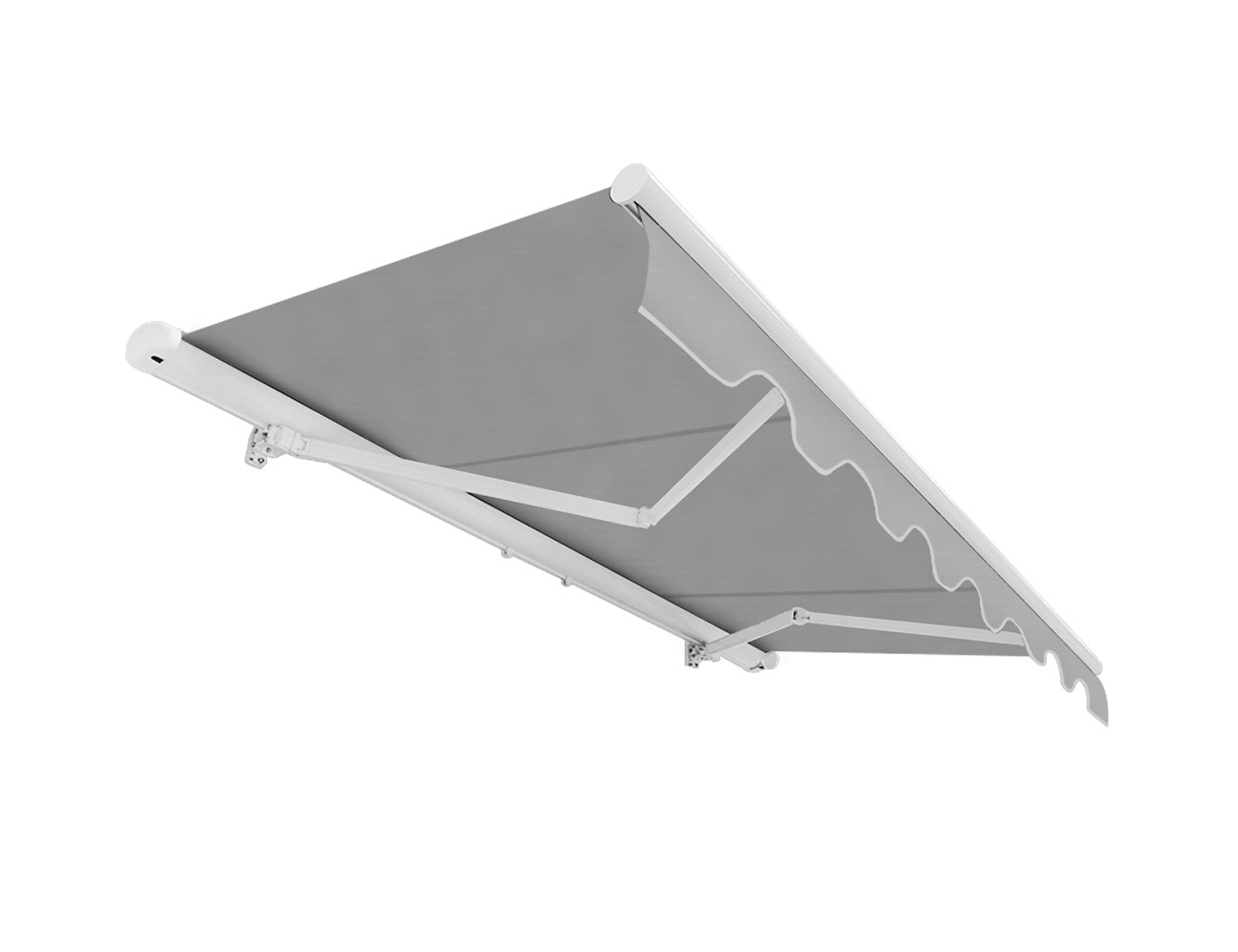

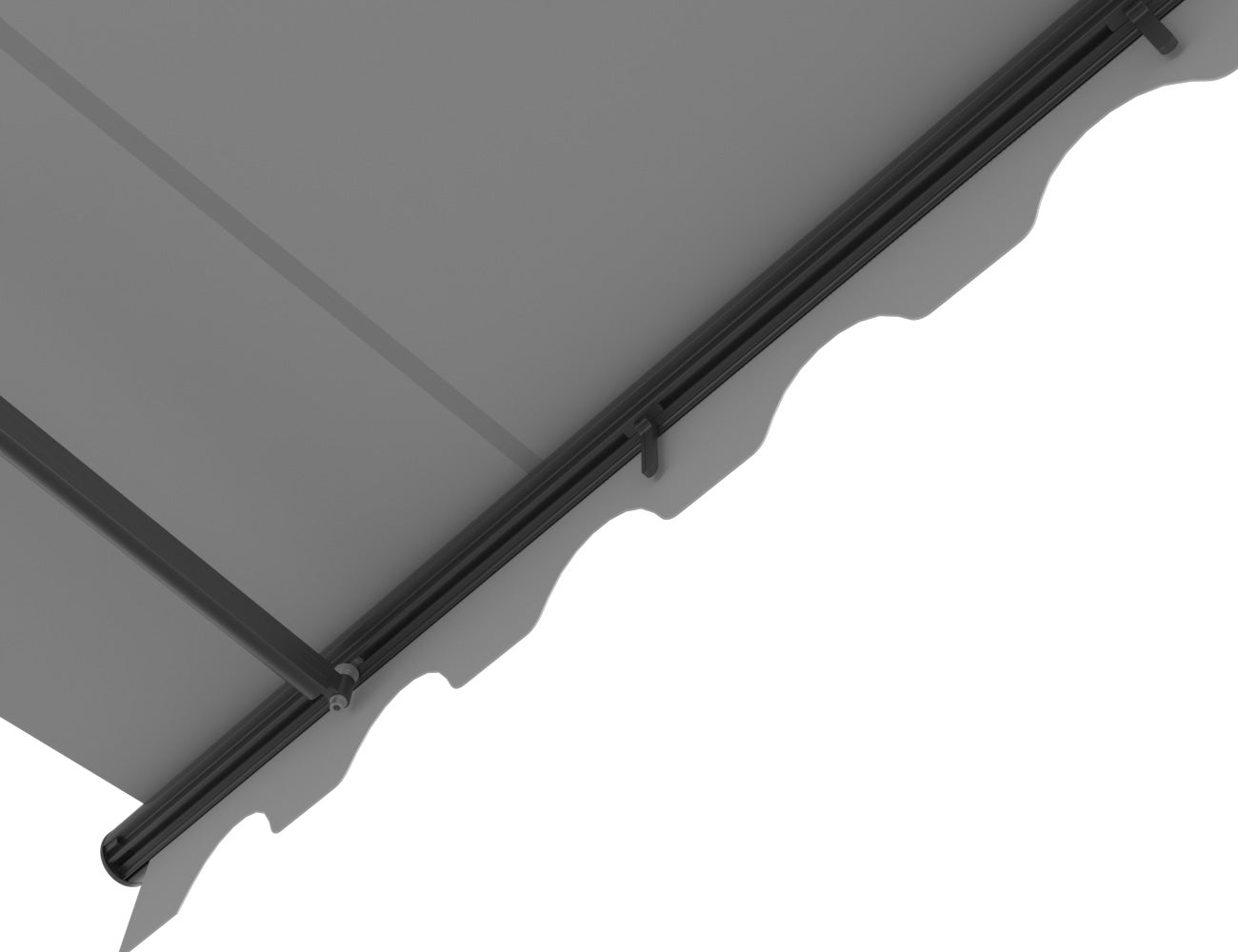

• The valance can be removed or attached with ease

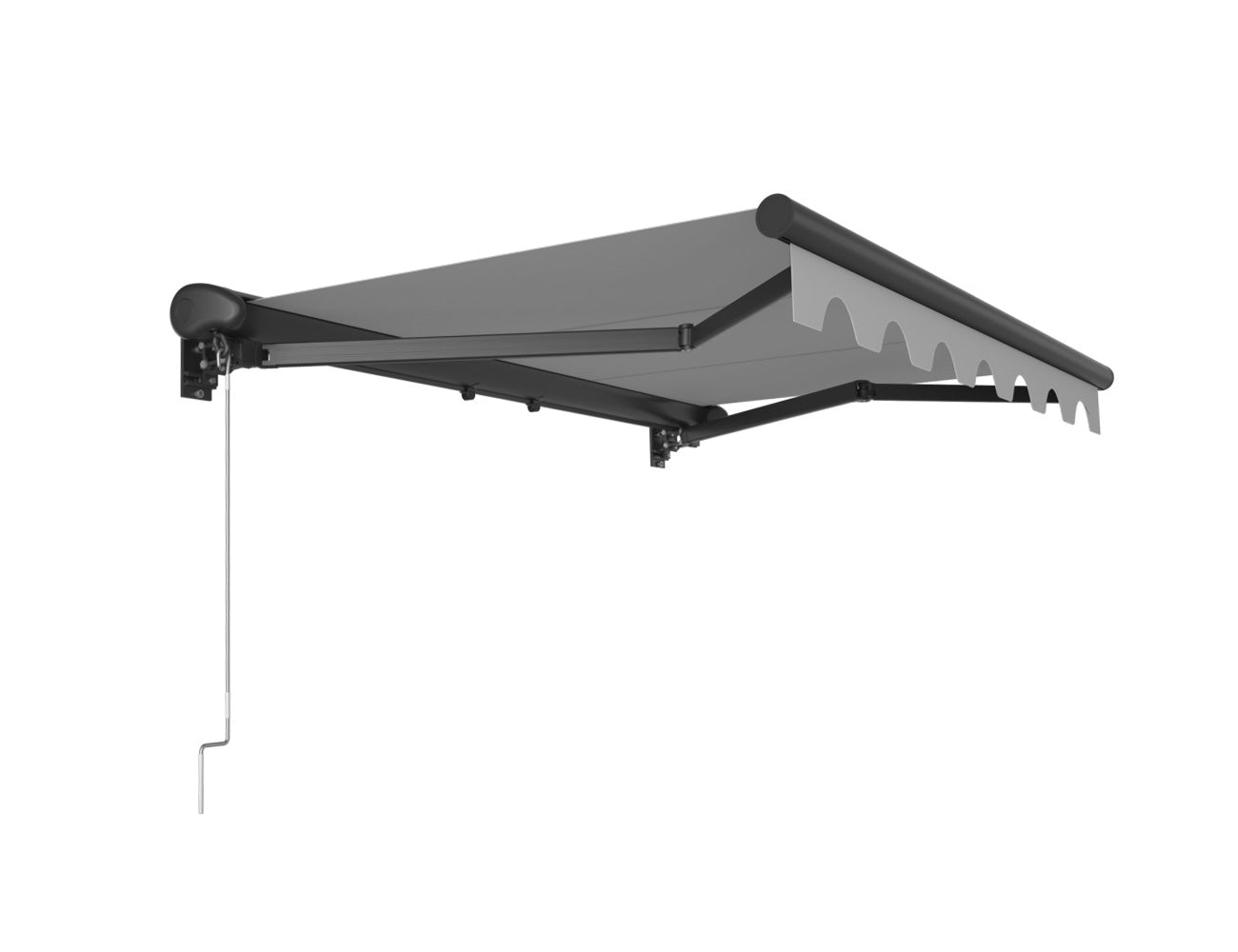

• When facing the awning, the hand crank and motor wires are on the left

Specifications:

• Frame Colour: White / Dark Grey

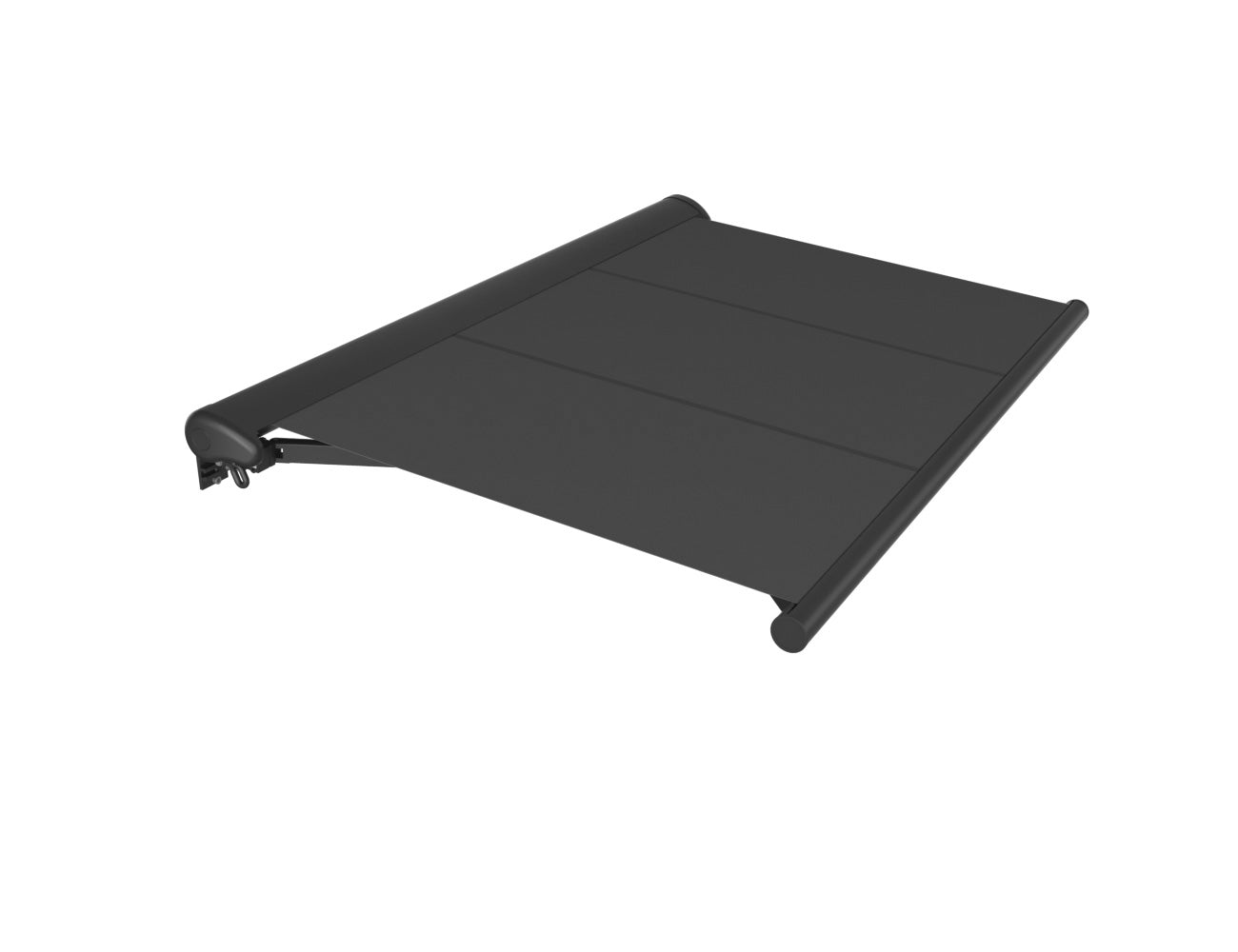

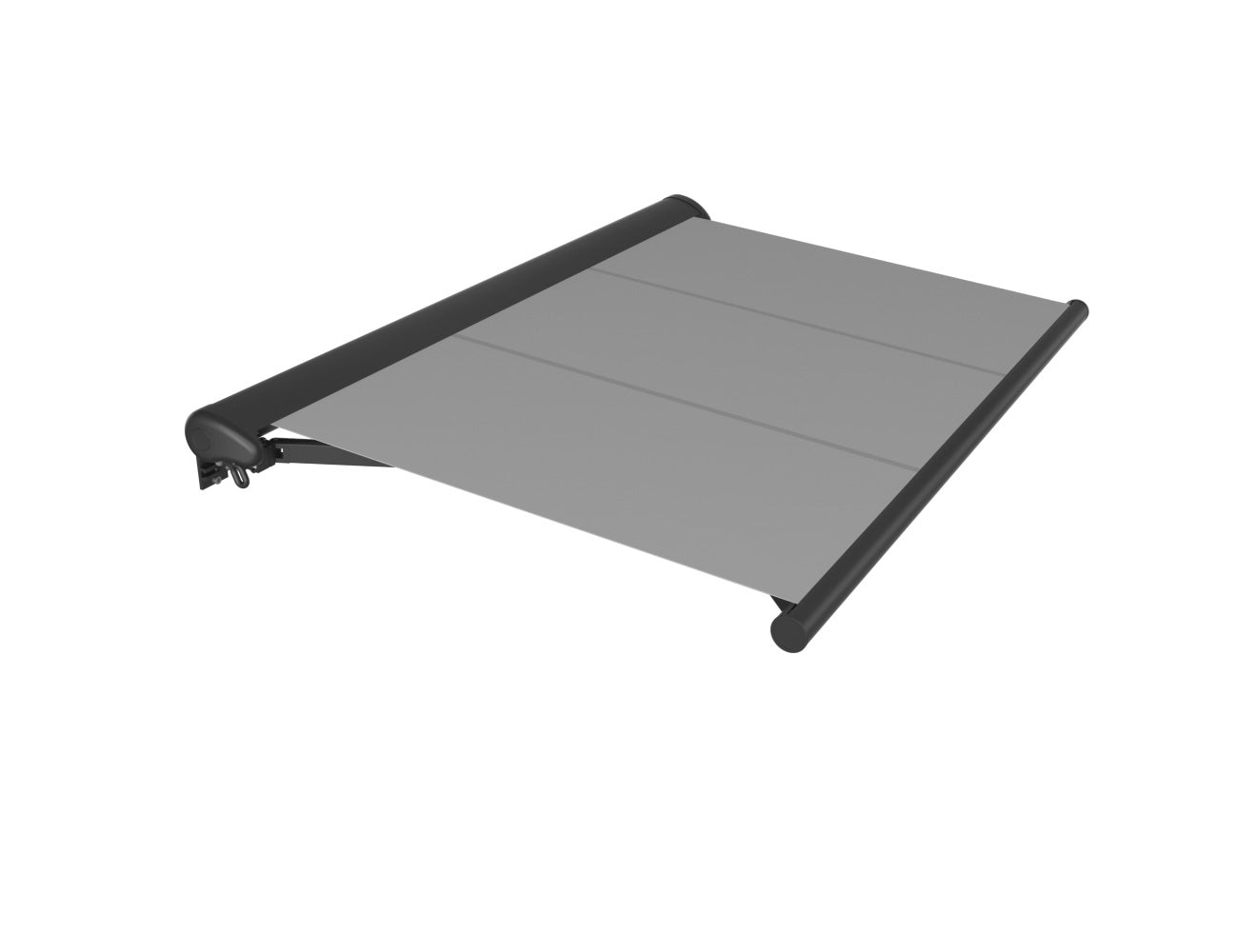

• Canopy Colour: Dark Grey / Light Grey

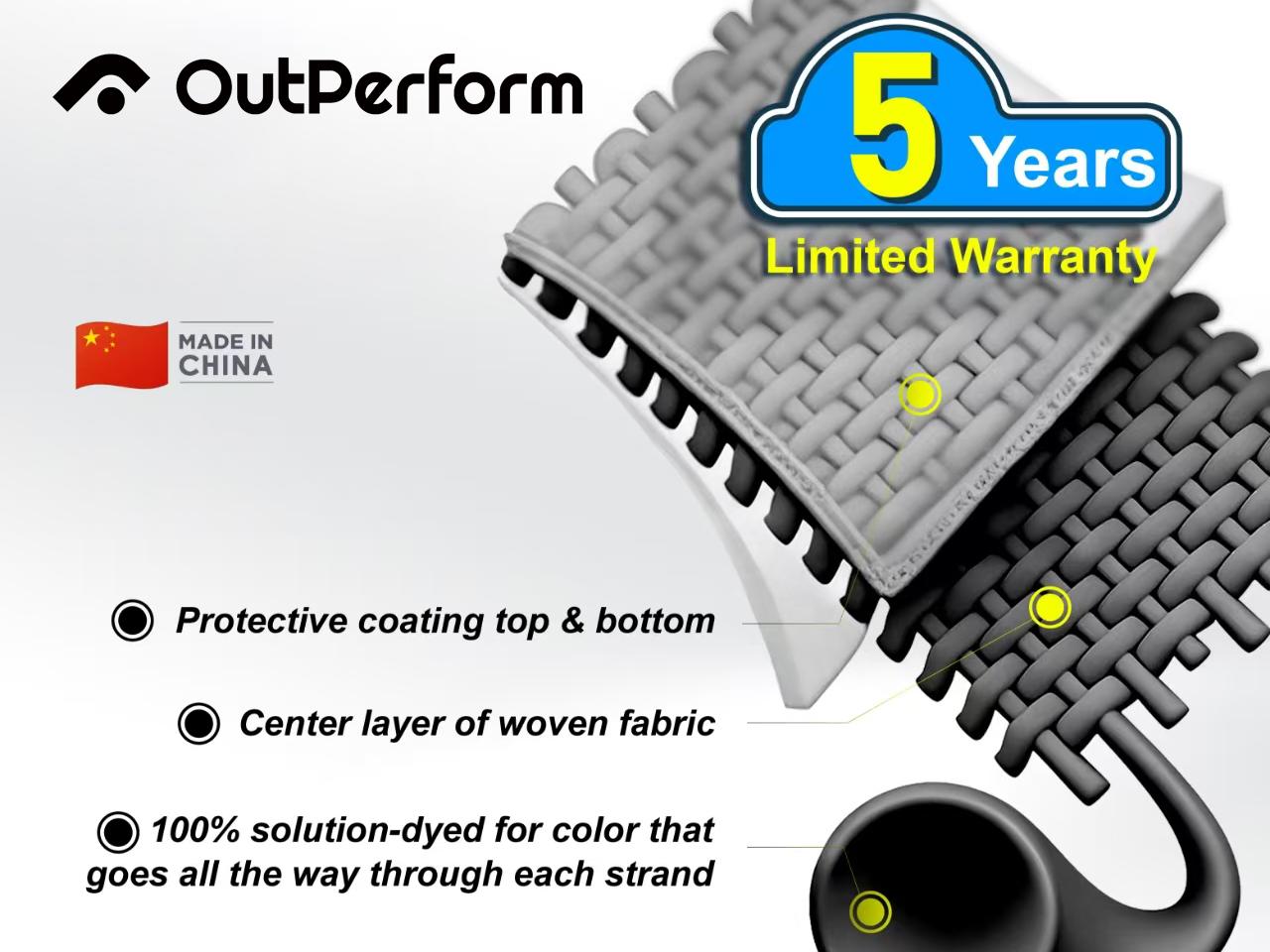

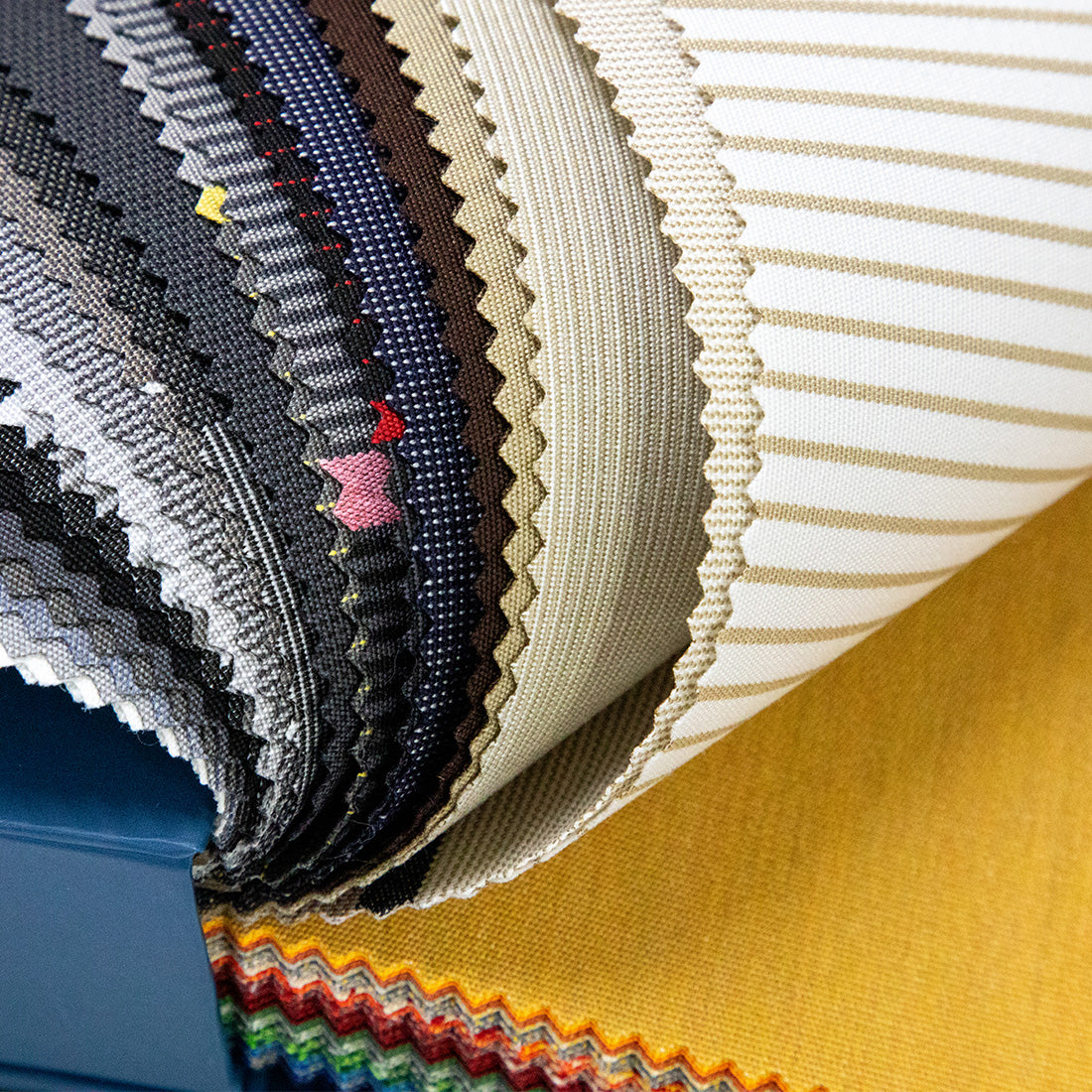

• Canopy Fabric: 100% Solution Dyed Acrylic Fabric(>280g/㎡)

• Frame Material: Powder Coated 6063-T5 Aluminium + Steel Roller Tube

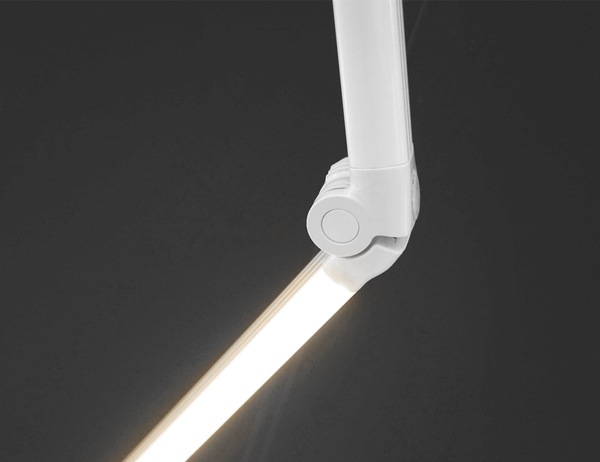

• LED Strip: 3000K warm light with adjustable brightness levels

• Lights: Built-in LED light system

• Operation: Remote control and manual

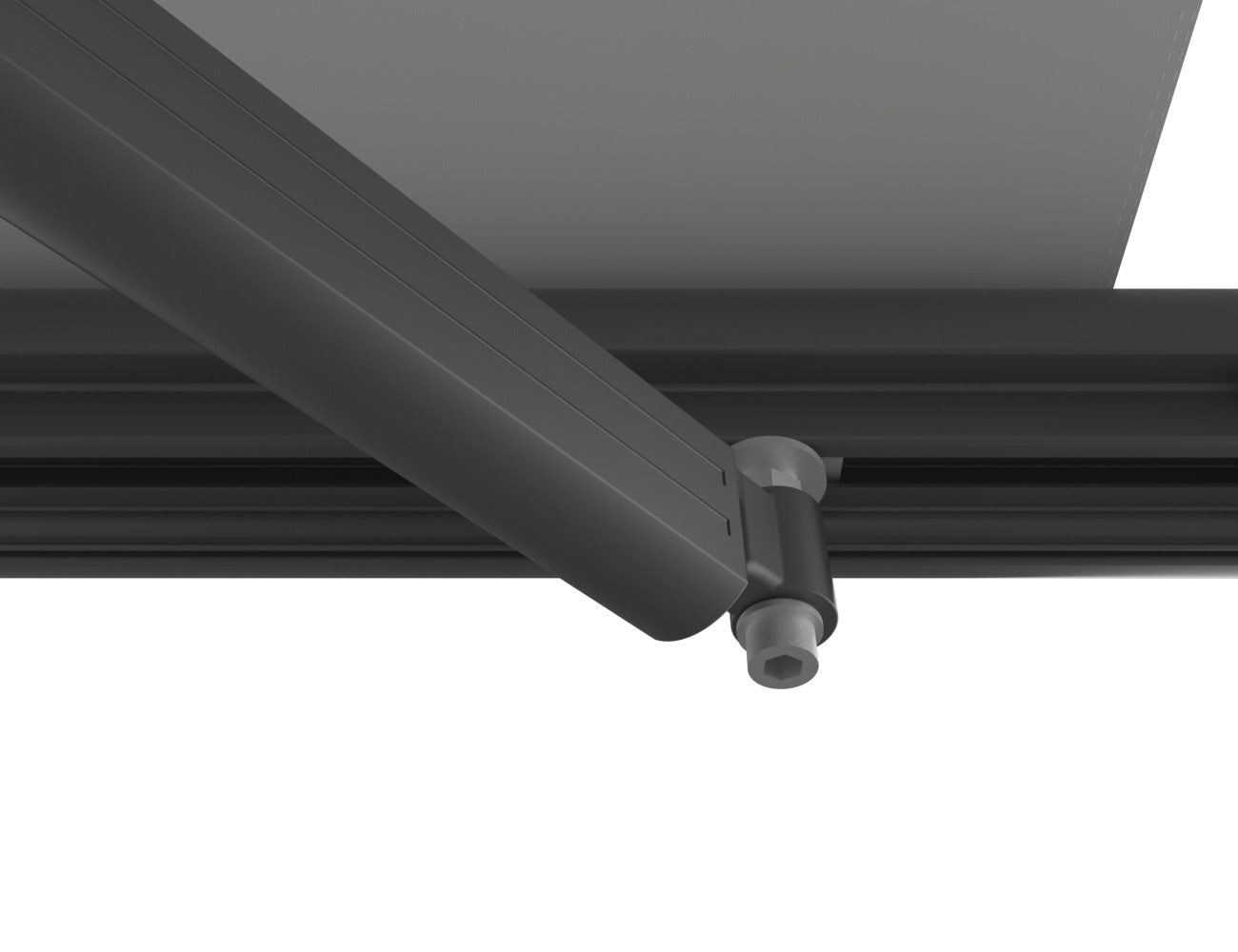

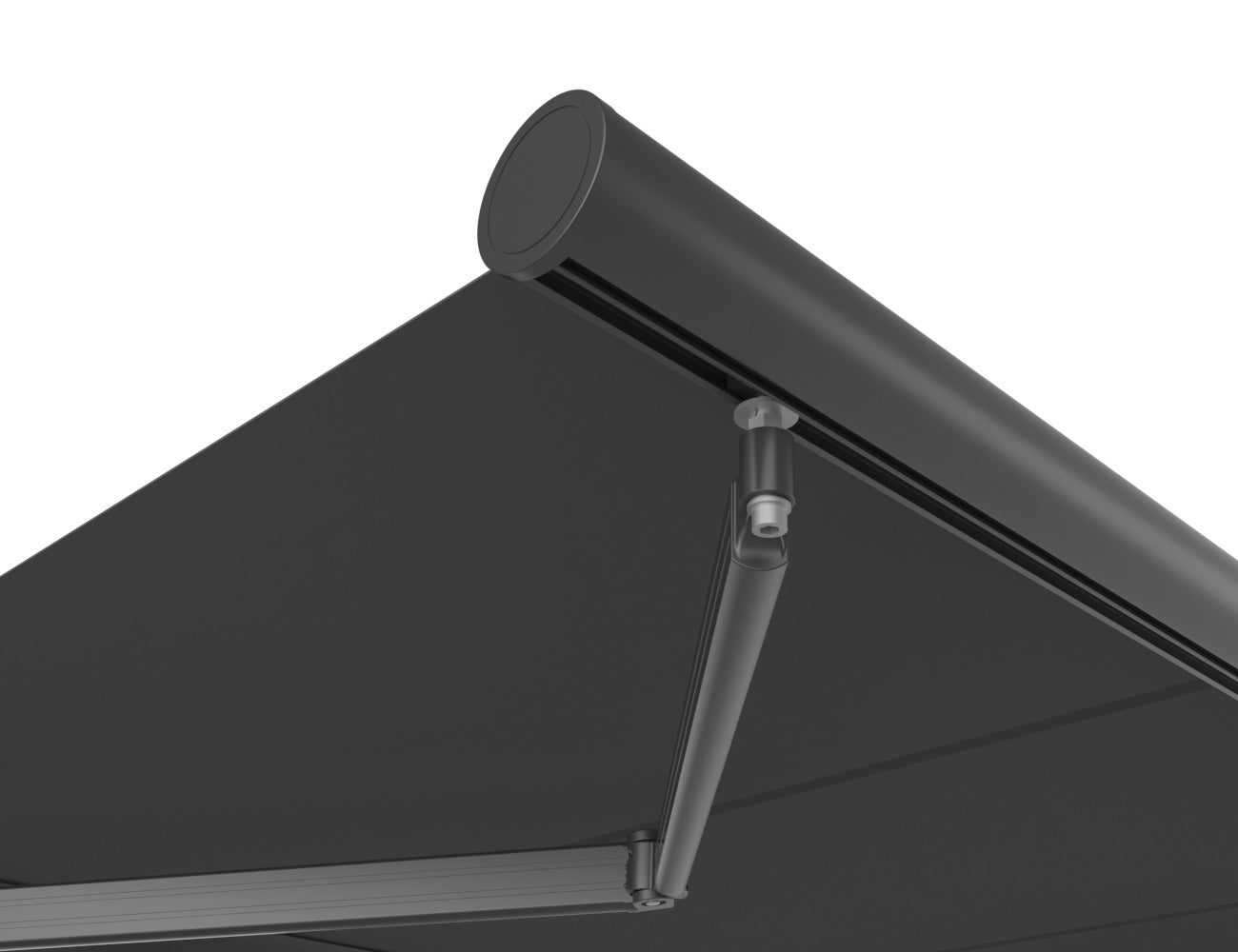

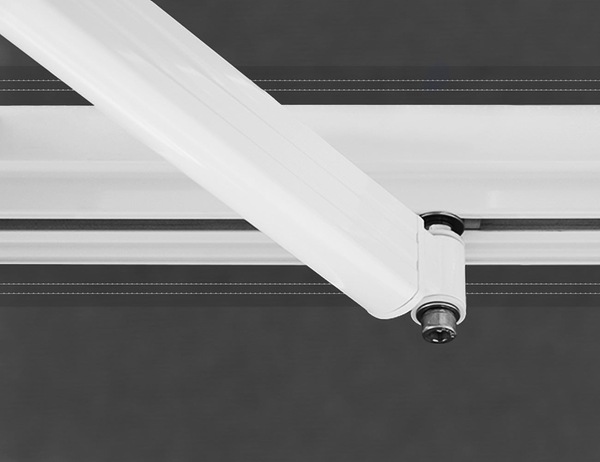

• Awning Arm Dimensions:  Small Arm: 52 x 28 x 2.5mm Big Arm: 61 x 33 x 3mm

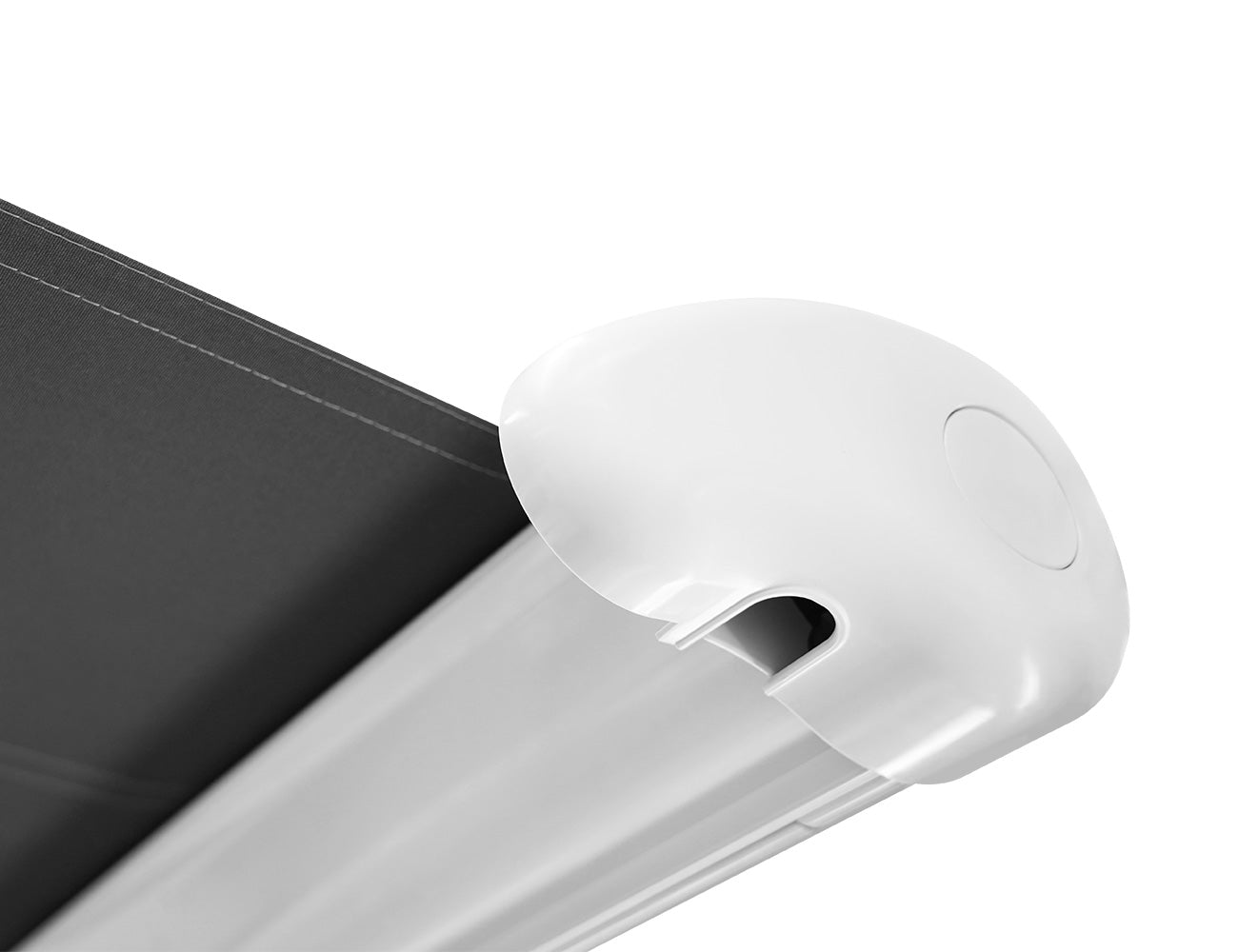

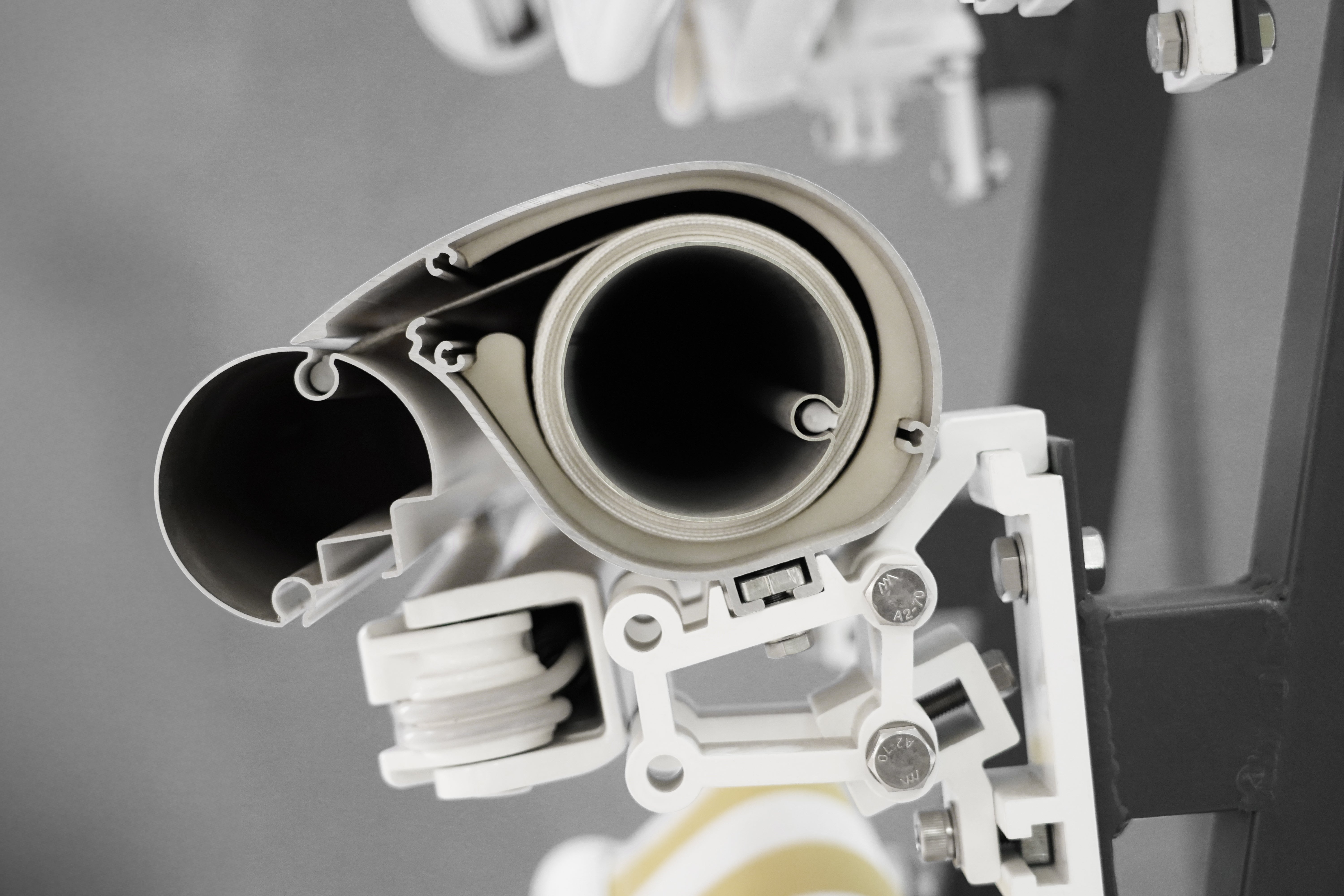

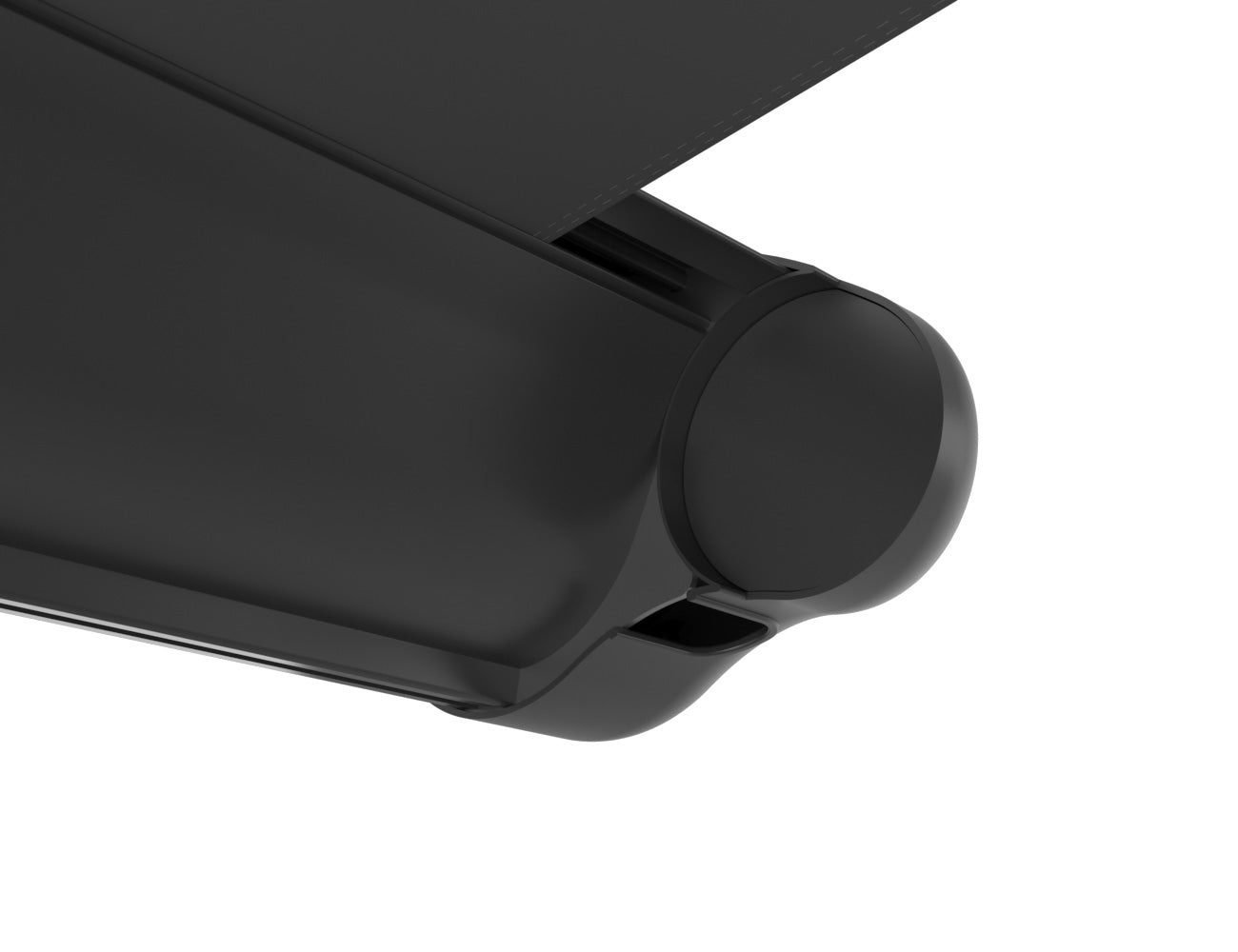

• Cassette Cover Dimensions: 180 x 120 x 2.2mm

• Roller Tube Diameter: 70mm

• Roller Tube Thickness: 1mm

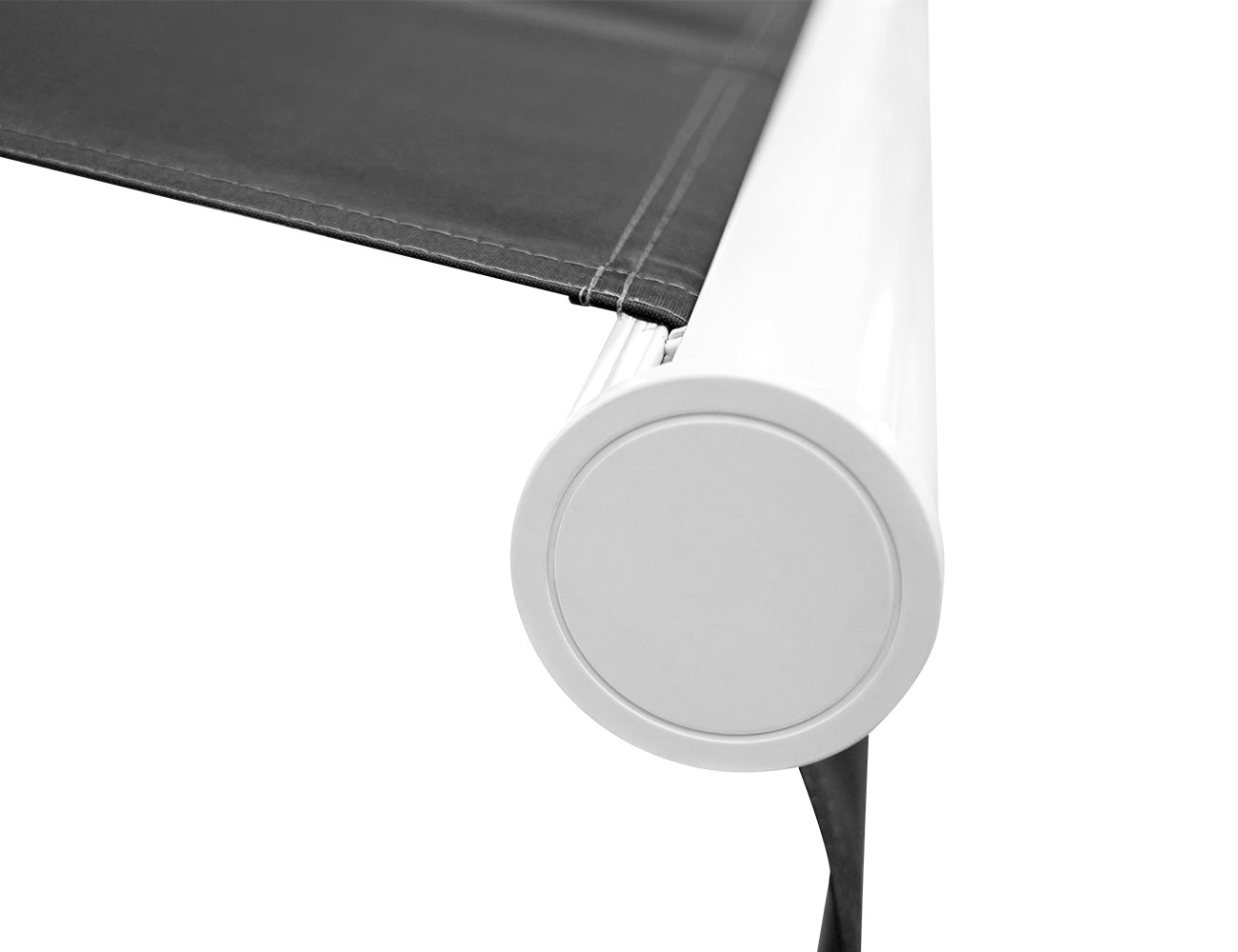

• Front Beam Dimensions: 78 x 78 x 2.2mm

• Wind resistance: Up to 50km/h
• Motor Type: Wistar® Motor

• Motor Waterproof Grade: IP44

• Power: 230V / 50Hz

• Power Cable: 1.5m

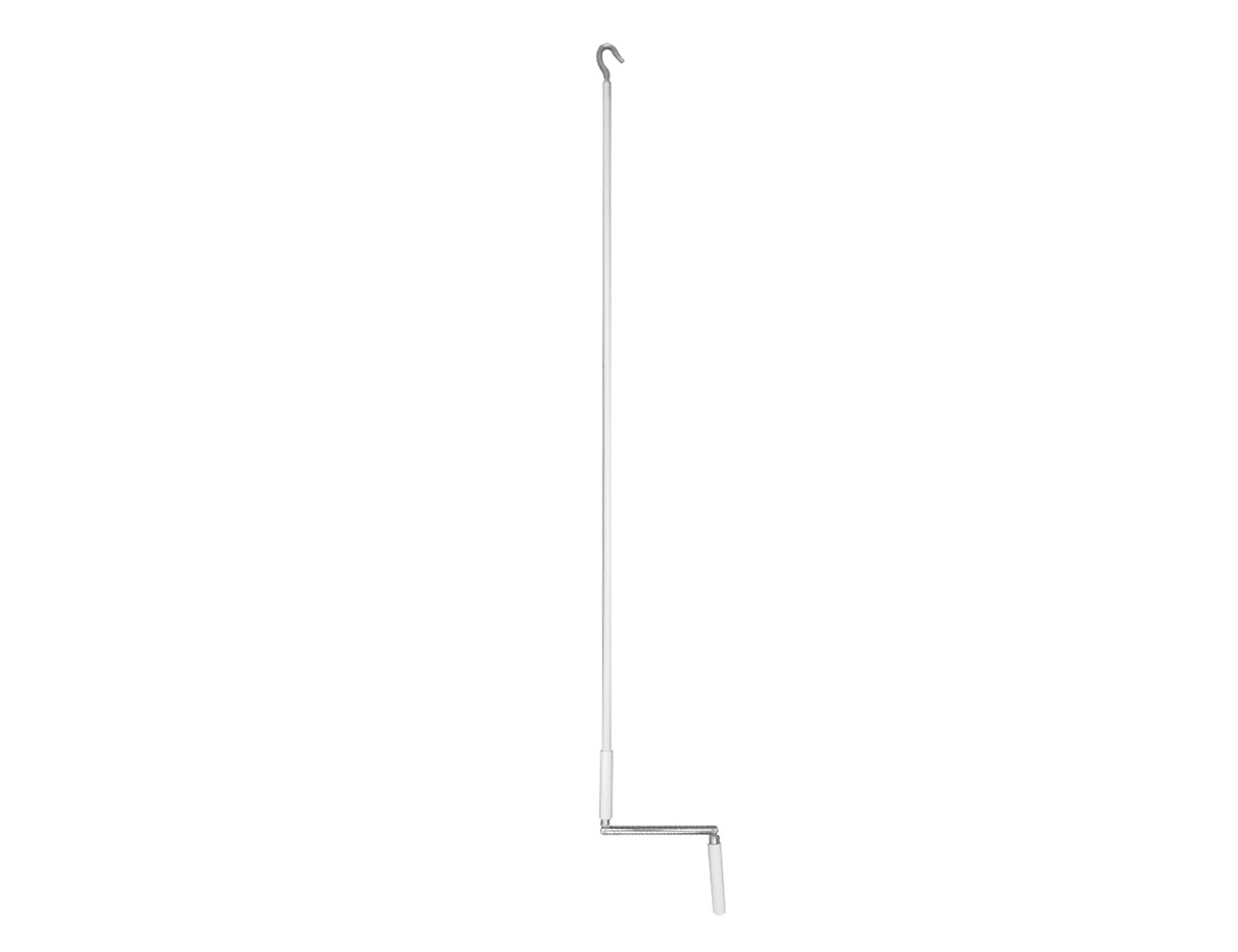

• Hand Crank Length: 1.5m

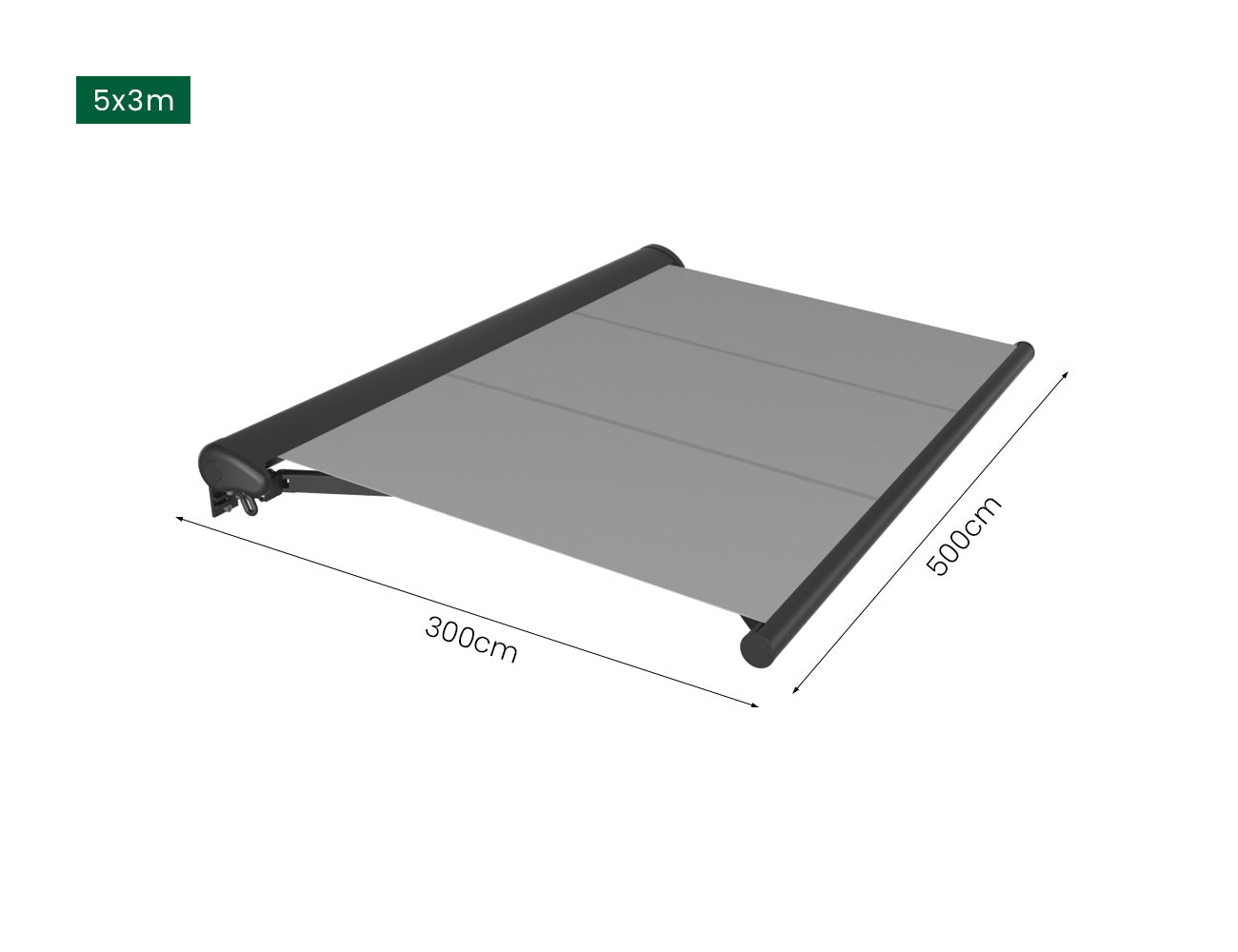

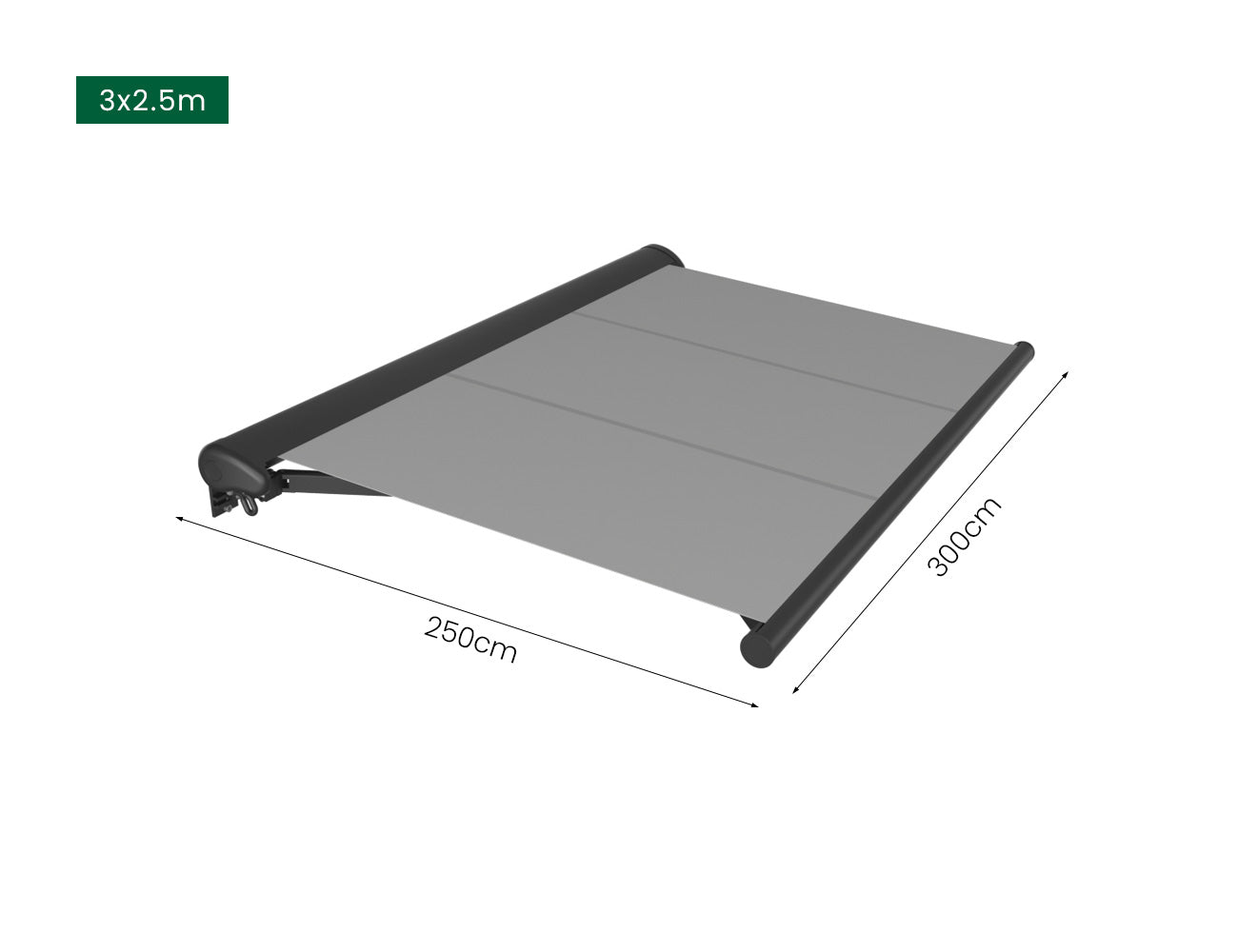

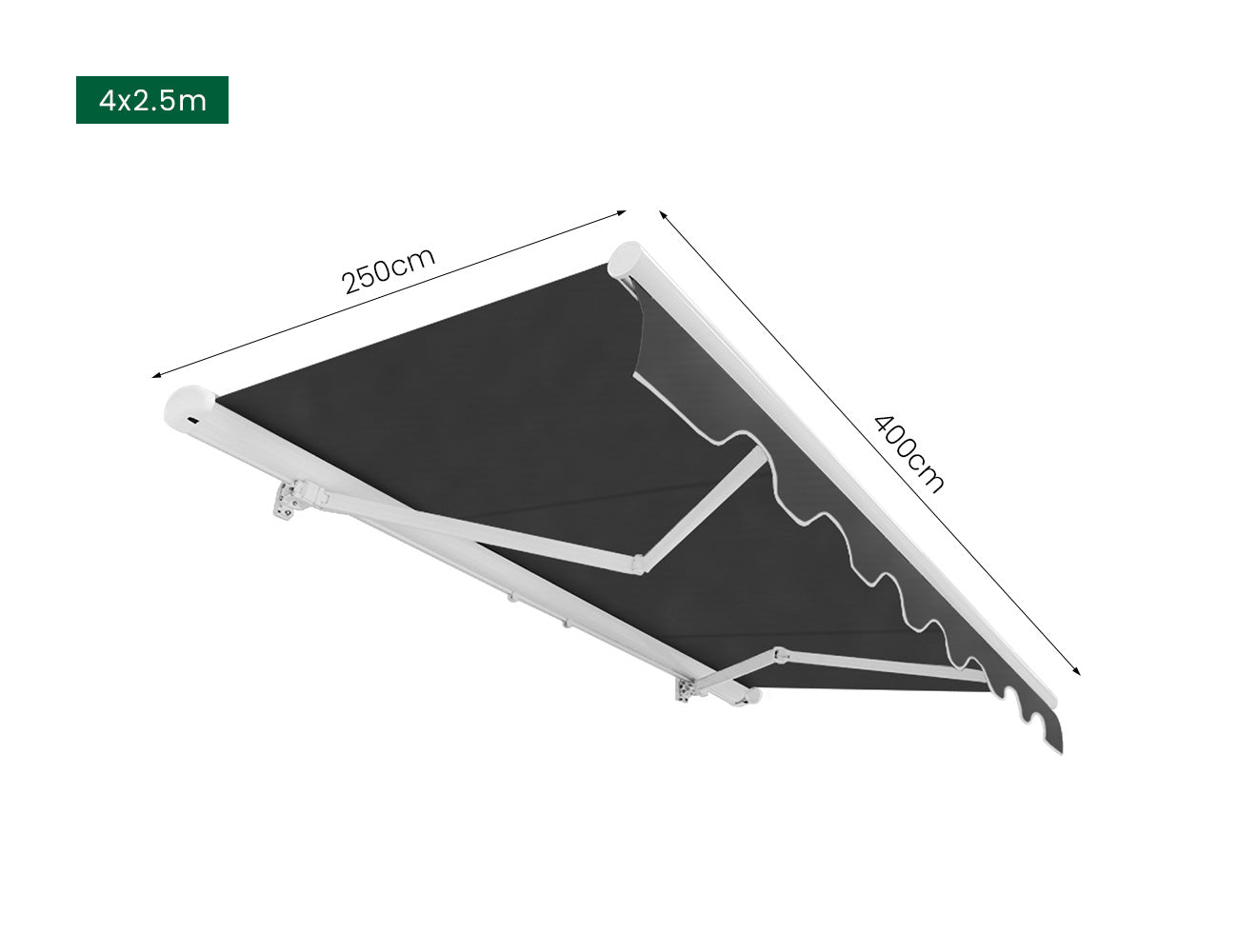

• Product Dimensions: 300 x 250cm / 400 x 250cm / 500 x 300cm

• Net Weight: 3m x 2.5m, 47kg  4m x 2.5m, 56kg  5m x 3m, 62kg
• Packing: One package
• Packaging Dimensions and Weight: 3m x 2.5m Package : 309x 31 x 23cm, 55kg  4m x 2.5m Package: 409x 31 x 23cm, 65.5kg  5m x 3m Package : 509x 31 x 23cm, 72kg

Package Contents:

• 1 x Half Cassette Retractable Awning
• 1 x Manual Crank
• 1 x Hand Crank Connector
• 1 x Motor Limit Adjusting Rod

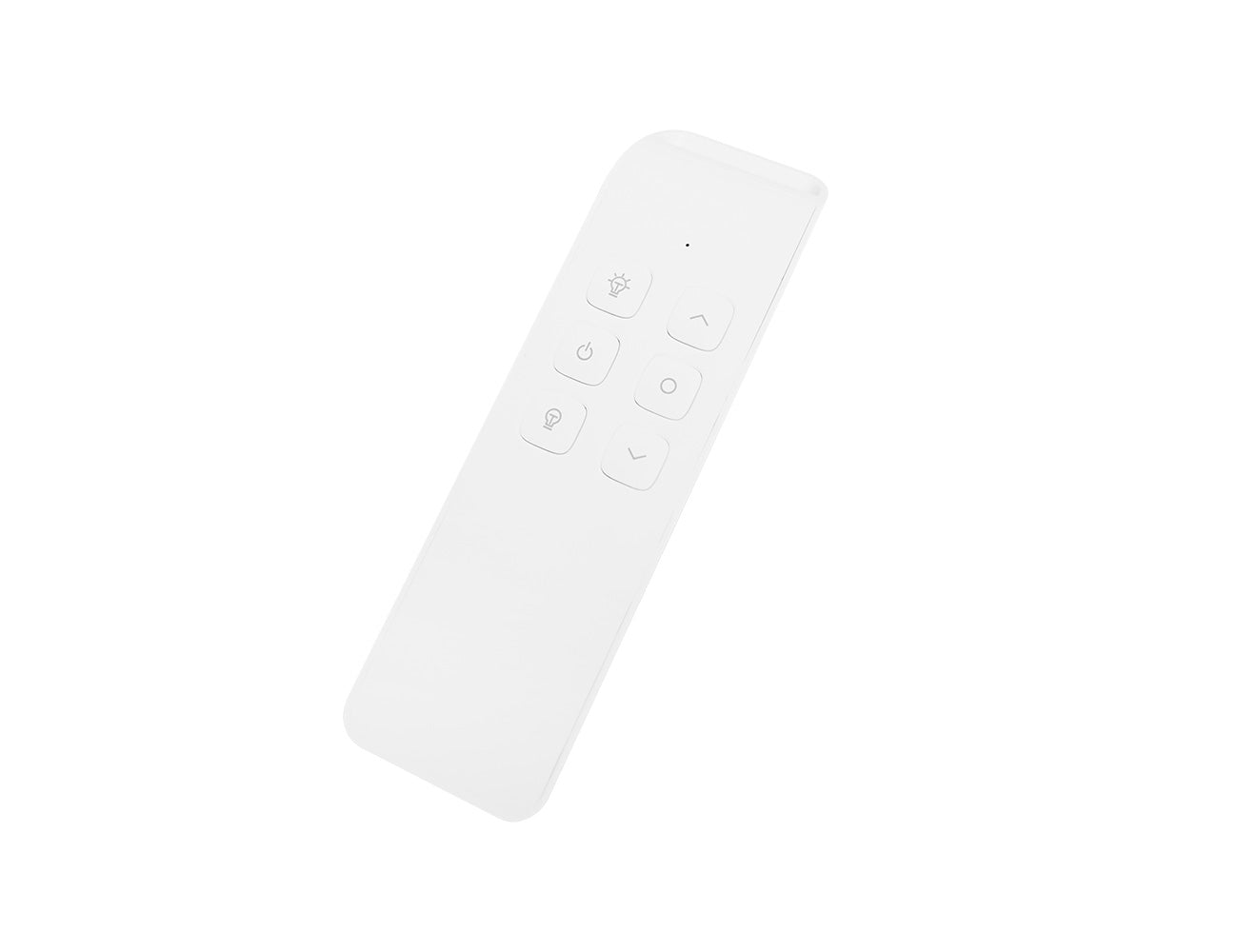

• 1 x Remote Control

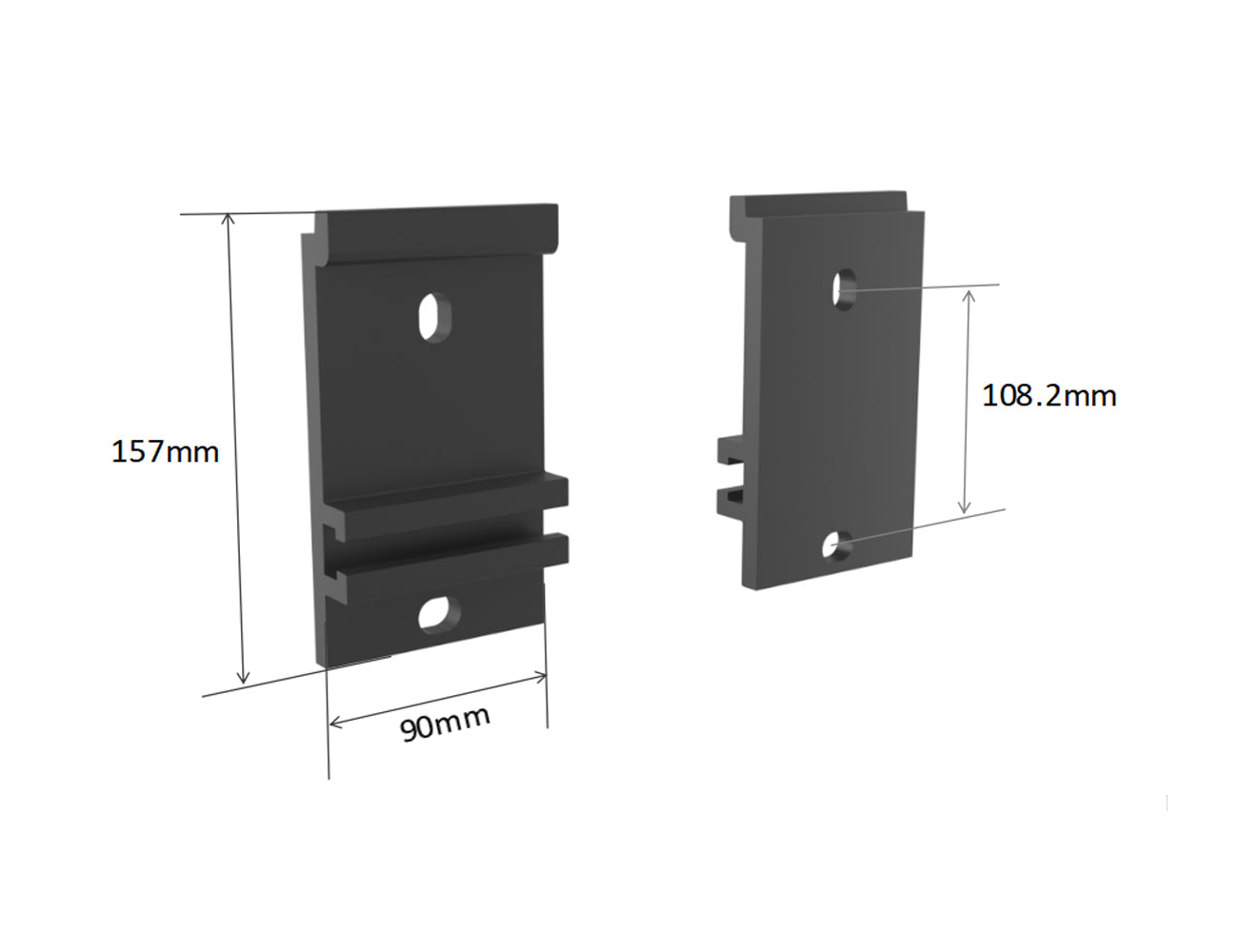

• 2 x Wall Brackets
• 4 x Expansion Bolts
• 4 x Lag Bolts
• 1 x Instruction Manual

Click to download:  installation manual

Click to download:  remote control recode manual

Click to download:  awning fabric options brochure

Click to download:  luxi living VS other brand -fabric roll comparison
