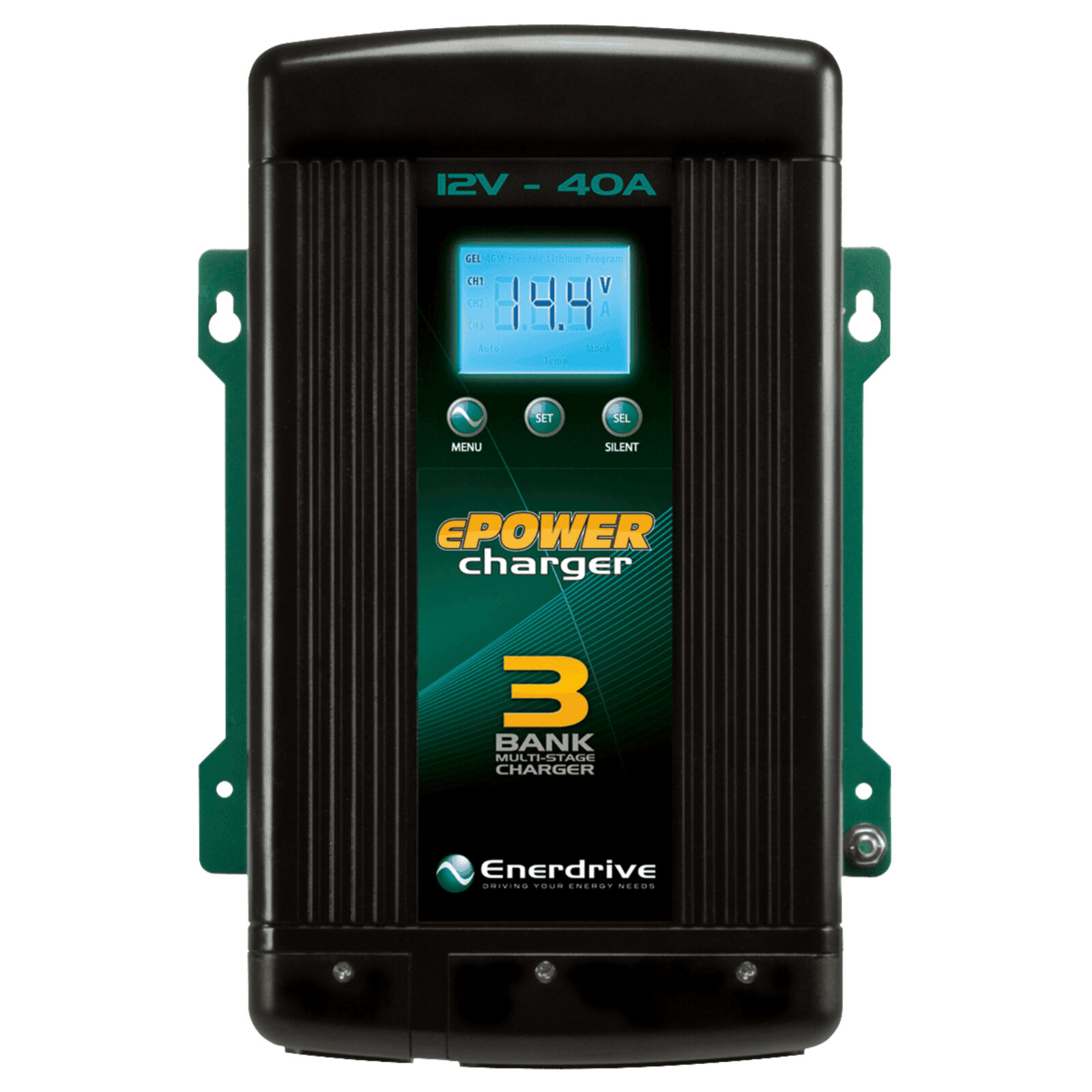

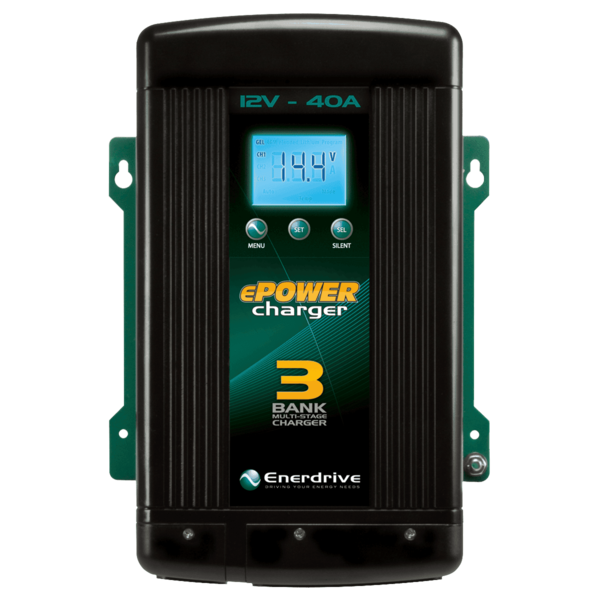

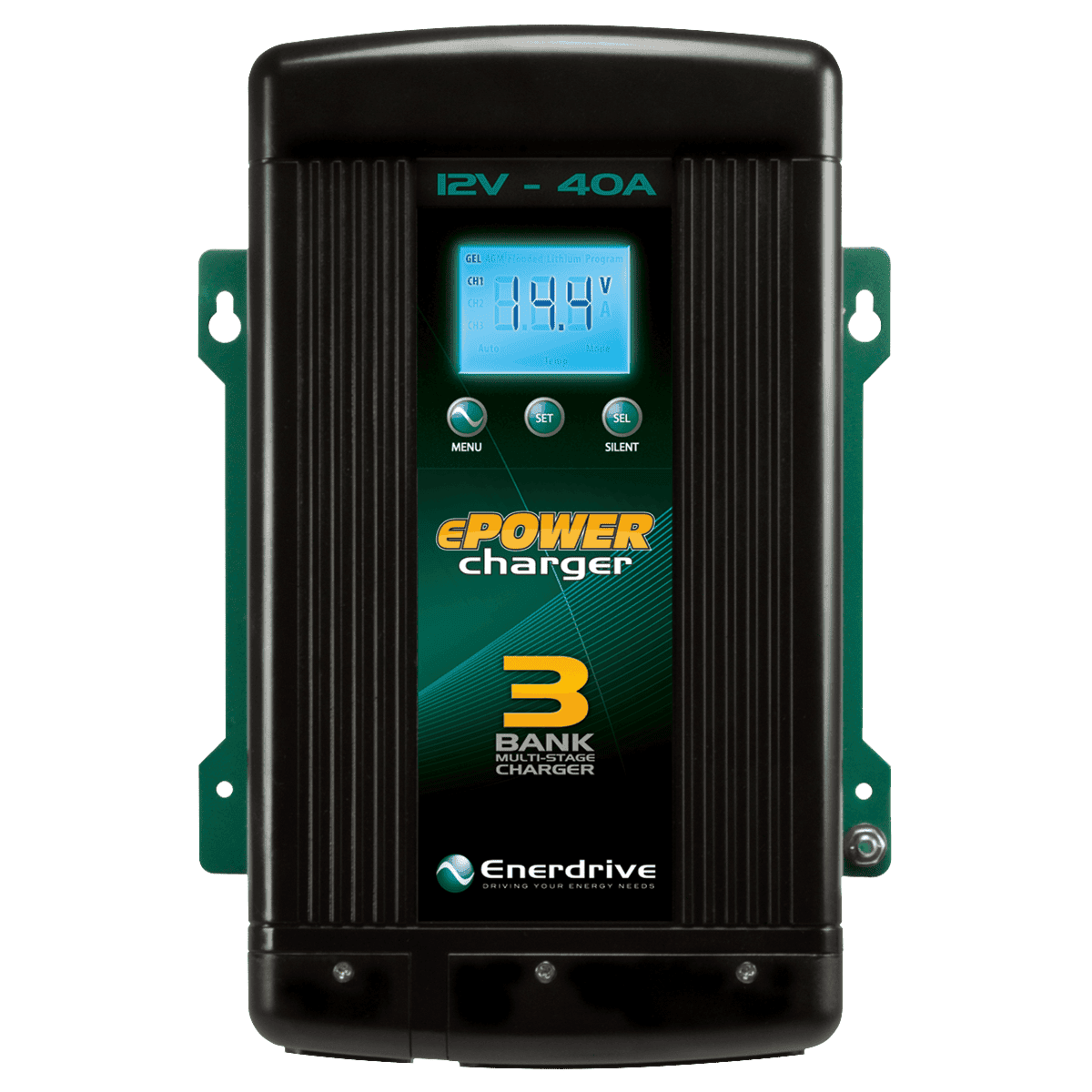

Maximize your battery’s lifespan and performance with the Enerdrive 12V 40A Multi-Bank ePower Battery Charger, the ultimate solution for managing multiple battery banks efficiently. Designed with precision and versatility in mind, this charger caters to the needs of all modern adventurers and professionals requiring reliable power management solutions.
Whether you’re exploring the great outdoors in your RV, managing a marine vessel, or ensuring your off-grid setup remains powered, the Enerdrive ePOWER Battery Charger is your go-to choice for efficient and reliable battery management. Its sophisticated multistage charging process, including bulk, absorption, float, and maintenance stages, caters to all modern battery types, emphasizing lithium batteries' unique requirements.
The Enerdrive 12V 40A Multi-Bank ePower Battery Charger is more than just a charger; it's a comprehensive power management solution. Whether you're powering a recreational vehicle, marine craft, or off-grid setup, this charger is built to meet your needs with precision, efficiency, and safety.
Upgrade to the Enerdrive ePower Charger today and experience the difference in power management technology. Your adventure awaits, powered by Enerdrive.

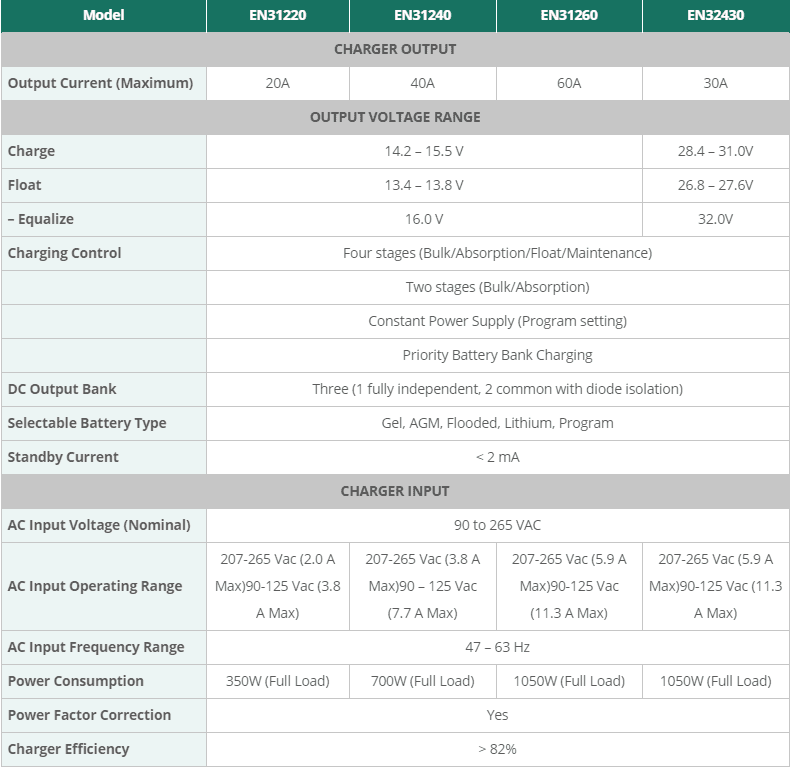

Model | EN31240 |
---|---|
CHARGER OUTPUT | |
Output Current (Maximum) | 40A |
OUTPUT VOLTAGE RANGE | |
Charge | 14.2 – 15.5 V |
Float | 13.4 – 13.8 V |
– Equalize | 16.0 V |
Charging Control | Four stages (Bulk/Absorption/Float/Maintenance) |
Two stages (Bulk/Absorption) | |
Constant Power Supply (Program setting) | |

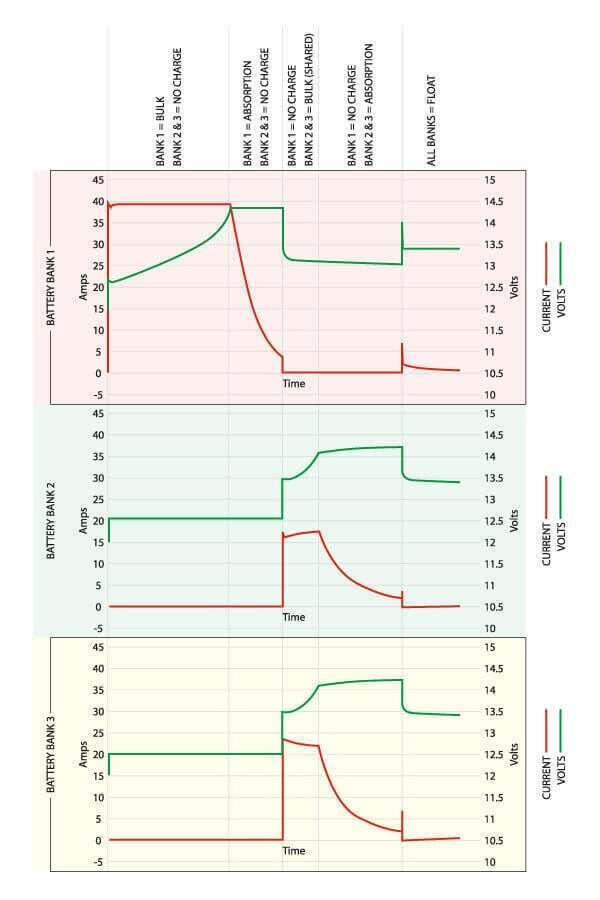

Priority Battery Bank Charging | |

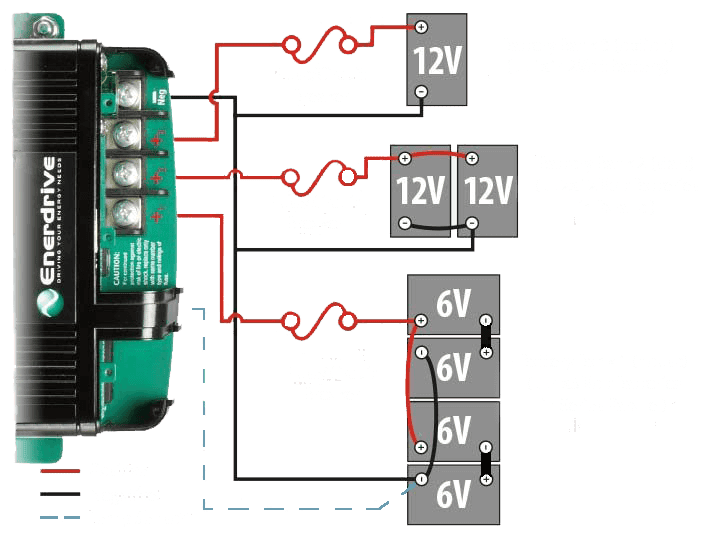

DC Output Bank | Three (1 fully independent, 2 common with diode isolation) |
Selectable Battery Type | Gel, AGM, Flooded, Lithium, Program |
Standby Current | < 2 mA |
CHARGER INPUT | |
AC Input Voltage (Nominal) | 90 to 265 VAC |
AC Input Operating Range | 207-265 Vac (3.8 A Max)90 – 125 Vac (7.7 A Max) |
AC Input Frequency Range | 47 – 63 Hz |
Power Consumption | 700W (Full Load) |
Power Factor Correction | Yes |
Charger Efficiency | > 82% |
PROTECTION AND FEATURES | |
Reverse Polarity | Yes, (with user replaceable fuse/s) |
Over Charge | Yes, unit shutdown |
Over Temperature | Yes, unit de-rated and shutdown |
Output Short Circuit | Yes, (with user replaceable fuse/s) |
Cooling | Forced air ventilation (thermo controlled fan) |
Temperature Setting | Hot, Normal, Cold (no sensor connected) |
Battery Temp Sensor Port | RJ12 (standard battery temp. sensor supplied) |
DISPLAY | |

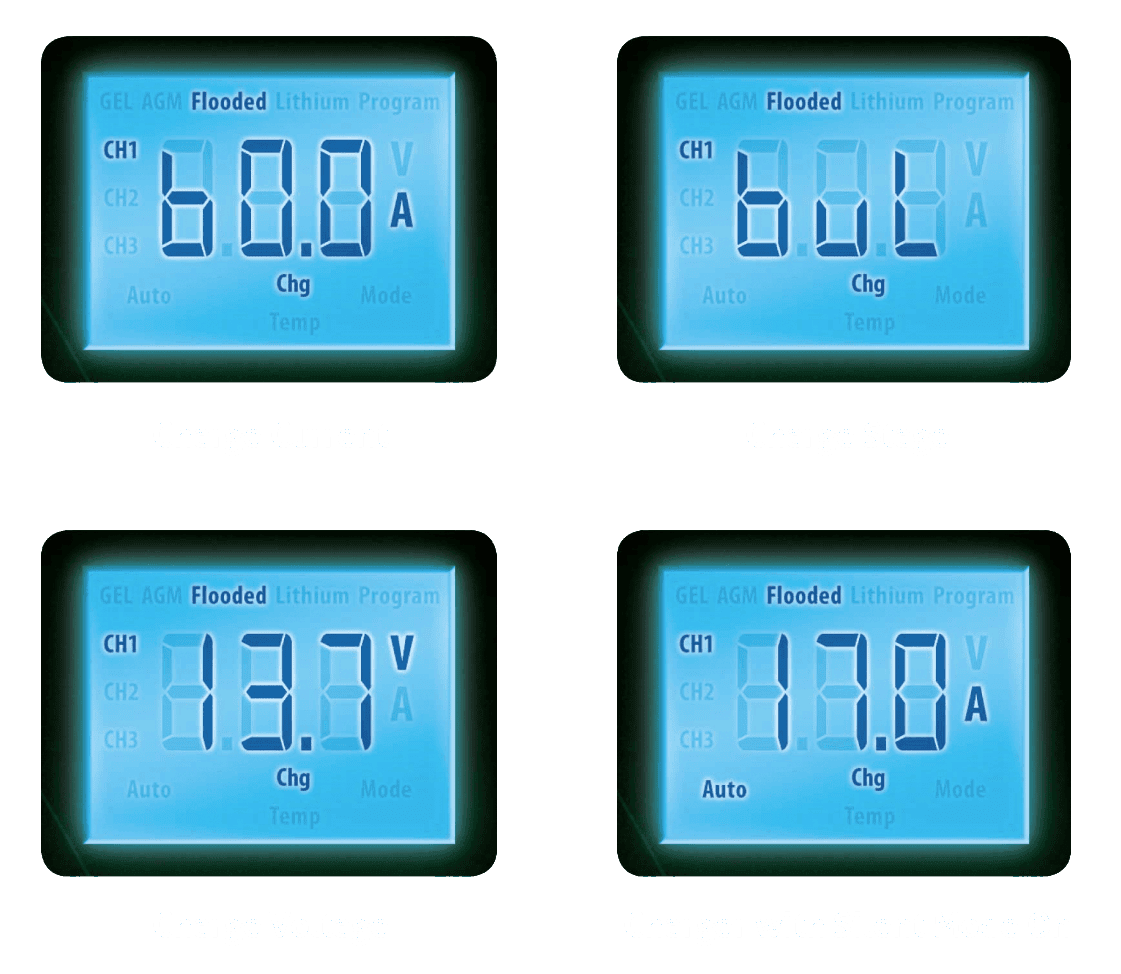

LCD Display (with back light) | Charging status, Battery Voltage, Output Current & Fault Codes. |
AC INPUT AND DC OUTPUT CONNECTION | |
AC Input Connection | IEC with Supplied 1.2M Power Lead |
DC Output Connection | Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread |
DC Output Ground | Single Heavy Duty Common Ground Stud |
ENVIRONMENTAL AND OPERATING TEMPERATURE | |
Storage Range | -40° to 70° C |
Operating Range | -20° to 60° C |
Humidity | 5-95%, relative humidity non-condensing |
Ingress Protection | IP32 (Basic drip proof in vertical orientation) |
Base Unit Weight and Dimensions | |
Weight: (kg) | 2.6 |
Dimension: (mm) L x W x H | 295 x 206 x 86 |
Optional Accessories | Remote Digital Display / Enerdrive Part Number EN3REM |
Regulatory Compliance | Complies with AS/NZS 60335.2.29 Including Australian deviations. |
5 year warranty* - Full details available on Enerdrive's website.
