Model: EasySolar 48/5000/70-100 CC
Output Power at 25deg (continuous): 5000VA
Output Power (peak): 10000 W
DC Voltage (nominal): 48V
Charge current: 70A
AC Transfer Switch: 100A
SCC Max current: 100A
SCC Max open circuit voltage: 150V
Max PV power: 5800W
Color Control: Included

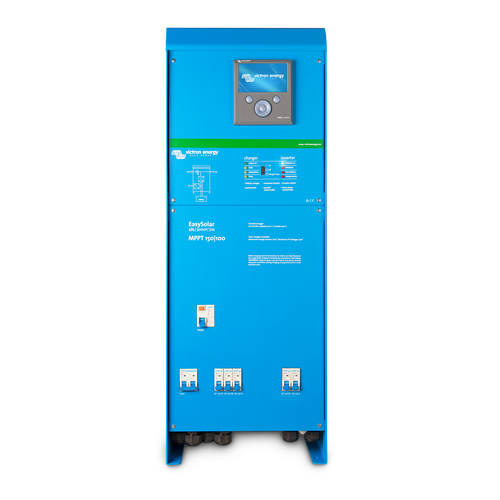

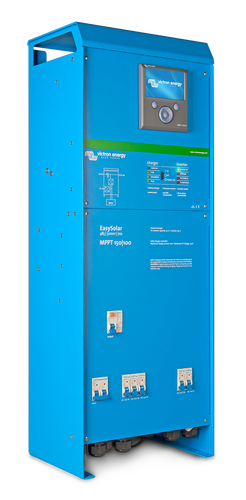

The all-in-one solar power solution
The EasySolar combines a MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure.
The product is easy to install, with a minimum of wiring.
Color Control panel
Two outstanding functions:
- Prioritizes battery charging by the MPPT charge controller
- Connects to the internet, enabling remote monitoring (VRM website) and remote control.
AC distribution
The AC distribution consists of a RCD (30mA / 63A) and four AC outputs protected by two 10A and two 16A circuit breakers.
An additional 16A output is controlled by the AC input: it will switch on only when AC is available.
PowerAssist
Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.
Unique solar application software
Several software programs (Assistants) are available to configure the system for various grid interactive or stand-alone applications.
Please see http://www.victronenergy.nl/support-and-downloads/software/
Part Number | PMP485027010 |
---|---|
Manufacturer | Victron Energy |
EasySolar 3-5KVA-ColCon_2.pdf |
