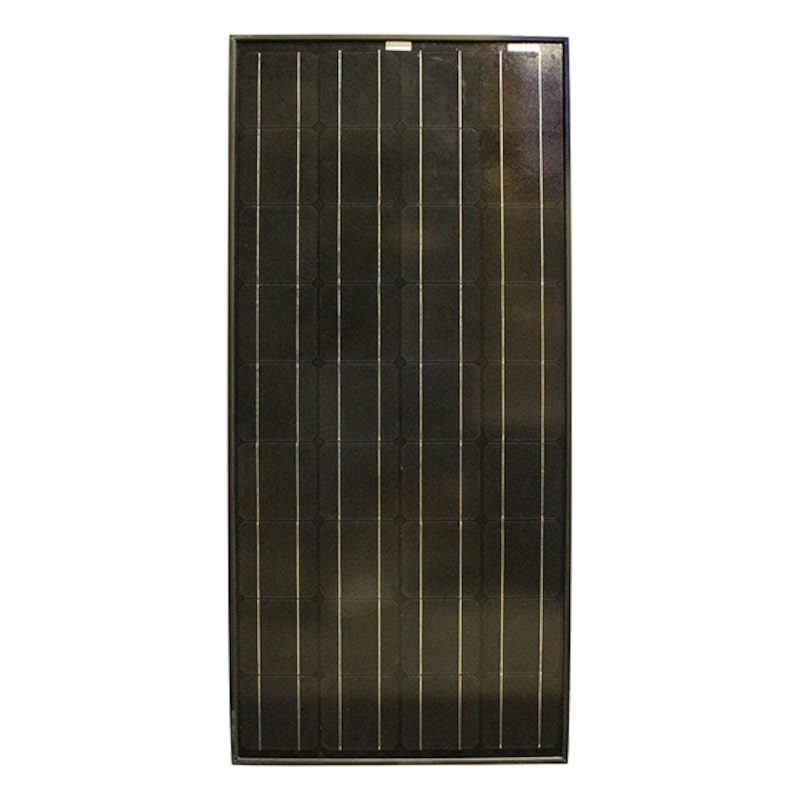

Enerdrive 100W Fixed Solar Panel, Black

Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels). A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.

Features

• High Conversion Efficiency. Module efficiency up to 15.47% achieved through advanced cell technology and manufacturing capabilities
• Positive Tolerance. Positive tolerance of up to -1%+~3% delivers higher output reliability
• High PID Resistant. Advanced cell technology and qualified materials lead to high PID resistant
• Current Sorting Process. System output maximised by reducing mismatch losses up to 2% with modules sorted and packaged by amperage
• Extended Wind and Snow. Load tests Module certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal)
• Withstanding Harsh Environment. Reliable quality leads to a better sustainability even in harsh environments in the outdoors

Some Basic Tips:

1. Keep your panel in direct sunlight as much as possible
2. Secure your Folding Solar Kit from theft around your work or campsite
3. Protect and store your portable folding kit in the most secure place you can to prevent accidental breakage

Specifications:

• Max Power Pm(W) 100
• Power Tolerance -1% ~ + 3%
• Max Power Voltage Vm(V) 18.7
• Max Power Current Im(A) 5.35
• Open Circuit Voltage Voc(V) 22.6
• Short Circuit Current Isc(A) 5.69
• Max System Voltage (VDC) 1000
• Weight (kg) 8.1
• Test Conditions 1000W/m² , AM1.5 , 25°C
