Dynalink HDBase T Extender over HDMI 2 Way IR Video & Audio Transmitter Receiver

This 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 492ft / 150 meters between transmitter and receiver via a single CAT cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is available for output. It also supports de-embeded audio for L/R audio output and PoC function. In addition, the extender is equipped with two-way IR pass-through which allows for source and display control.

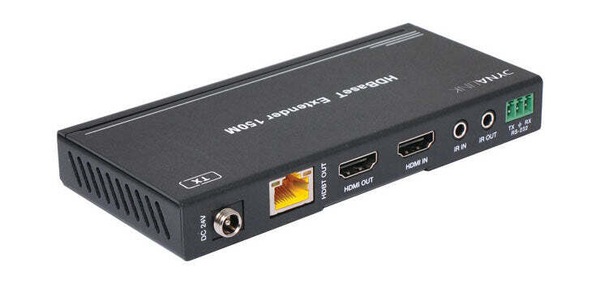

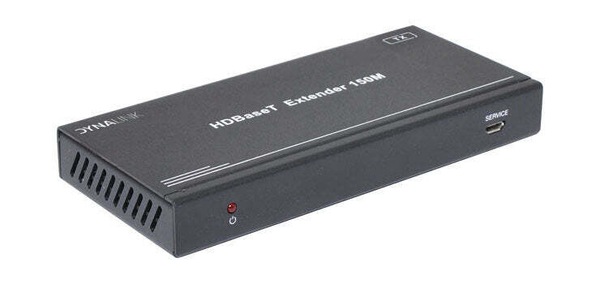

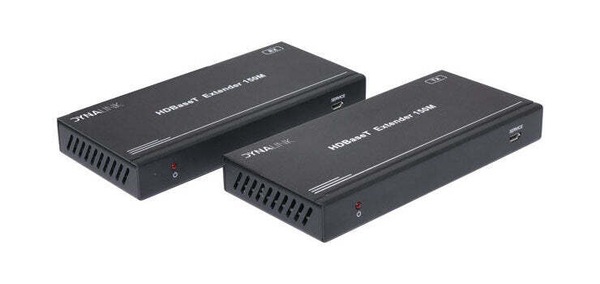

This HDMI extender includes two units: transmitter unit and receiver unit. The transmitter unit is responsible for capturing HDMI input signal and carrying the signal via one cost effective Cat5e/6 cable, and transmitting / emitting IR RS232 control signals. The receiver unit is responsible for receiving the HDMI signal and transmitting / emitting IR RS232 control signal. The extender offers the most convenient solution for HDMI extension via a single Cat5e/6 with long distance capability.
Package includes:
1 x 18Gbps HDMI over HDBaseT Extender (Transmitter)
1 x 18Gbps HDMI over HDBaseT Extender (Receiver)
1 x IR Blaster cable (1.5 meters)
1 x 20~60KHz IR Receiver cable (1.5 meters)
2 x 3-pin Phoenix connector
1 x 24V/1A Locking Power adapter
1 x User Manual

• Compact design for easy and flexible installation
• HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant.
• Supports 18Gbps video bandwidth.
• Single Cat5e/6 cable transmission: 120m @ 4K2K, 150m @ 1080p.
• HDMI loop output on transmitter
• Analogue 3.5mm stereo output on receiver
• Bi-directional IR control (two targets and two emitters included)
• RS232 pass-through
• CEC pass-through
• HDR, HDR10+, Dolby Vision and HLG support
• Supports PoC (Power over Cable)
