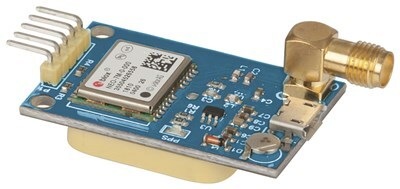

Duinotech GPS Receiver Module with On-Board Antenna

Duinotech GPS Receiver Module with On-Board Antenna

Price	$49.95
	Collect 147 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	See delivery details

Quantity

Add to wishlist

Description:

Add GPS positioning down to a 2.5m accuracy to your next project with this compact GPS module. Based on the NEO-7M that supports the NMEA standard protocol output, and features built-in flash to save settings after power-off, without an external EEPROM. An onboard ceramic antenna means you don’t need an external one, however, an SMA connector is also attached if you wish to attach your own antenna to improve reception. The micro USB interface enables you to debug the GPS module via a data cable, and a reserved serial port interface for USB-to-serial port modules or external MCU enables you to easily receive the GPS data.

Features:

- On-board signal LED indicator

- 3.3V or 5V operation

- Onboard & external antenna options
- 9600 Baud Rate

- 1Hz Output Frequency

Please note: When connecting an external antenna the C2 capacitor on the module needs to be removed. If the internal and external antennas are used together they will interfere with each other, affecting positioning.

Specifications:

Dimension details : Including SMA Socket
Length : 53.0mm
Width : 26.0mm
Height : 15.0mm
Weight : 18.0g
Required Supply Voltage : 3.3V

GTIN: 9319236756164
