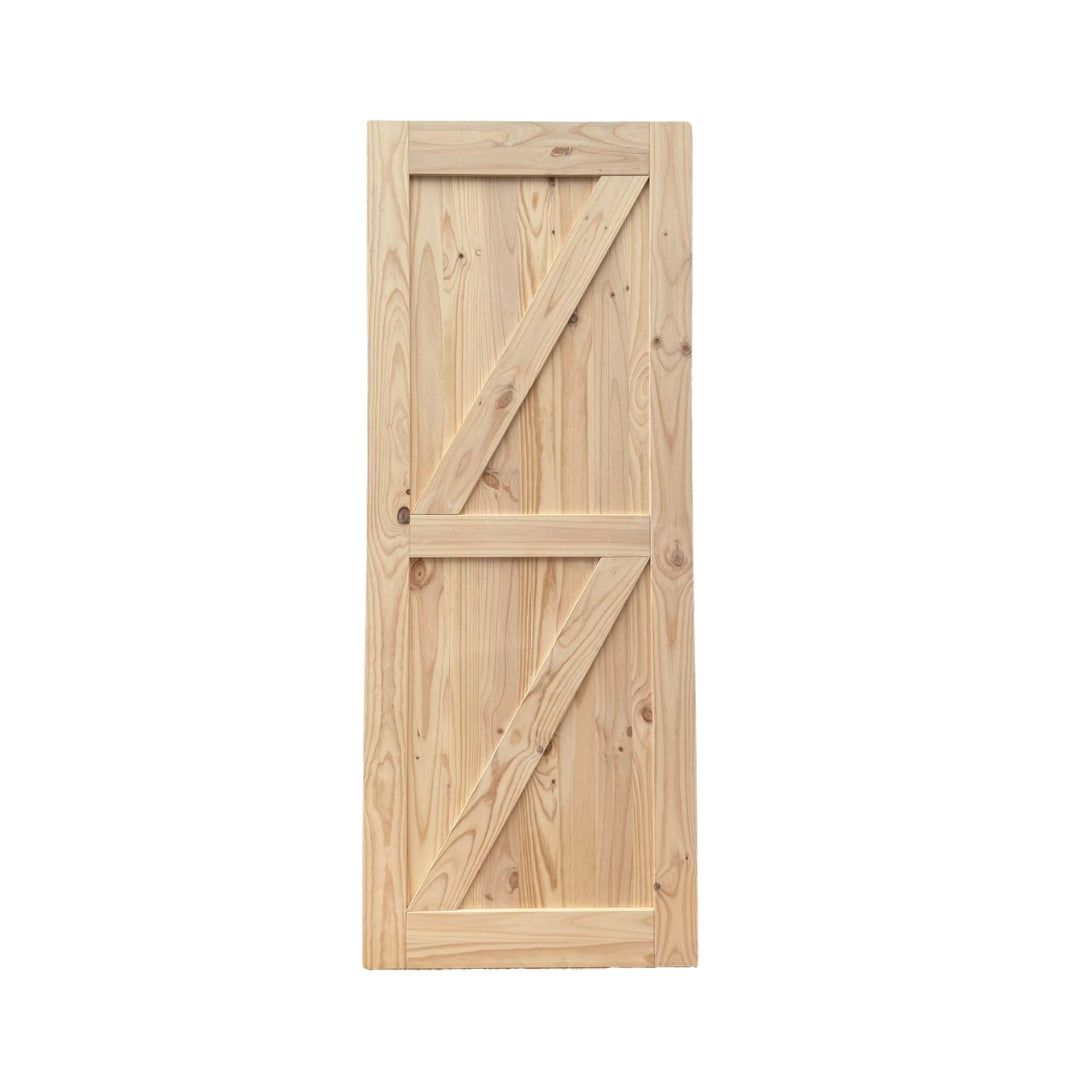

Double Z-Brace Barn Door D06
Solid Wooden Barn Door D06 - Made of pine, actual doors may differ, color may be lighter or deeper, same design on both sides;
It has slot on the bottom for the floor guide, ready to be installed. The barn door only needs to drill the screw holes for the rollers and handles, can be stained or painted directly. Do not cut it by yourself unless communicated with us;
This product only contains the Barn Door, all ancillary hardware needs to be purchased from us separately;
This is a custom design item, handling time 2-3 business days, swap or return is not accepted once order placed;
Material |
Pine |
Weight
|
40kg |
Available Size |
2150x750x40mm |
2150x820x40mm |
2150x920x40mm |
2150x1020x40mm |
2120x1130x40mm |
2120x1230x40mm |
2400x830x40mm |
2400x930x40mm |
2400x1030x40mm |
2400x1130x40mm |
2400x1230x40mm |
What size barn door you need?
Usually the barn door needs to cover the whole opening, it could be the same hight as the opening but must be larger than the width of the opening. For large opening you can consider not only single but also double sliding barn doors
Door Size |
Opening Width |
Opening Height |
Minimum Space Above the Door |
2150x820x40MM |
W < 720MM |
H < 2150MM |
150mm |
2150x920x40MM |
W < 820MM |
H < 2150MM |
150mm |
2150x1020x40MM |
W < 920MM |
H < 2150MM |
150mm |
2120x1220x40MM |
W < 1120MM |
H < 2120MM |
150mm |
2120x1530x40MM |
W < 1420MM |
H < 2120MM |
150mm |
2400x830x40MM |
W < 720MM |
H < 2400MM |
150mm |
2400x930x40MM |
W < 820MM |
H < 2400MM |
150mm |
2400x1030x40MM |
W < 920MM |
H < 2400MM |
150mm |
2400x1230x40MM |
W < 1120MM |
H < 2400MM |
150mm |
If there is archive around the opening, it is better to fully cover the archives;
Still not sure what size you need? Contact us anytime
Installation
We can do installations for VIC customers, contact us for more details;
To install this system, the wall must be strong enough. For plaster wall we recommend to attach a piece of timber board (For example, 2m rail, we use 2000x42x18mm timber) on the wall first, then screw the rail on the timber board;
Check our Blog Posts ''Latest Cases of Barn Door Installation''
Notes:
All products shown on this website are subject to Aubarndoors’ stocks in Melbourne, Australia;
This product only contains the Barn Door, all ancillary hardware needs to be purchased from us separately;
As these raw pine barn doors are made of natural pine, will have knots on the door surface and may have small natural cracks around the knots.
You can paint or stain the raw pine barn doors directly. If you want to paint the barn door to white we recommend you to cover the knots areas with a deeper colour (eg. light gray), otherwise the knots areas may turn into yellow. And we recommend you to fill the natural cracks around the knots before painting.
''20% restocking fee will apply for returning the barn doors, MAKE SURE YOU CHOOSE THE CORRECT SIZE OR CONTACT US FOR HELP'
Postage:
*Please note, don't put in ''PO Box'' as your receiving address*
For barn door orders, we can send it metro area freight depot for free, or send it to the regional area freight depot for a fee, or we can also provide home delivery for a fee. Please check our freight depot list in FAQ, then select metro or regional area freight depot pick-up or home delivery option for the shipping method when checking out.
Please check the items's condition before sign on the delivery proof. If you find the package is damaged please take a picture of both the damaged package and the damaged item inside, contact us within 7 days.
Warranty :
We are Australian barn doors/sliding barn doors/timber barn doors/wooden barn doors expert , top quality guaranteed, 10 years quality warranty for hardware and 3 years quality warranty for barn doors. (Purchased after 31/3/2024, soft close is not included, terms and conditions apply).
