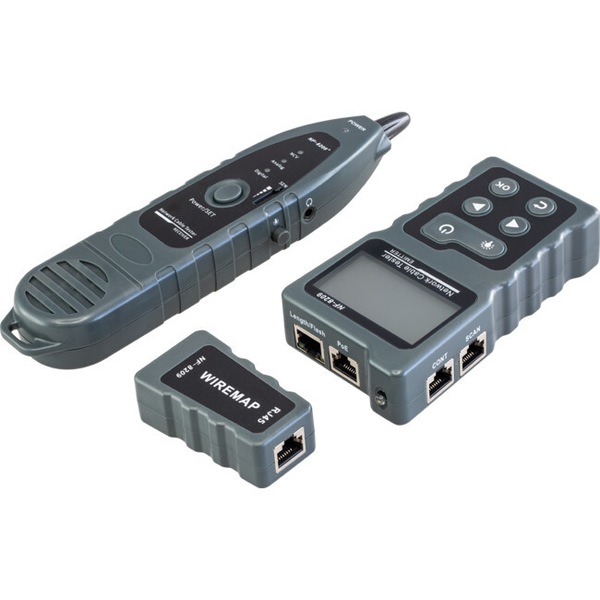

DOSS NF8209 Multifunction Network Cable Tester POE Length Wiremap Port Flash

DOSS NF8209 Multifunction Network Cable Tester POE Length Wiremap Port Flash

Price
$99.90
Collect 99 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Free Shipping

Quantity
Maximum item limit (143) has been reached.

Features
  • POE information testing: Identifying which pins are providing power and detect how much voltage, and which type of the PSE (at/af standard) from DC range 5V to 60V standard or non-standard POE switch.
  • Featured with the new generation to offer AC filter and analog signaling all in one network toner and probe, there are three cable scan options to track cable like Digital mode analog mode and PoE mode, which means it’s equipped with the most powerful cable location technologies for any work environment.
  • Cable continuity testing. Test physical status forCat5e/Cat6, Cat6a STP, UTP LAN cable such as open, short or cross.
  • Measure cable length and locate fault distance for LANcable from the range up to 200m.
  • Hub blink, Locate network port by the flashing port light on Hub / Switch. Available to 10M/100M Hub/ switch.
  • NCV, Non-Contact Voltage, Detect AC voltage presence 50V-1000V.
  • Lamp
Specifications
Transmitter Wiremap Cable type CAT5e, CAT6, CAT6a (STP & UTP)
Test with switch directly Yes
Max range 600m
Length Cable type CAT5e, CAT6, CAT6a (STP & UTP)
Test range 2~200m
Accuracy ±1.6m
Breakage location Yes
Scan Cable type CAT5e, CAT6, CAT6a (STP & UTP)
Max. signal voltage 8Vp-p
Frequency 130KHz
AC filter Yes
Max range 600m
POE Test range DC 5~60V standard / non-standard PoE switch
Voltage display Yes
PSE type IEE?E 802.3af/at
LCD display 128*64 Dot-matrix with backlight
Power supply AAA*3
Low battary warning 2.7V
Auto-off time 15min?30min?60min?OFF
Max working current <150mA
Receiver Sentivity adjustable Yes
AC Voltage detecting Yes
Lamp Yes
Battary type 9V*1
Low battary warning 6± 0.5V
Max working current <100mA
Remote Wiremap Port RJ45

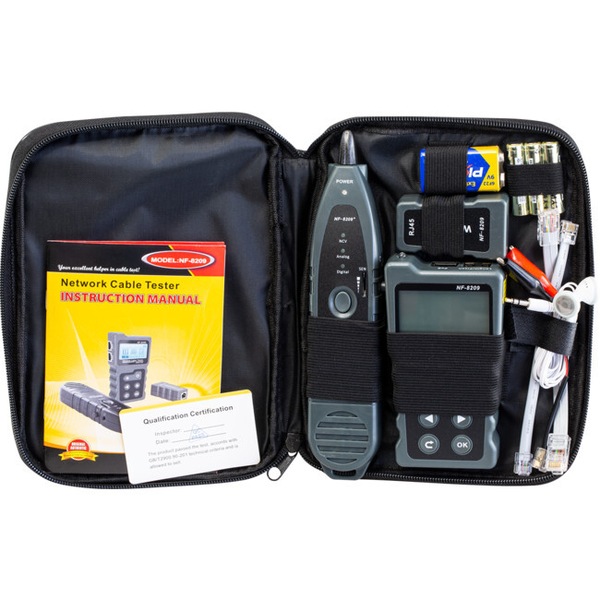

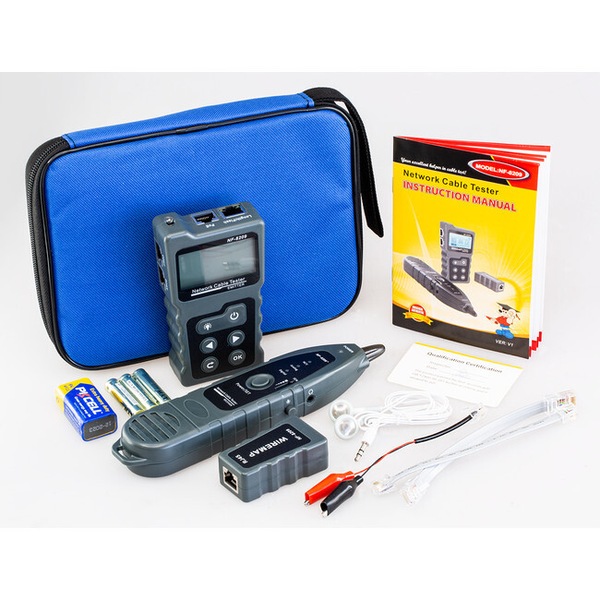

What is in the box?
  • Emitter x 1pc
  • Receiver x 1pc
  • Wiremap remote x 1pc
  • Earphone x 1pc
  • Cable adaptor x 1 set
  • 9V battery x 1pc
  • AAA battery x 3pcs
  • Carry bag x 1pc
  • User manual x 1pc
GTIN: 9328202032706
