Digitech Slimline Indoor Outdoor UHF/VHF Antenna Horizontal Vertical Mount

Digitech Slimline Indoor Outdoor UHF/VHF Antenna Horizontal Vertical Mount

Price	$79.95
	Collect 79 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	See delivery details

Quantity

Add to wishlist

Description

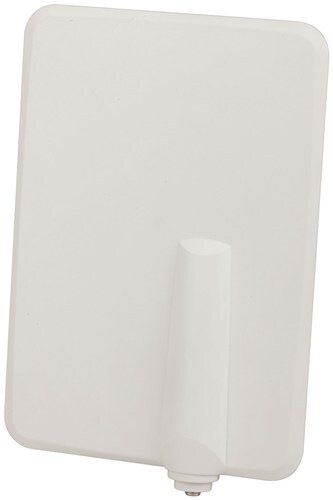

This slim indoor/outdoor antenna is very easy to install and is supplied with mounting hardware for wall, mast or rail mount. An in-built amplifier with 4G/LTE filter provides optimal UHF and VHF signal reception for DVB-T, DVB-T2 and DAB radio. The antenna is weatherproof IPX4 and can be mounted horizontally or vertically for best positioning. Reception distance of up to 25km from the TV tower when mounted indoor and up 50km away when mounted outdoor.

Features:

- 11/19dB Gain

- 4G/LTE Filter

- In-Built Amplifier

- Weatherproof

- Mast/Rail & Wall Mount

- Up to 25km Indoor Range (up to 50km Outdoor)

Included:

1 x Indoor /Outdoor UHF/VHF Antenna

1 x 4m F to F Antenna Cable

1 x 4m F to PAL Antenna Cable

1 x Flat Window Antenna Cable

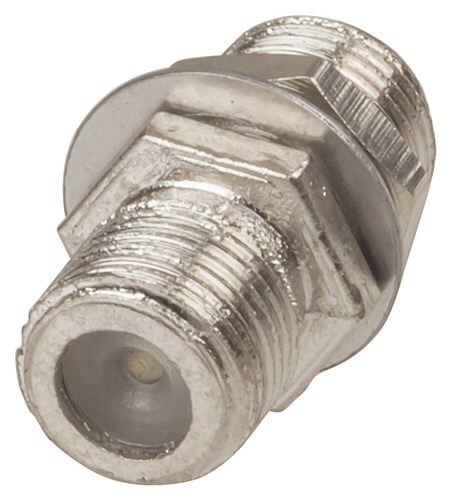

1 x F to F Adaptor

1 x Power Injector

1 x Mains Power Adaptor

1 x Mast/Rail Clamp

1 x Mast/Rail & Wall Mounting Hardware

Note: Reception distance from the TV tower varies upon your exact location and obstacles in-between the tower and receiver such as buildings or walls.

Specifications

Line of Sight Range : 25.0km, 50.0km

DC current rating : 550.0mA

DC Voltage : 5.0V

IP Rating : IPX4

Dust/Particle Ingress Protection : IPX - Not rated

Liquid/Moisture Ingress Protection : 4 - Splashing water

Width : 165.0mm

Height : 230.0mm

Depth : 5.0mm

DC Current Draw : 400.0mA, 400.0mA

Suitable PSU Included : true

Mounting Method : In Wall, Pole Mount

RF type : PAL/Belling-Lee

RF impedance : 75.0?

Antenna Type : Flat Panel

Usage Location : Indoor, Outdoor

Reception Bands : TV Band 3: 174-230MHz, TV Band 4: 526-582MHz, TV Band 5: 582-694MHz

UHF Frequency Range : 470.0MHz, 694.0MHz

UHF Channel Range : 25.0ch, 69.0ch

UHF Gain : 19.0dB

VHF Frequency Range : 170.0MHz, 230.0MHz

VHF Channels Covered : 6.0ch, 12.0ch

VHF Gain : 11.0dB

GTIN: 9319236750957
