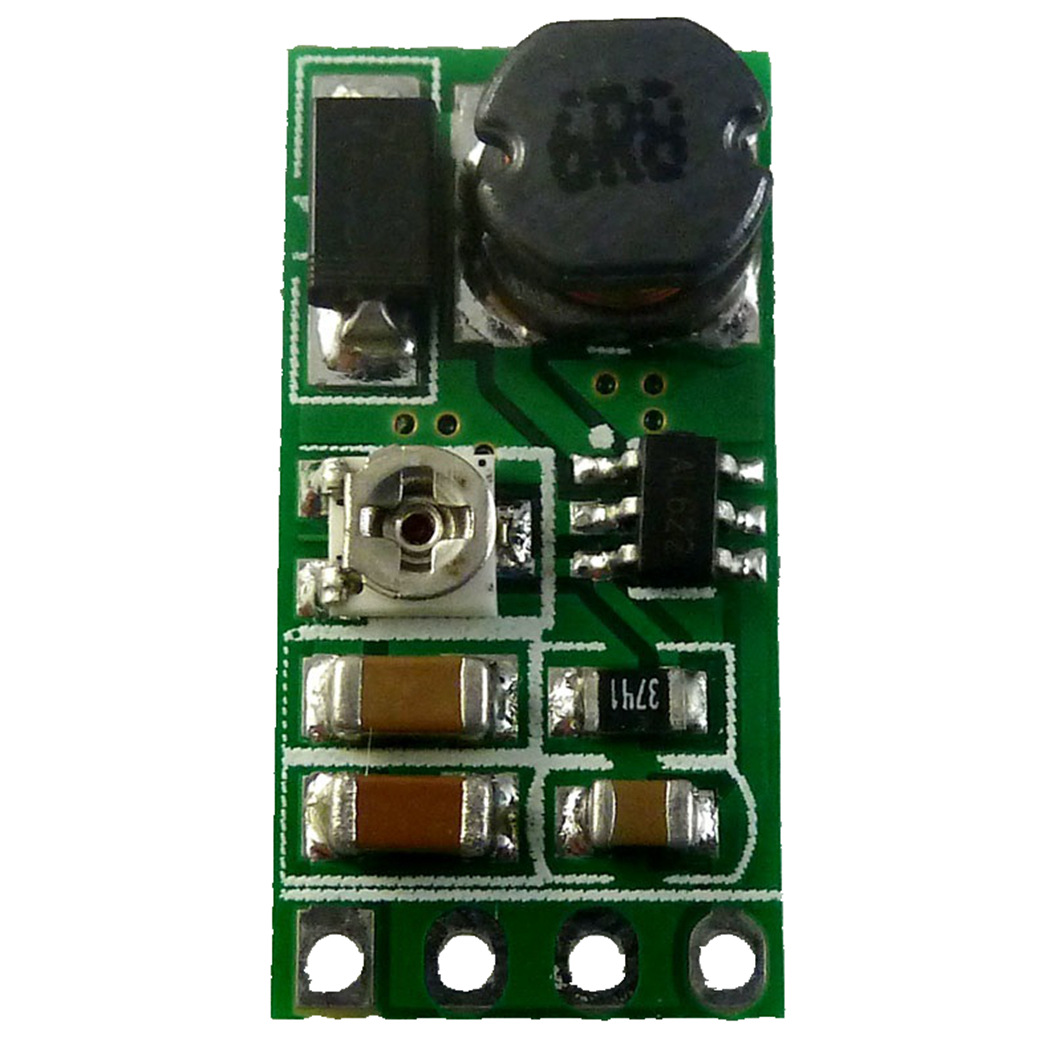

DD06AJSB DC 3.3V 3.7V 5V to 6V 9V 12V Adjustable Step-Up Boost Converter

DD06AJSB DC 3.3V 3.7V 5V to 6V 9V 12V Adjustable Step-Up Boost Converter

Price	$23.89
	Collect 23 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:

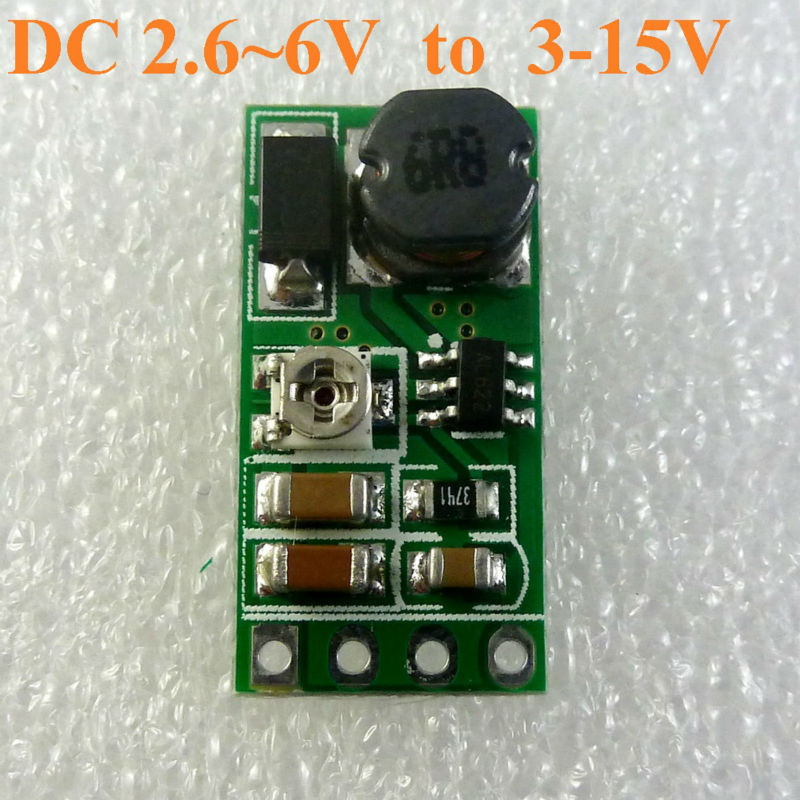

Input voltage 2.6~6V,output 3~15V adjustable
Maximum input current :? 1.4A
Long-term work Current : 1.2A
Conversion efficiency :79-90%
DC-DC Boost module working frequency 1.0MHZ.
Operating ambient temperature : -40~+85 Degrees Celsius
FPGA/CPLD AVR? Development Board friendly.

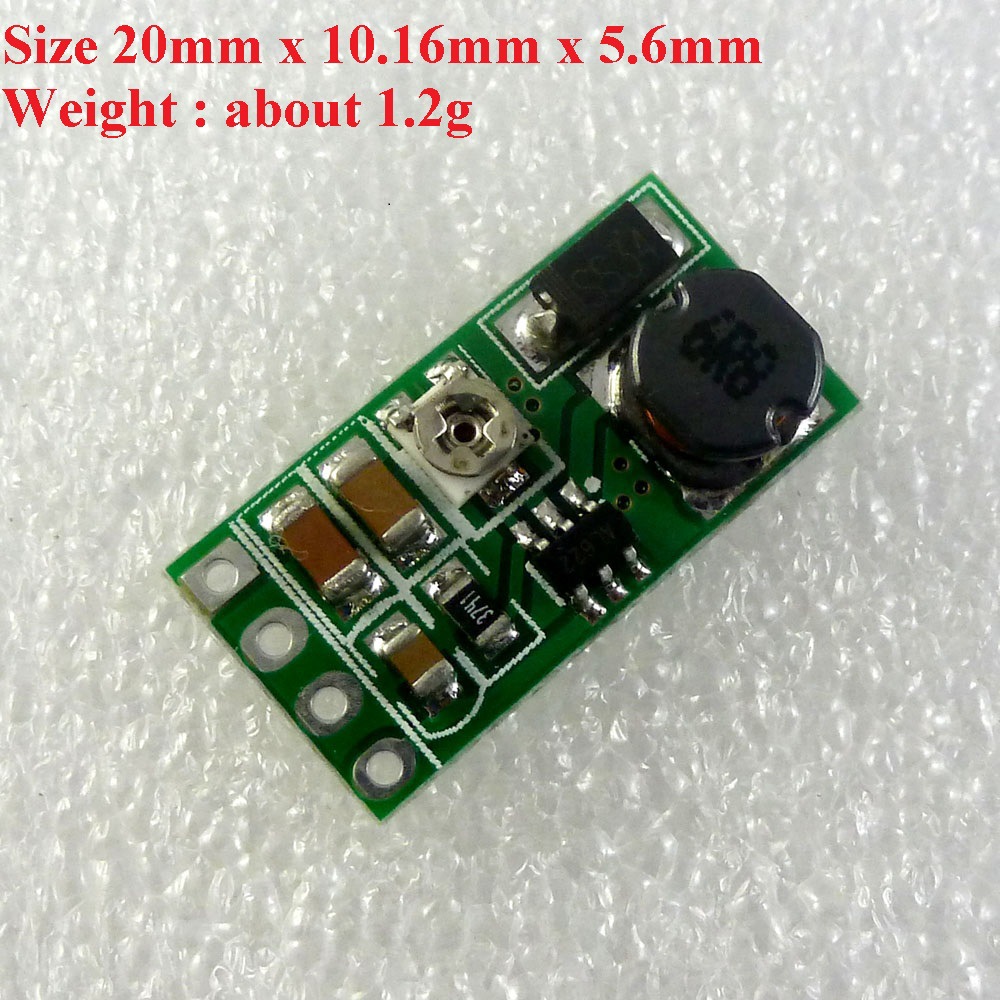

Size 20mm x 10.16mm x 5.6mm(Very small)
Weight : about 1.2g(Very light)
Start Voltage 2.6V, Output Current 10MA

Applications
?
MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR C8051 etc
PLC? RS485 Modbus RTU
9-12V Network equipment/Router
Temperature and humidity sensor
LED Lighting
Instruments and meters
5V 6V 9V 12V Relay board
Wireless communication equipment
315M 433M Wireless remote controller
?
Attention :
?
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
?

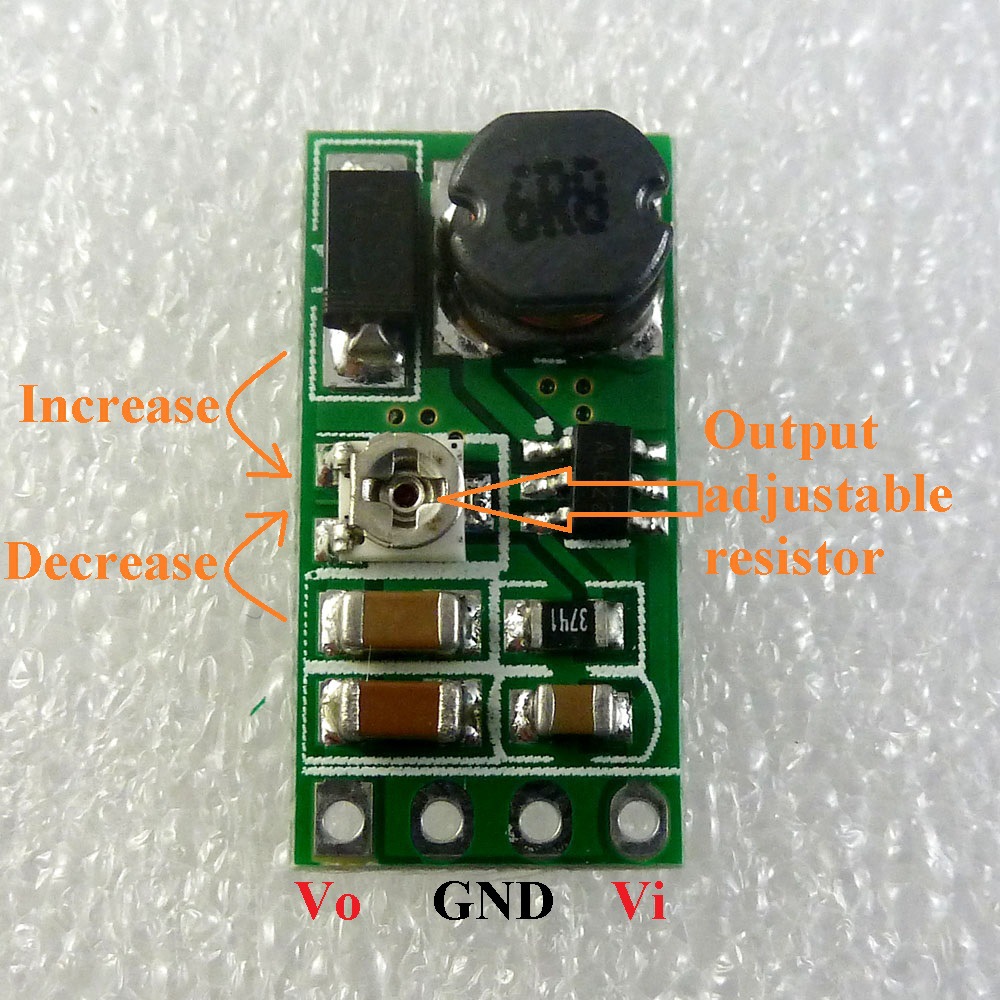

how to use:With a suitable screwdriver, slowly rotating adjustable resistance

Packing list:

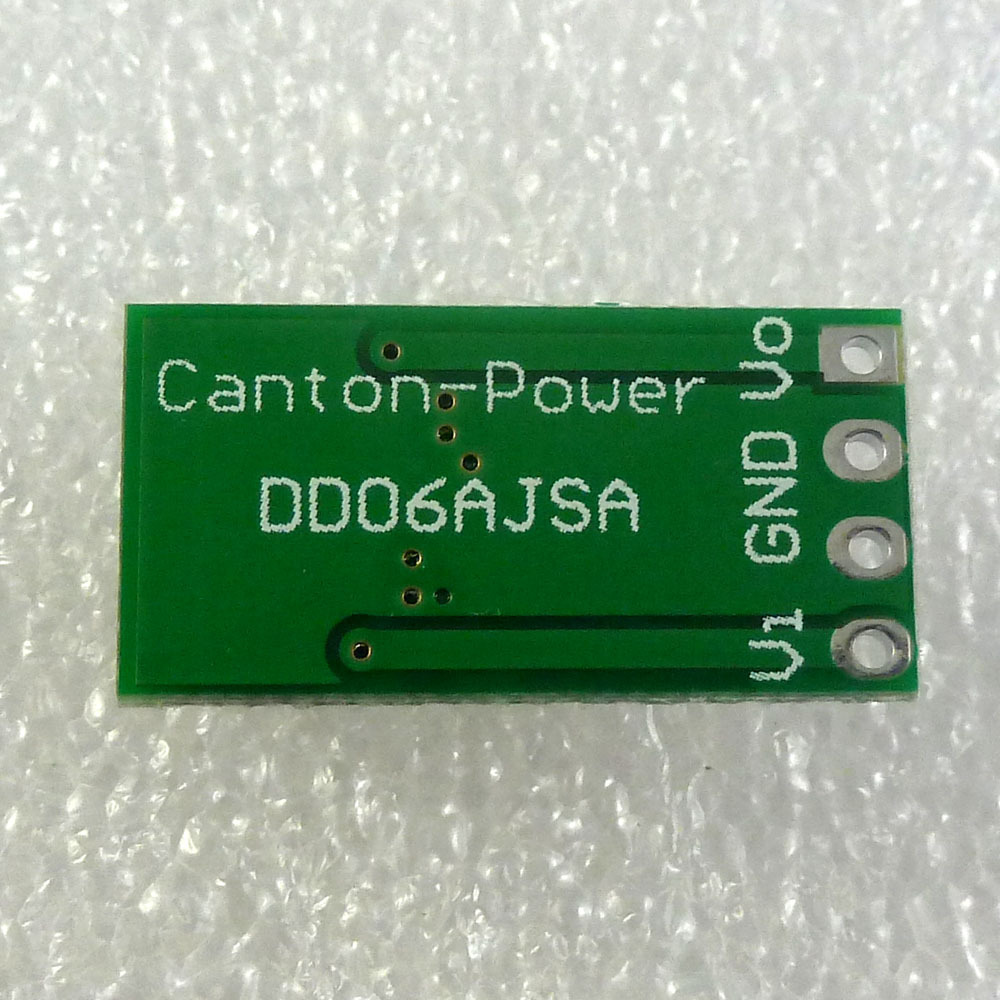

1 PCS DD06AJSB 2.6V-6V TO 3-15V adjustable Step-up Boost Module

GTIN: 774048924900

Shipping Details

Please note it will need about 12~20days for the delivery!

Delivery times are as provided by our carriers and are estimates only. Delays may occur during peak periods, and due to factors outside the carriers control.

Thank you for your understanding!

Return policies :We 100% support our customers, If you are not satisfied or you have any problem with our products, please CONTACT US at once. We will help you free return the goods.

Warranty policies: Our products have 180 days warranty.
