DC 12V 8 Channels Timer Delay Relay Board Time Switch Timing Loop Interlock

DC 12V 8 Channels Timer Delay Relay Board Time Switch Timing Loop Interlock

Price	$55.71
	Collect 55 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Product Features:

Longest delay time : 00h:00m:01s - 99h:59m:59s
8 channels relay,each channel independently triggered independent delay, do not interfere with each other.
6 kinds of functional modules, each functional module has three sub-modes (no cycle, 2-99 cycle, always cycle).
Input optical isolation.
Power anti-reverse diode.
High Q value SMD electrolytic capacitors.
Parameter power-down save

Product Specifications:
???
1 Operating voltage: DC 12V
2 Operating Current : Standby current (power-saving status) 7MA, Standby current 48MA ,1 relay open 75MA, 2 relays open 102MA, 3 relays open 129MA, 4 relays open 160MA, 4 relays open 160MA,5 relays open 182MA, 6 relays open 207MA, 7 relays open 253MA, 8 relays open 258MA
3 Size: 120x62x20
4 Weight : 128g
5 Relay maximum load capacity: DC 1-110V/5A; AC 85-265V/6A

Typical applications:

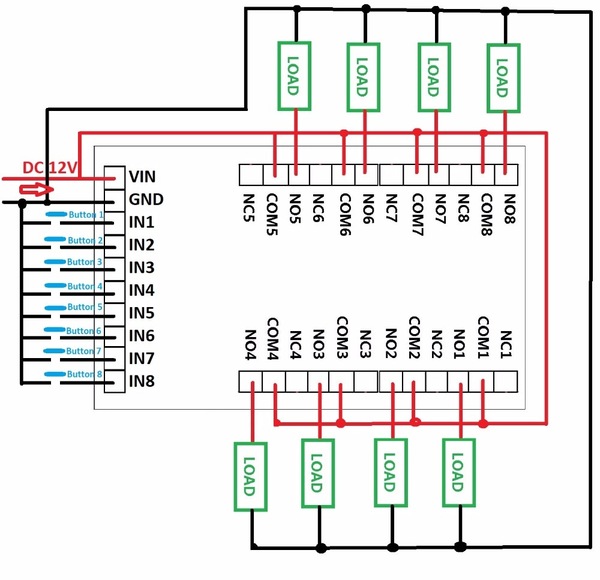

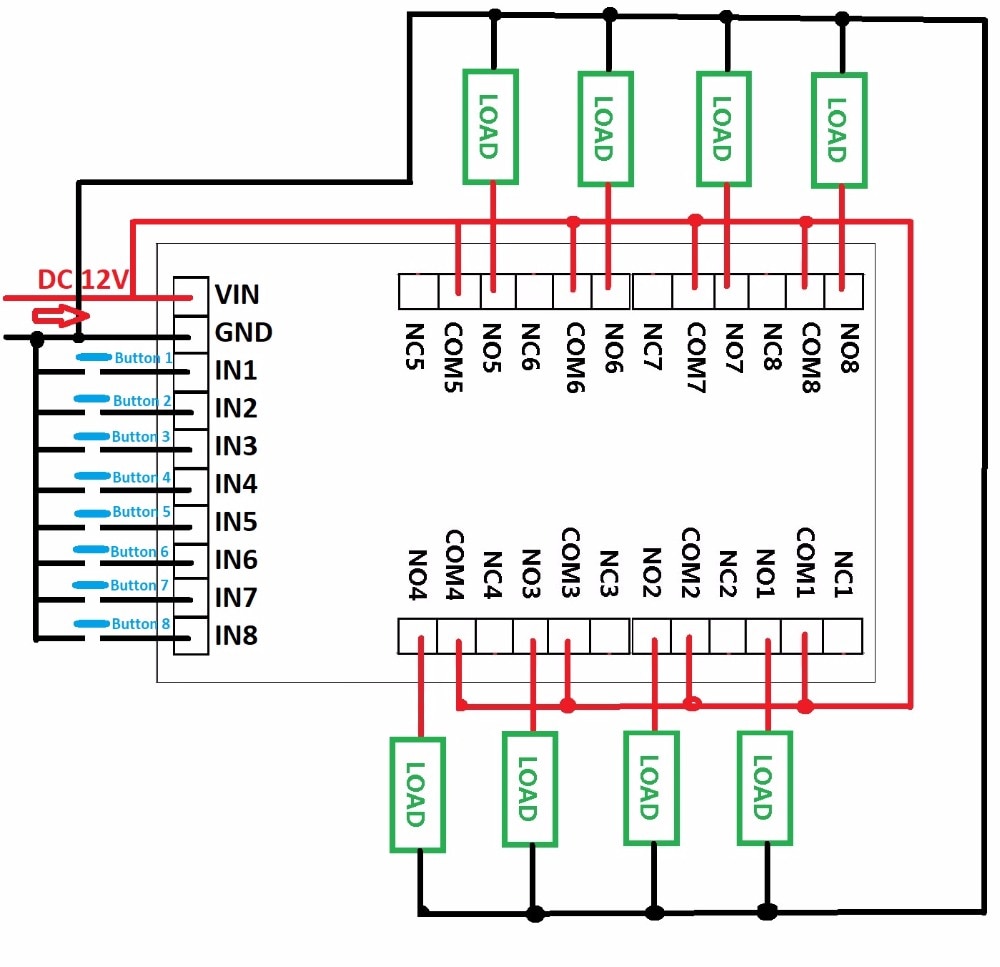

1 DC 12V control circuit, "LOAD" may be LED lights, fans, toy car and other DC 12V equipment

GTIN: 774048923507
