Description:

1: DC 12V power supply
2: Standby current (all relays closed) 12MA, 1 relay open 40MA, 2 relays open 68MA, 3 relays open 94MA,4 relays open 122MA,5 relays open 148MA,6 relays open 174MA, 7 relays open 198MA,8 relays open 224MA
3: ''open'' ''close''? ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands
4: Two instruction-control mode : MODBUS RTU command and AT command
5: Under the ''Delay'' command ,the maximum delay is 255 seconds;
Under the AT command ,the maximum delay is 9999 seconds
6 MODBUS commands can be made serial HyperTerminal (serial assistant)? OR ''Modbus Poll'' Enter; AT commands can be made serial HyperTerminal (serial assistant) Enter;

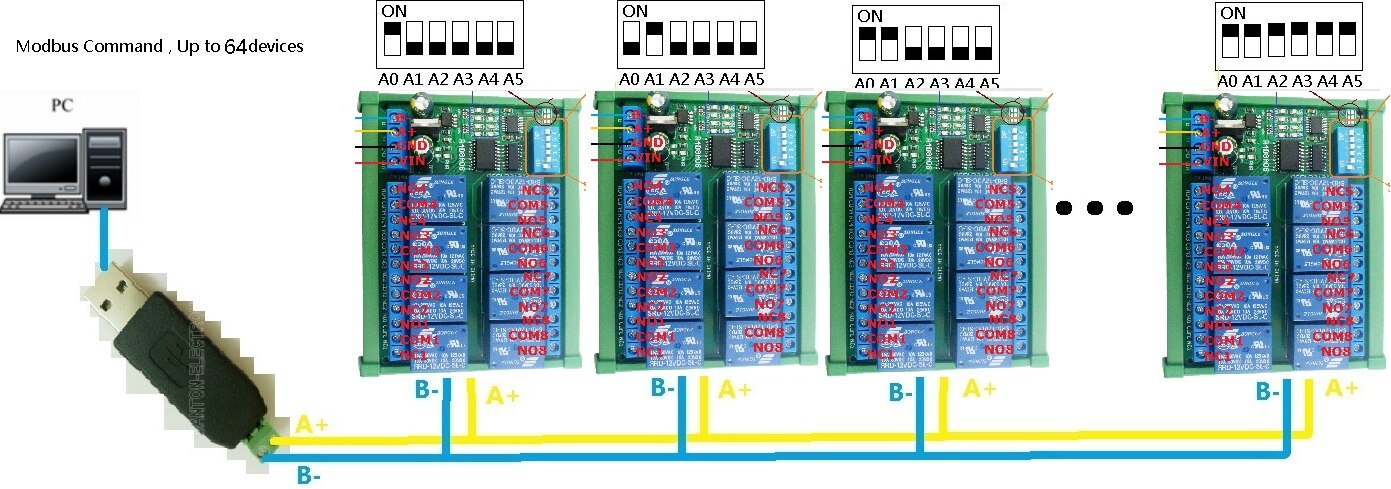

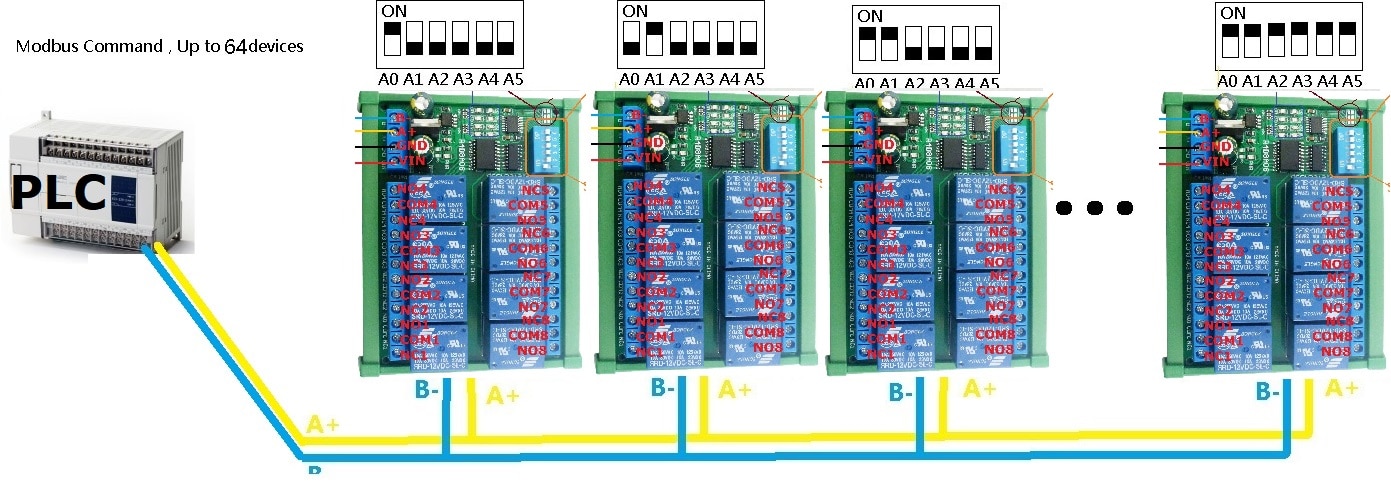

7 Under the MODBUS command mode, it can support up to 64 devices in parallel

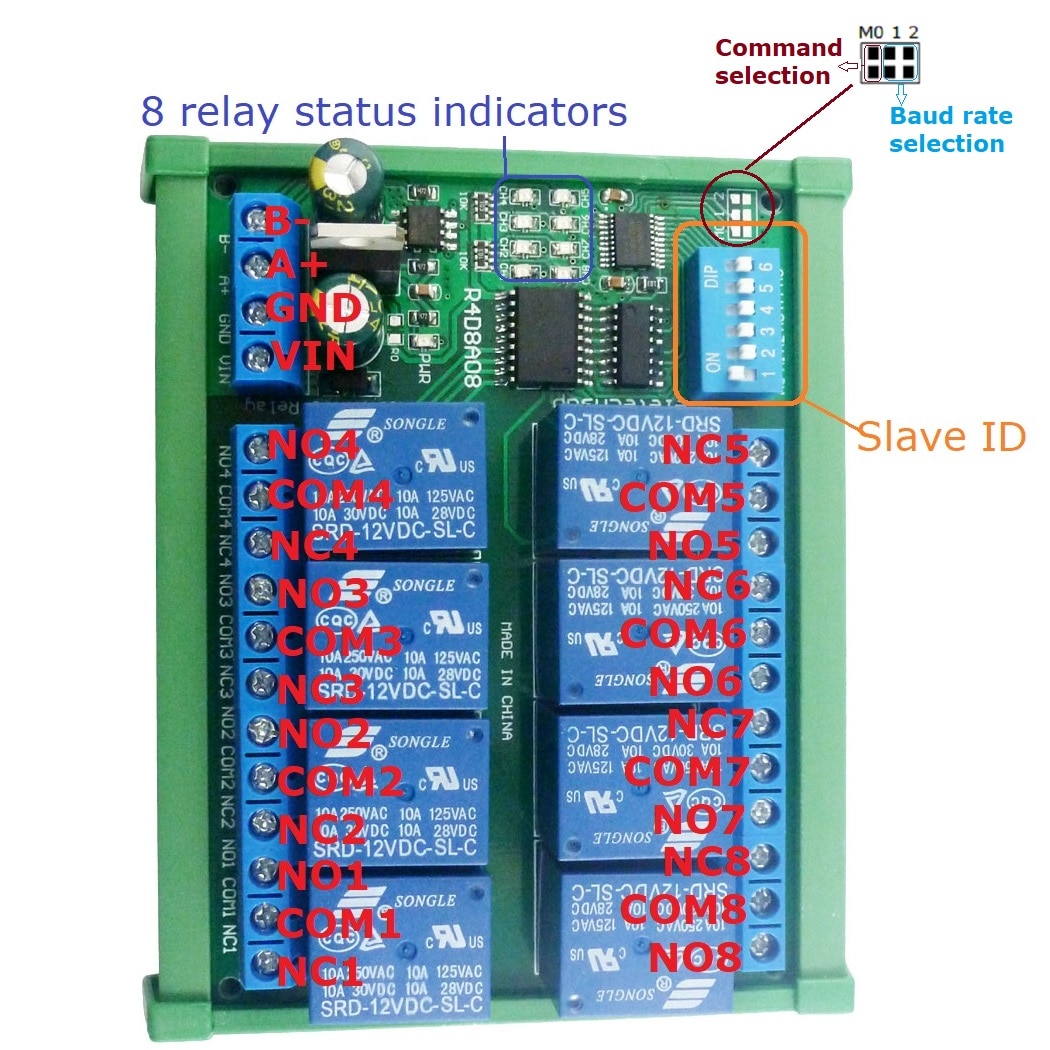

8 The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS
9? Size: 120 * 88* 42mm(with Din Rail Box)
10 Weight:198g(with Din Rail Box)

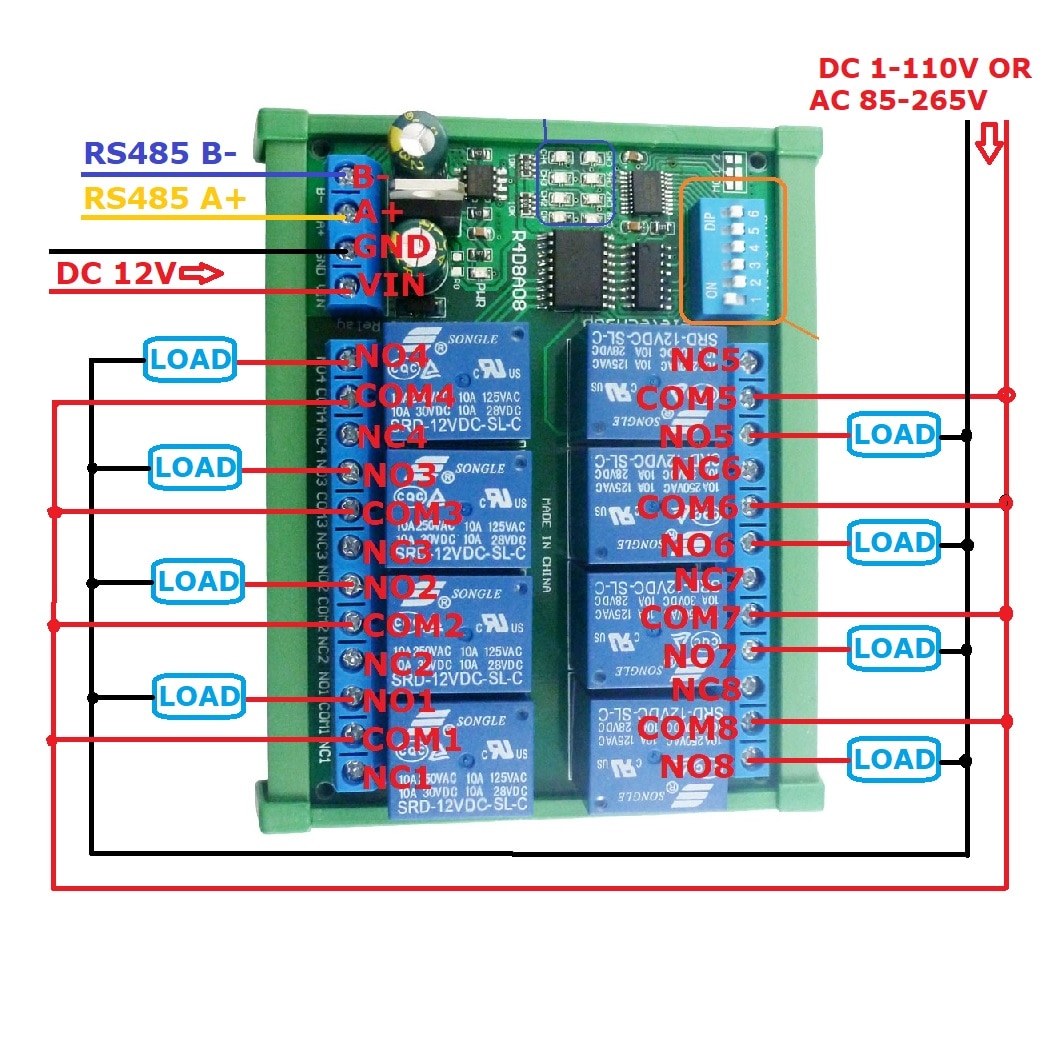

11 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

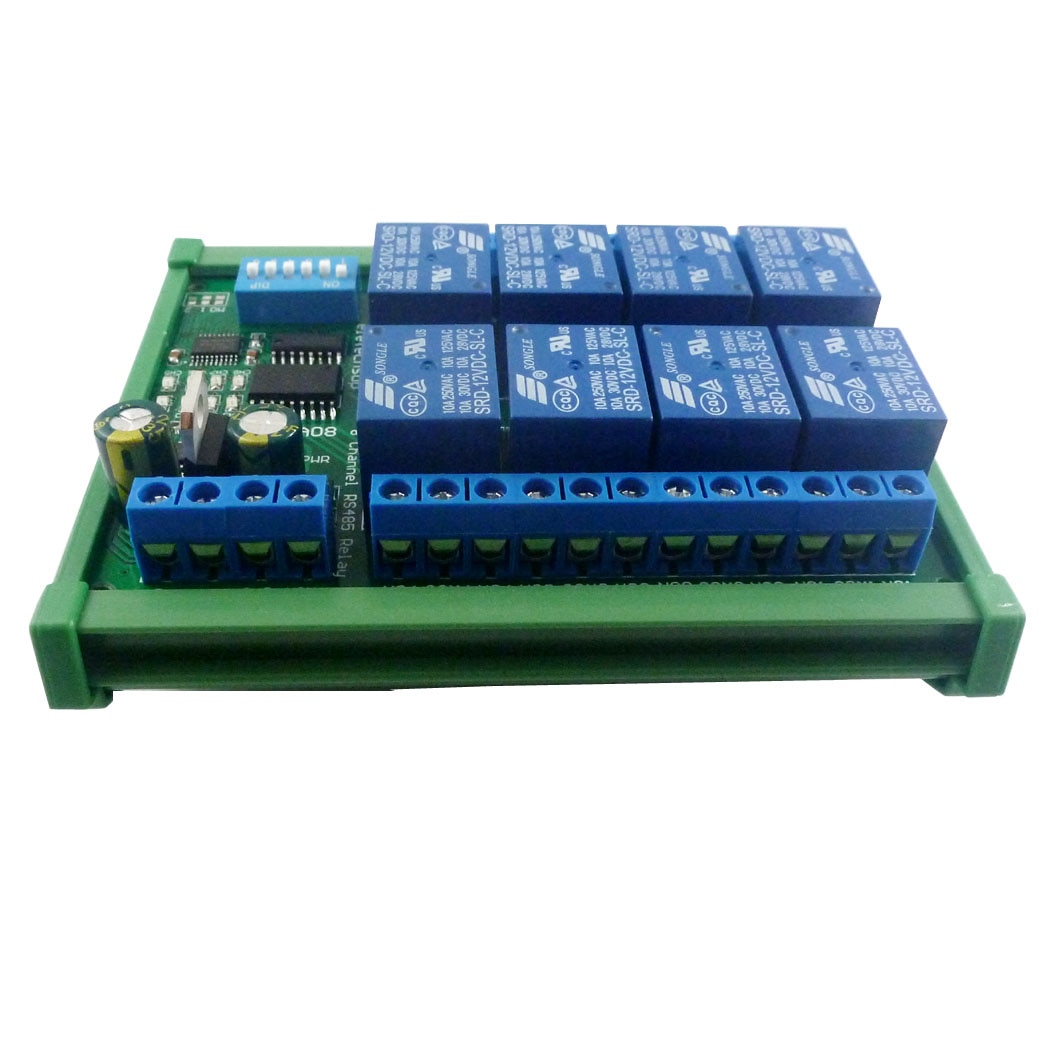

DIN rail Box parameters:

Product model: UM72
Color: green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 100 mm PCB boards
Net weight: 72g
Installation: DIN35 and C45 rail

GTIN: 774048924122
