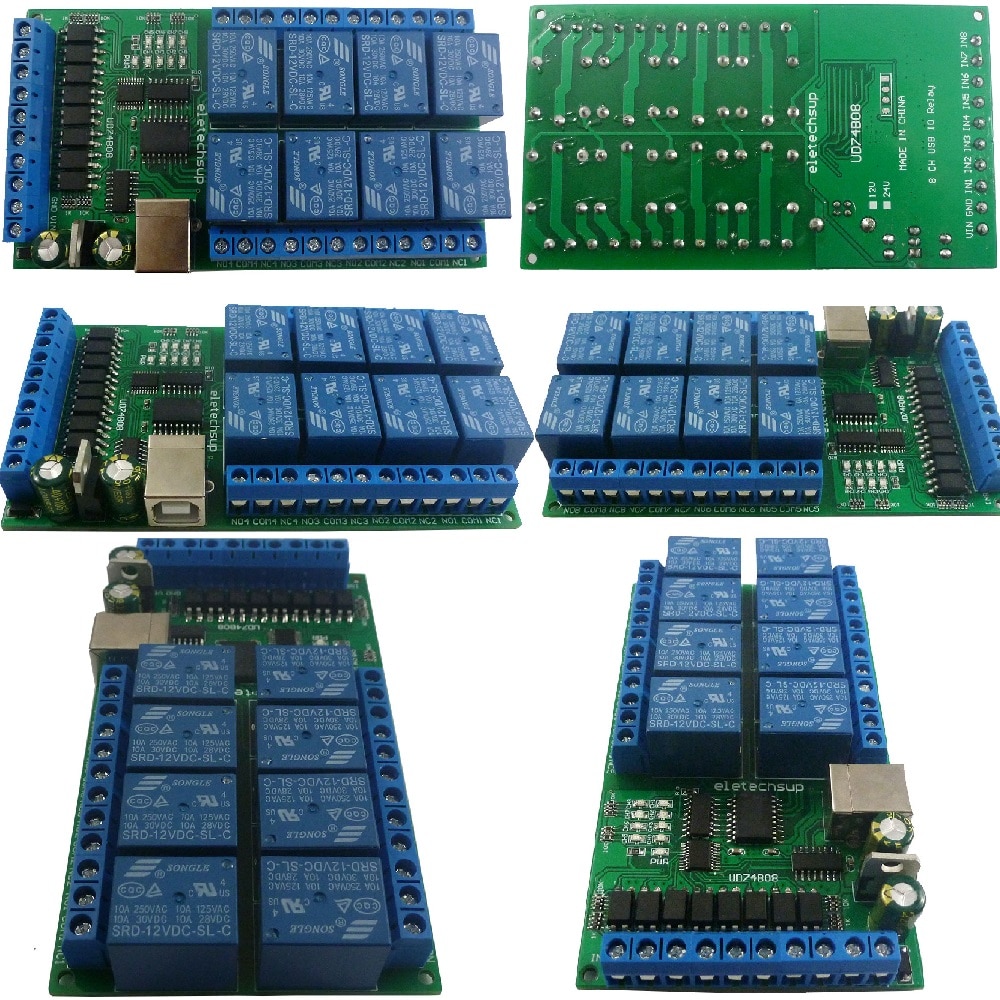

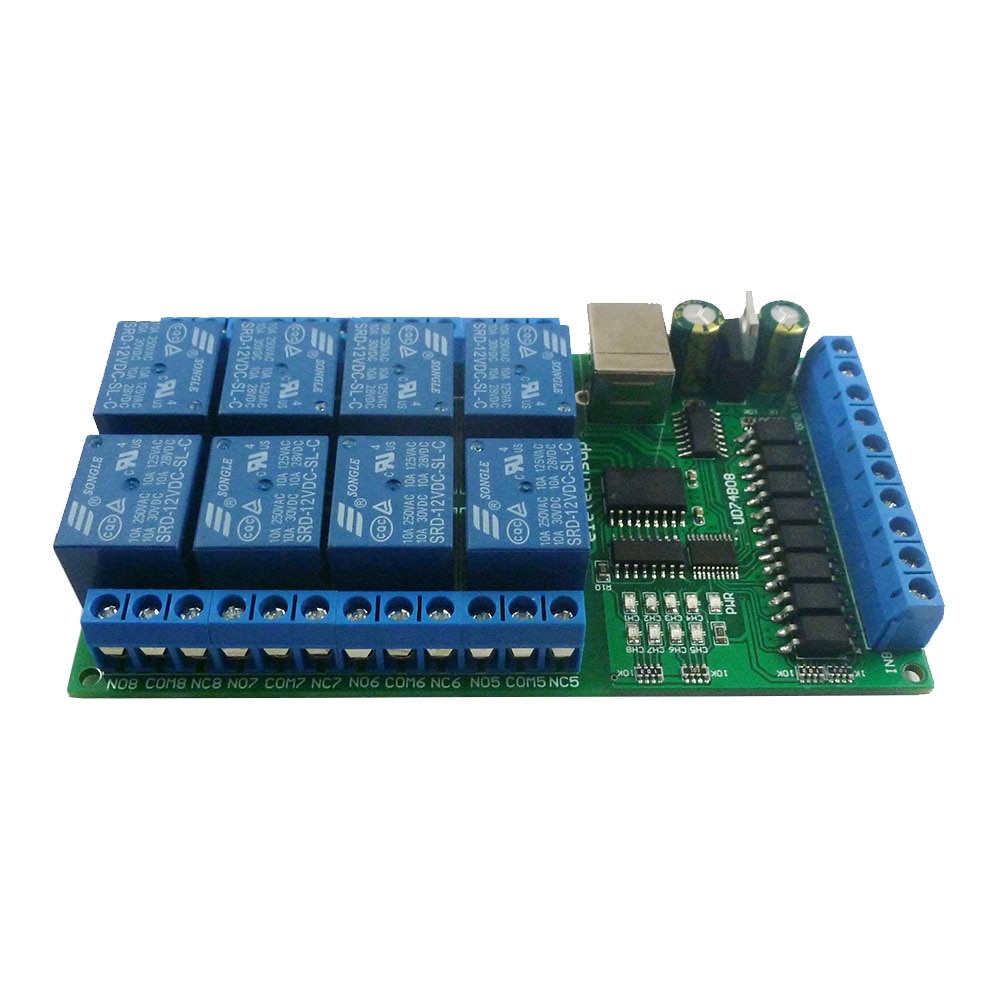

DC 12V USB Serial Port Relay Optically isolated UART RS232 Switch Board CH340

DC 12V USB Serial Port Relay Optically isolated UART RS232 Switch Board CH340

Be the first to review this product

Price	$48.73
	Collect 144 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Size	Please select an option
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 28/11/2024. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code KMVGM

Quantity

Add to wishlist

Description:
?
1: Working voltage: DC 12V optional
2: (DC12V)Standby current (all relays closed) 11MA, 1 relay open 39MA, 2 relays open 67MA, 3 relays open 95MA,4 relays open 121MA,5 relays open 147MA,6 relays open 173MA, 7 relays open 198MA,8 relays open 222MA

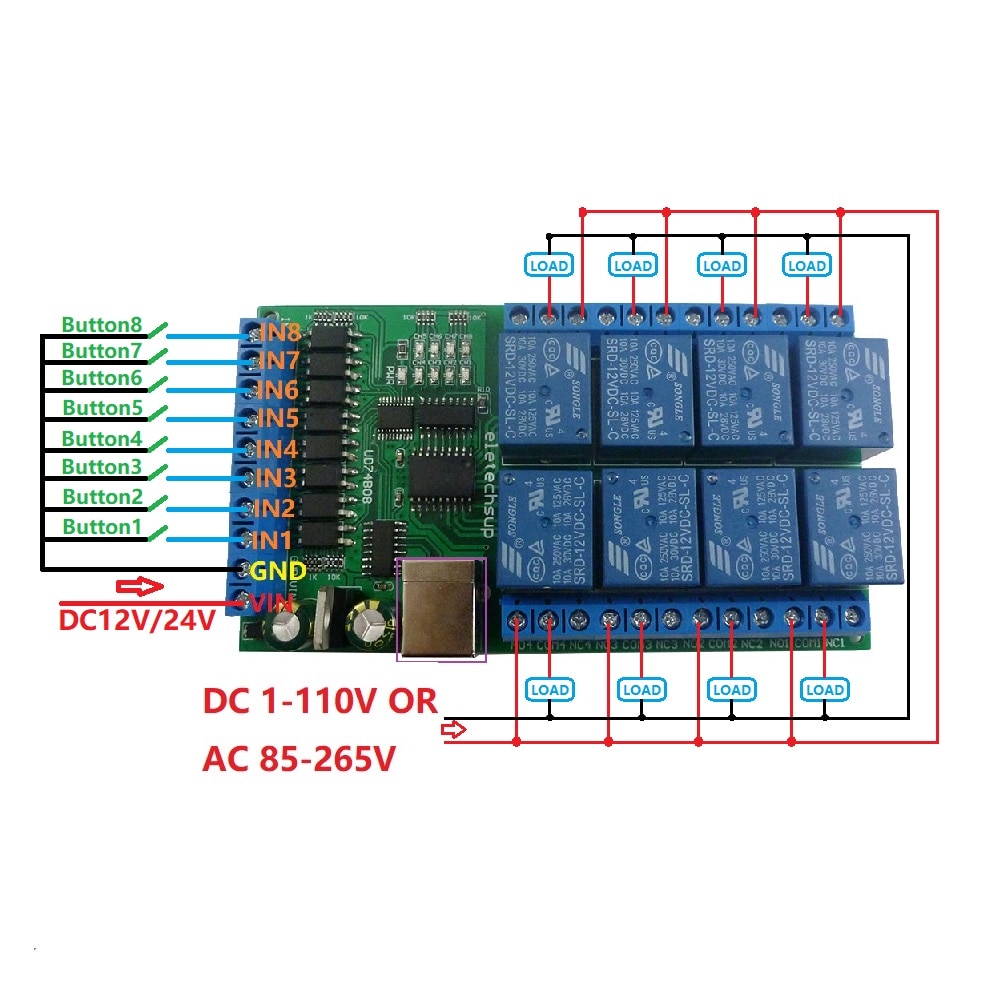

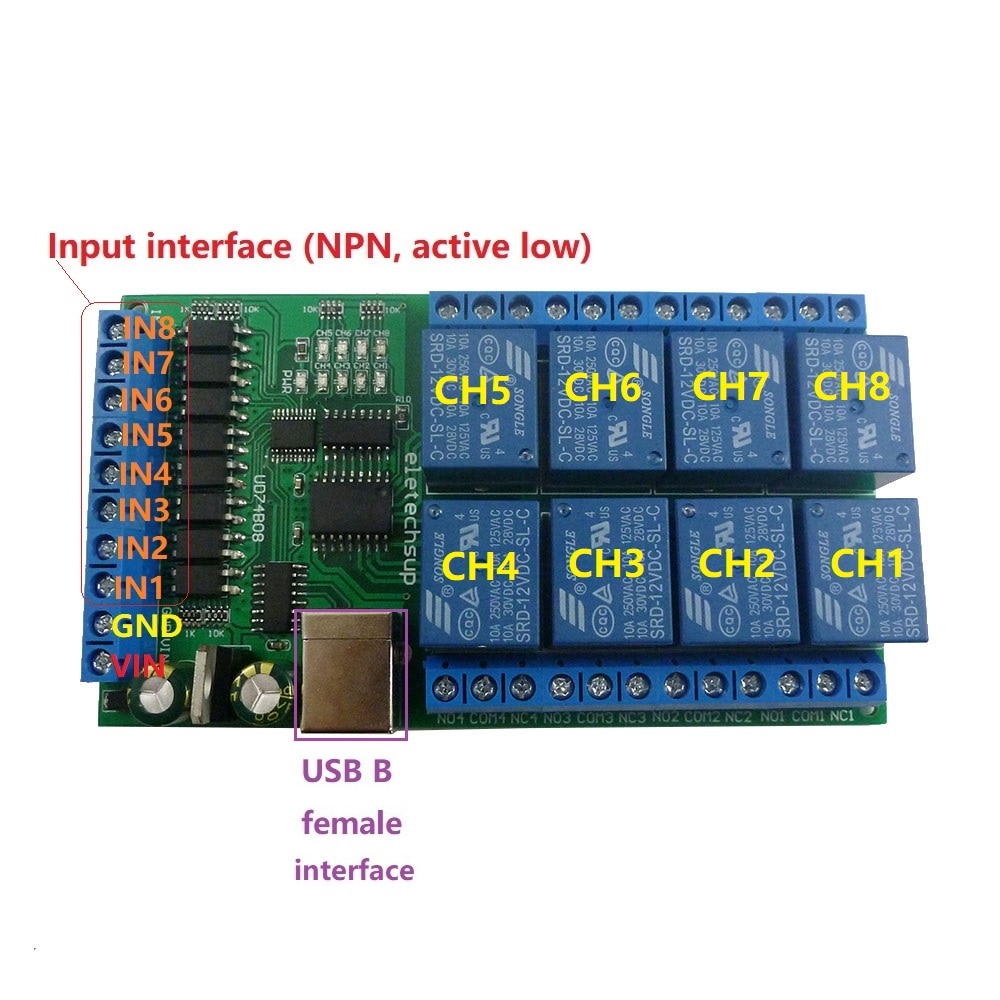

3 8 photoelectric isolation Input ports (NPN low level active ), the input and output relationship can be set to associated (default) and non-associated through commands.
4 UART serial port protocol, USB_B female interface (CH340 chip)
5 USB interface supports Windows(WIN10 WIN8 WIN7 WINXP), Linux and MAX operating systems
6: ''Open'' ''Close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''All Relays Open'' ''All Relays Close'' 8 Commands
7 Two kinds of commands: AT command and 8-byte command, the two commands are automatically recognized, no need to switch.
8: Under the ''Delay'' command ,the maximum delay is 9999 seconds(Only AT command)
9 Size: 111 * 63 * 19mm
10 Weight: 123 g
11 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
?
Without the USB B cable, you need to purchase the USB cable separately.
?
Application

Remote control, remote measurement system;
Wireless meter ;
Smart Home,Home Automation ,Wiser Home;
Access control ;
Identification system ;
Data collection;
IT household appliance ;
Intelligence household appliance;
Baby monitoring system;
