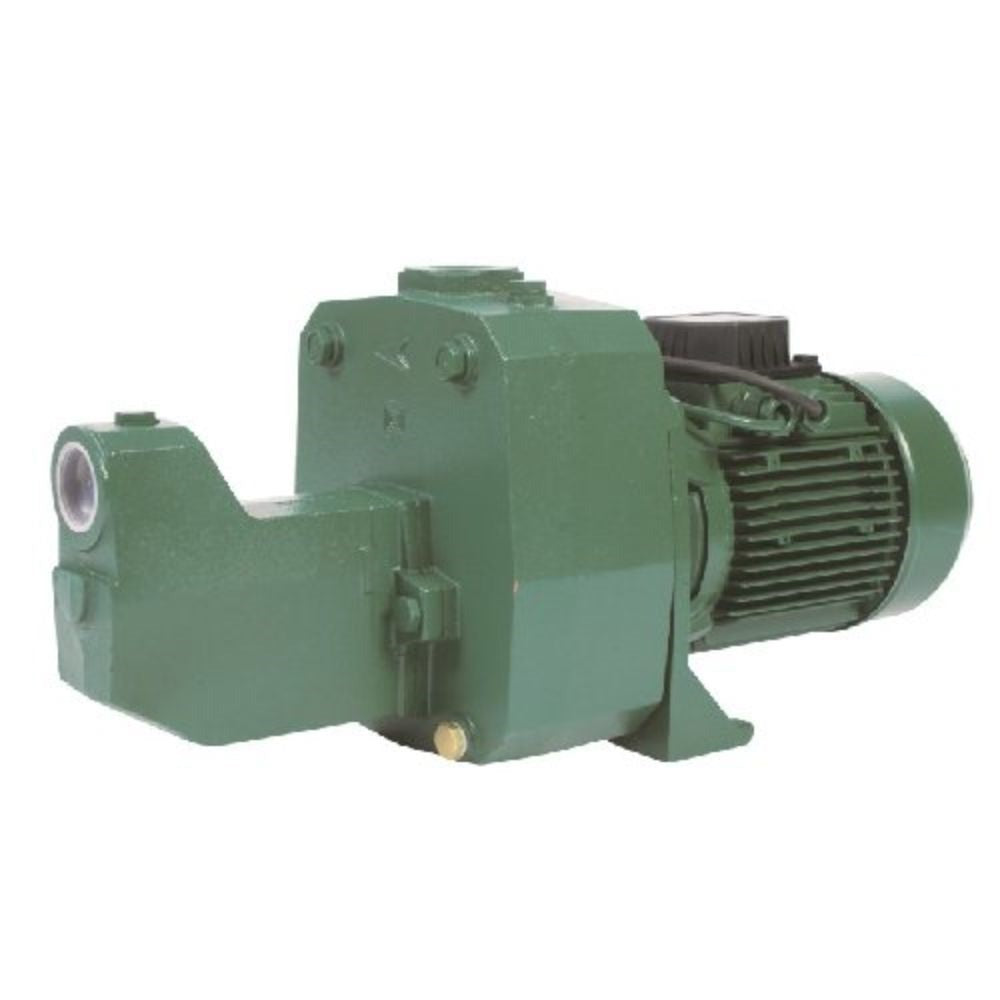

Dab 701388 Cast Iron Surface Mounted Multistage Pump 1.1 KW 1.5Hp 240V 61M 75Lpm

Dab 701388 Cast Iron Surface Mounted Multistage Pump 1.1 KW 1.5Hp 240V 61M 75Lpm

Hurry! 10 items left!

Price	$1870
	Collect 1870 Everyday Rewards points Log in to MyDeal to link your card
Shipping	$75.00 Australia-wide (per item)
	See delivery details

Quantity

Add to wishlist

Description

Self Priming Multistage Jet Assisted Cast Iron Jet Pump

Suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tanks, rivers and dams.

1.1kW, 1.5hp, 240V, max hd 61m, max flow 75L/m Ports 1 1/4 BSPF In, 1" BSPF Out

Technical Specifications

Brand	DAB Pumps
Product Type	Multistage Jet Pump
Suitable For	Tank Transfer
Bar	6.1 Bar
Flow Range Category	a. 0 - 99 L/min
Flow Rate (L/min)	75 L/min
Hp	1.5 Hp
kPa	618 kPa
Kilo Watts	1.1 kW
Casing Material	Cast Iron
Head Range Category	c. 60 - 99 m
Max Head (m)	61 m
Port Size Inlet	1 1/4" BSPF inlet
Port Size Outlet	1" BSPF outlet
Powered	Electric
Warranty (months)	24 Months
Volts	240 V
Watts	1100 W

Warranty

2 Year DAB Pumps Warranty

Handy Hints for Installing Your Jet Pump

Location: The pump should be located as close to the water source as possible and should be protected from the elements
Piping: Only use pipe that is in good condition and free of rust or scale
Types of Pipe: Plastic or galvanised steel can be used with jet pumps
Water to Pump Piping: All offset piping should slope upwards from water source to pump.

Drinking Water Approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, wont support the growth of micro-organisms and wont change the taste or appearance of your water.

The product image shown is for illustration purpose only

SKU: 701388
