CyberPower OL2000ERTXL2U guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency systems, and surveillance systems. The UPS adopts double-conversion topology to provide high-quality power output with additional ECO Mode to conserve power and save on energy costs. This generator-compatible UPS features hot-swappable battery packs for maintenance without power interruption, and Emergency Power Off (EPO) switch to allow users to shut off UPS immediately during emergency.
To extend battery lifetime, the UPS adopts Smart Battery Management (SBM) to enhance battery charging process and achieve a lower total cost of ownership. This model also features detachable LCD display panel to relocate the panel for convenient monitoring, and RJ11/RJ45 port to provide data line protection against surges and spikes. The PowerPanel® Power Management Software allows user to perform real-time monitoring and remote management of the UPS.
- Online (Double Conversion) UPS Topology
- Generator Compatible
- Critical/Non-critical Load Outlets
- Smart Battery Management (SBM)
- Extended Battery Module (EBM)
- EMI and RFI Filtration
- LCD Status Display
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
- ECO Mode
- Overload Protection
- Zero Transfer Time
- Hot-swappable Batteries
- Surge and Spike Protection
- Phone/Fax/Modem/DSL/Network Protection

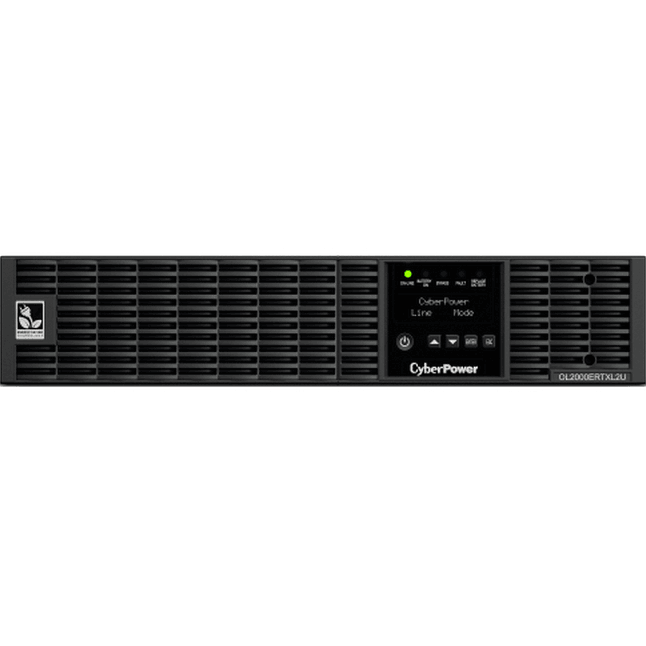

- Detachable LCD Panel
- PowerPanel® Management Software
- Rack/Tower Convertible Configurations
Item requires forklift at delivery. Please confirm prior to ordering.
Phase: Single Phase
Form Factor: Rackmount, Tower
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode Efficiency > 96%
Generator Compatibility: Yes
Input Voltage Range ( Vac ): 190 - 300
Adjustable Voltage Range ( Vac ): 0-60% Load for 120 - 139 Vac | 0-70% Load for 140 - 159 Vac | 0-80% Load for 160 - 179 Vac | 0-90% Load for 180 - 189 Vac | 0-100% Load for 190 - 300 Vac
Input Frequency ( Hz ): 50 ± 10 | 60 ± 10
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 10
Input Power Factor: 0.99
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: IEC C14 x 1
Power Cord Length (m): 3
Output Capacity (Watts): 1800
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 200 ± 2% | 208 ± 2% | 220 ± 2% | 230 ± 2% | 240 ± 2%
Output Voltage Setting: Configurable
On Battery Frequency ( Hz ): 50 ± 0.5% | 60 ± 0.5%
Output Frequency Setting: Configurable
Power Factor: 0.9
ECO Mode Voltage Tolerance: ± 10 % | ± 15 %
Overload Protection: Internal Current Limiting, Circuit Breaker
Overload Protection (Line Mode): 105-125% Load for 1 min, 125-150% Load for 10 sec
Overload Protection (Battery Mode): 105-130% Load for 10 sec, 130-150% Load for 2 sec
Overload Protection (Bypass Mode): Circuit Breaker
Crest Factor: 3 : 1
Harmonic Distortion (Linear Load): THD?3%
Harmonic Distortion (Non-linear Load): THD?5%
Internal Bypass: Automatic Bypass, Manual Bypass

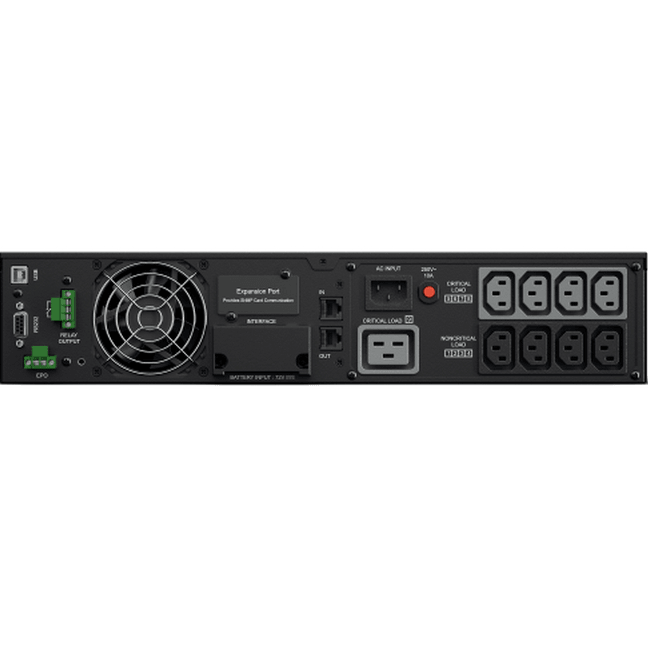

Outlet(s) - Total: 9
Outlet Type: IEC C13 x 8 | IEC C19 x 1
Outlet(s) - Battery & Surge Protected: 9
Outlet(s) - Critical Load (CL): 5
Outlet(s) - Non-Critical Load (NCL): 4
Typical Transfer Time ( ms ): 0
Runtime at Half Load ( min ): 20
Runtime at Full Load ( min ): 6.5
Typical Recharge Time ( Hours ): 5
Start On Battery: Yes
Smart Battery Management (SBM): Yes
Hot-swappable: Yes
Battery Type: Sealed Lead-acid
Battery Cartridge: RBP0076
RBP Quantity ( pcs ): 1
Battery Quantity (Each RBP) ( pcs ): 6
Battery Voltage (Each RBP) ( V ): 72
Compatible Extended Battery Module (EBM): BPE72V60ART2US
Max. EBM Quantity ( pcs ): 10
Surge Suppression ( Joules ): 1335
EMI/RFI Filtration: Yes
Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting, Language
LED Indicators: Power On, Line Mode, Battery Mode, Bypass Mode, Battery Capacity, Low Battery, Overload, UPS Fault, Wiring Fault, Replace Battery
HID Compliant USB Port(s): 1
Dry Contact (with Relay): Yes
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
Management Cable ( pcs ): Power Cord x1, USB Cable x1, Serial Cable x1, Phone Line x1
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
Enclosure Construction: Metal
Rackmount Rail: Yes
Rackmount Ears: Yes
Dimensions: 433 x 88 x 600mm
Weight: 31kg
Certifications: CE, BSMI, C-Tick
