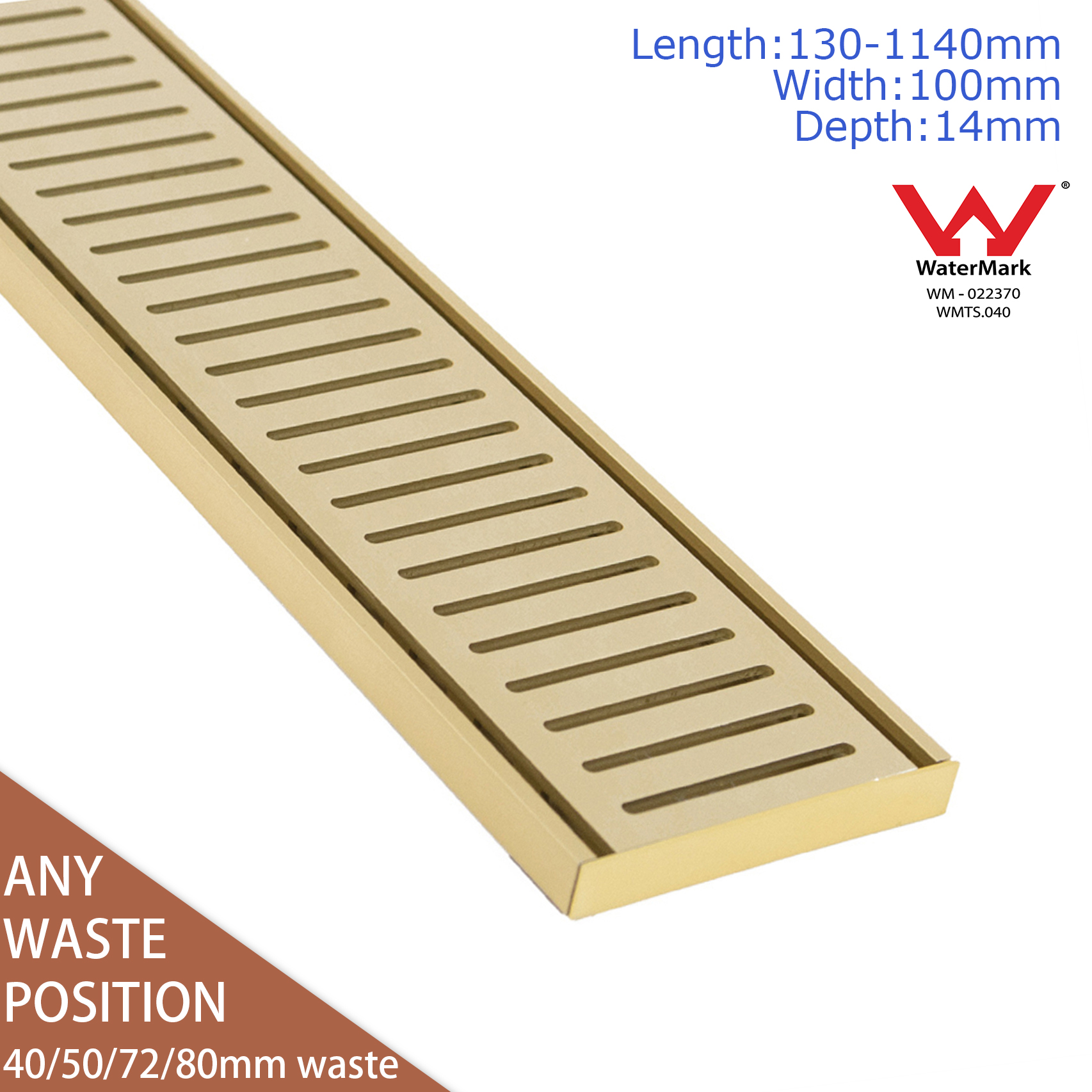

Clearance 130-1140mm Gold Shower Grate Drain Strip Floor 40/50/72/80mm Waste

Specifications:

Product Features

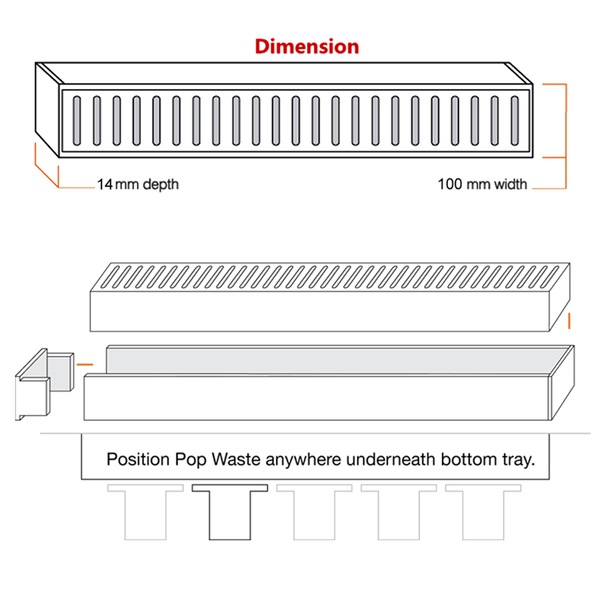

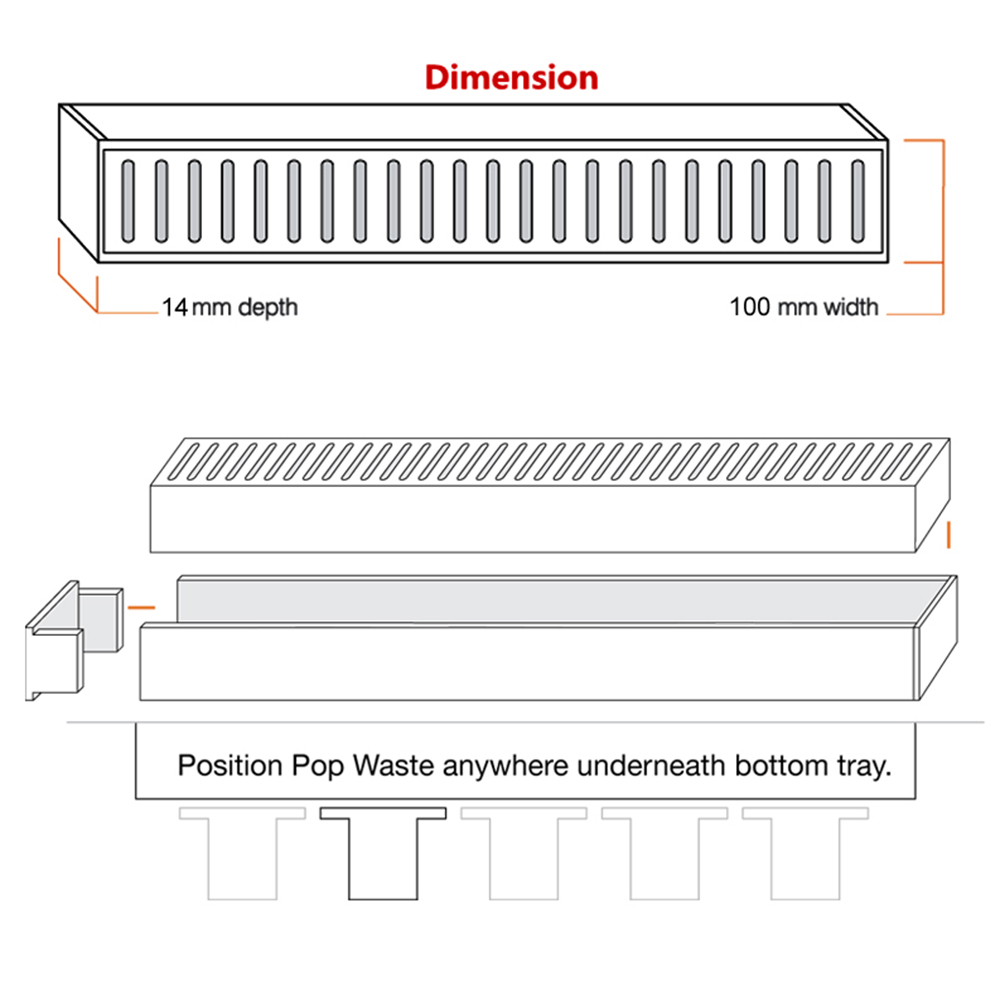

• Size (mm): (130/180/240/280/340/410/580/590/1140)L x 100W x 14H
• 4 Waste Sizes: 40/50/72/80mm
• Colour: Yellow Gold
• Can position 1 or more waste underneath the bottom trap
• Rust proof
• Lightweight
• Top grate easily removed for cleaning
• Easy to cut to desired length
• No welding required
• No major plumbing involved as waste can be positioned anywhere along the bottom tray
• Perfect use for indoor/outdoor applications
• Lifetime rustproof warranty
• Kindly reminder: the grade drain is coming WITHOUT hole for pop waste.

?

Package Contents

• 1x Floor Drain

• 1x Waste

• 1 Pair End Caps

?

Cutting & Assembly Instructions

For easy cutting of floor grate, we recommend the use of a compound mitre saw fitted with a multi-material cutting blade 80 tooth or more. A compact drill with a bimetal hole would be adequate to drill the hole for the waste outlet.

• 1.Cut the bottom tray 3mm shorter than desired length to allow end caps to be fitted
• 2.Cut the top grate 1mm shorter than the bottom tray to allow for easy roll in of top grate and tidy fit
• 3.Using the suitable size hole saw for your pop waste, drill out the hole at the required position to align with the waste pipe in the floor
• 4.Insert the end caps into the bottom tray and secure with a bead of silicone on the inside of the tray
• 5.Place silicone around the lip of the pop waste and secure to the underside of the bottom tray at the recently drilled hole
