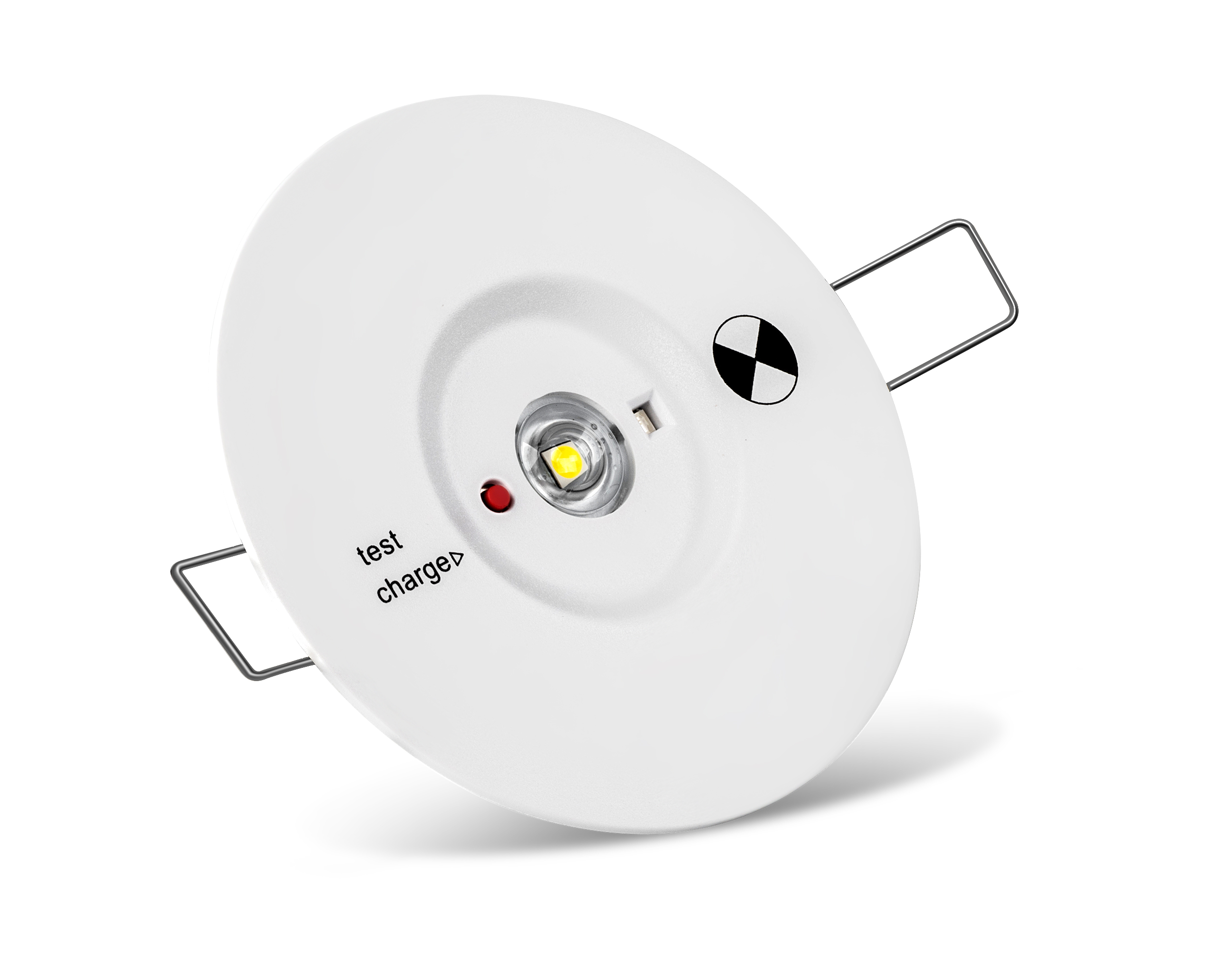

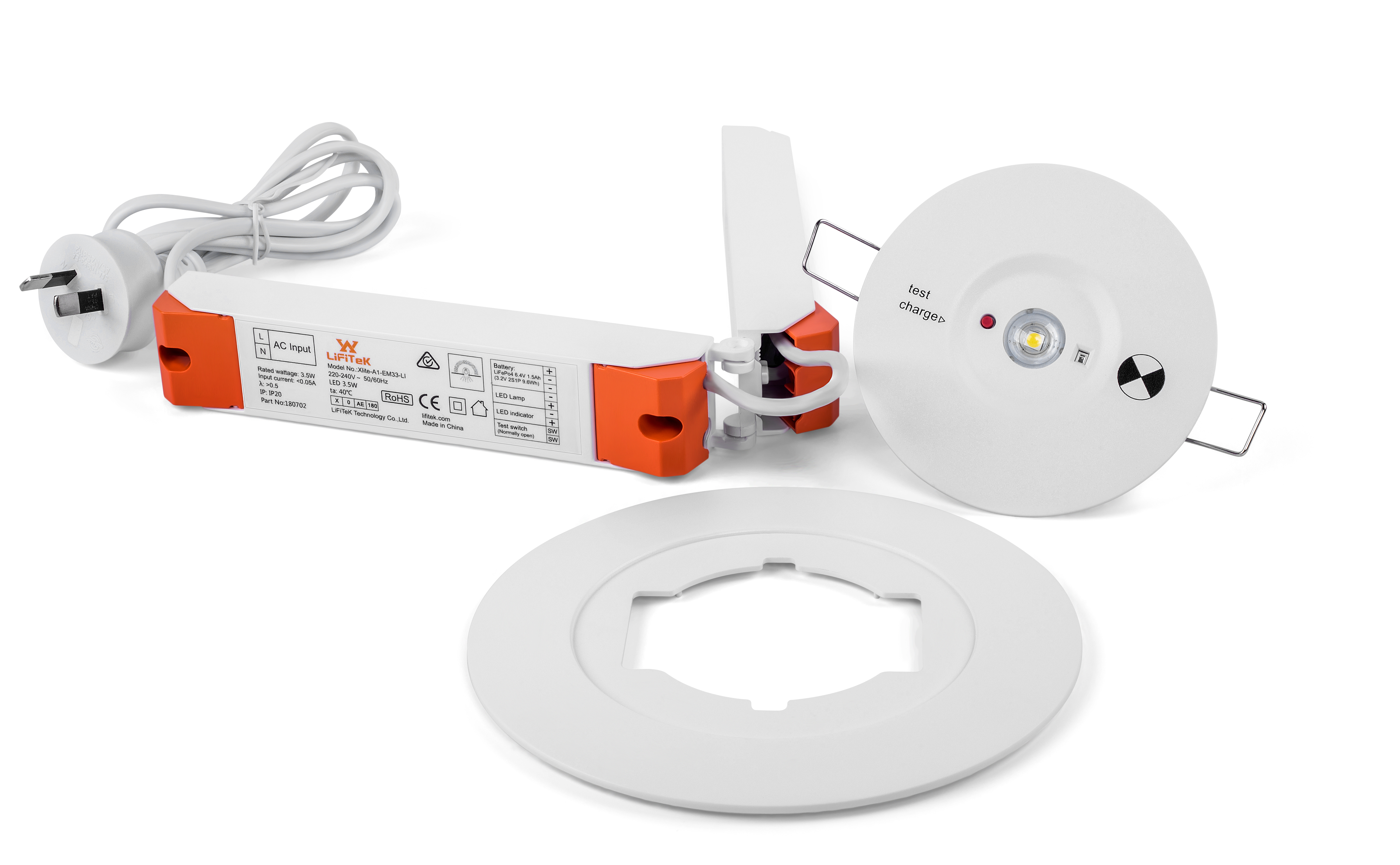

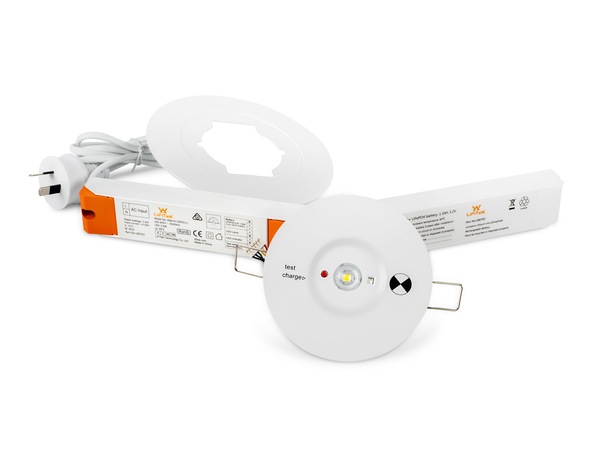

Citilux Recessed Spitfire Emergency Light

Applications

• - Use in damp and dry environment
• - Ambient range ta:0...60°C
• - IP20 protection, relies on end-product enclosure for protection against accidental contact live parts
• - Not intended for use in luminaries for high-risk task area lighting

Basic data

• Output Emergency Power: 3W max
• During: 3 hours
• Battery Pack: LiFePo4 Battery 6.4v 1500mAh
• Cut out: 70mm - 120mm (flexible cut out)
• C0 Plane: D50 (19.4M)
• Australia Standard, certified and Approved

Technical data

• - Protection against electric shock: Class II (Safety extra low voltage for fitting)
• - Input voltage: 220-240VAC 50-60Hz - AC input power: <3.5 W
• - AC input current: <50 mA - Power factor: >0.5
• - Max. casing temperature: 70°C - Output voltage: 20-28V
• - Output current: Constant Current 100mA
• - Output emergency power: 3W max - Recharge time: .16 hours
• - Duration: 3hours - Battery pack: LiFePo4 battery 6.4V 1500mAh
• - Rated 500 charge/discharge cycle
• - Battery voltage: 3.2V/cell (251P 6.4V 1500mAh)
• - Battery type: IFR18650 (Ronda)
• - Charging indicator light:
  • Green light on--Battery is charging
  • Green light on--Battery is fully charged
  • Indicator off--The device is something wrong and is malfunction
• - This unit recharge the battery normally after reconnecting of battery

LED Specifications

• - Manufacturer: LUXEON 5050
• - LED Description: 2.7 W
• - LED Colour Temperature : 2700K-6500K
• - Lumen out-put: 328 Im
• - Lumen factor: 120Im/W
• - CO Plane: D50(19.4M)
