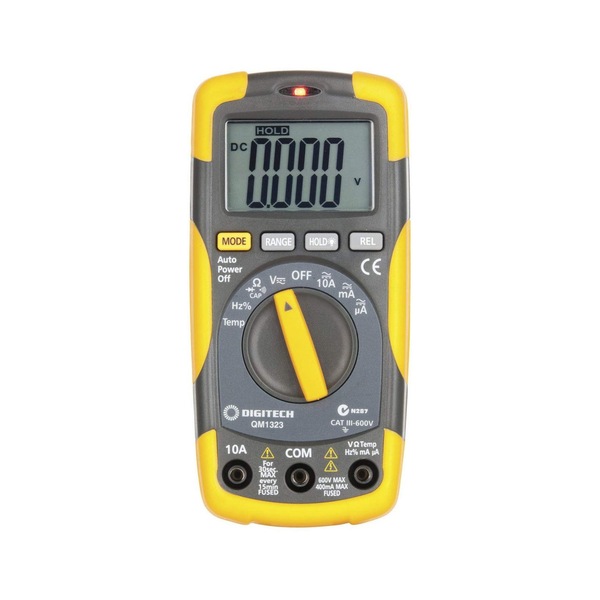

A budget-priced meter with everything you need - capacitance, temperature and 10A on AC and DC, compact and light weight with rugged a moulded case.
Features:
* Category: Cat III 600V
* Display: 4000 count
* Basic DVC accuracy: 0.5%
* Ave/RMS: Ave
* Data hold
* Relative measurement
* Woven nylon pouch with room for the meter and leads included
* Leads included
* K-type probe included
* Case included
Measures Voltage AC
AC Voltage Ranges | 400mV, 4V, 40V, 400V, 600V |
AC Voltage Accuracy | 1.20000000% |
Measures Voltage DC
DC Voltage Accuracy | 0.50000000% |
DC Voltage Ranges | 400mV, 4V, 40V, 400V, 600V |
Measures Current AC
AC Current Ranges | 4mA, 40mA, 400mA, 10A |
AC Current Accuracy | 3% |
Measures Current DC
DC Current Ranges | 4mA, 40mA, 400mA, 10A |
DC Current Accuracy | 2.50000000% |
Measures Temperature
Outdoor / Exterior Scale | -20oC-760oC |
Measures in Celcius | |
Measures in Fahrenheit | |
Measures in Kelvin | |
Celcius Accuracy | 3% |
Sensor Temperature Probe
Probe Material | Woven Teflon |
Lead Length | 900mm, 870mm |
Sensor Type | K-Type Thermocouple |
Connection to Meter | Mini-Marlin Plug with Banana Plug Adaptor |
Measures Frequency
Frequency Ranges | 4kHz, 40kHz, 400kHz, 4kHz, 10MHz |
Frequency Accuracy | 1.50000000 |
Measures Resistance
Resistance Ranges | 400 , 4k , 40k , 400k , 40 |
Resistance Accuracy | 1.20000000% |
Measures Capacitance
Capacitance Ranges | 4nF, 40nF, 4uF, 40uF, 100uF |
Capacitance Accuracy | 3% |
Meter Safety Rating
Safety Rating Cat | Cat III |
Safety Rating Max Volt | 600V |
Meter Probes
Probe rating voltage | 600V |
Lead Length | 900mm, 870mm |
Probe Type | Basic Meter Probes |
Connection to meter | Shrouded 4mm Banana Plug |
Overall probe length | 142mm |
Tip length | 2mm |
Tip diameter | 2mm |
Probe safety rating | Cat III |
Digital Multi-Meter
Count Maximum Reading | 4000 count |
Measures duty cycle | |
Autorange |
Meter Data Control
Data Hold | |
Relative Measure |
Meter
Measures diode | |
Led Indicator Display | |
Meter Input Impedence | 10M |
Input Protection Fuse | 10mA |
Inline Sensor | x |
Power from disposable battery
Size / Shape | 9V |
Battery quantity | 1pc |
Batteries included | |
Batteries can be replaced by user | |
Compartment location | Internal / In-built |
How is battery compartment kept closed | Clip and Screw |
Product Dimensions
Width | 68mm |
Height | 138mm |
Depth | 37mm |
Packaged Dimensions
Packaged Volume | 1.76505l |
Packaged Weight | 0.436kg |
Packaged Length | 20.5cm |
Packaged Width | 12.3cm |
Packaged Height | 7cm |
Meter Display
Display Height | 55mm |
Display Width | 25mm |
Display Type | LCD |
Display Backlight |
