Specifications
* Category: Cat IV 600V / Cat III 1000V
* Display: 4000 count
* Basic accuracy: 1%
* Insulation test: 4Gohms @ 125 - 1000V
* Ave/RMS: Ave
* Analogue/digital display
* Data hold
* Max/min
* Moulded case
* Backlit LCD
* Auto power-off

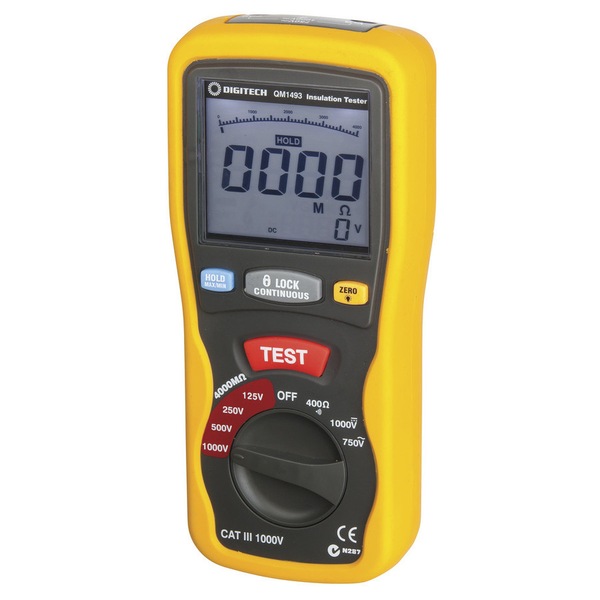

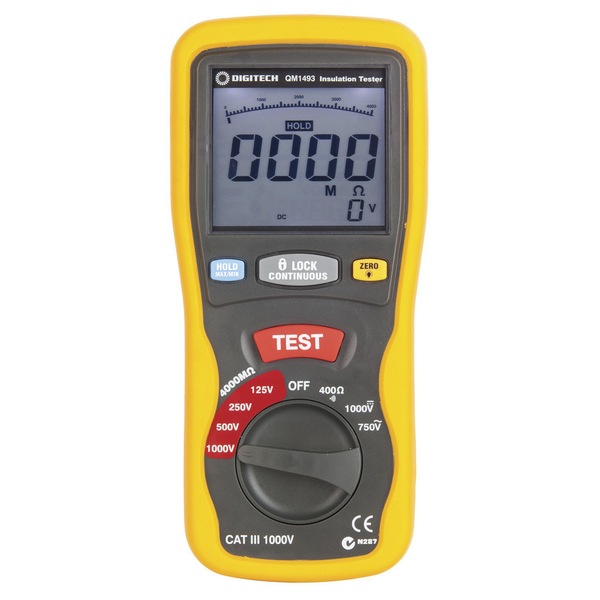

Commonly known as a megger and suitable for high voltage insulation testing up to 4 gigaohms at up to 1000V. It also has AC/DC voltage and low resistance multimeter functions. Moulded storage case and holster included.
Meter Safety Rating
Safety Rating Cat | Cat III |
Safety Rating Max Volt | 1000V |
Measures Voltage DC
DC Voltage Accuracy | (0.8%+3) |
DC Voltage Ranges | 1000V |
Measures Voltage AC
AC Voltage Accuracy | (1.2%+10) |
AC Voltage Ranges | 750V |
Measures Resistance
Resistance Ranges | 40 , 400 |
Resistance Accuracy | (1.2%+3) |
Digital Multi-Meter
Count Maximum Reading | 4000 count |
Autorange |
Meter Data Control
Records Minimum | |
Records Maximum | |
Data Hold |
Meter Probes
Probe rating voltage | 1000V |
Probe safety rating | Cat III |
Meter
Input Protection Fuse | 15mA |
Meter Input Impedence | 0 |
Carry Case Included |
Power from disposable battery
Batteries included | |
Size / Shape | AA |
Battery quantity | 6pc |
Batteries can be replaced by user | |
Compartment location | Back |
Product Dimensions
Length | 200mm |
Width | 92mm |
Depth | 50mm |
Packaged Dimensions
Packaged Volume | 5.760378l |
Packaged Weight | 1.466kg |
Packaged Length | 30.9cm |
Packaged Width | 23.9cm |
Packaged Height | 7.8cm |
Meter Display
Display Type | LCD |
Display Backlight | LED Backlit |
Bargraph | |
Digits Displayed | 4digit |
Measures Insulation Resistance
Insulation Resistance Ranges | 4M , 40M , 400M |
Accuracy | (2%+10) to (5%+5) depending on scale. Refer to manual for full details.% |
Test Voltage | 125V, 250V, 500V, 1000V |
Test Current | 1mA |
