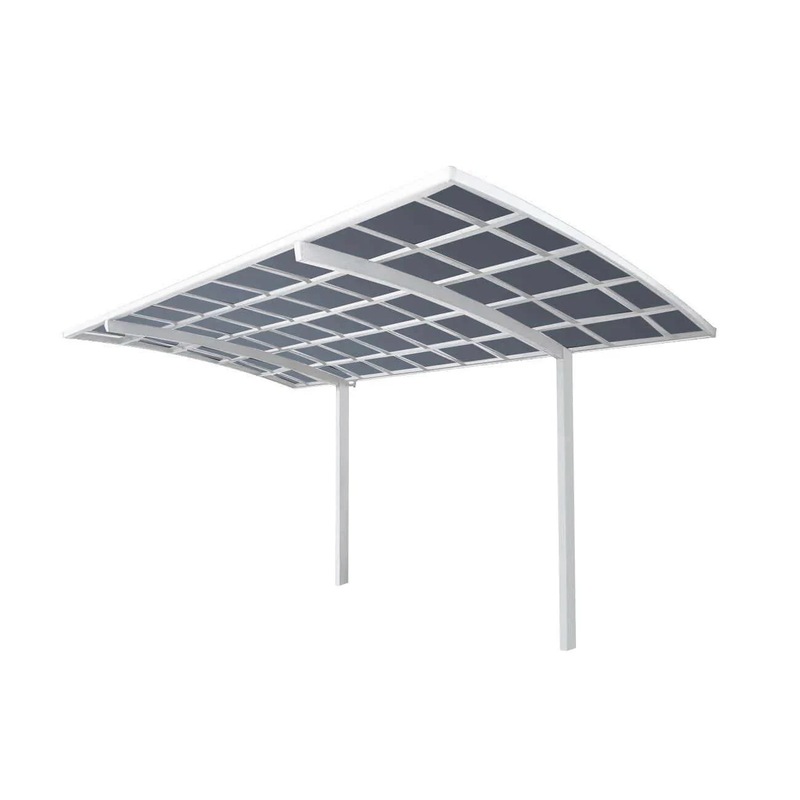

Cantilever Patio Cover 550x 280 x 316cm

Let sunlight in while keeping the weather out. Our patio cover uses ultra-strong polycarbonate panels and a maintenance-free aluminum frame to protect your outdoor space for years to come.

Features:

• Bright, Protected Space: Bayer® 2mm PC polycarbonate panels let natural light through while blocking harmful UV rays
• Incredibly Durable: More impact-resistant than glass, withstanding harsh weather conditions
• Maintenance-Free: The heat-protected polycarbonate panels are highly resistant to corrosion and fading.
• Weather-Tested: Stands up to winds of 123 km/h and snow loads up to 64 kg/m² (21.6cm thickness).
• Easy Assembly: Pre-drilled holes for quick and hassle-free setup.

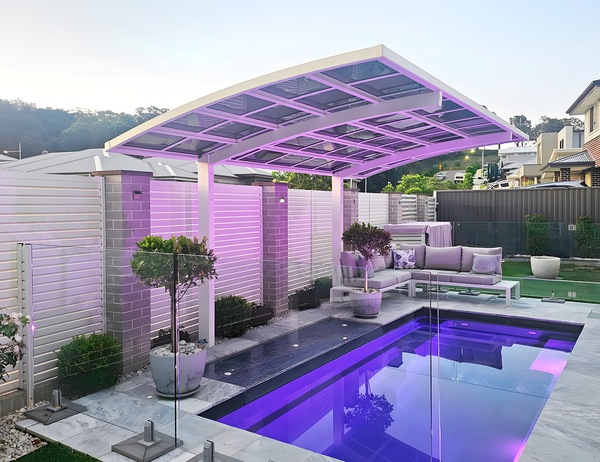

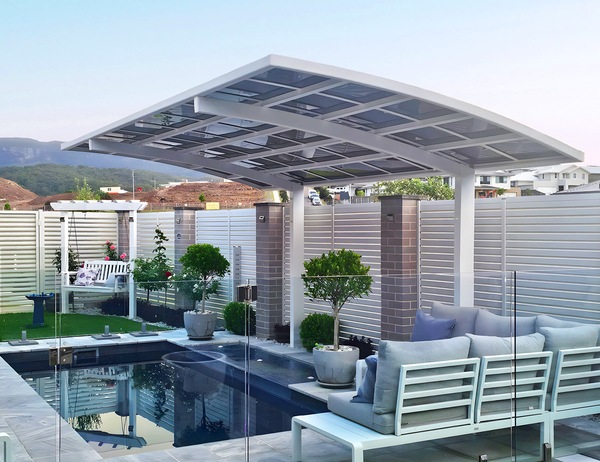

• Versatile Applications: Ideal for poolside shading, car protection, and BBQ shelter.

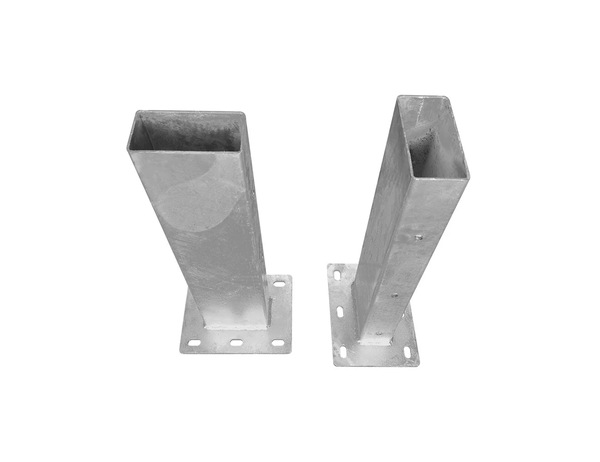

• Comes with base plates for a stable installation.

NB: If you need ENGINEERING STRUCTURAL DRAWINGS in your area, please contact sales and we will provide you with a solution.

Specifications:

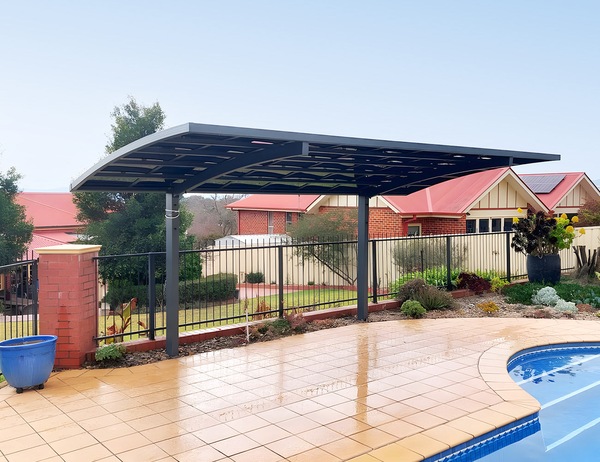

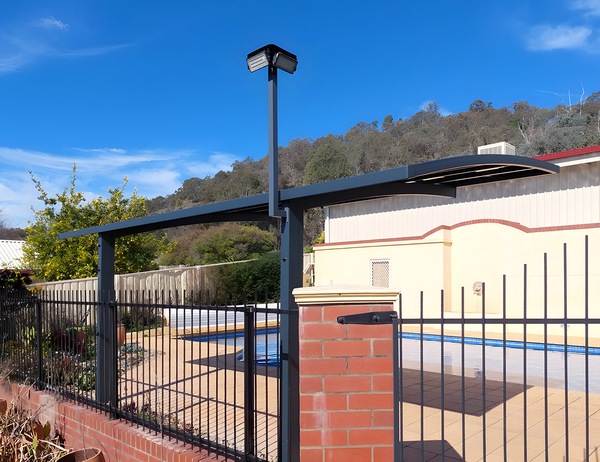

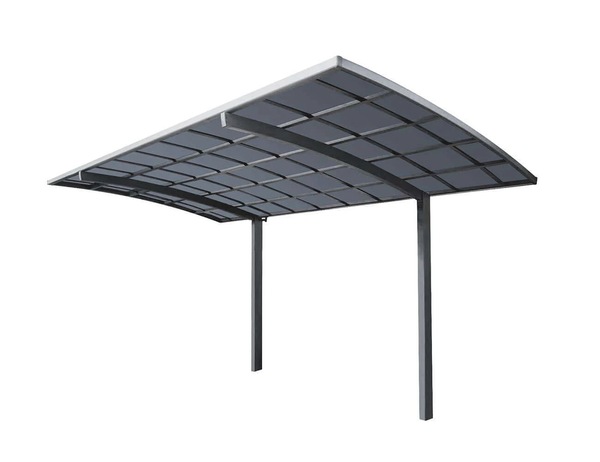

• Color Options 1: Dark Grey (RAL7016) (Aluminum frame) + Dark Grey/Light Grey (Polycarbonate panel)

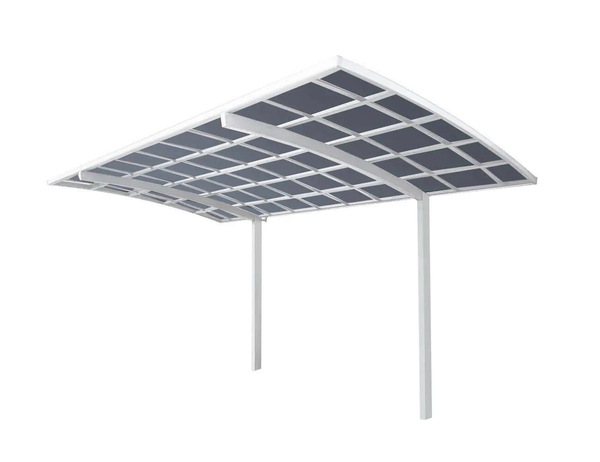

• Color Options 2: White (RAL9016) (Aluminum frame) + Dark Grey/Light Grey (Polycarbonate panel)

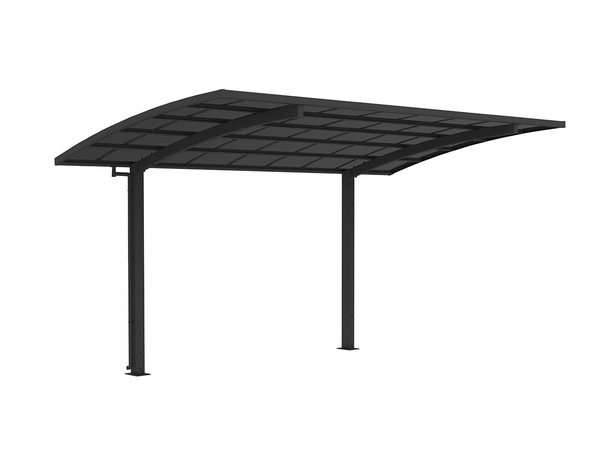

• Color Options 3: Black (RAL9005) (Aluminum frame) + Dark Grey (Polycarbonate panel)

• Material: Powder-coated Aluminium Alloy Frame, 2mm Bayer PC Polycarbonate Sheets for Roof Panel
• Warranty: 10-year warranty on the aluminum frame, 10-year warranty on polycarbonate roof sheets

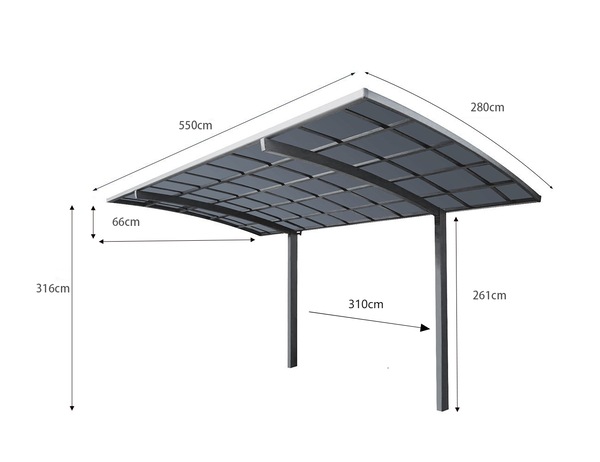

Dimensions:

• With Base Plates: 550 × 280 × 316cm
• Embedded Installation: 550 × 280 × 265cm
• Frame: Posts (162 × 88mm, 2.6-4.0mm thick), Roof Beams (116 × 65 × 2.5mm)
• Post Height: 261cm
• Arc Top Height: 66cm

Packages:  5 cartons/set,  Package Material: Carton

• Package 1 Dimensions (L x W x H): 2873*375*195mm   37kg
• Package 2 Dimensions (L x W x H): 5503*290*175mm   55kg
• Package 3 Dimensions (L x W x H): 818*587*95mm   21.5kg
• Package 4 Dimensions (L x W x H): 661*320*295mm   21kg
• Package 5 Dimensions (L x W x H): 540*540*685mm   44kg
• Weight: Gross Weight 178.5kg

Package Contents:

1x Cantilever Patio Cover
1x Instruction Manual

Polycarbonate Sheet Color:
