DOSS BVB4200WPHD Water Proof BNC HD Video Balun Passive

DOSS BVB4200WPHD Water Proof BNC HD Video Balun Passive

Hurry! 18 items left!

Price	$12.95
	Collect 12 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

The DOSS Range of UTP Video Baluns allow you to connect your CCTV system using cheaper, thinner, lighter and more readily available CAT5E cable rather than expensive and bulky RG59U cable.

The passive (non-amplified) baluns allow transmission of realtime CCTV video signals over cost-effective Unsheilded Twisted Pair (UTP) cable, without any compression, loss or signal degradation and without the need for extra power supplied to be installed. Baseband (composite) signals of any type are supported.

The Doss BVB4200WPHD is compatible with all HD-TVI, HD-CVI and AHD analogue cameras. Used in pairs which eliminates costly and bulky coxial cable.

Applications

Security Monitoring System
Multimedia Network Teaching System
Medical Monitoring Display System
Industrial Automation Control System
Banking, securities, financial information display system
Remote Network Server Monitoring
Department Store Security
Casino Security
Hospitals, Airports and banks
School Campuses

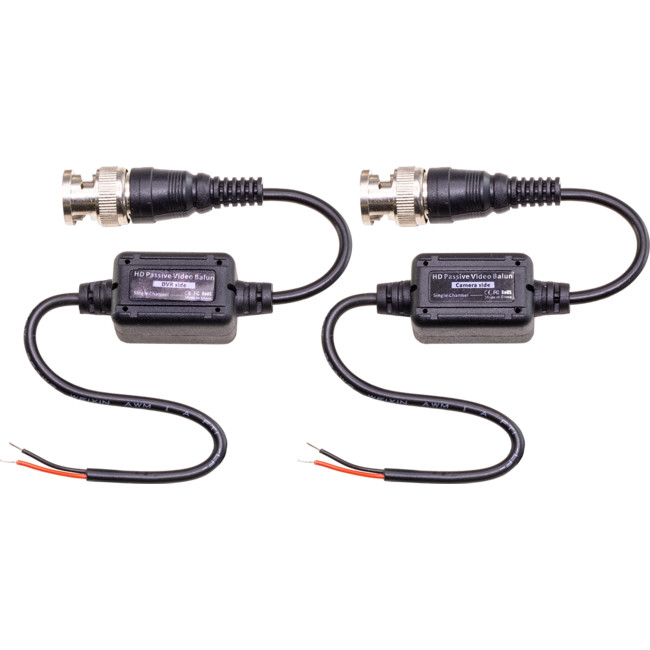

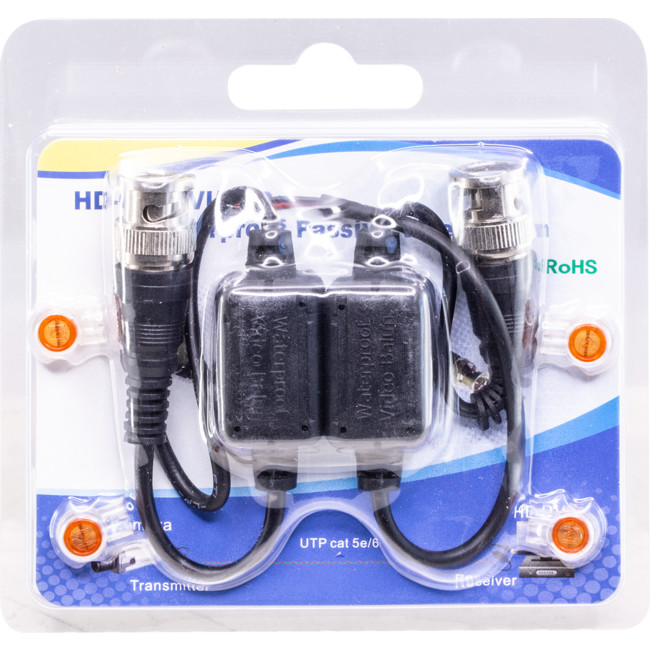

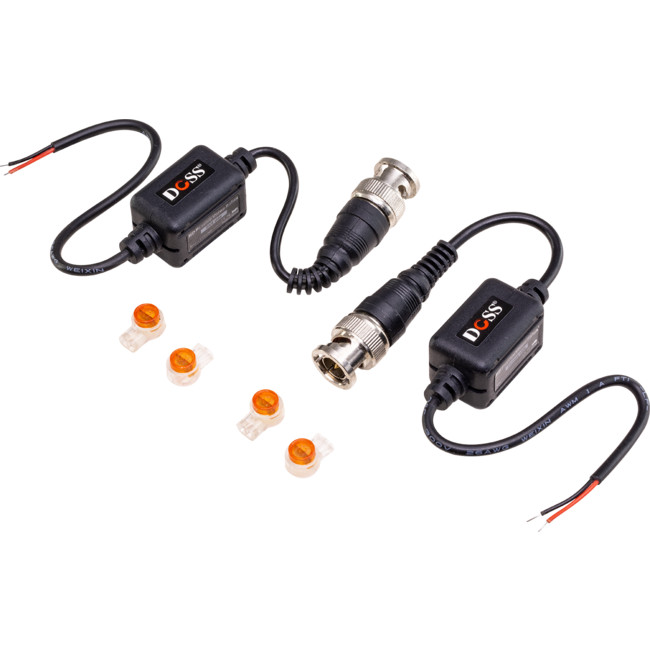

BVB4200WPHD PASSIVE BNC WATER PROOF VIDEO BALUN

The BVB4200WPHD video balun is waterproof and able to be used outside. Because of its ultra-miniature size, BVB4200WPHD greatly save space during installation. Working in pairs, the BVB4200WPHD eliminates costly and bulky coaxial cable, allowing live CCTV color video signal up to 400m (1300ft).

The superior interference rejection and low emissions of the BVB4200WPHD allow signals to coexist in the same wire
bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existingcable infrastructure. The BVB4200WPHD has built-in surge suppression to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.

Basic Usage

Advanced Usage

click for larger image

Features

Waterproof Super Mini Passive Video Balun
Max distance TVI up to 190m, CVI 440m AHD 300m.
NTSC, PAL & SECAM video format compatible
Real-time transmission
No power required
Exceptional interference rejection
Built-in TVS (Transient Voltage Suppressors) for surge protection
Lightning protection design Grade III
50dB crosstalk and noise immunity
Compact size and easy installation
ABS engineering plastic housing

Specifications

Applied Devices

CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment

Video

Video Format

PAL, NTSC, SECAM

Operating Frequency

DC to 5MHz

Max Distance

HD-TVI720P: 190m

HD-CVI720P: 440m

AHD720P: 300m

HD-TVI 1080P:190m

HD-CVI 1080P: 220m

AHD960P: 240m

AHD 1080P: 220m

Common-mode /
Differential-mode rejection

15kHz to 5MHz 60dB typical

Impedance

Coax, Male BNC 75 unbalanced

UTP, two coax pigtail 100 balanced

Attenuation

1.5dB Max typical

Wire Type

Network Wiring

One Unshielded Twisted Pair (for each video signal)
24-16 AWG (0.5-1.31mm)

Category Type

2 or better

Impedance

100 ±20 ohms

DC Loop Resistance

18 ohms per 100m (52 ohms per 1,000ft)

Differential Capacitance

62 pF/m max (19 pF/ft max)

Power

No external power required

Connector

Video input/output

Male BNC connector

Videoinput/output

Two coax pigtail to be soldered

Protection

Surge Protection

Renewable solid state surge protection

Video Input

2KV(common mode),
10/700µs IEC6100-4-5/1955(GB/T 1726, 5-1999)

Video Output

2KV(different mode),
10/700µs IEC6100-4-5/1955(GB/T 1726, 5-1999)

Mechanical

Housing

ABS engineering plastic

Body Color

Black

Dimensions (L*W*H)

40*14.5*28.5mm (BNC connector & cable excluded)

Net Weight

20g

Environmental

Operating Temperature

-20 to70°C

Relative Humidity

0~95% (non-condensing)

Storage Temperature

-40 to 150°C

Weight: 0.071
