Blustream HDBASET CSC Receiver Supports 4K60Hz 4:4:4 UHD video up to 40m

Blustream - HEX70CS-RX - HDMI2.0 4K60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ Receiver offers market leading features and outstanding value utilising CSC technology.

The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoH (PoE) up to lengths of 70m (4K 40m). The Receiver features simultaneous analogue stereo and digital coax audio breakout.

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
• Supports 4K60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:Xtransmissions
• HDMI re-clocking to help solve HDMI HDCP, compatibility and handshaking issues
• HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
• Supports bi-directional RS-232 pass through
• Supports bi-directional IR pass through
• Advanced EDID management
• HDCP2.2 compliant

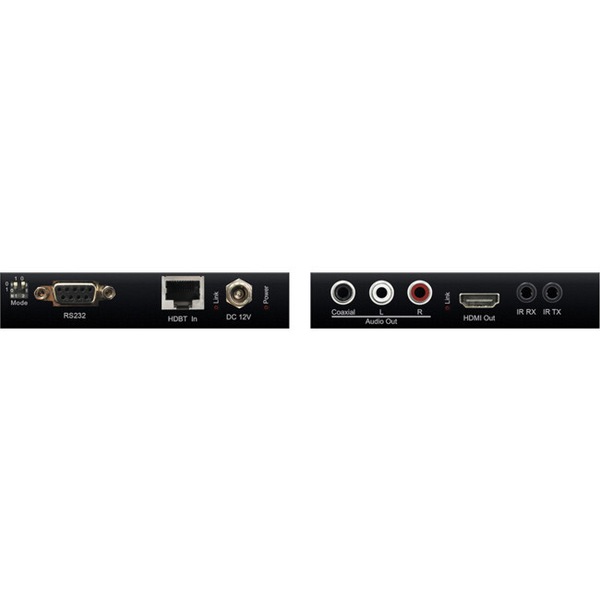

• Audio Output Connectors: 1x RCA (SPDIF) & 2x Analogue RCA (Left/Right)
• IR Output ports: 1x 3.5mm mono jack
• IR Input ports: 1x 3.5mm stereo jack
• RS-232 serial port: 1x DB-9 female
• Video Output Connectors: 1x HDMI Type A, female
• Video Input Connectors: 1x HDBaseT™ RJ45 connector
• Power Supply: 12V / 2A DC, screw type connector (not supplied)
• Power Consumption: 5.6W
• Unit Dimensions (WxDxH): 113 x 124 x 22mm (without connections)
• Unit Dimensions (WxDxH): 113 x 138 x 22mm (with connections)
• Unit Weight: 0.35kg (excluding accessories)
• Carton / Box Dimensions (WxDxH): TBCmm
• Shipping Weight: 0.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Mounting kit included

1x HEX70CS-RX
1x Mounting kit
