BlackVue DR770X-2CH 64GB Dash Cam for Trucks , 4 X 4 and Heavy Vehicles - Full [DR770X-2CH Truck 64GB EN]

BlackVue DR770X-2CH 64GB Dash Cam for Trucks , 4 X 4 and Heavy Vehicles - Full [DR770X-2CH Truck 64GB EN]

SOLD OUT

BlackVue DR770X-2CH 64GB Dash Cam for Trucks , 4 X 4 and Heavy Vehicles - Full HD 60FPS - Sonys STARVIS Image Sensor - 139-Degree Wide View Angle - Single-channel Cloud Dashcam - with 64GB Micro SD Card

DR770X-2CH Truck

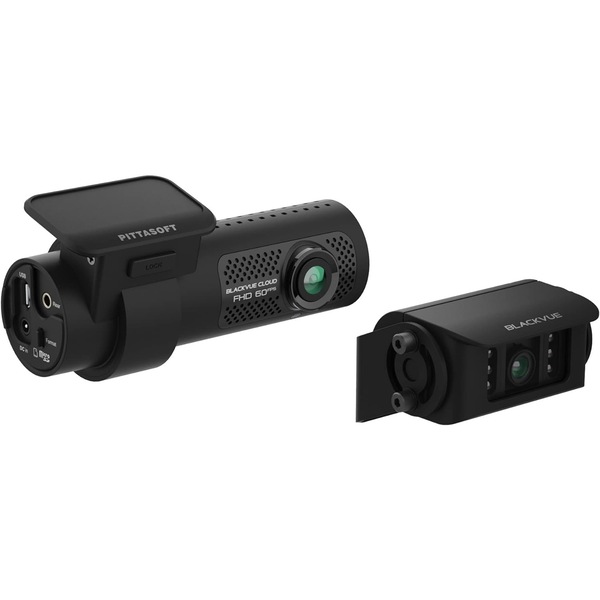

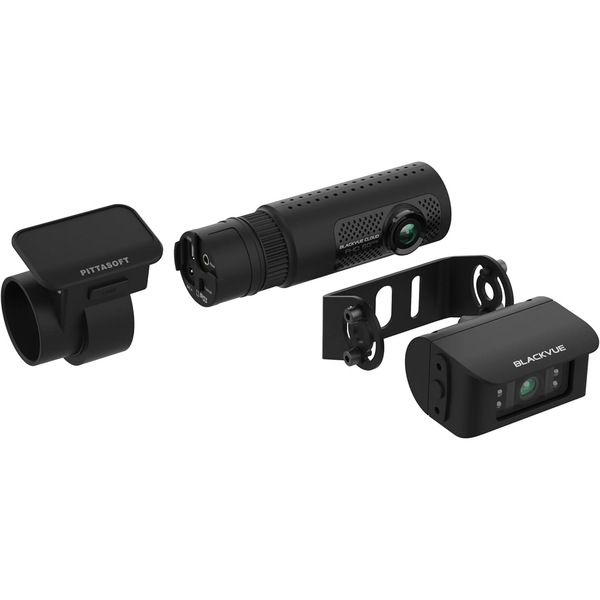

BlackVue DR770X-2CH TRUCK, Full HD Cloud Dashcam with External Waterproof (IP69K) Infrared Rear Camera. Ideal for trucks, vans and commercial vehicles.

The Perfect Dashcam for Trucks and Heavy Vehicles
The external waterproof rear cam with embedded IR lights and up to 15m (49ft) coaxial cable is ideal for most large vehicles.
Catch detailed footage of the front surroundings of your vehicle at 1080p Full HD 60FPS and rear at 1080p Full HD 30FPS.
The front and rear cameras both use cutting-edge Sony STARVIS sensors, with the rear camera being augmented by 6 IR LEDs for clarity in total darkness.

Native Parking Mode
Hardwiring cable included
DR770X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR770X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.

Infrared External Rear Camera
With Rugged Metal Waterproof Casing
With its metal waterproof casing the rear camera of the DR770X-2CH TRUCK is built to withstand most weather conditions. Its Ingress Protection rating (IP69K) means it can even withstand power washing. It is designed to be installed at the rear of trucks or heavy vehicles. We recommend securing it in place on a flat surface using the provided screws. The luminosity sensor detects ambient brightness and automatically activates the six infrared lights to help identify vehicles and objects in the dark.

WATERPROOF COAXIAL CABLE
The 15m (49ft) high-quality waterproof coaxial cable connects the front and rear cameras.
The waterproof rear camera and the coaxial cable are screwed together to provide tight and water-resistant connection.
Its length makes it ideal for trucks and trailers and guarantees a pristine image even over long distance.

Channel
2CH
Highlights
Full HD (Front + External Waterproof IR Cam), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module (Optional)
Product Dimensions
Front: Black / Width 118.5mm x Height 36mm / 104g
Rear: Black / Width 65mm x Height 36mm / 157g
Rear Camera Connection
Waterproof coaxial cable
Memory Support
microSD card up to 256GB
Recording Modes
Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode
YES (hardwiring cable included)
Parking Mode Event Voice Notifications
YES
Imaging Sensor
Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle
Front: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear: Diagonal 116°, Horizontal 97°, Vertical 51°
Resolution Frame Rate
Front: Full HD (1920 x 1080) @ 60 fps
Rear: Full HD (1920 x 1080) @ 30 fps
* Frame rate may vary during Wi-Fi streaming.
Video Codec
H.264 (AVC)
Image Quality and Bitrate Front/Rear
Highest (Extreme): 25+10 Mbps
Highest: 12+10 Mbps
High: 10+8 Mbps
Normal: 8+6 Mbps
Format Free
YES (Adaptive)
Event File Overwrite Protection
YES (up to 50)
SD Card Failure Alert
YES
Scheduled Reboot
YES
Video File Extension
MP4
Wi-Fi
Built-in (802.11 b.g.n)
Cloud Compatible
YES
GPS
Built-in (Dual Band : GPS, GLONASS)
Microphone
Built-in
Speaker
Built-in
Impact Sensor
3-Axis Acceleration Sensor
LED Indicators
Front: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC
Rear: FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC
Rear Camera IR Illumination
940nm (6 Infrared (IR) LEDS)
Button
Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card.
Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
Operation Temperature
-20 °C - 80 °C (-4 °F - 176 °F)
Storage Temperature
-20 °C - 80 °C (-4 °F - 176 °F )
High Temp Cut Off
Approx. 80 °C (176 °F)
Backup Battery
Built-in supercapacitor
Input Power
DC 12V-24V (3 pole DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour
Normal Mode (GPS On/2CH): Avg. 380mA / 12V
Parking Mode (GPS Off/2CH): Avg. 300mA / 12V
* Approx. 60mA increase in current when IR LEDs are ON.
* Actual power consumption may vary depending on use conditions and environment.
Certifications
Front: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC
Rear: FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC
Software
BlackVue Viewer
* Windows 7 or higher, Mac Sierra OS X (10.12) or higher
BlackVue Web Viewer
* Chrome 71 or higher, Safari 13.0 or higher
Application
BlackVue Application
* Android 8.0 or higher, iOS 13.0 or higher
Others
Adaptive Format-Free File Management System
Bluetooth Built-in (V2.1+EDR/4.2)
LTE External (Optional)
- MPN: DR770X-2CH Truck 64GB EN
GTIN: 889186007283
