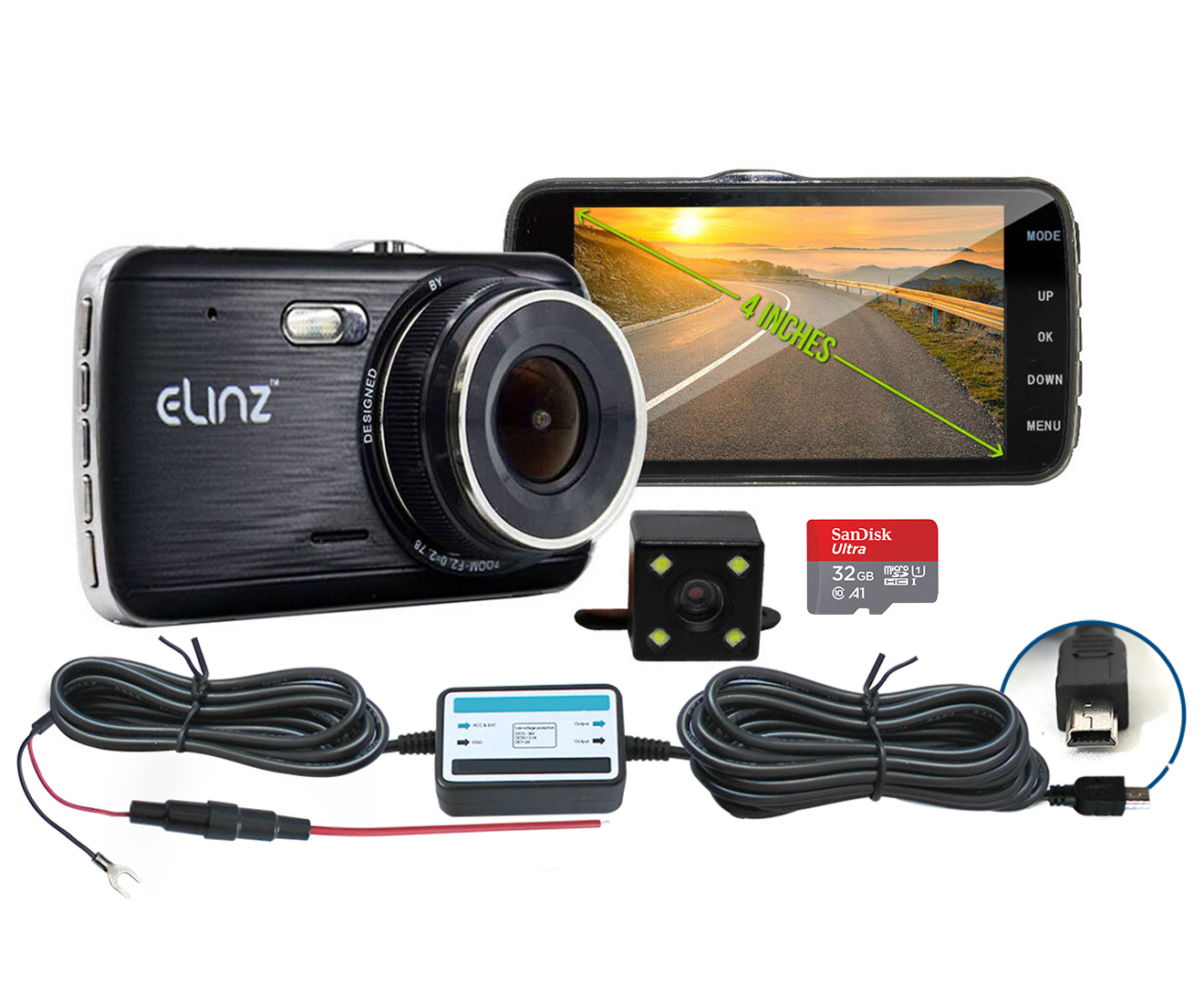

Elinz Dash Cam Dual Camera Reversing Recorder Car DVR Video FHD 1296P 4" LCD Hardwire Kit 32GB

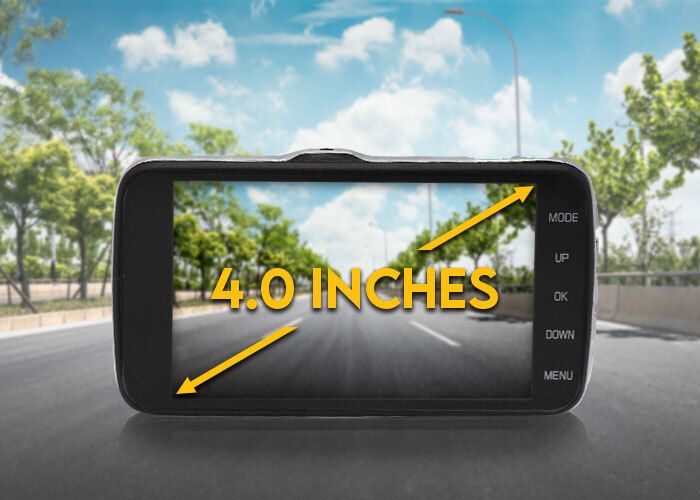

LCD Size

• 4.0 Inch LCD screen

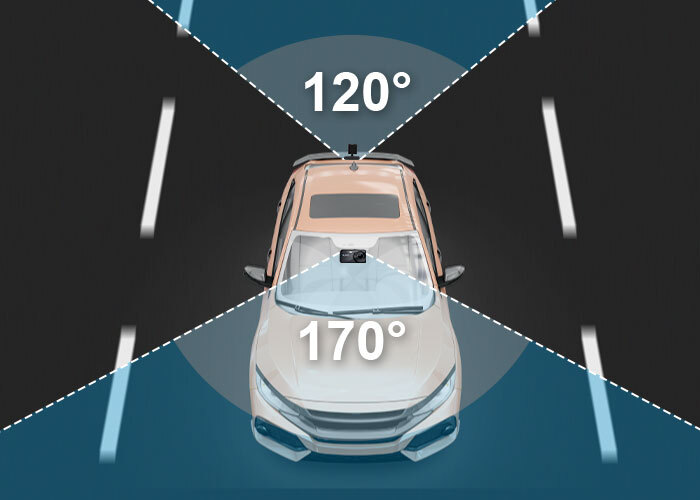

Wide Angle View

• 170° front view angle(6 fisheye lens) and 120° rear view angle

Video Resolution

• 1920x1296 HD 1296P high resolution camera to capture clear video.

Automatic Recording

• Automatically records when engine is switched on and saves recorded footage to the TF card when it's switched off.

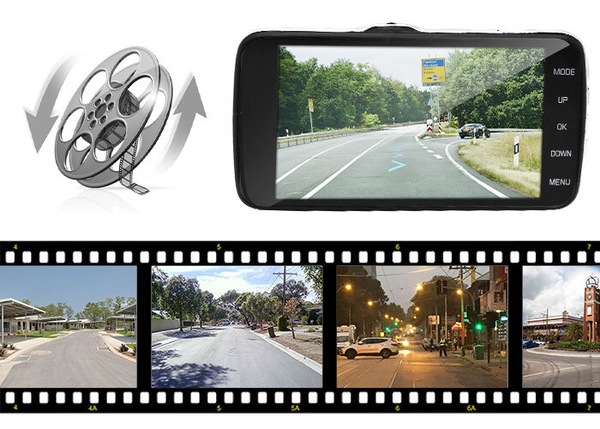

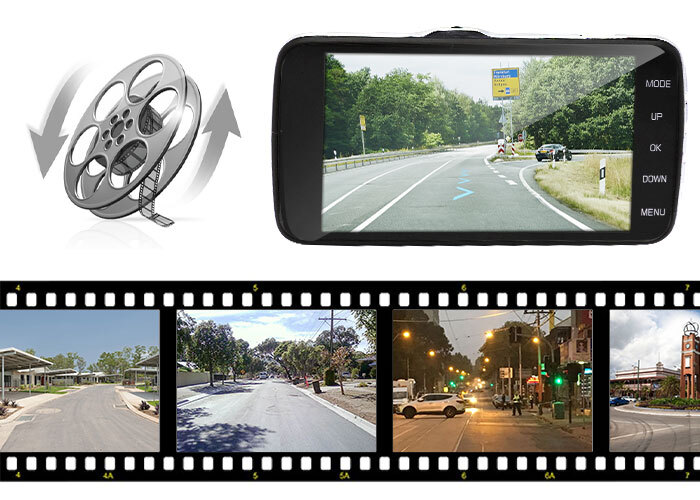

Loop Recording

• When memory card is full, it overwrites the oldest files to continuously record.

Gravity Sensor

• Automatically activate video lock to protect evidence video.

Motion Detection

• The camera will start recording when motion is detected.

Night Vision

• Support night vision which gives you a clear video even at night

Support TF card

• Save important videos with its included Class 10 32GB memory card

Built-in Battery

• 3.7V 200mAh high rate polymer battery

Audio: Built-in Microphone/ Speaker

Rear View Function

• Displays reversing image on screen when reversing

Emergency Locking Function

• Protect the current video from being overwritten.

Camera Switching Function

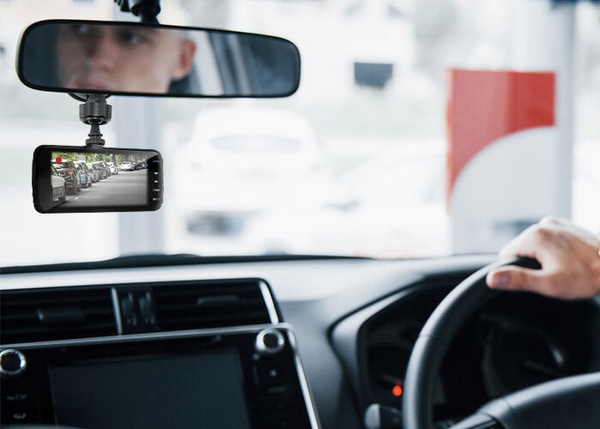

Suction Cup Mount

• Securely holds it in place when driving for safety and ease of use

Anti-shake Technology

• effectively avoid image blurring caused by moving objects.

Chipset : Novatek 96658

• Integrates cutting-edge technologies, including 4x FHD video decoding technology, intelligence power performance scaling system, HD multi-screen display processing, High speed and efficiency system architecture.

Wide Dynamic Range

• Adjusts the exposure to create a balanced image, this allows camera to perform optimally in any lighting situation

Connect to PC

• Watch or copy videos to your computer using the TF card case and USB cable

FREE Hardware Kit Cable Charger

• When connected, allows to still record when car is parked. Comes with Fuse kit for Battery Drain Protection

Product Labels

Product Dimensions

• LCD Size
  • 4.0 Inch LCD screen
• Wide Angle View
  • Front: real 170 view angle (6 fisheye lens)
  • Back: 120 degree view angle
• Video resolution : 1920*1080 HD 1296P high resolution that can display video clearly.
• Automatic Recording
  • When engine is switched on, the recorder automatically starts to open the recording function.
  • When engine is switched off switching off, the recorder automatically saves the contents of the recorded and shut down. Recorded video segment is stored in the TF card.
  • When the memory is full, the recorder will cover the earlier recorded image.
• Loop Recording
  • Support Gap-Less Loop Recording
  • Full 1296P High Definition video (Loop) recording you don’t need to worry on limited storage.
• Gravity Sensor
  • Automatically activate video lock to protect evidence video.
• Motion Detection
  • When the lens senses a moving object, the state of the machine will change into camera and will start recording.
• Night Vision
  • Support night vision which gives you a clear video even at night
• Support TF Card: (SD card not included)
  • You use a High Speed Memory card, Class 10 to save important videos to protect it from being overwritten.
  • 32GB SD Card included
• Battery: Built-in Battery
  • 3.7V 200mAh high rate polymer battery
• Audio: Built-in Microphone/ Speaker
• Rear View Function
  • In any state if there is reverse, reverse image is displayed on screen
• Emergency Locking Function
• Protect the current video from being covered or overwrite.
• Camera Switching Function
• Suction Cup mount
  • Keeping it intact & in place as you drive, making it safe $ easy to operate.
• Anti-shake technology with the newest and best technology to effectively avoid image blurring caused by moving objects.
• Chipset : Novatek 96658

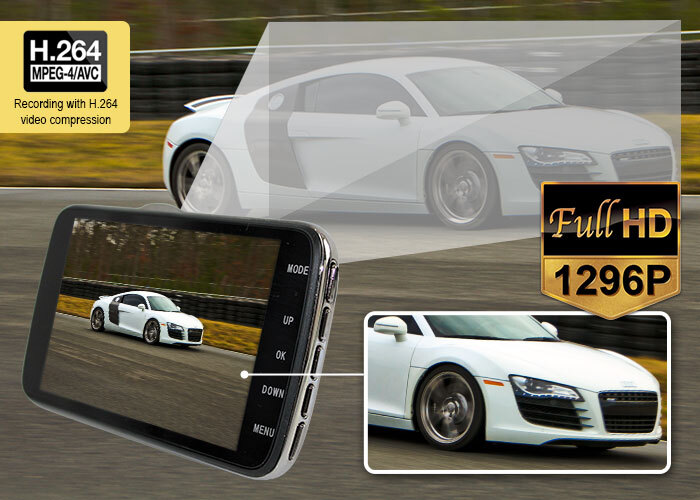

  • (BEST CHIPSET) 1296P 30fps, AVI format, H.264 compression, support WDR(HDR). Adopt 55nm processing technology, the chipset integrates cutting-edge technologies, including 4x FHD video decoding technology, intelligence power performance scaling system, HD multi-screen display processing, High speed and efficiency system architecture.
• Image Processing : WDR (Wide Dynamic Range)
  • Adopt internationally advanced double (long & short) exposure techniques, reformat video images to be optimal. Images is commonly overexposed in the strong sunshine, and hardly to be taken in the dim light conditions, WDR capability gets the issue resolved.
• Connect to PC: Insert TF card case with a USB cable to connect computers , you can watch or copy videos to your computer.
• Waterproof Rating IP67
  • This rear camera is totally protected against dust and can withstand temporary water immersion.

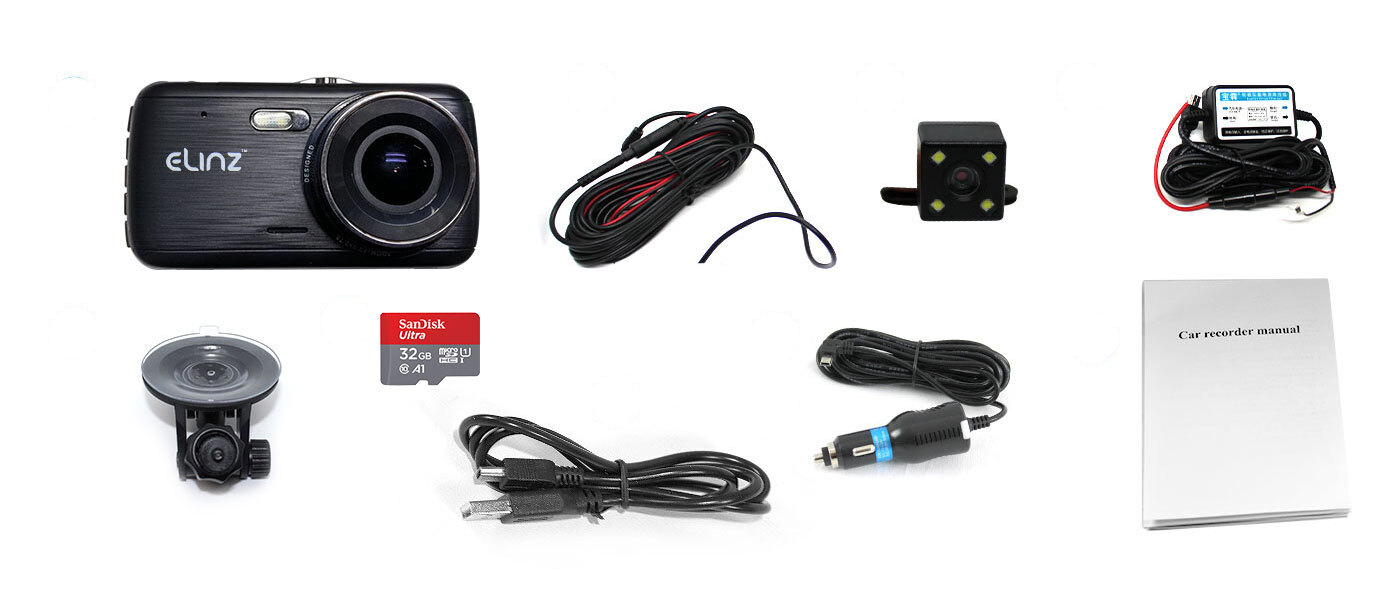

ITEM DESCRIPTION

1. 1x Car DVR Recorder Dash Camera

2. 1x 6M Video Cable

3. 1x Reverse Camera

4. 1x Hardware Cable Kit

5. 1x 60MM Bigger Winshield Mount

6. 1x 32GB SD Card

7. 1x USB Cable

8. 1x Car Charger

9. 1x User Manual
