Bellevue Ceam 3D Adjustable Concealed Hinge For Doors Up to 230Kg 1432W

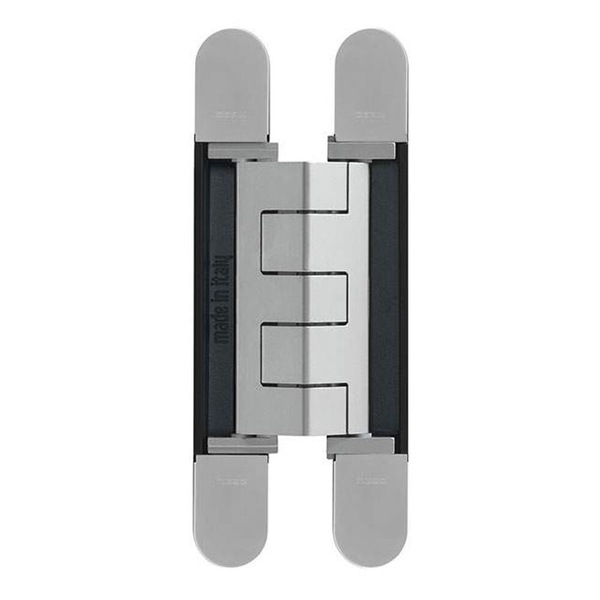

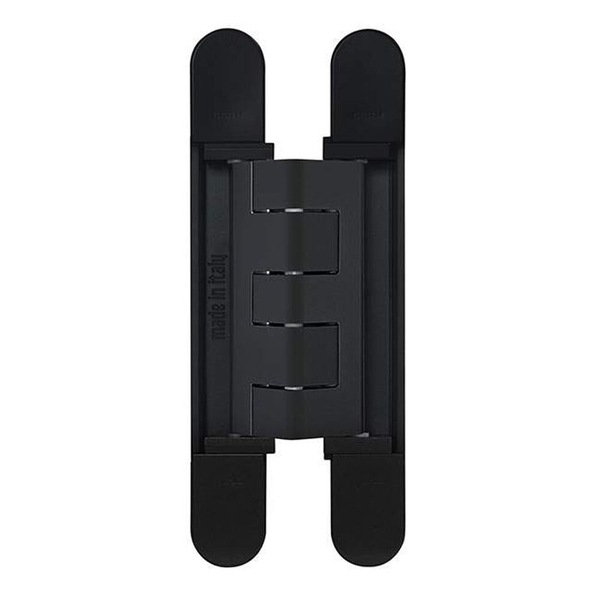

Bellevue Ceam 3D Fully Adjustable Concealed Hinge
1432WBL

Ceam 3D Invisible Concealed Door Hinge is commonly used in residential homes, offices, hotels, and other architectural projects where a sleek and unobtrusive appearance is desired.

Ceam 3D Invisible Concealed Door Hinge Function - ;recessed into the door and door frame, so when the door is closed, the hinge is completely concealed. This creates a seamless and streamlined appearance without visible hardware.

Features:

• 3D adjusting system S.T.A.R.S.
• Router template available for easy installation and slot symmetry
• Suitable for internal & external (under cover) locations
• Suitable for residential, commercial & industrial locations

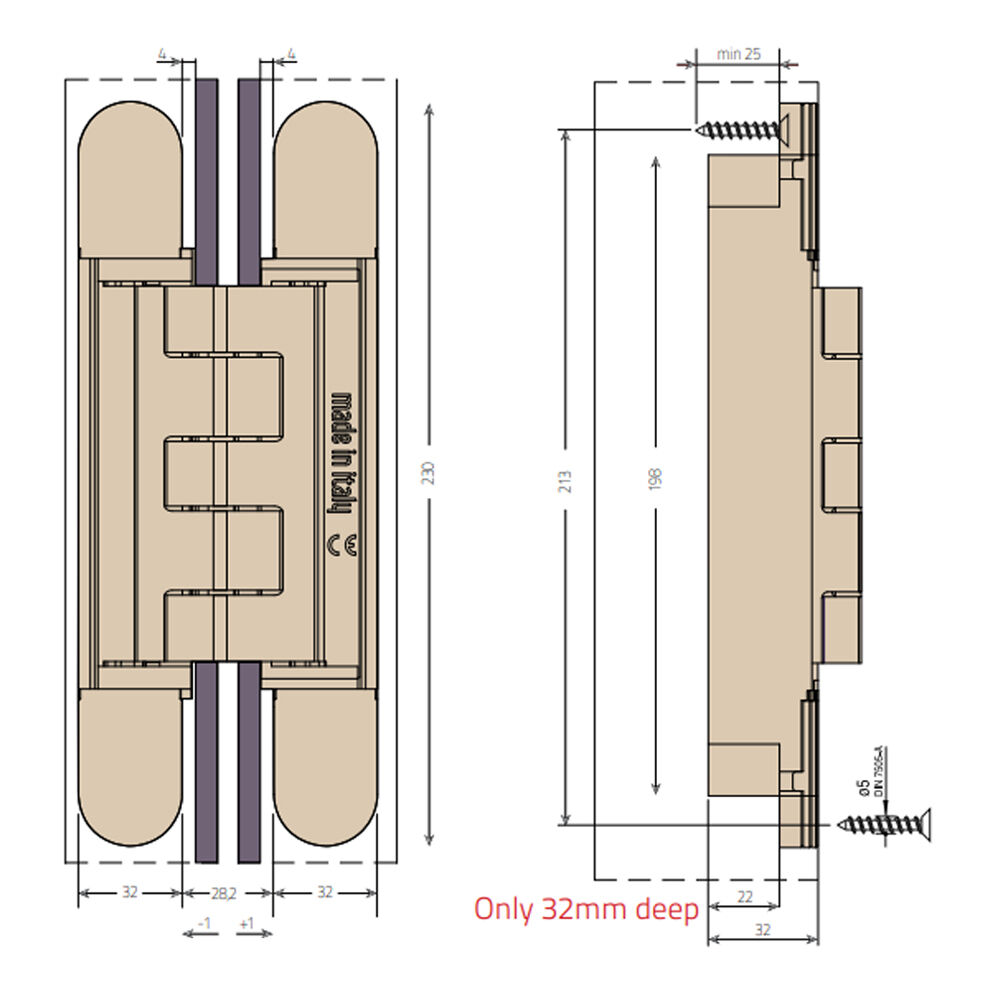

 Specifications:

• Total Length: 230mm
• Max Cladding: 8mm on door & Jam
• Min. Door Thickness: 38mm
• Max. Door Weight: 240kg (subject to door size & weight)
• Narrow Timber Rebate: 29mm (ideal for thin jambs)
• Gap When Closed: 2mm
• Working Aperture: 180 Degrees
• Manufacturing Location: 100% Made in Italy
• Reliability: Certified to over 200,000 cycles
• Adjustable: 3D adjustment on 3 (X,Y,Z) axes
• Quick Release: CEAM quick release system, never need to touch the door or jamb again
• Finish: Black

Note: This product does not ship to New Zealand.
