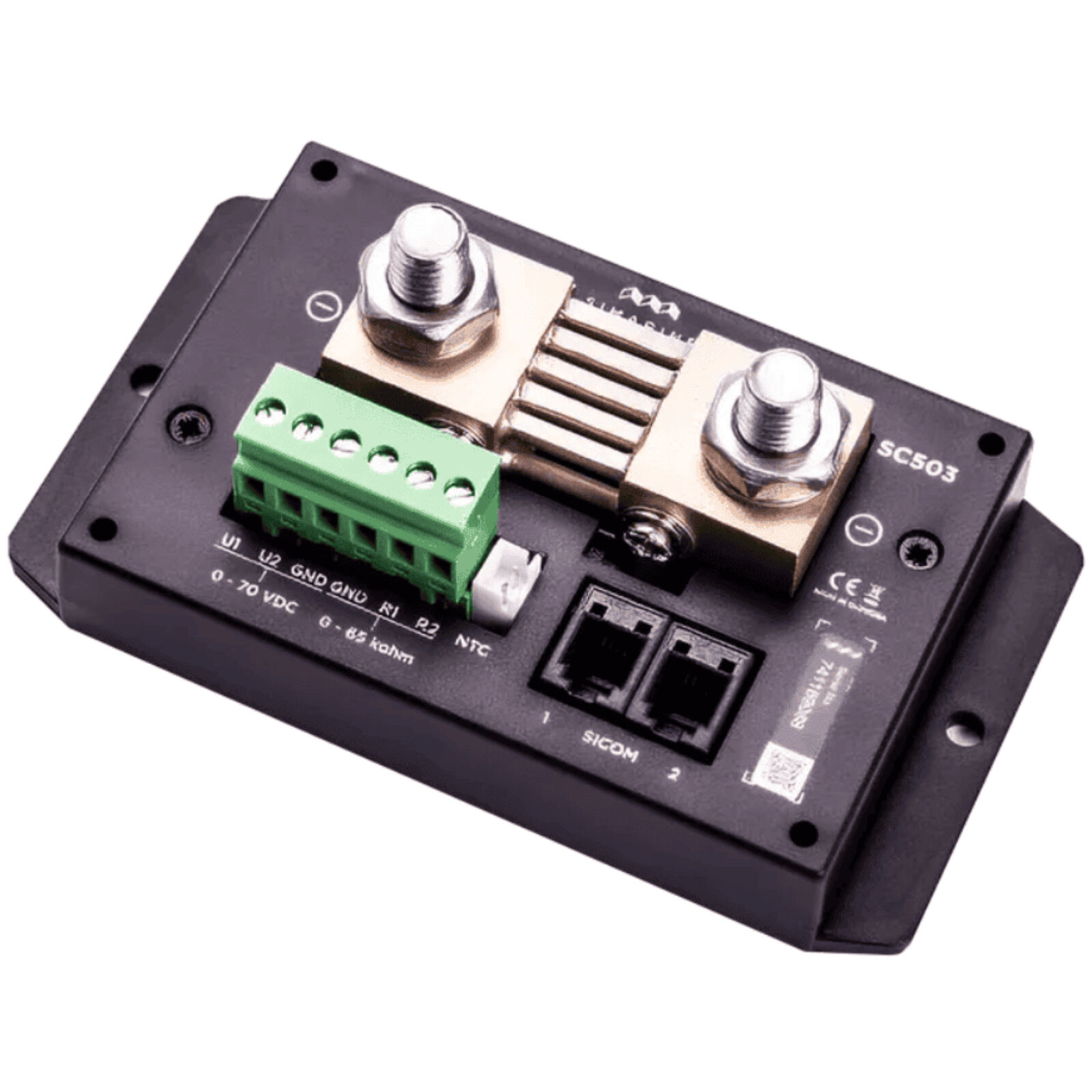

Battery Shunt 500A 2x Voltage, 2x Resistance, 1x Temperature

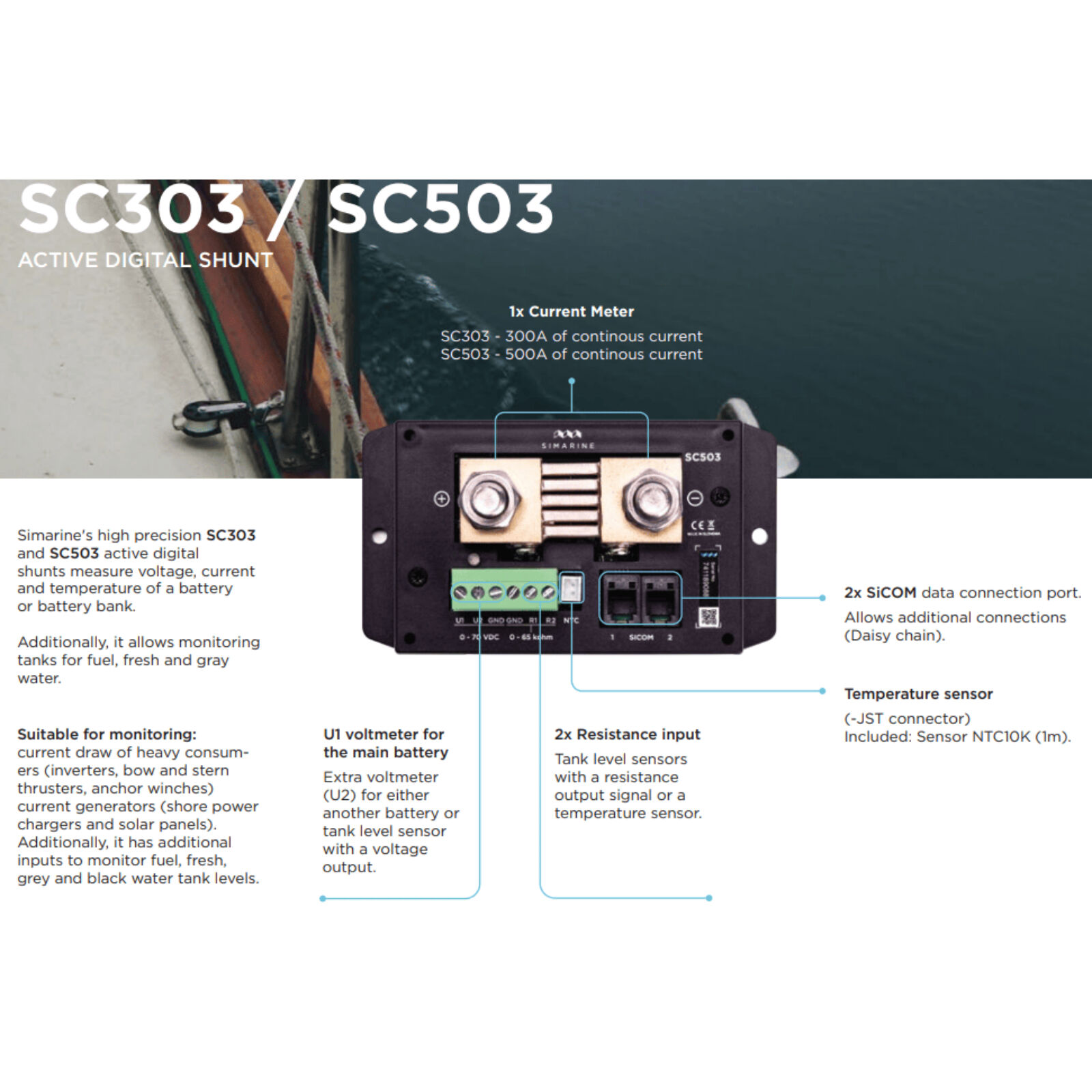

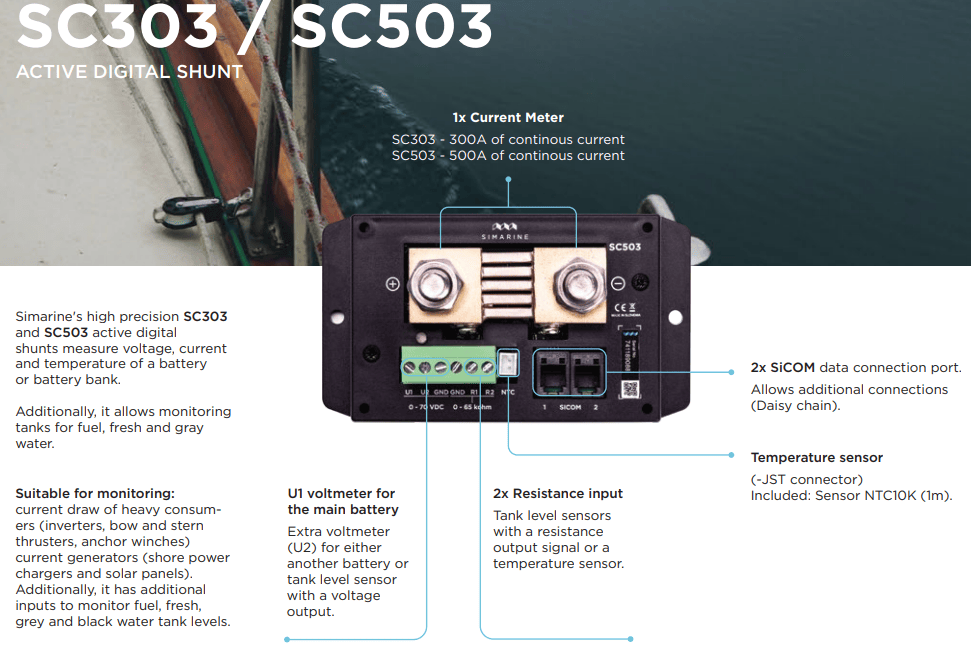

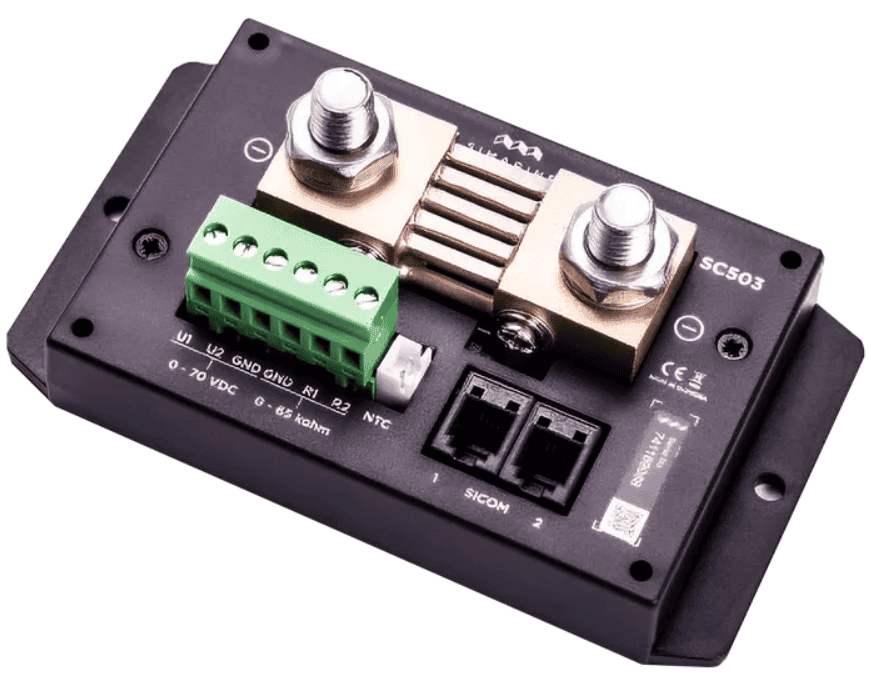

Innovative combination of shunt and tank level module. SC503 is a high precision combo shunt for PICO battery monitor with 2x voltage, 2x temperature, 1x socket for temperature sensor with JST connector and 1x current sensor up to 500A for up to 75V systems.

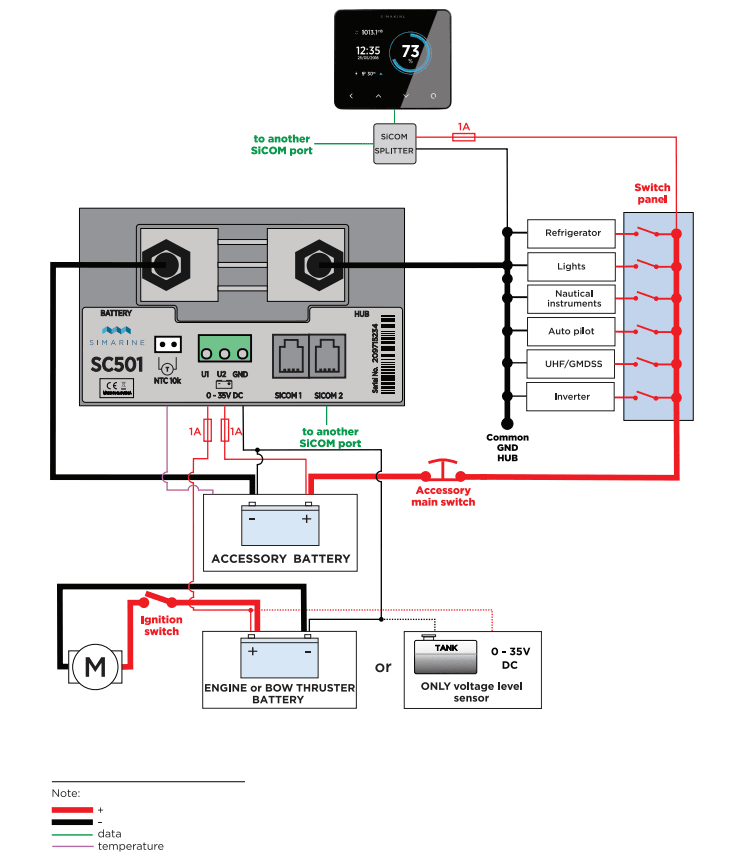

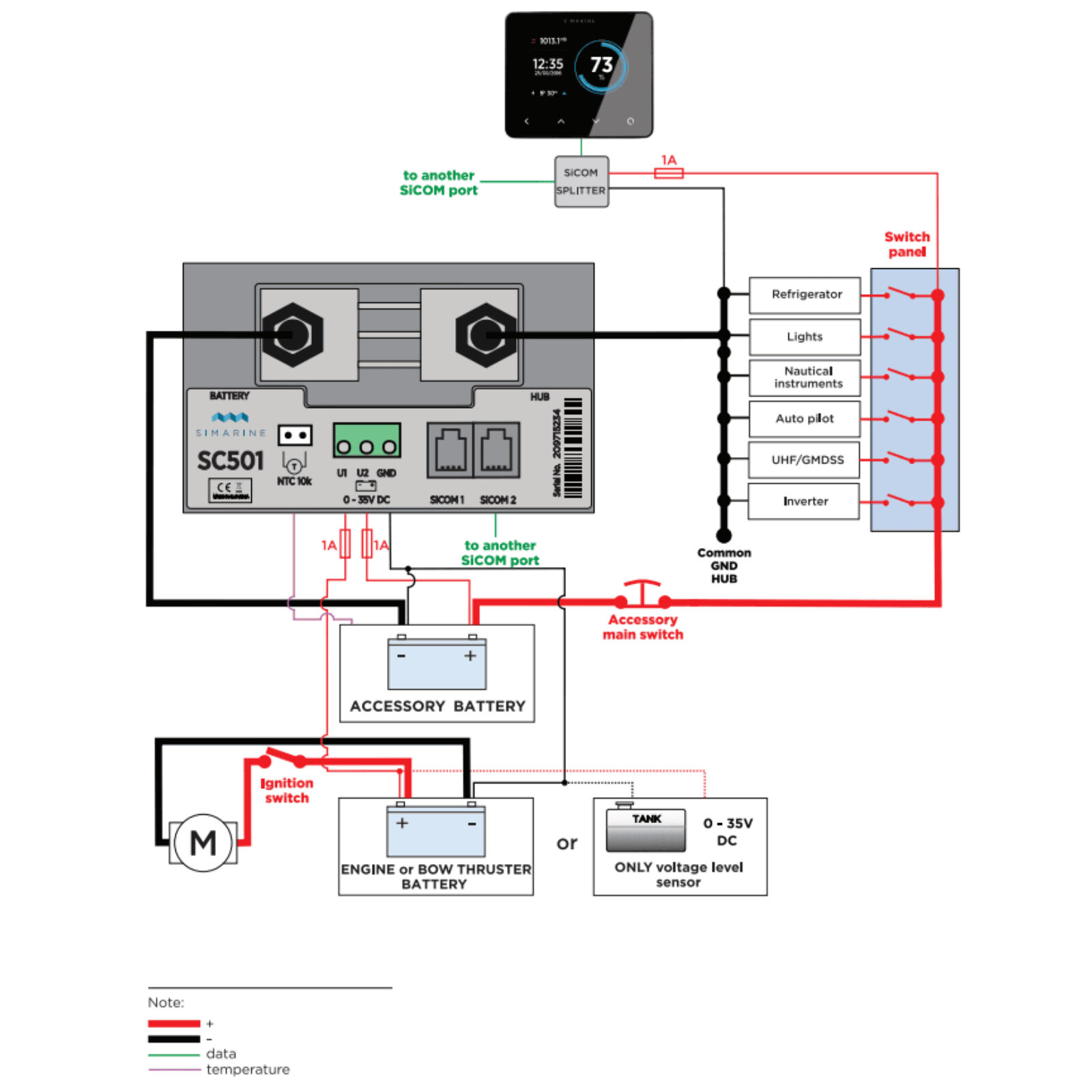

It can be used for monitoring current draw of heavy consumers (inverters, bow and stern thrusters, anchor winches) and current generators (shore power chargers and solar panels). Additionally, it allows monitoring tanks for fuel, fresh and grey water.

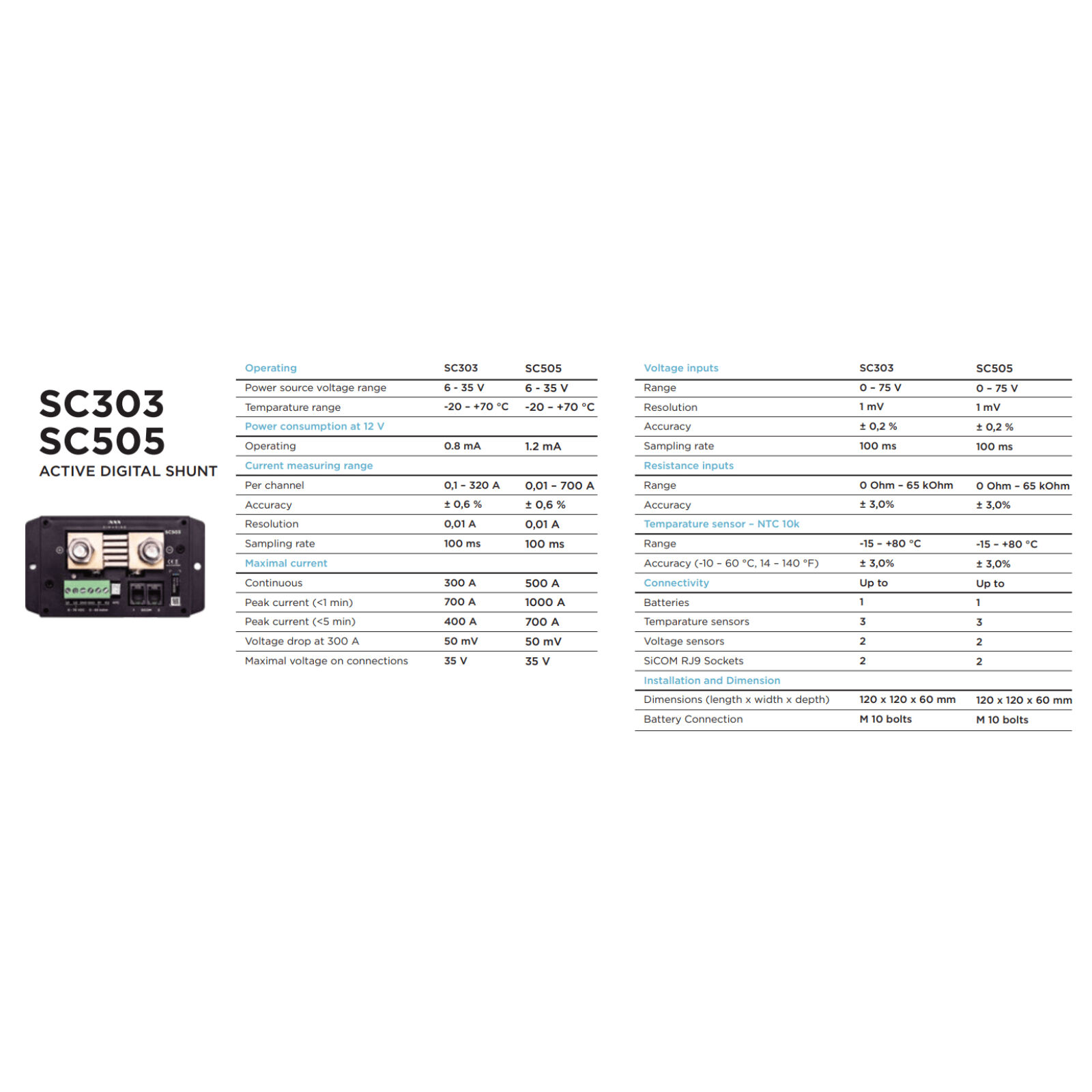

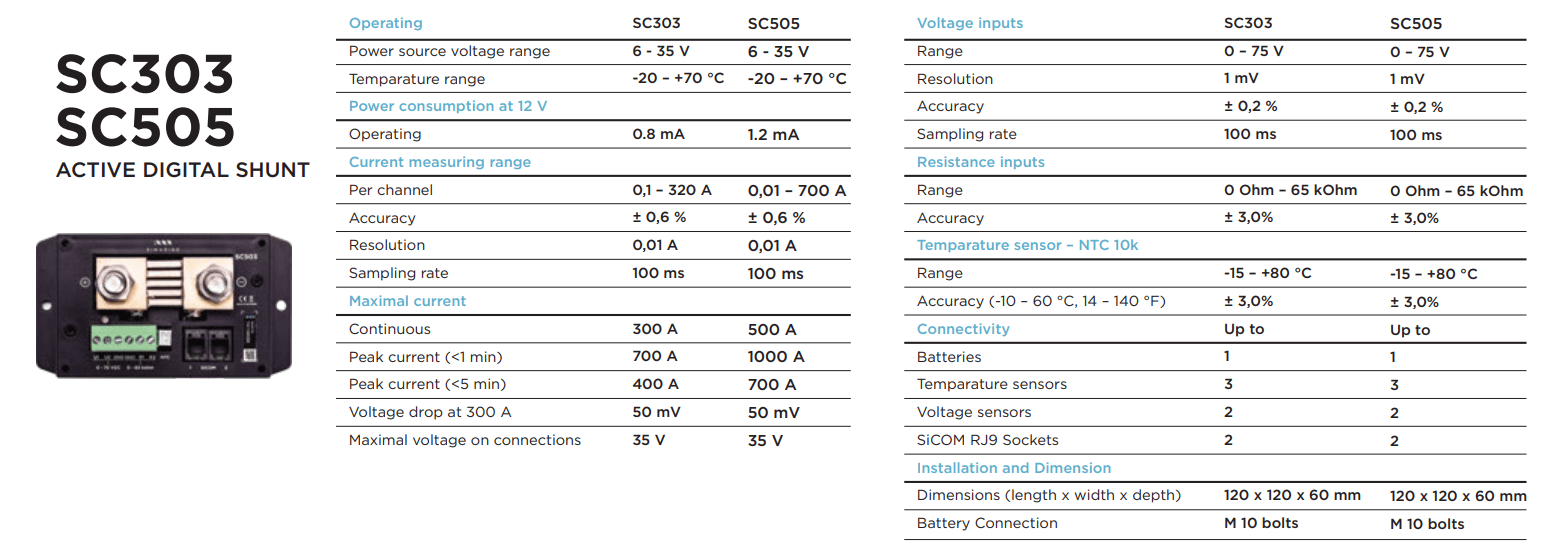

Operating

• Voltage range 6 – 35 V
• Temperature range -20 – +70 °C
• Power consumption at 12 V
• Operating 1.2 mA

Current measuring range

• Per channel 0,01 – 700 A
• Accuracy ± 0,6 %
• Resolution 0,01 A
• Sampling rate 100 ms

Maximal current

• Continuous 500 A
• Peak current (<1 min) 700 A
• Peak current (<5 min) 1000 A
• Voltage drop at 300 A 50 mV
• Maximal voltage on connections 35 V

Voltage inputs

• Range 0 – 75 V
• Resolution 1 mV
• Accuracy ± 0,2 %
• Sampling rate 100 ms

Resistance inputs

• Range 0 Ohm – 65 kOhm
• Accuracy  ± 3,0%
• Temperature sensor – NTC 10k
• Range -15 – +80 °C
• Accuracy (-10 – 60 °C, 14 – 140 °F) ± 3,0%

Connectivity Up to

• Batteries 1
• Temperature sensors 3
• Voltage sensors 2
• SiCOM RJ9 Sockets 2

Installation and Dimension

• Dimensions (length x width x depth) 120 x 120 x 60 mm
• Battery Connection M 10 bolts
