Autel MaxiIM IM608 II IMMO Fob Programming Tool Programmer

The Autel MaxiIM IM608 II (also marketed as IM608 Pro II or IM608S II) represents the pinnacle of automotive key programming and diagnostic technology in 2025. Designed specifically for professional locksmiths, automotive technicians, and repair shops, this all-in-one tool combines advanced key programming, immobilizer (IMMO) functions, OE-level diagnostics, and ECU coding in a single high-performance Android tablet.

With its XP400 Pro key programmer and MaxiFlash JVCI+ included, the IM608 II delivers complete coverage for key generation, IMMO data backup, and module programming—making it the most powerful solution for modern vehicle security systems.

The IM608 II provides two operating modes for key programming:

• Step-by-step guided key programming for quick and error-free operation

• Automatic vehicle detection and function recommendations

• Covers OBD key programming for 80% of vehicles without disassembly

• Full manual control for locksmiths needing deep system access

• Supports PIN code extraction (all keys lost) for most models

• Advanced IMMO functions including:

  • Backup & restore IMMO data

  • ECU reset/adaptation

  • Transponder cloning & emulation

  • EEPROM/MCU read/write (via included adapters)

• Supports 3,000+ transponder chips

• Covers latest systems:

  • BMW FEM/BDC, Mercedes EIS/EZS (3rd Gen), VW MQB, Audi, Land Rover, Jaguar

  • Proximity key systems (Smart Keys)

  • Chinese & Asian market vehicles

Beyond key programming, the IM608 II matches the diagnostic power of Autel's Elite II series, offering:

• Read & erase DTCs (Diagnostic Trouble Codes) from all ECUs

• Live data streaming with graphing & comparison tools

• Bi-directional control for actuator tests (e.g., fuel pump, window calibration)

• EPB (Electronic Parking Brake) service – Release, retract, pad replacement

• DPF (Diesel Particulate Filter) regeneration – Forced cleaning

• SAS (Steering Angle Sensor) calibration – After alignment or battery reset

• SRS (Airbag) reset – Crash data clearance

• Oil & Service Light reset – For all major brands

• ABS bleeding & BMS (Battery Management) registration

• Unlock hidden features (e.g., enable navigation in base models)

• Recode replacement modules (e.g., after ECU or instrument cluster swap)

• Performance tuning support (basic parameter adjustments)

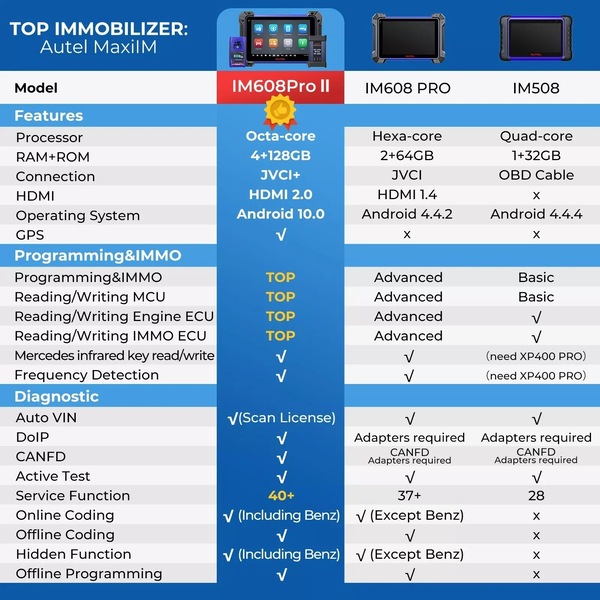

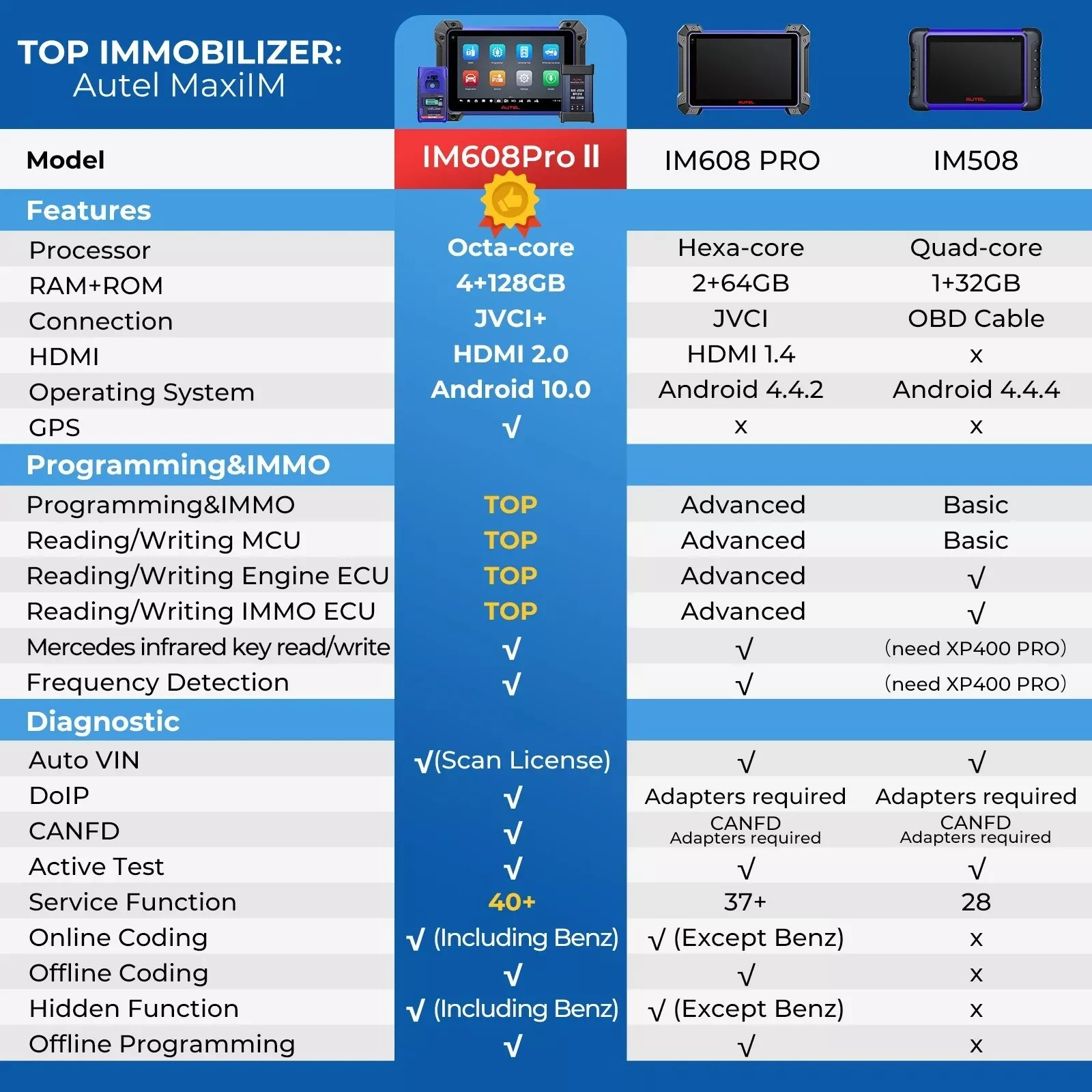

• 10.1-inch IPS Touchscreen (1920×1200 resolution)

• Android 10 OS (some regions ship with Android 11)

• Qualcomm Octa-Core CPU (2.2GHz) + 4GB RAM

• 128GB Internal Storage (expandable via microSD)

• Wi-Fi, Bluetooth, USB, HDMI, Ethernet

• 15,000mAh rechargeable battery (8+ hours continuous use)

• 12V vehicle power adapter for all-day operation

• CAN FD, DoIP, J2534 passthrough

• FCA Secure Gateway (SGW) bypass (Chrysler, Dodge, Jeep, RAM)

• Supports 10,000+ vehicles (US, EU, Asia – up to 2025 models)

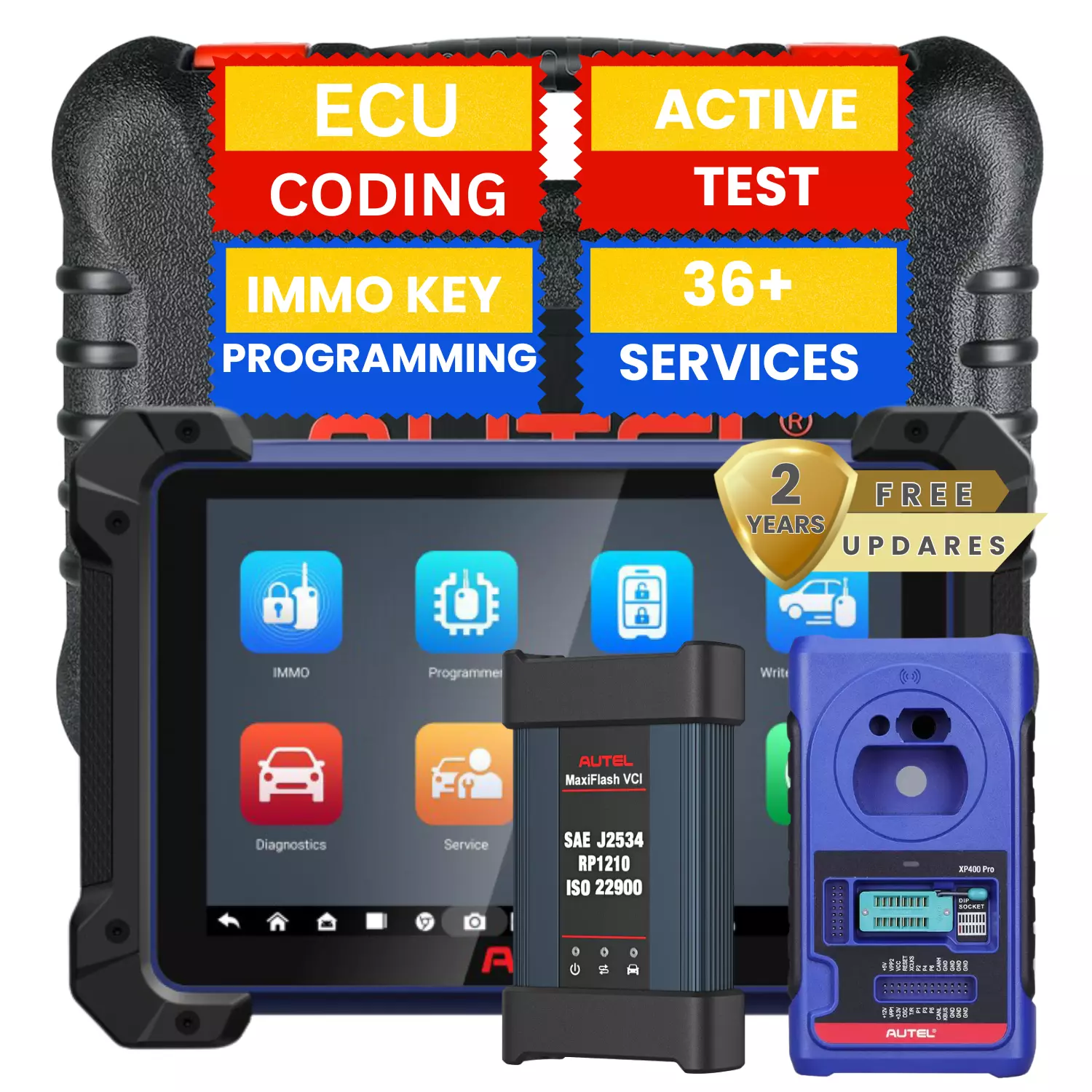

The IM608 II comes with everything needed for professional key programming & diagnostics:

1. Main Unit – Autel IM608 II 10.1" Android Tablet

2. Key Programmer – XP400 Pro (with latest firmware)

3. ECU Programmer – MaxiFlash JVCI+ (J2534 compliant)

4. Adapters & Cables –

   • IMKPA Kit (for BMW, Mercedes, VAG)

   • G-BOX3 (advanced key learning)

   • APB112 (EEPROM/MCU adapter)

   • Mercedes IR collector, MCU cables, ECU clamps

5. Power & Accessories –

   • Main OBD cable, USB cables, AC/DC adapter

   • Auxiliary power outlet adapter

   • Carrying case (634×170×404mm)

• 1 Year Free Updates

• Free Gift Bundle:

  • IMKPA Adapter

  • G-BOX2 Key Programmer

  • APB112 EEPROM Adapter

  • Autel Smartwatch

• 2 Years Free Updates

• Free Gift: Autel Smartwatch

• IMKPA + G-BOX2 + APB112 must be purchased separately

? Does NOT support:

• Toyota/Lexus All-Key-Lost (due to manufacturer restrictions)

• Remote Expert feature in North America (region-locked)

? Works with:

• Most 1996-2025 vehicles (12V systems)

• European, Asian & North American models

• Light trucks & SUVs

? All-in-One Solution – No need for multiple devices
? Future-Proof – Regular software updates for new models
? Cloud-Based Reporting – Store & share diagnostic records
? Professional-Grade – Trusted by locksmiths worldwide
