Description:

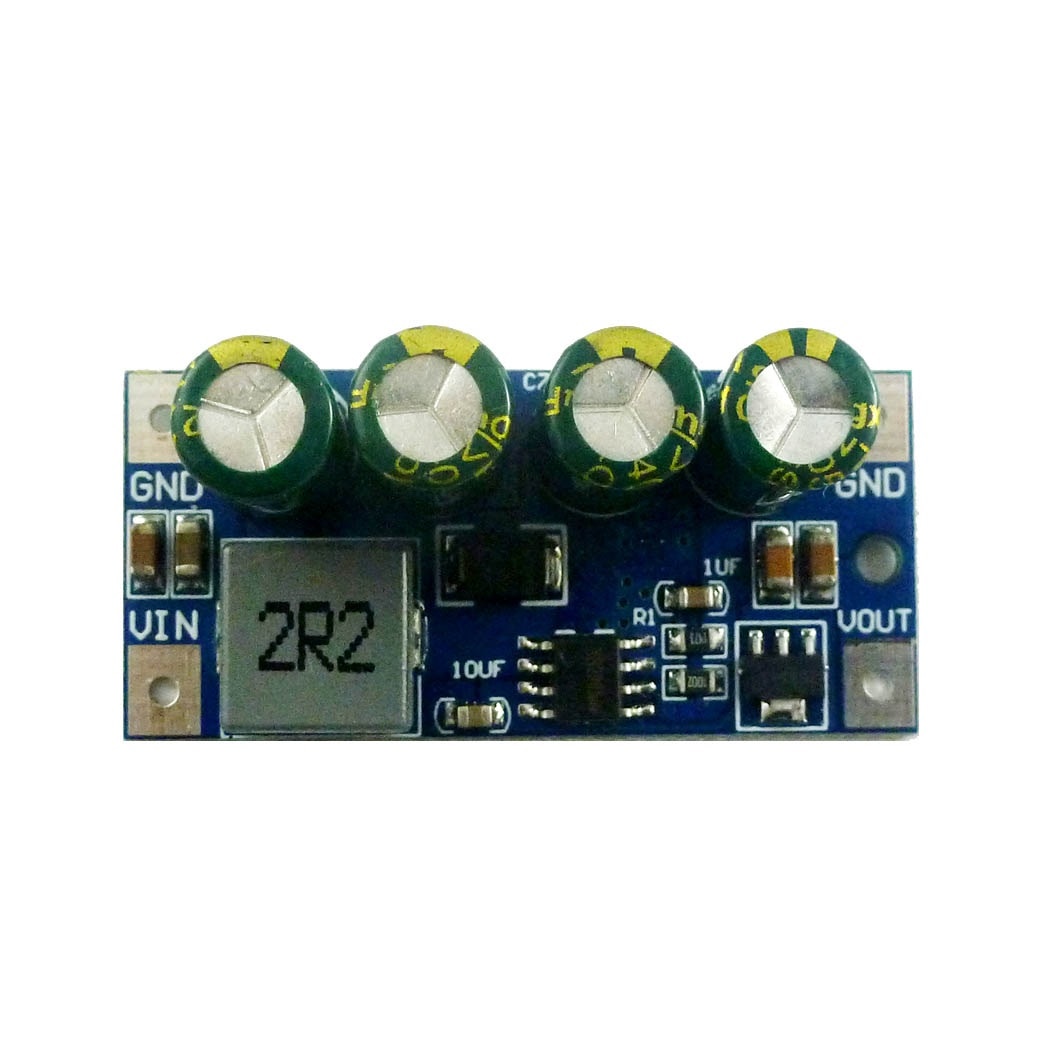

DC DC Boost Converter Module working frequency 600KHZ.
Up to 94% Efficiency (usually is 75%-91%)
Quiescent current: about 1MA
Overtemperature shutdown, input under-voltage protection and short circuit protection.
Operating temperature range : -40~+85 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius
Size : 45*21*15mm
Weight : 9g

Output 12V :
Input voltage DC 3.7 ~ 11V,output DC 12V��3%

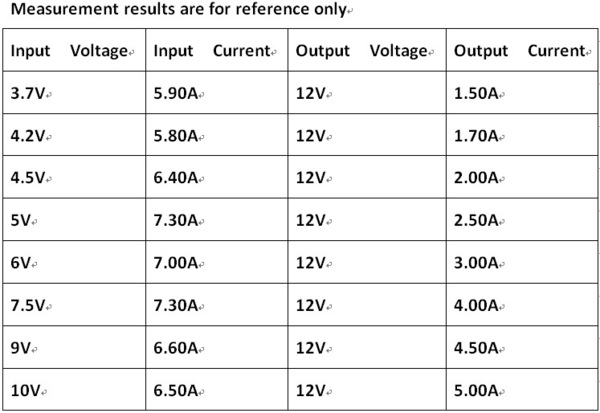

Maximum output : 12V/5A(Maximum power 60W,See the table below for details)

Attention :

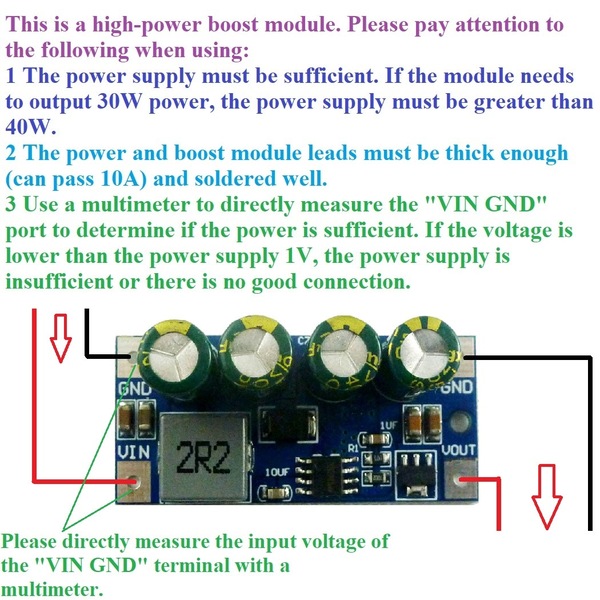

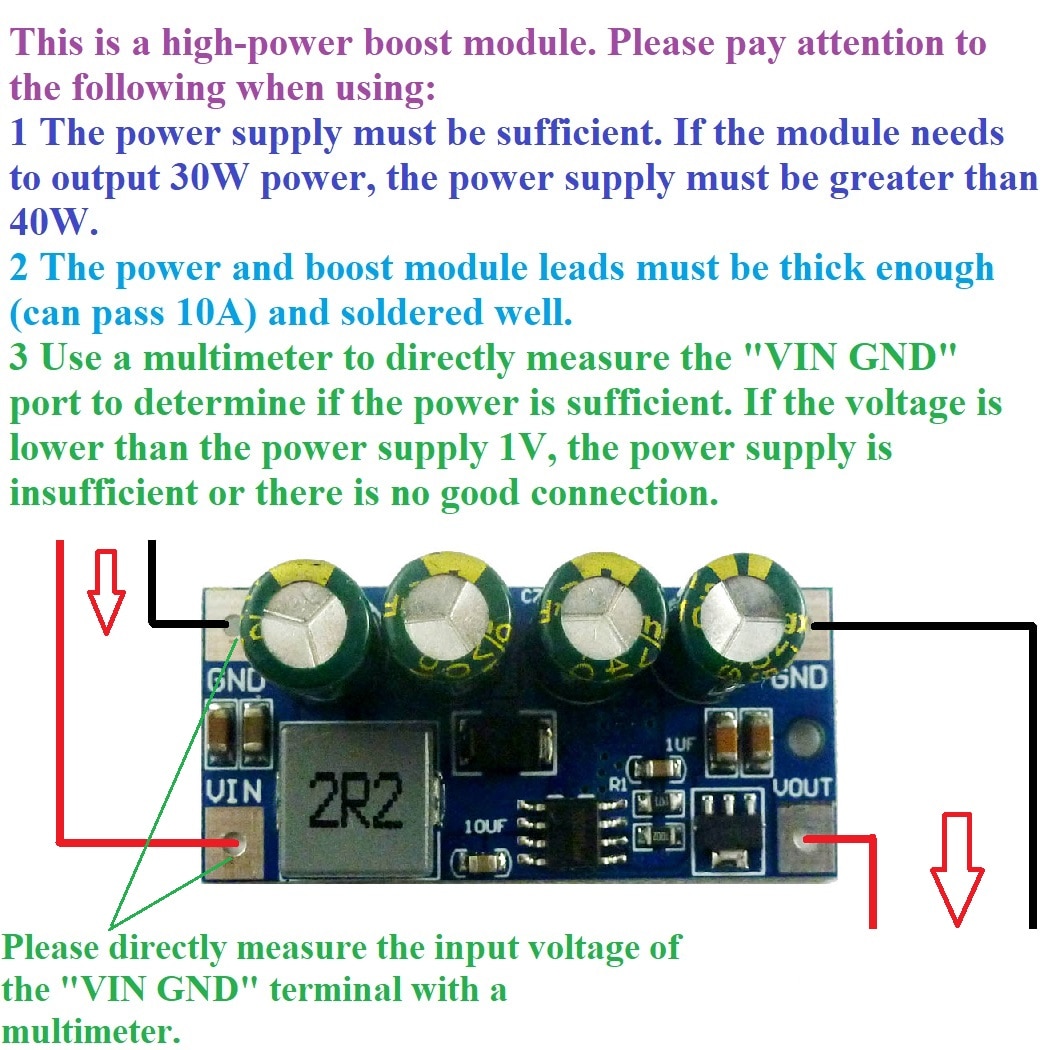

This is a high-power boost module. Please pay attention to the following when using:
1 The power supply must be sufficient. If the module needs to output 30W power, the power supply must be greater than 40W.
2 The power and boost module leads must be thick enough (can pass 10A) and soldered well.
3 Use a multimeter to directly measure the ''VIN GND'' port to determine if the power is sufficient. If the voltage is lower than the power supply 1V, the power supply is insufficient or there is no good connection.
4 Input voltage can not be greater than the maximum input range
5 Output power can not be greater than the maximum load for a long time
6 Input power must be greater than the output power, because the power consumption of the module itself

Packing list:
1 PCSDD0424TA? 60W high-power DC-DC Step-Up Boost module
