5U Vertical Wall Mount Server Rack H1090Mm X D250Mm

5U Vertical Wall Mount Server Rack H1090Mm X D250Mm

Price	$629.95
	Collect 1258 Everyday Rewards points 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

5U VERTICAL WALL MOUNT SERVER RACK H1090MM X D250MM

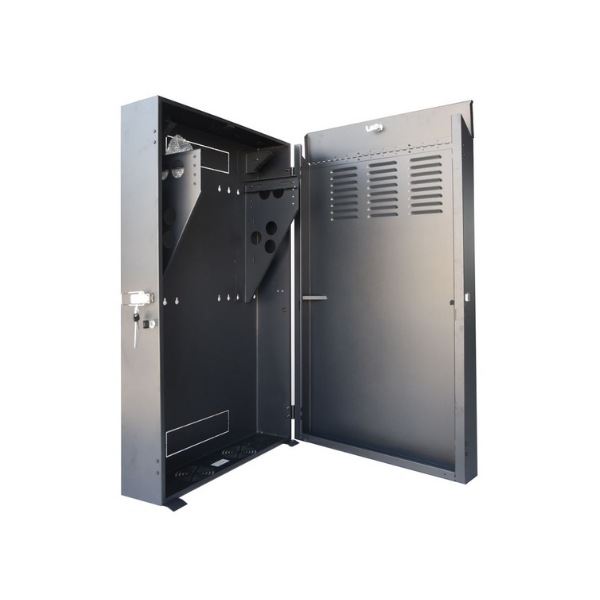

5U Vertical Wall Mount Cabinet is designed to save you space. Perfect for small network equipment and limited space networking environments, the low-profile of the cabinet allows your equipment to be mounted vertically in anywhere from communication rooms to retail stores, classrooms and offices.

Anywhere that requires a smaller footprint and security. The cabinet sits 250mm from the wall when mounted and will house 19" networking equipment with a depth up to 940mm, including 1U servers, UPS systems, battery packs, network switches and patch panels. In addition to 5U of rack space in the primary mounting area, there is also an adjustable 2U mounting bracket at the top of the cabinet for patch panels.

FEATURES

Supplied fully assembled

940mm max. device depth

Equipment mounts facing upwards in the cabinet

Constructed of cold-rolled steel

Cable entry glands at the top and bottom of the cabinet

Static load capacity 60kg

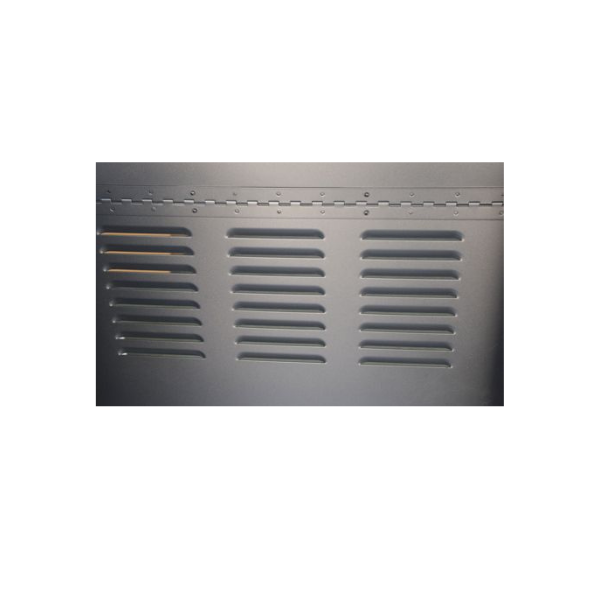

Reversible vented front door

Patch panel mounting bracket

Flip down the top door section for easy access to a patch panel

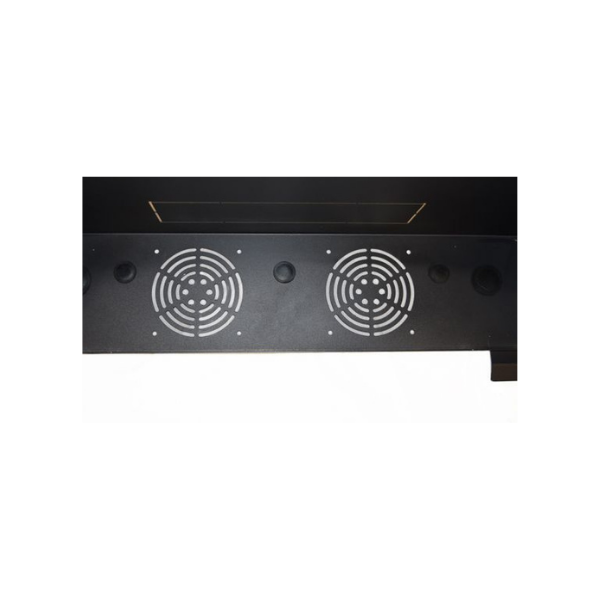

2-way Fan cut out on the base (Fans NOT included)

Houses 19" rack equipment in 5U of space

Rails adjust - unscrew them, slide them to the desired depth, and screw them back in

Threaded mounting holes support M6 mounting

Rack spaces marked for easy reference

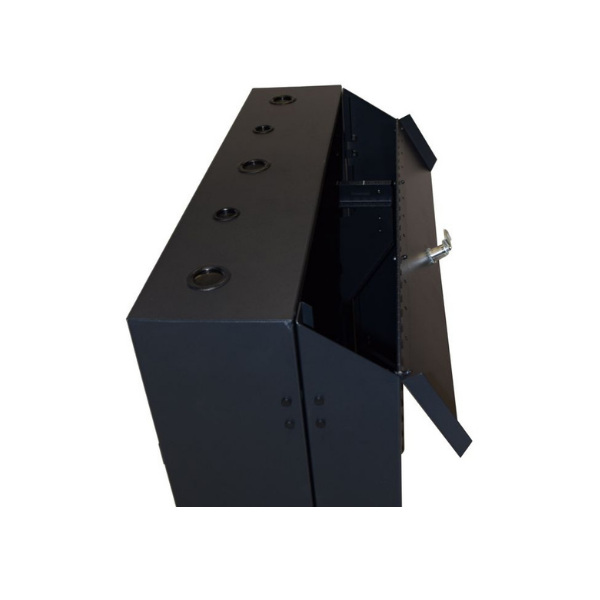

Cable glands with removable covers allow cable routing through top and bottom

Push-out rectangular glands at back top and bottom

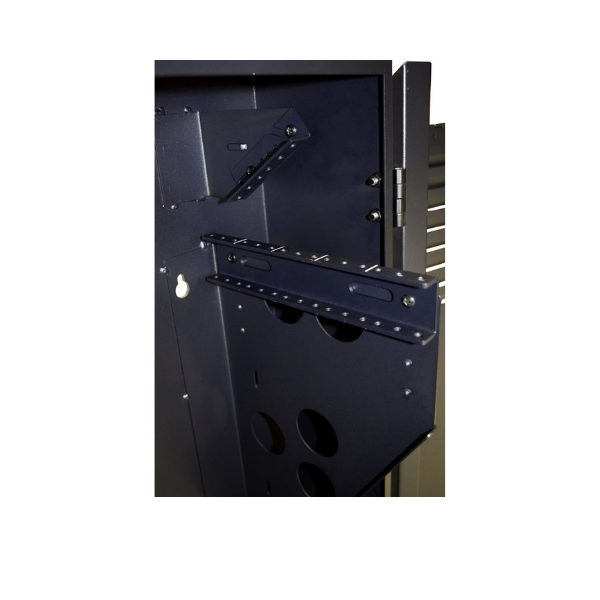

Adjustable 2U mounting bracket for patch panels up to 63.5mm deep

SPECIFICATIONS

Rack RU Size: 5RU

Cabinet Type: Wall Mount

Colour: Black

Material: Cold-rolled Steel

External Height: 1090mm

External Width: 660mm (incl. hinge)

External Depth: 250mm

External Height: 940mm (rail top to base)

Internal Width: 470mm

Rails: Adjustable 2U Rail & 5U with RU Markings

Shelf Quantity: N/A

Reversible Hinges: Yes

Tempered Glass: No

Carton Height: 1060mm

Carton Width: 720mm

Carton Depth: 320mm

Carton Weight: 34kg

PACKAGE CONTENTS

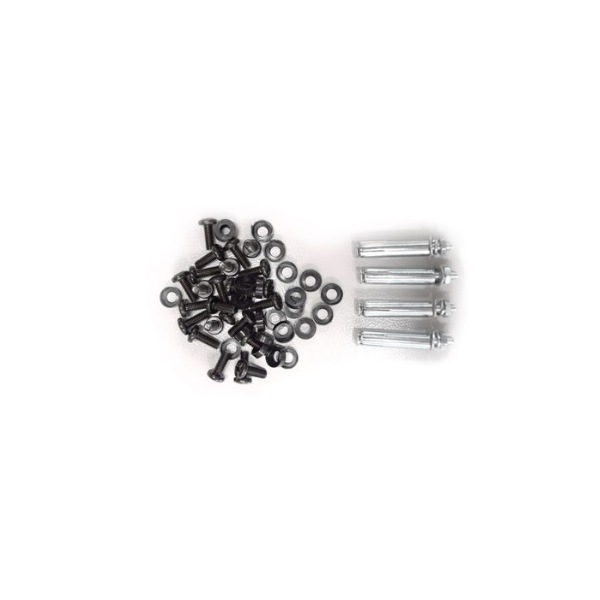

1 x 12 Sets of M6 Screws

1 x 4 keys (2 x pairs)

SKU: 002.013.0536
