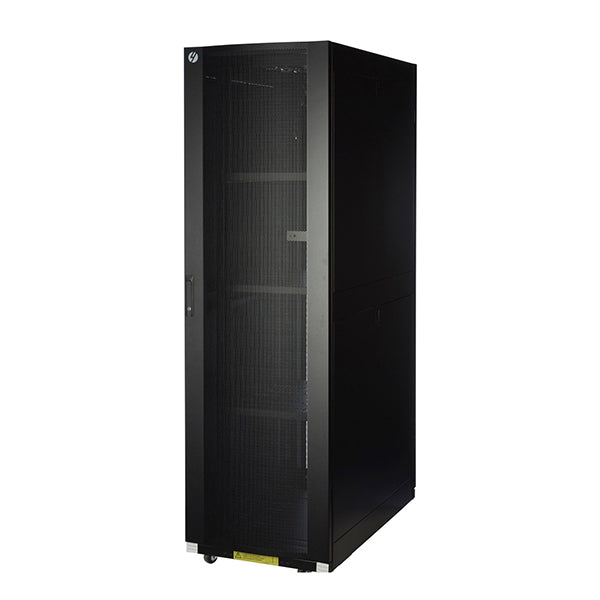

45Ru 600 Mm Wide X 1070 Mm Deep Premium Server Rack

45RU 600 MM WIDE X 1070 MM DEEP PREMIUM SERVER RACK

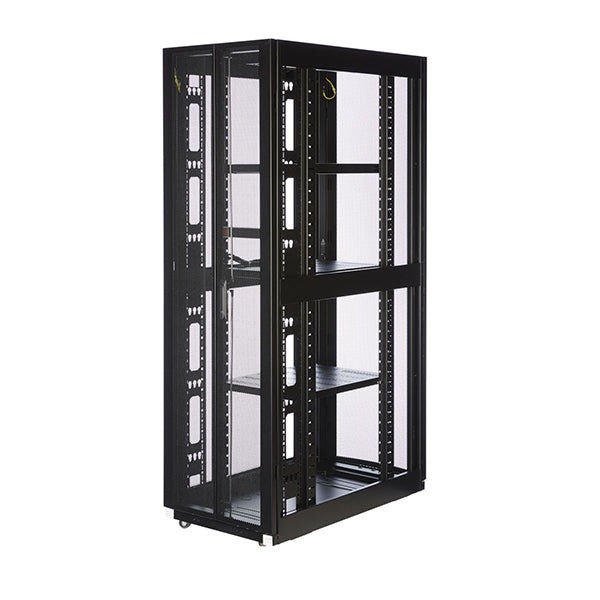

Our 45RU 600 mm wide x 1070 mm deep Premium Server Racks have been designed as a quality cable management solution, ideal for data centers and equipment rooms. These server cabinets are designed to be easily installed and are reinforced using heavy-duty mounting rails and castor wheels. This premium server rack comes supplied fully assembled complete with front mesh door & rear bi-fold mesh door and split side panels. The split rear doors greatly improve access to the server rack as only limited clearance is needed to open the door - making it perfect for data centers or space-limited environments.

The racks 2 point locking systems ensure the security of the cabinet and the stability of the door. Cable access is achievable via roof or base by removable gland plates. Premium server cabinets are built around universal 19” standards, to deliver compatibility with both leading vendor equipment manufacturers as well as OEM brands. A wide range of 19" accessories are available to compliment the server rack.

FEATURES

Supplied fully assembled

Constructed from quality SPCC cold-rolled steel

Steel thickness; rails and frame 2 mm, front door 1.5 mm, rear door, shelves and cable management 1.2 mm

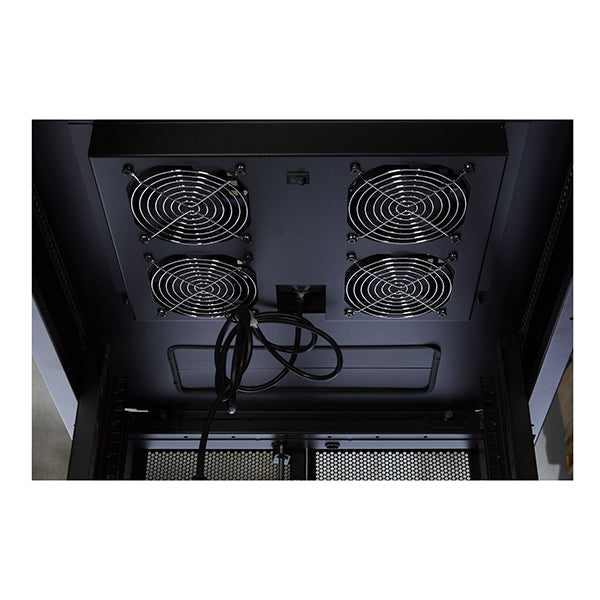

4-way ceiling mount fan kit

2 x PDU mounting rails

10-way vertical mounted power rail

40 sets of cage nuts

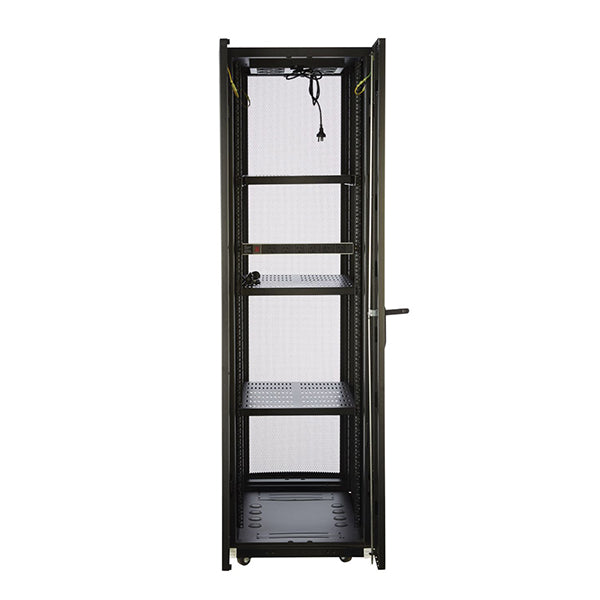

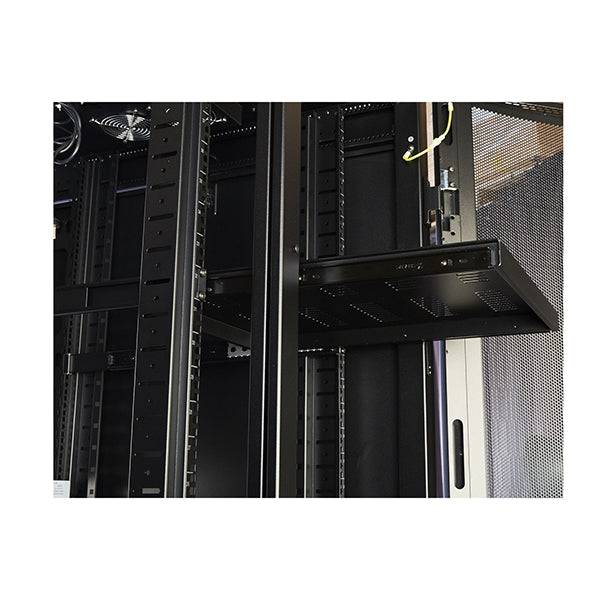

2 x Fixed shelves and 1 sliding shelf installed

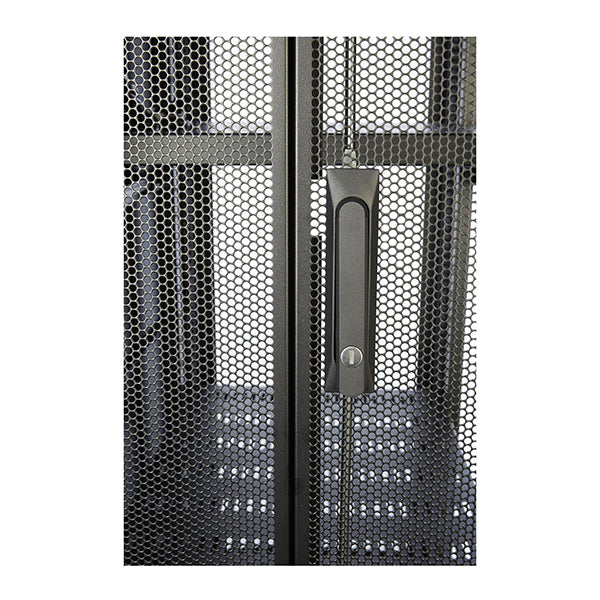

Lockable front and rear mesh doors

Bi-fold rear mesh door and 2 x Lockable side panels on each side

Adjustable 19" L rails front and rear of server rack

Levelling feet and lockable castor wheels

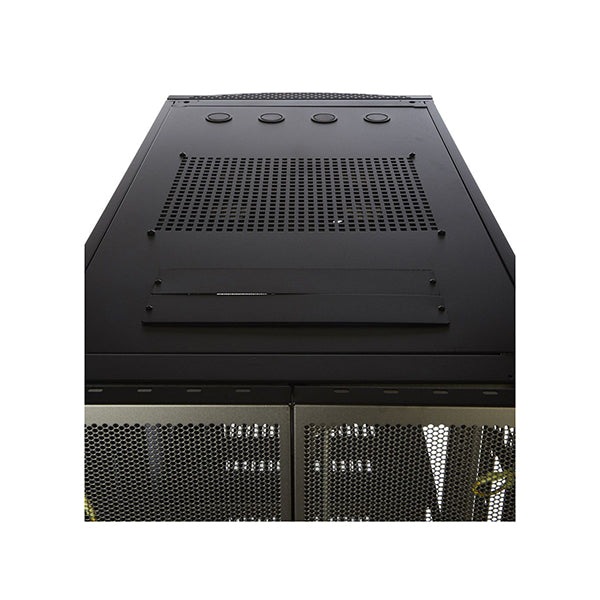

Cable entry glands on the top and bottom

Earthed doors and side panels

Static loading capacity 1500 kg

Designed/built to ANSI-310-D, IEC 297-2, DIN 41491/41494 standards

SPECIFICATIONS

Colour: Black

Material: Cold-rolled Steel

RU size: 45RU

Cabinet type: Full Height

Dimensions: (H x W x D)

External: 2130 x 600 x 1070 mm

Internal: 1950 x 470 x 960 mm - Internal depth (front rail to back door)

Rail to rail depth: 710 mm

Shelf quantity: 3

Shelf depth: 650 mm

Fixed shelf: 650 x 470 mm (D x W)

Sliding shelf: 500 x 470 mm (D x W)

Carton: 2140 x 630 x 1100 mm

Carton weight: 149 kg

Reversible hinges: No

PDU mounting rails: 2 at rear

Tempered glass: No

PDU: 1 x 10 Way Vertical

Vertical Cable Management: No

PACKAGE CONTENTS

1 x 45Ru 600 Mm Wide X 1070 Mm Deep Premium Server Rack
