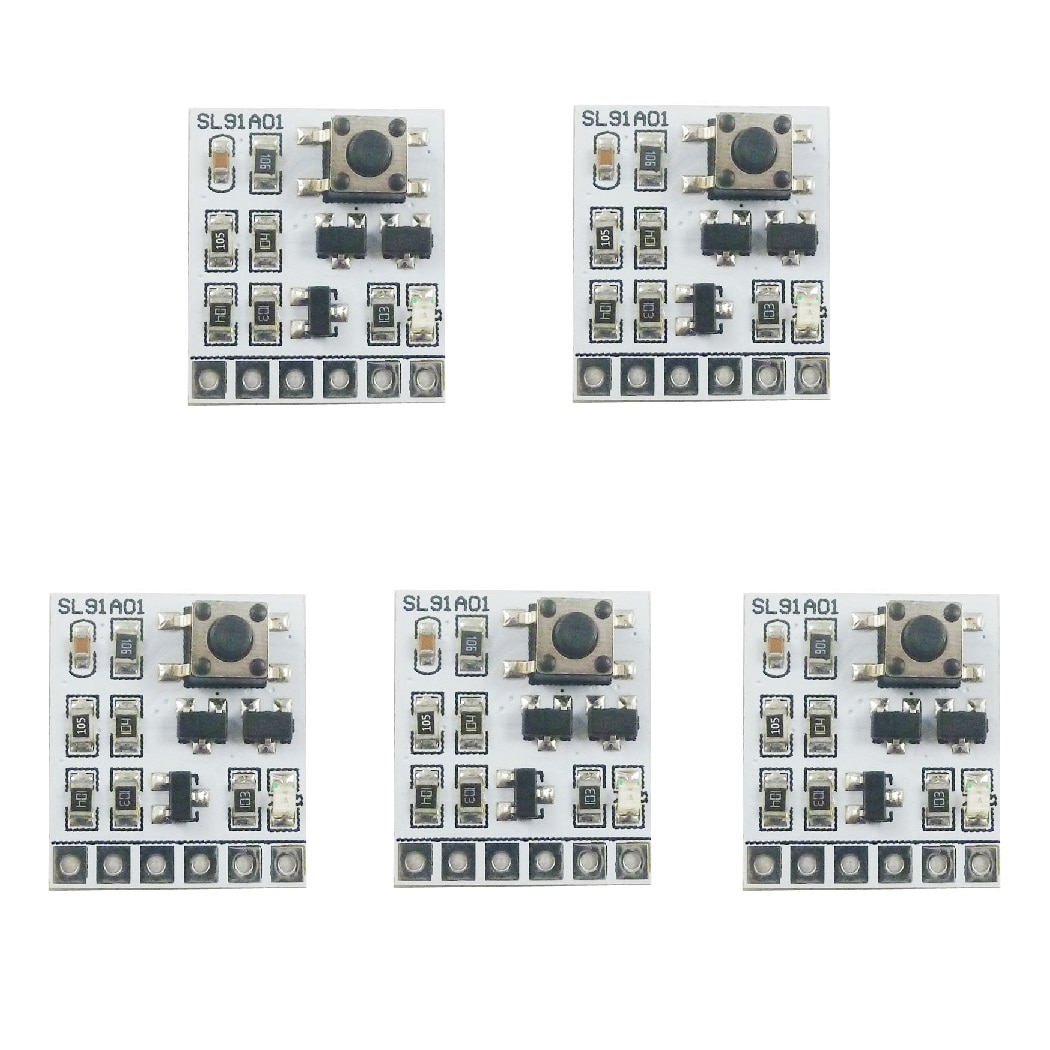

5pcs DC 5V 12V 2A Bistable self-locking switch Module LED Controller Relay

5pcs DC 5V 12V 2A Bistable self-locking switch Module LED Controller Relay

Price	$30.56
	Collect 30 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description :

Working? voltage : DC 2-18V
Load current? :0-2000MA
Quiescent current: 10uA
Operating ambient temperature :? -40�� to +85��
Storage temperature :? -65�� to +125��

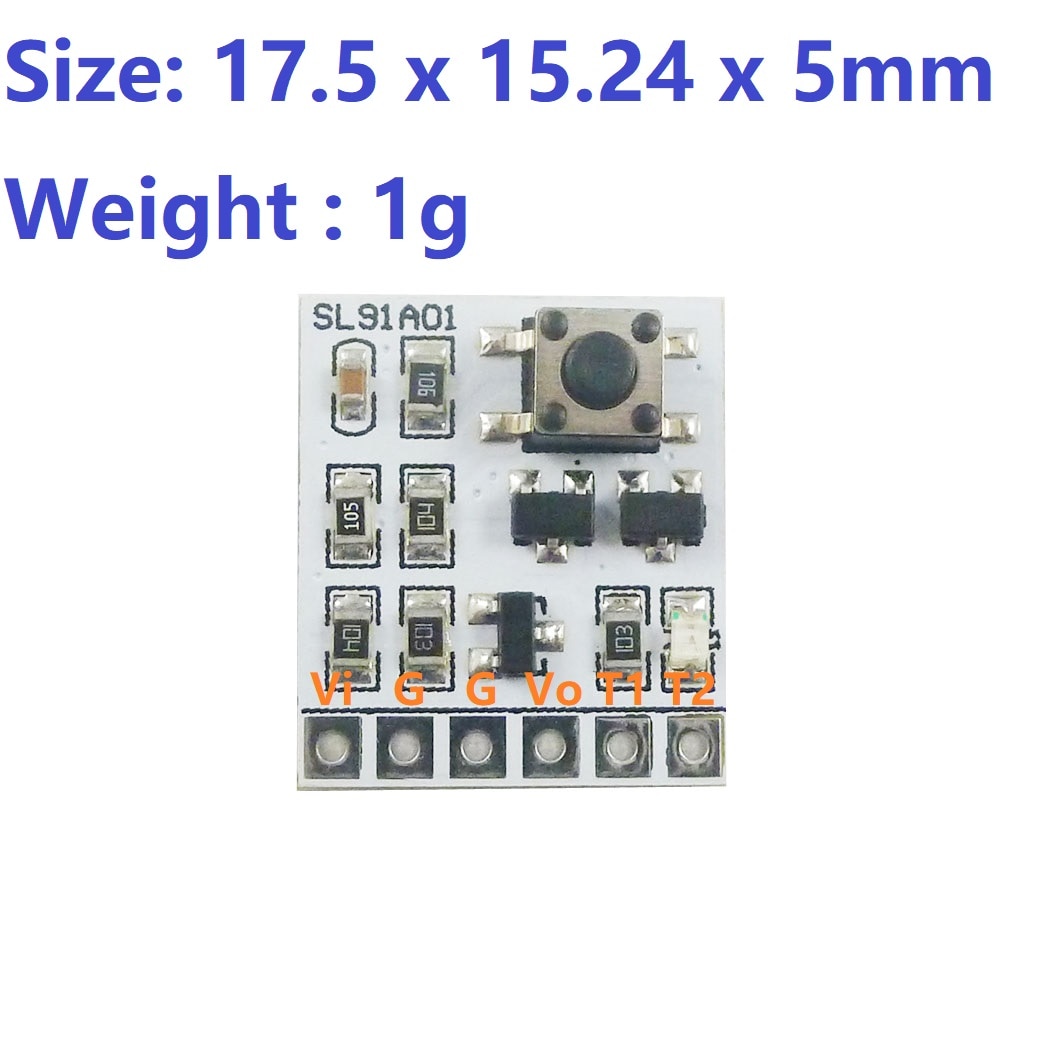

Size: 17.5 x 15.24 x 5mm
Weight : 1g

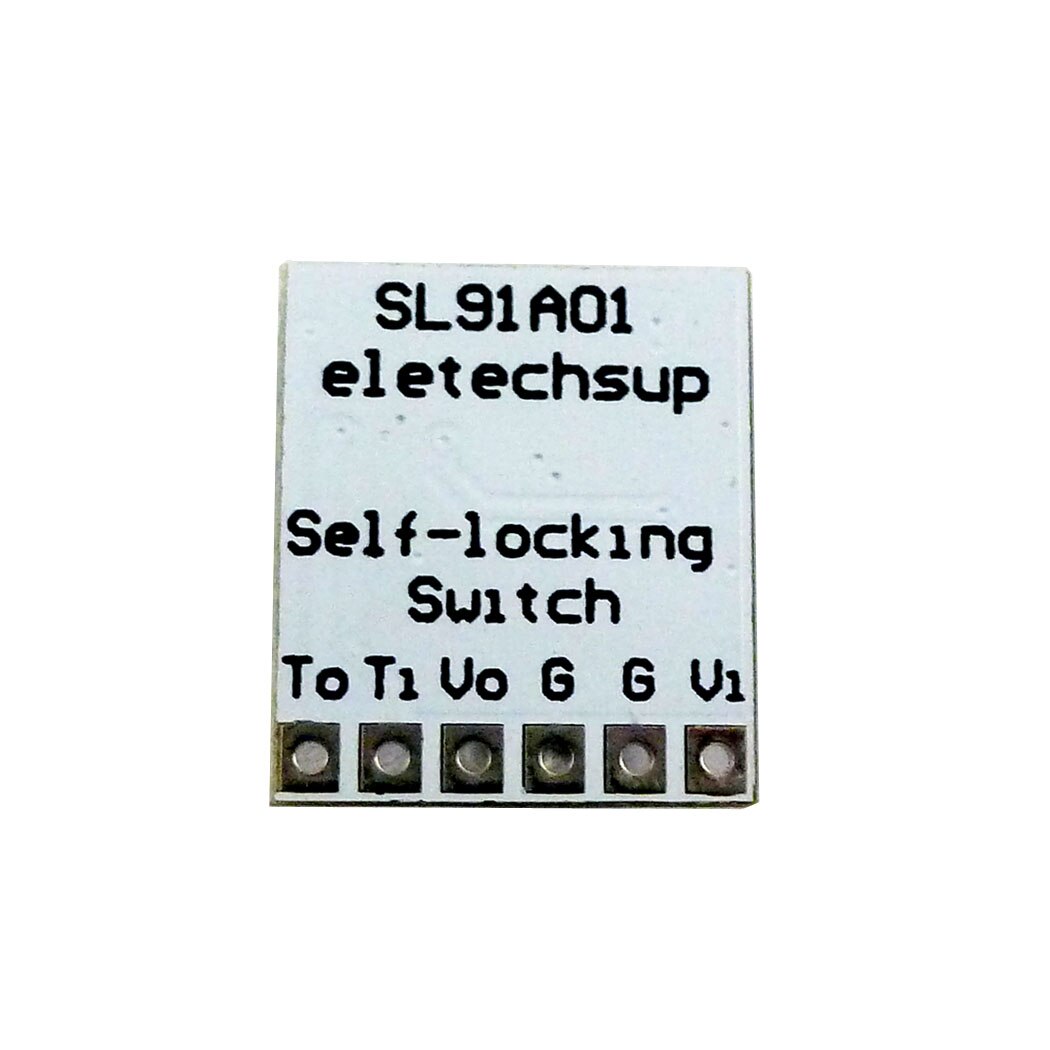

Module interface:

1. Vi : positive power supply (VCC)
2. G : negative power supply (GND)
3. G : negative Output (GND)
4 Vo : positive Output
5 Ti? : Button port 1
6 To : Button port 2

How to use: After power on (the output may be turned off or on), click the button to turn on or off the output (the status remains unchanged until the button is clicked again)

Note:
1 When powering on, the output state may be on or off,Connecting 220-1000UF electrolytic capacitors in parallel at the input can reduce the uncertainty

Typical applications:
???
Automotive electronics
Industrial equipment
Motor
LED
Smart Home
Emergency lighting
MCU development board
Toy car
Solenoid valve

Packing list:5 pcs?? DC 2-18V Bistable self-locking switch Module
