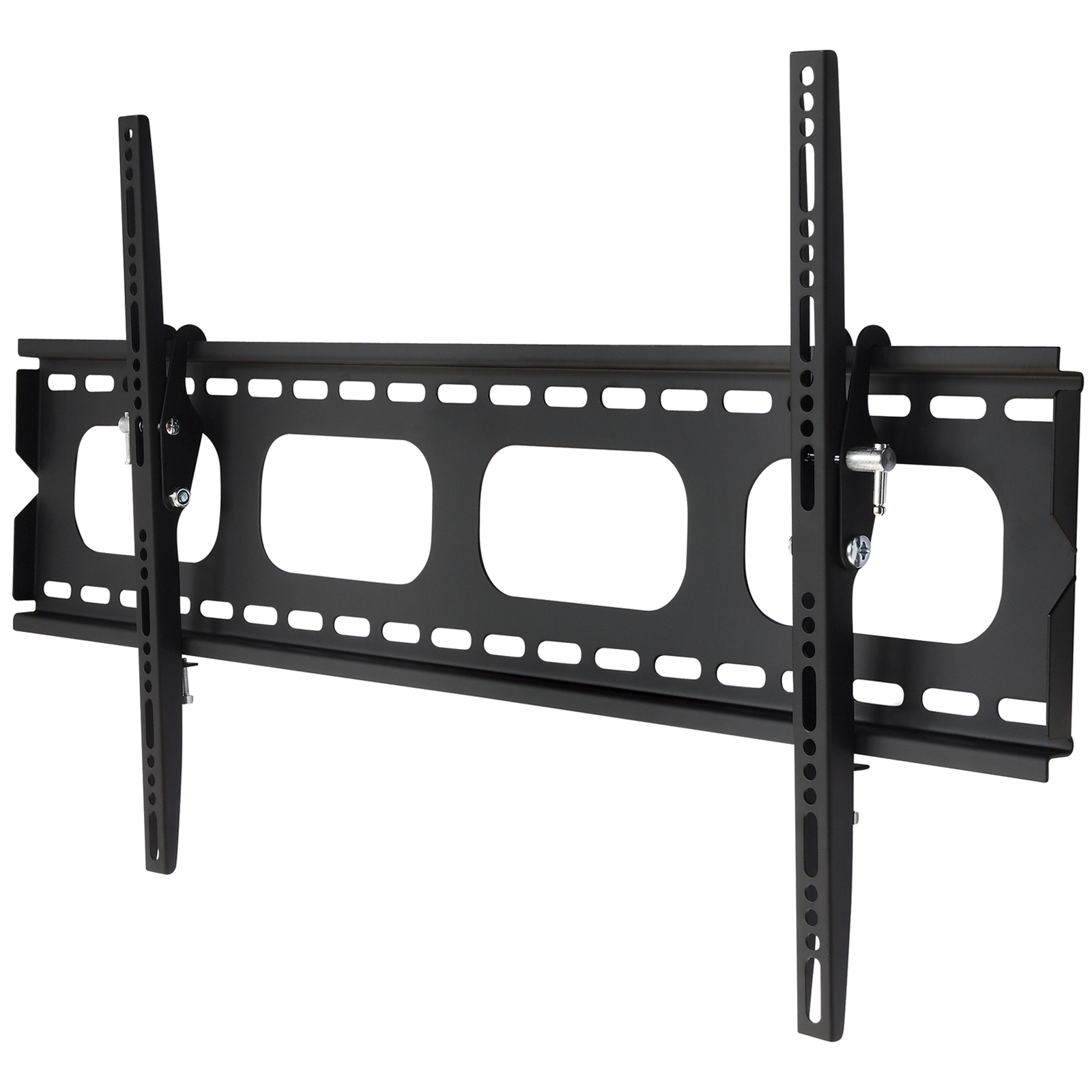

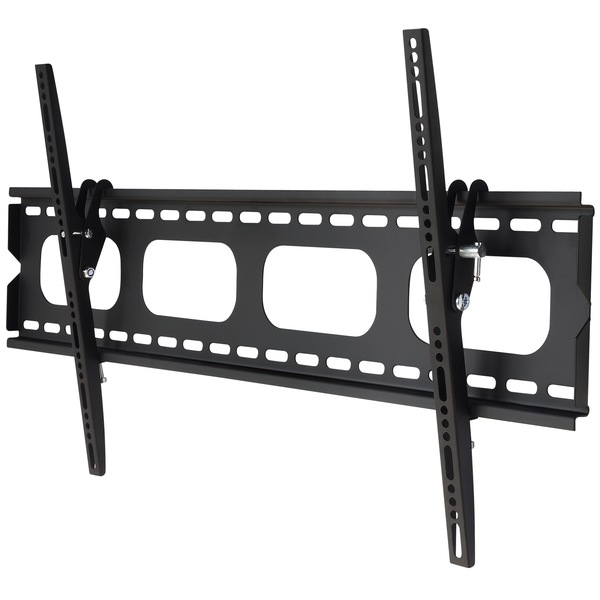

Perfect for Ultra Slim LED TVs
This is a slimline tilting bracket which sits closer to the wall than most other tilting brackets. It is designed for use with the ultra slim LED screens, but is also suitable for use with LCDs and Plasmas. However, please note that most manufacturers recommend that LCDs and plasmas are not to be mounted within a certain distance from the wall, due to heat and ventilation concerns.
Vertical Tilting Action
This is a low profile bracket but it also offers a 12 degree forwards tilt. Perfect if you wish to mount your TV high on the wall and tilt it down, for example in the bedroom or in the presence of curious young children with sticky hands. The tilting action can also help to avoid getting annoying reflections on the screen.
Features:
- Low profile "Slimline" design
- Easily adjustable
- Forward tilt
- Free clip-on bubble level

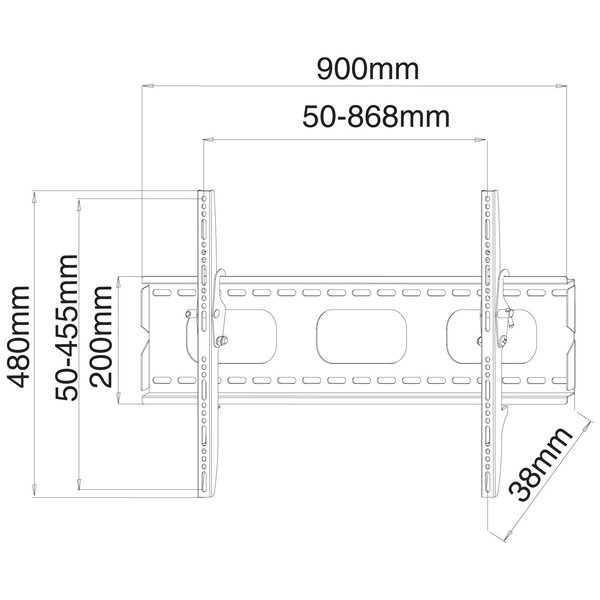

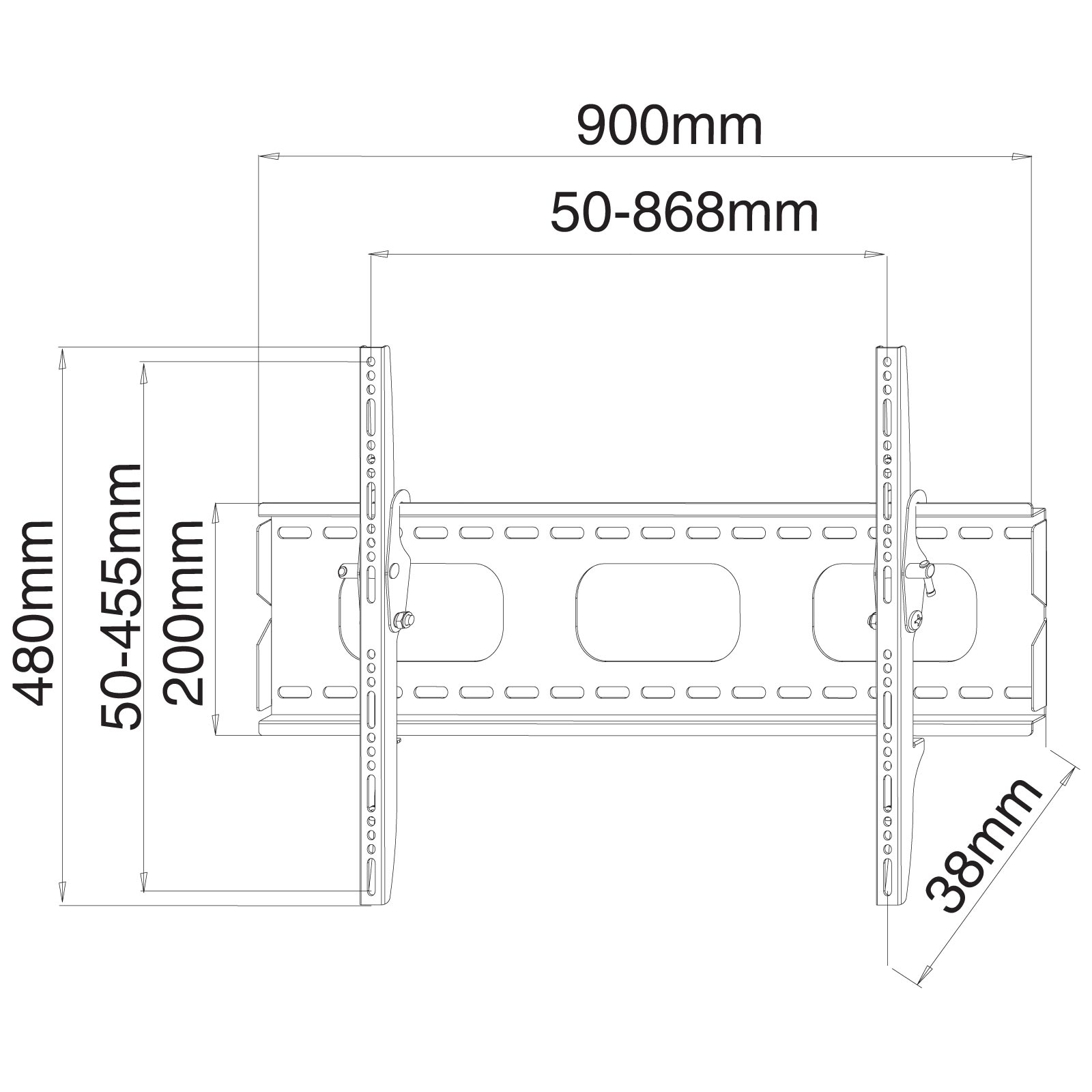

Will it fit my screen?
This bracket will fit your TV screen (and not be visible from front on) if your TV is:
- At least 900mm wide.
- At least 480mm tall.
The four threaded mounting holes on the back of your TV need to be:
- No more than 800mm apart side to side.
- No more than 400mm apart top to bottom.
Maximum TV weight capacity is 100kg.
Screws/Bolts
This bracket includes a variety of screws/bolts which are suitable for most installations. Unfortunately, due to the enormous range of TV brands and models available, we're unable to guarantee that the included fixings will suit every installation.
As with all wall brackets, if mounting on plasterboard walls it is essential that this bracket is fixed to a timber stud. This bracket can also be mounted on brick/concrete walls.
User Manual (PDF, 1,199KB)
