Description:
?
Working voltage: DC 5V
Working current: 1 relay 70MA;2? relay? 140MA; 3? relay? 210MA; 4? relay? 280MA
Standby current: 4UA
Load current: AC 250V / 10A, DC 30V / 10A
Trigger mode: Low pulse trigger
Size: 65mm * 42mm? * 19mm (L * W * H),? Small size???
Weight: 52 g
?
This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)
?

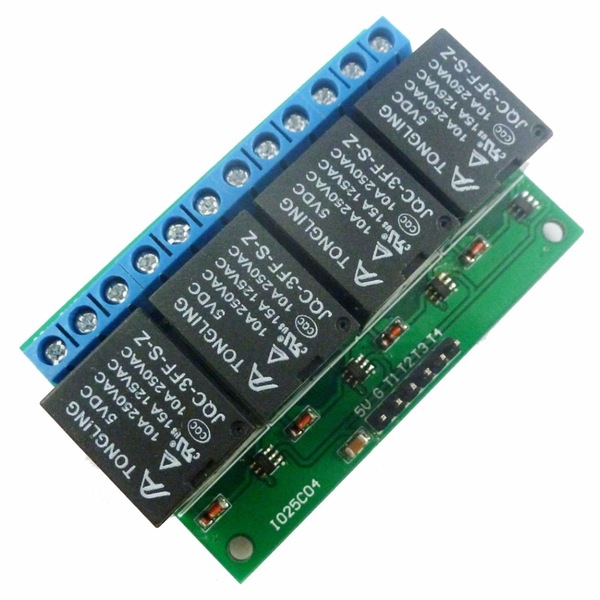

Module interface:
1. 5V: positive power supply (VCC)
2. G:? negative power supply (GND)
3. T1? : Trigger port 1
4. T2? : Trigger port 2
5. T3? : Trigger port 3
6. T4? : Trigger port 4
?

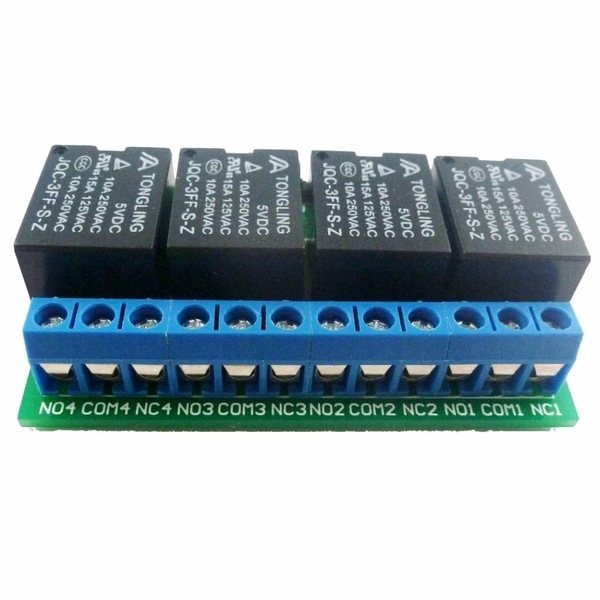

Relay outputs:
1. NO: normally open relay interface
2. COM: Common Interface Relays
3. NC: normally closed relay interface

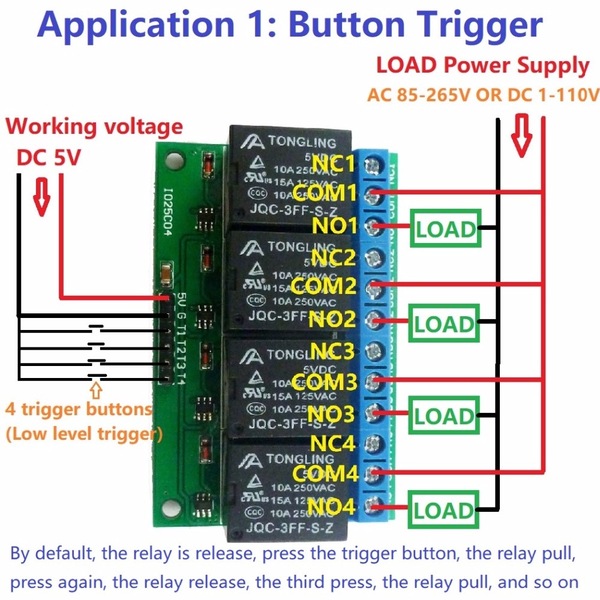

USE 1:
By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on.

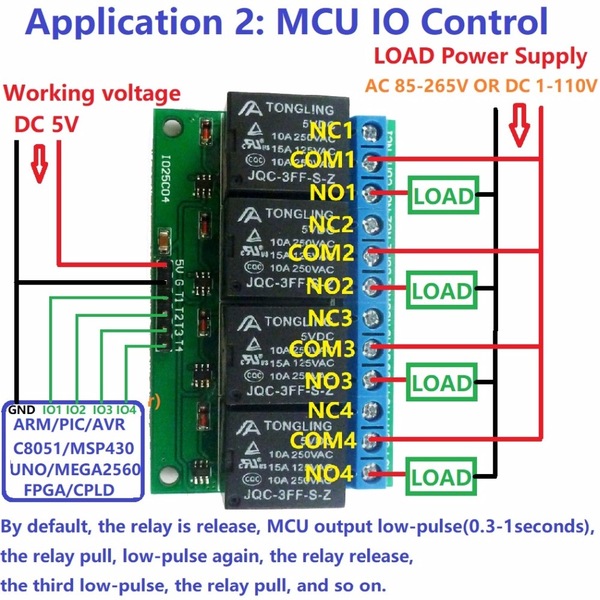

USE 2:
By default, the relay is release, MCU output low-pulse(0.3-1seconds), the relay pull, low-pulse again, the relay release, the? third low-pulse, the relay pull, and so on.
?
Typical applications:
?
Automotive electronics
Motor
LED
Smart Home
Emergency lighting
MCU development board
Toy car

Packing list:1 pcs?? 4 Channel DC 5V? Self-locking? Relay Module
