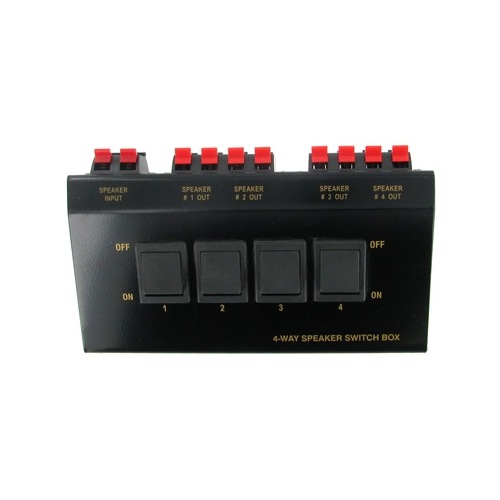

Uses For 4 Way Speaker Selector Switch Box
Allows you to switch between four pairs of speakers, or listen to one, two, three or all four pairs at the same time. Let's say you have a pair of speakers in the dining room, another pair in an alfresco / outdoor area, another pair in the bedroom and a fourth pair in the bathroom. With this switch, you simply press the 'A' button to play your music (or other audio) in the dining room, or you press the 'B' button to play your music (or other audio) in the alfresco / outdoor area, or 'C' for the bedroom, or 'D' for the bathroom. Press all four buttons to listen through all pairs of speakers simultaneously, or select any combination of pairs (ie: two or three pairs at once).
Power Handling: 100W max
Impedance: Prevent Damage to your Amp!
Please note that this switch can only be used with an amplifier that can operate down to 4 Ohms. If you are not sure if your amp is compatible, get in touch with us.
Impedance Chart
Switches on (impedance):
- 1/2/3/4 (8 Ohm)
- 1+2 (16 Ohm)
- 1+3 (4 Ohm)
- 1+4 (4 Ohm)
- 2+3 (4 Ohm)
- 2+4 (4 Ohm)
- 3+4 (16 Ohm)
- 1+2+3 (5.3 Ohm)
- 1+2+4 (5.3 Ohm)
- 1+3+4 (5.3 Ohm)
- 2+3+4 (5.3 Ohm)
- 1+2+3+4 (8 Ohm)
