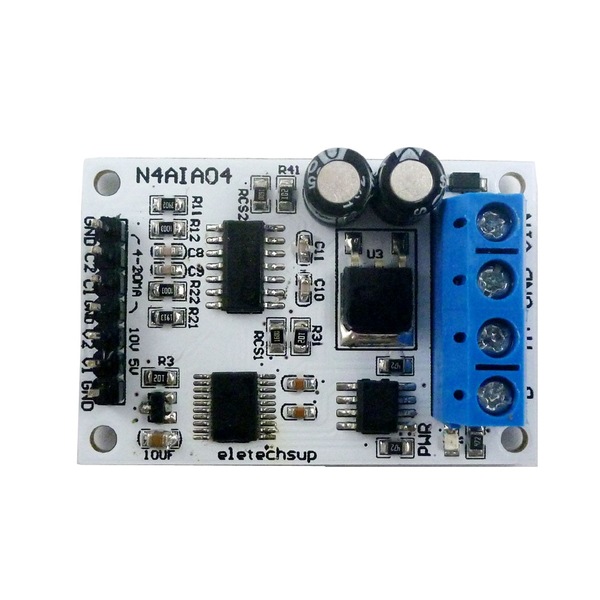

4-20MA/0-20MA/0-5V/0-10V 4ch Voltage Analog Acquisition RS485

4-20MA/0-20MA/0-5V/0-10V 4ch Voltage Analog Acquisition RS485

Price	$28.26
	Collect 28 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:
?

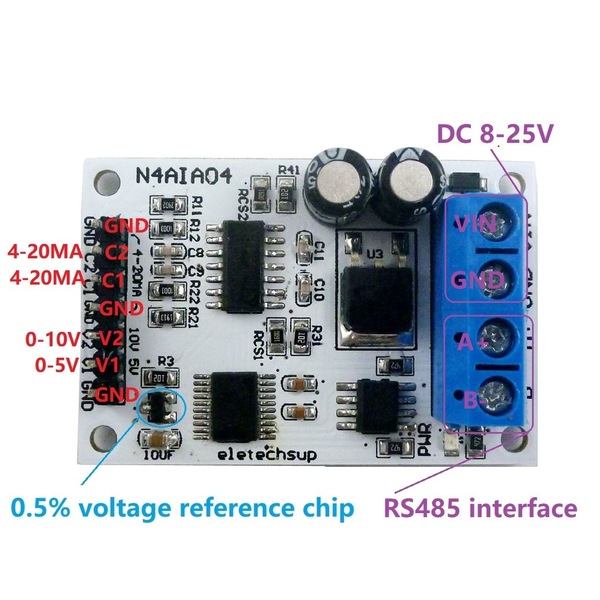

1: Operating Voltage : DC 8-25V(DC 9V 12V 15V 24V)
2: Operating Current : 10-14MA
3: MODBUS RTU Command support 03 06 function code

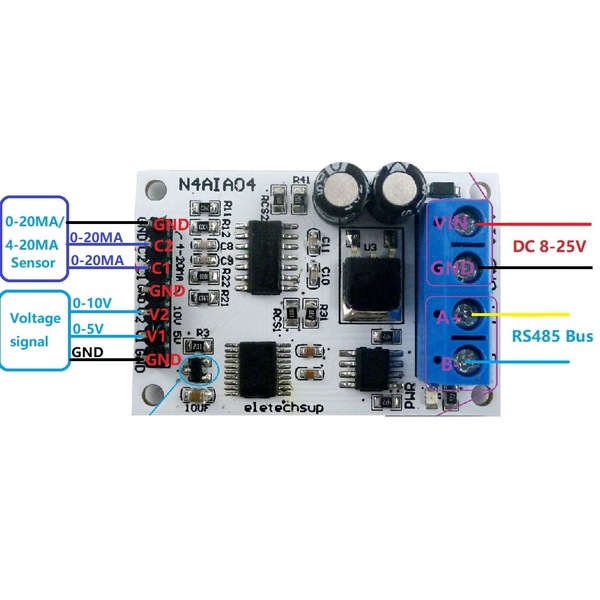

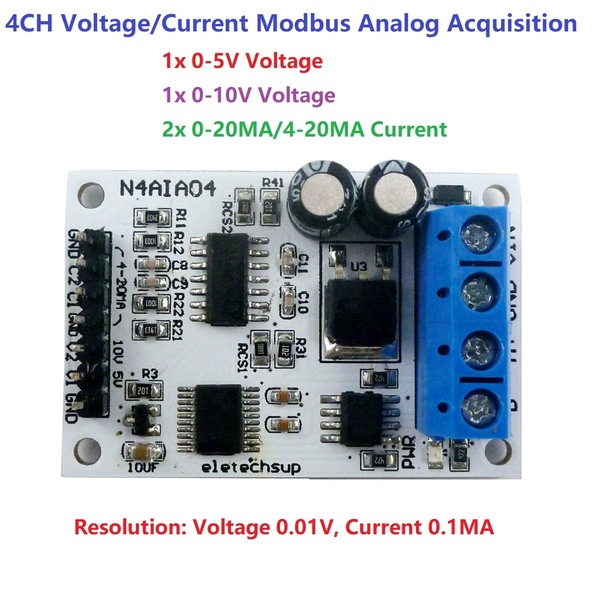

4: V1(CH1) channel voltage measurement range is 0-5V, V2(CH2) channel voltage measurement range is 0-10V, C1/C2(CH3/4) channel current measurement range is 0-20MA/4-20MA
5: Voltage resolution is 0.01V, measurement accuracy is 1%; current resolution is 0.1MA, measurement accuracy is 1%; if the error is greater than 1%, it can be calibrated

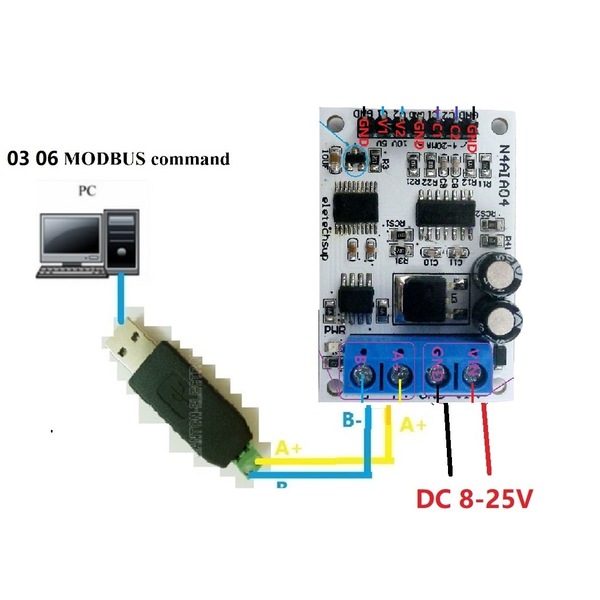

6 :MODBUS commands can be made serial HyperTerminal (serial assistant)? OR PLC Enter;
7 :Under the MODBUS command mode, it can support up to 247 devices in parallel
8 :Size: 45 * 30 * 15mm
9 :Weight: 10 g
?
Application
?
4-20MA/0-20MA Sensor
Voltage/Current analog acquisition
Automated industry PLC
Smart Home,Home Automation ;
Identification system;
RS485 Remote monitoring;
Multimeter voltmeter
