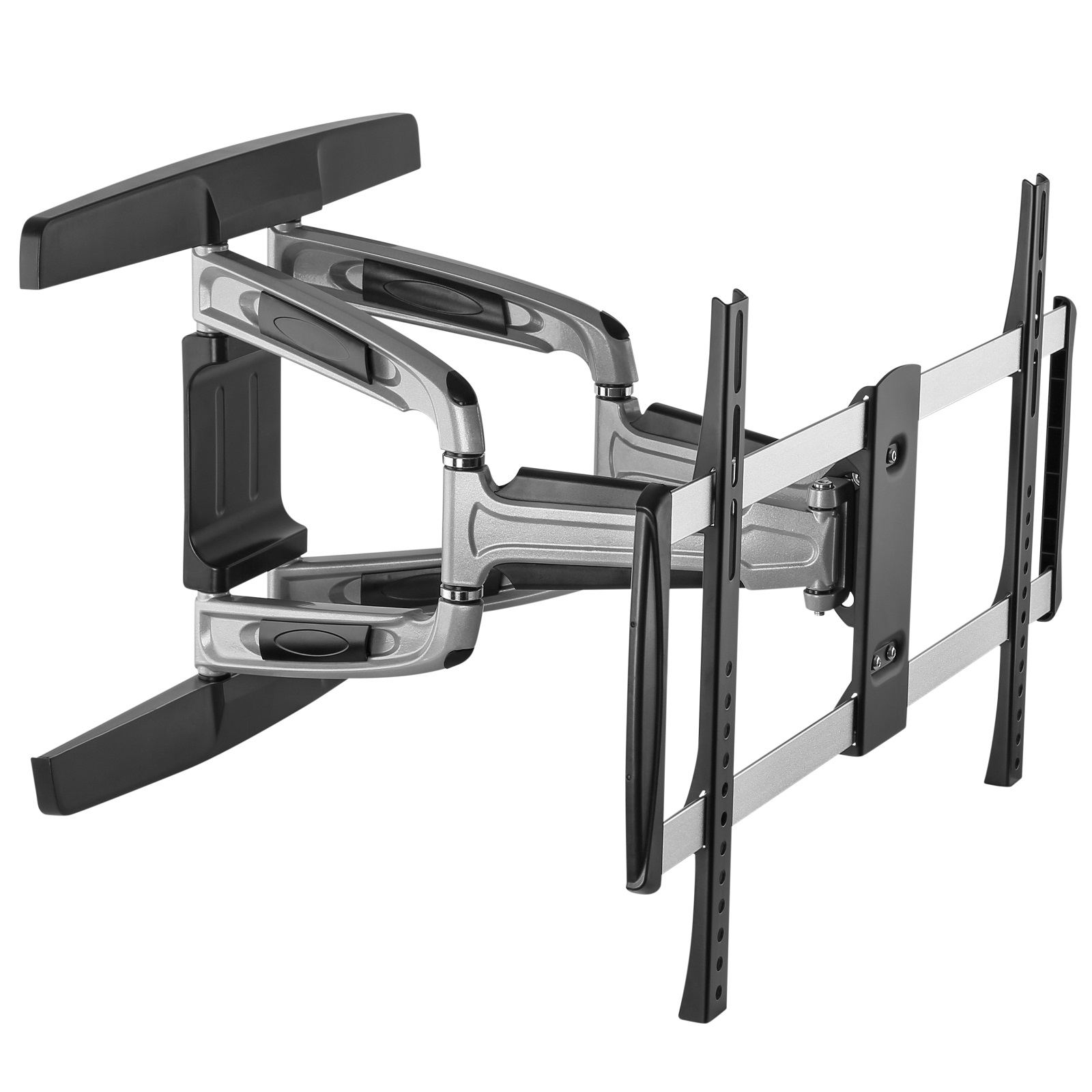

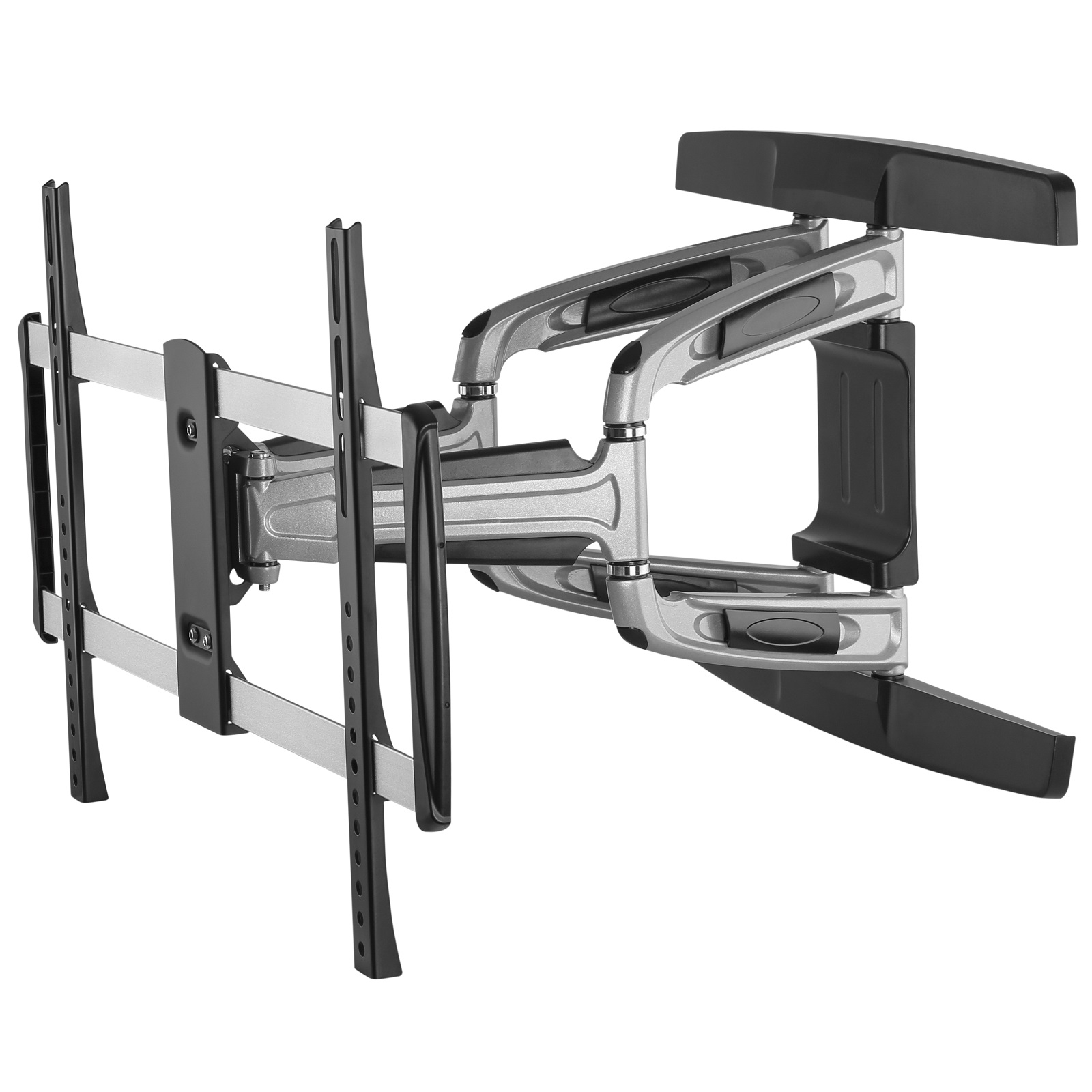

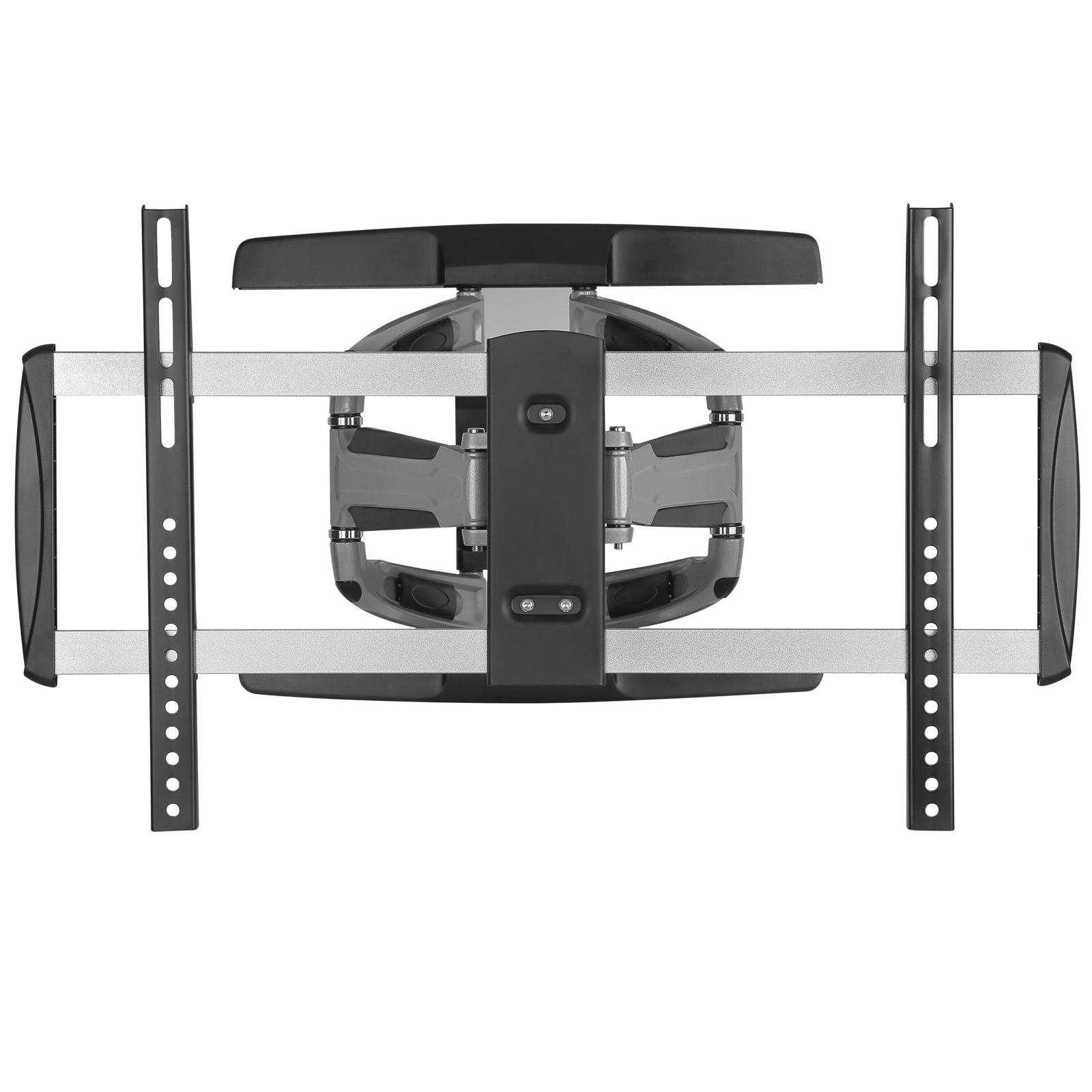

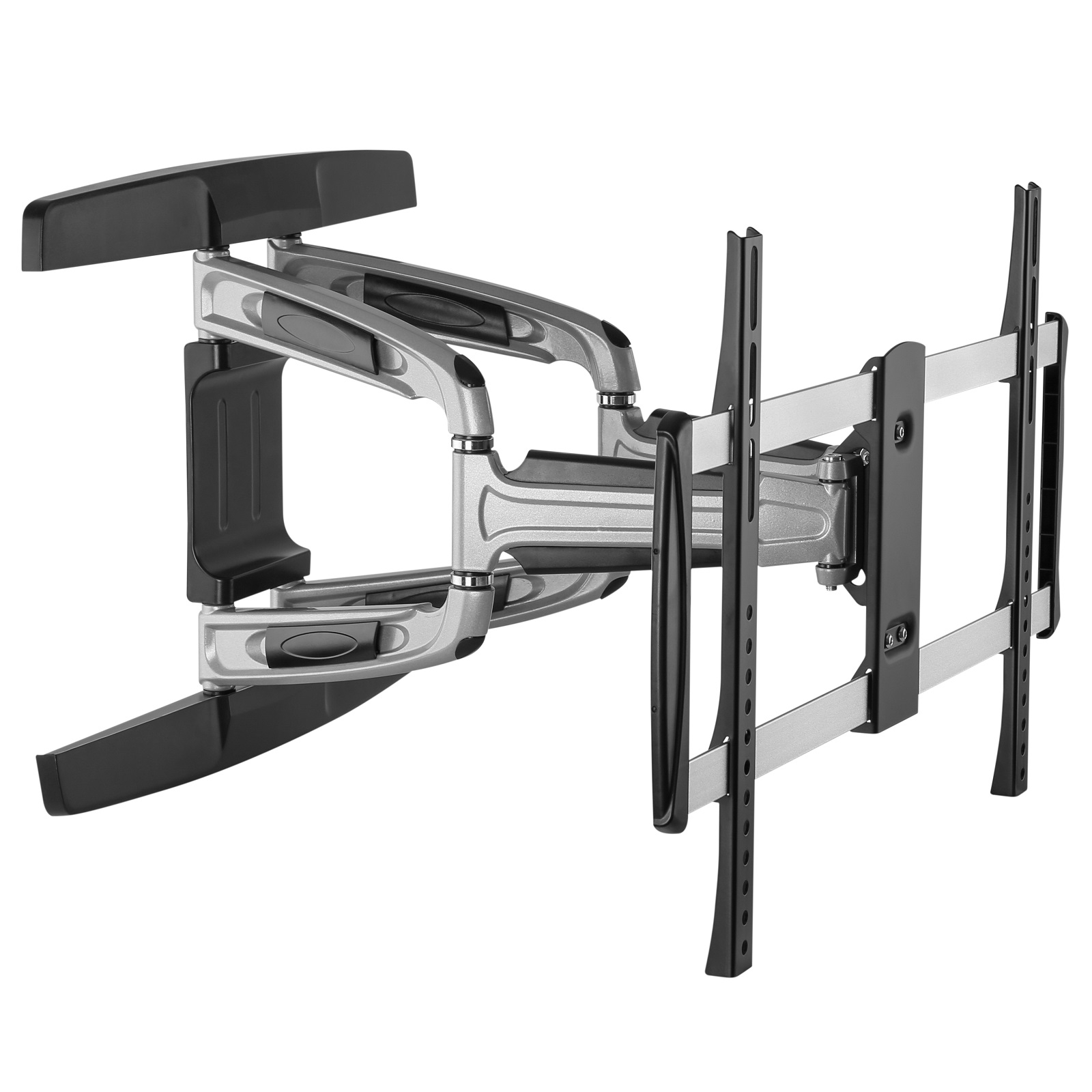

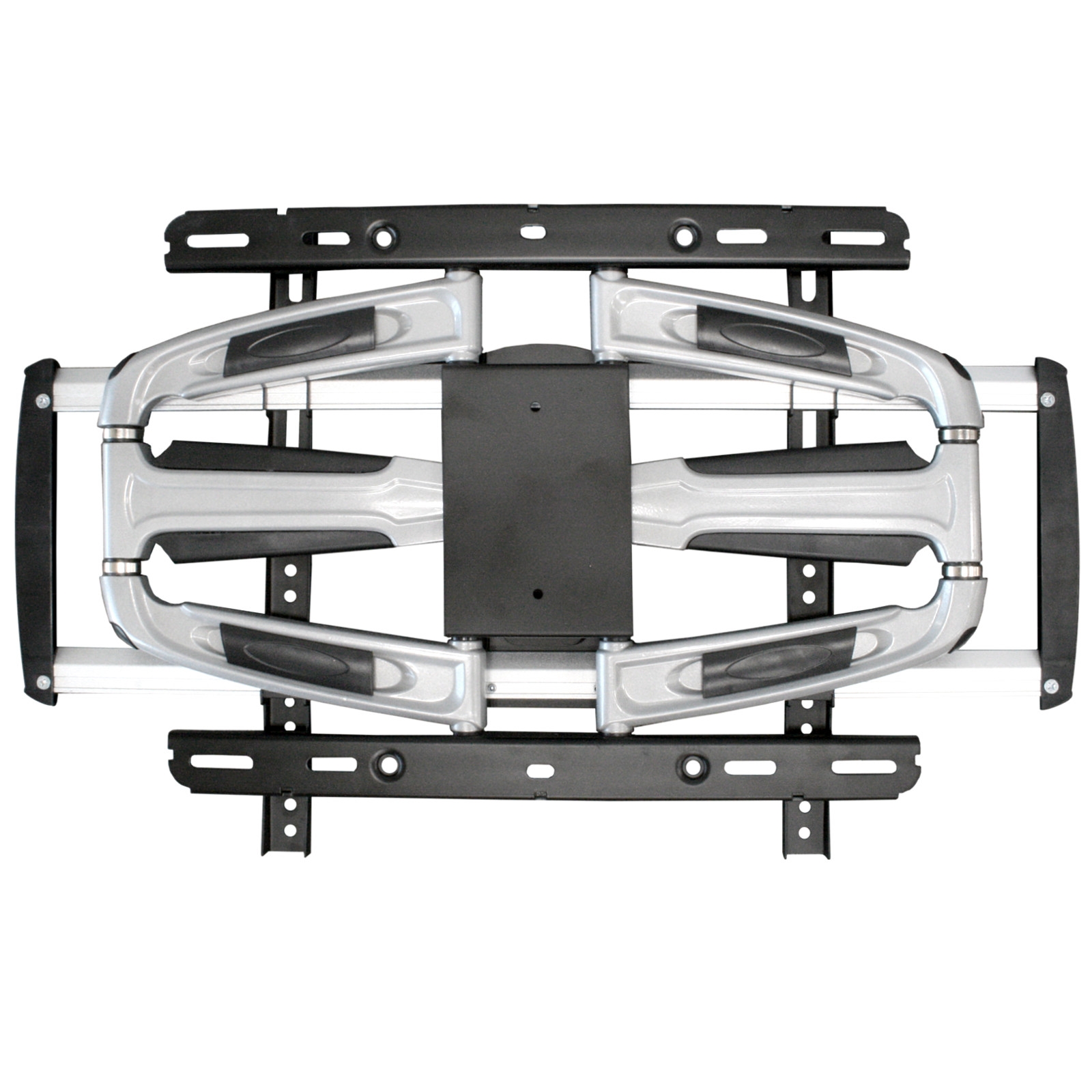

Full Motion Bracket
This full-motion wall mount for TVs 37"-70". It supports both curved & flat panel TVs weighing up to 50kg. It extends out up to 518mm from the wall when fully extended and only 53mm when fully retracted. Featuring smooth tilting motion making it easy to find the perfect angle to reduce glare. This full motion bracket also allows you to swivel the TV up to 60 degrees left and right for easy viewing from anywhere in a room.
Features:

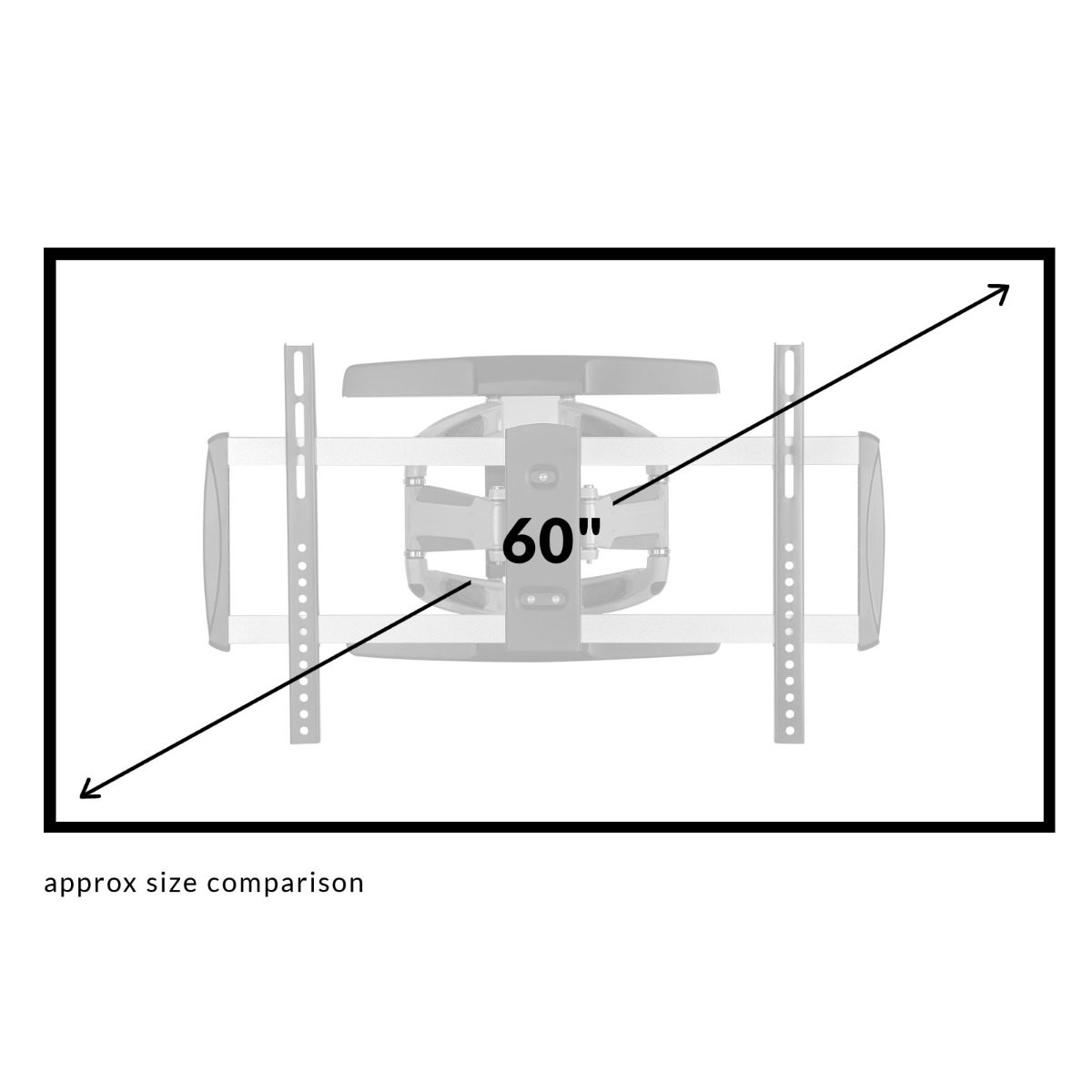

- Suits screen size 37" - 70"
- Features +/-2.5 degrees of screen rotation

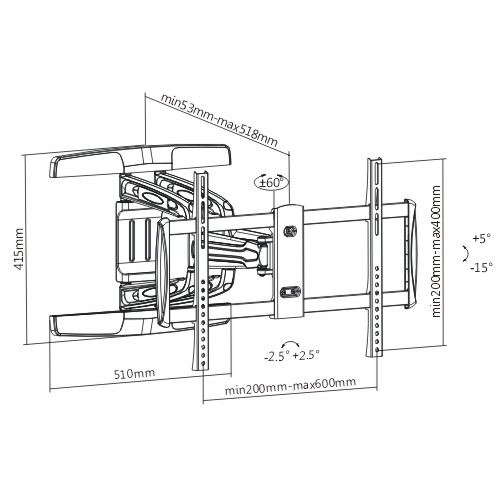

- Minimum extension: 53mm
- Max extension: 518mm
- Pivot/Swivel: up to 60 degrees each way (left/right)
- Tilt: -5 ~ 15 degrees

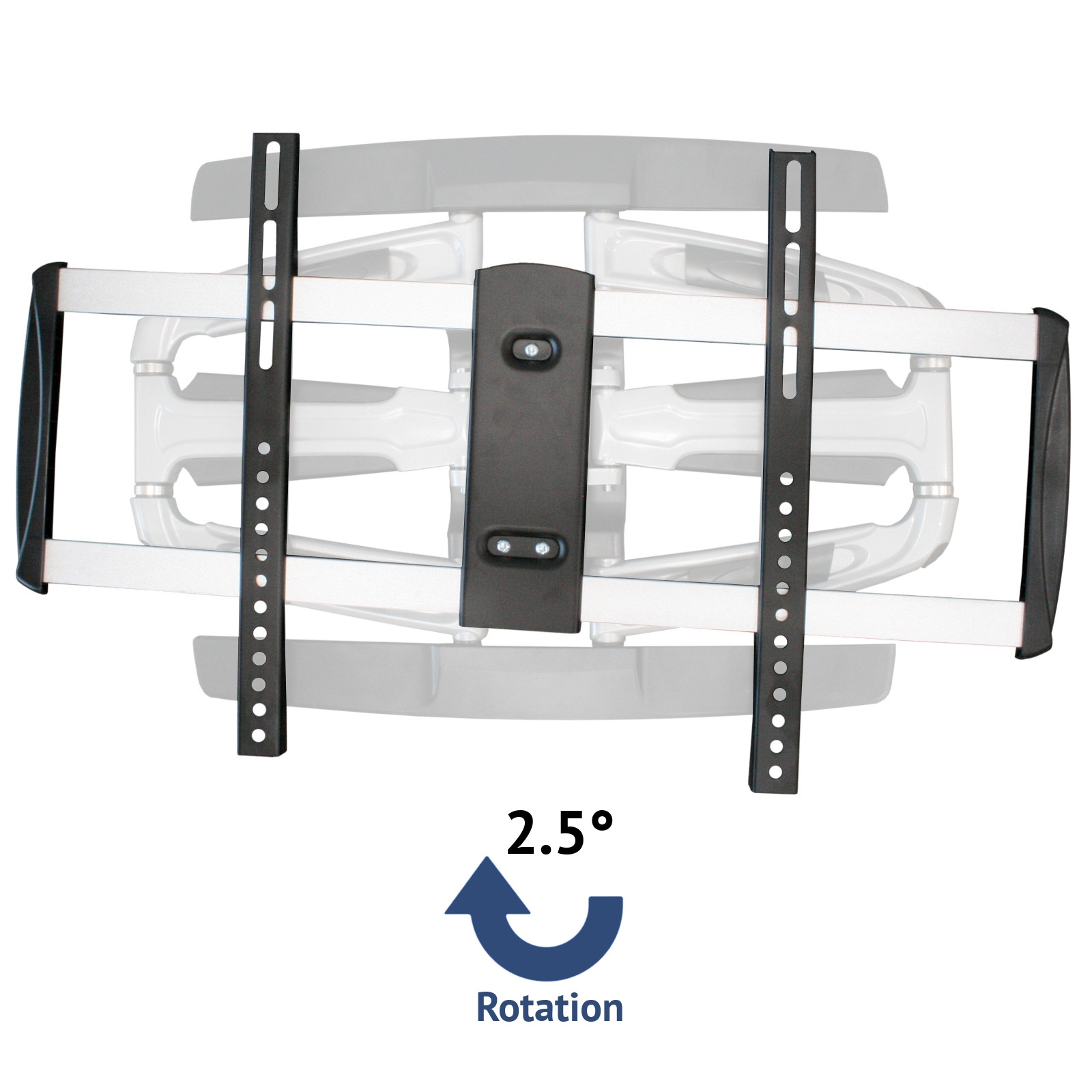

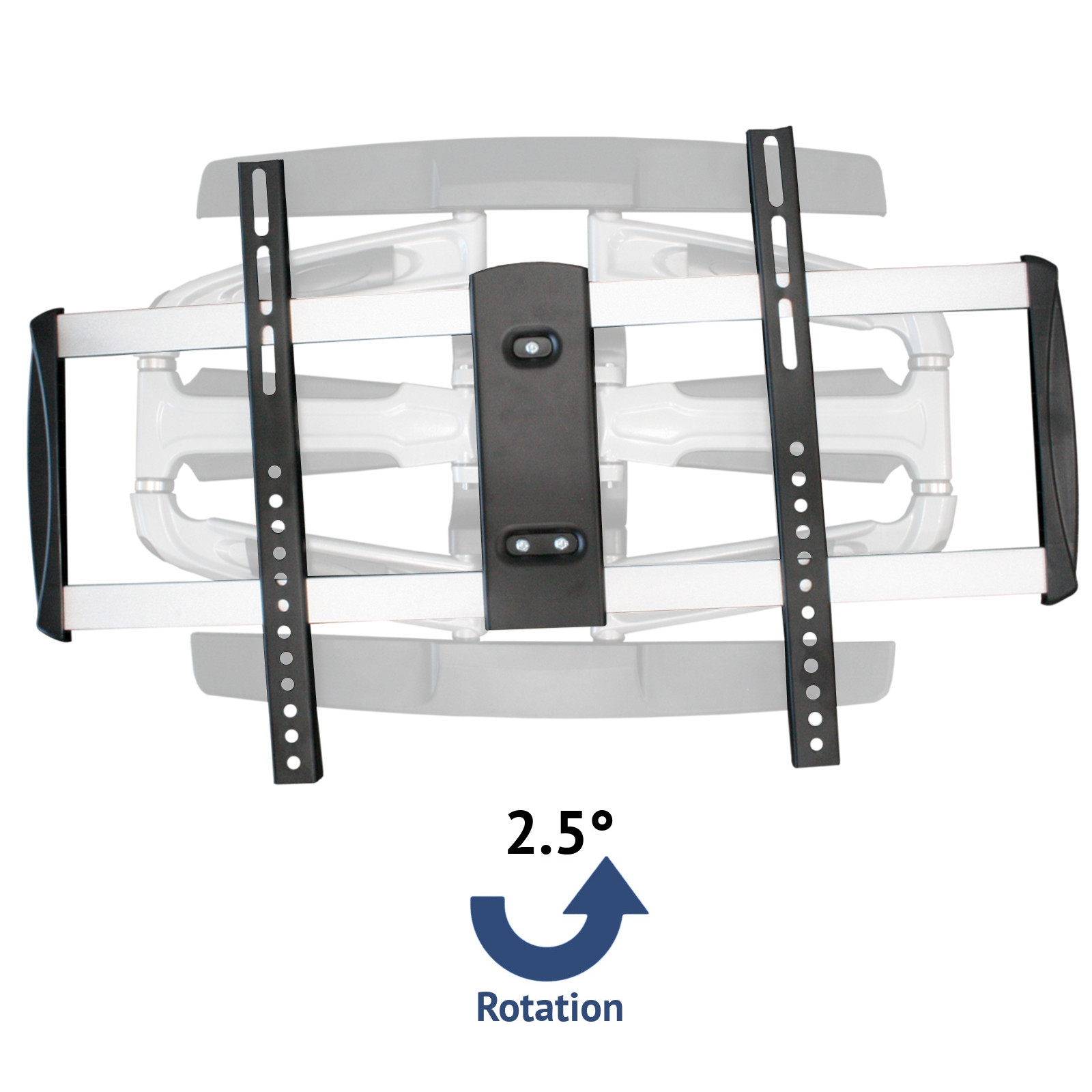

Screen Rotation
This bracket supports up to +/-2.5 degrees of rotation of the front mounting plate it's easy to get your TV perfectly level.
Horizontal Swivel/Pivot (Left/Right)
This bracket allows you to turn your TV up to 60 degrees to the left or right (depending on screen size)
Wall Stud Spacing
This TV bracket suits wall stud spacings of 450mm. Because the Australian standard wall stud spacing is 450mm - 600mm, this bracket is best suited for mounting on brick or concrete walls.
Will This Bracket Fit My TV / Monitor?
The four threaded mounting holes on the back of your TV need to be:
- No more than 600mm apart side to side.
- No more than 400mm apart top to bottom.
Maximum TV weight capacity is 50kg.
Full VESA Patterns supported: 200x200, 300x300, 400x200, 400x400, 600x400
Screws/Bolts
This bracket includes a variety of screws/bolts which are suitable for most installations. Unfortunately, we're unable to guarantee that the included fixings will suit every installation.
