Description:

3.6V(3V6) version:
(1) High Precision Voltage Detection Circuit
Overcharge detection voltage 3.200~4.000V Accuracy��25mV
Overcharge release voltage 3.000~4.000V Accuracy��35mV
Standby detection voltage 2.70V Accuracy��15%
Standby release voltage 2.70V Accuracy��15%
(2) Delay times are generated by an internal circuit (external capacitors are unnecessary).
(3) Low consumption current
Operation mode Typ. value 2.5��A, max. value: 3.5��A (VDD=3.2V)
Standby mode Max. value:0.5��A (VDD=2.0V)
(4) Wide operation temperature range: -40??~ +85??
Main control chip : HY2212-BB3A

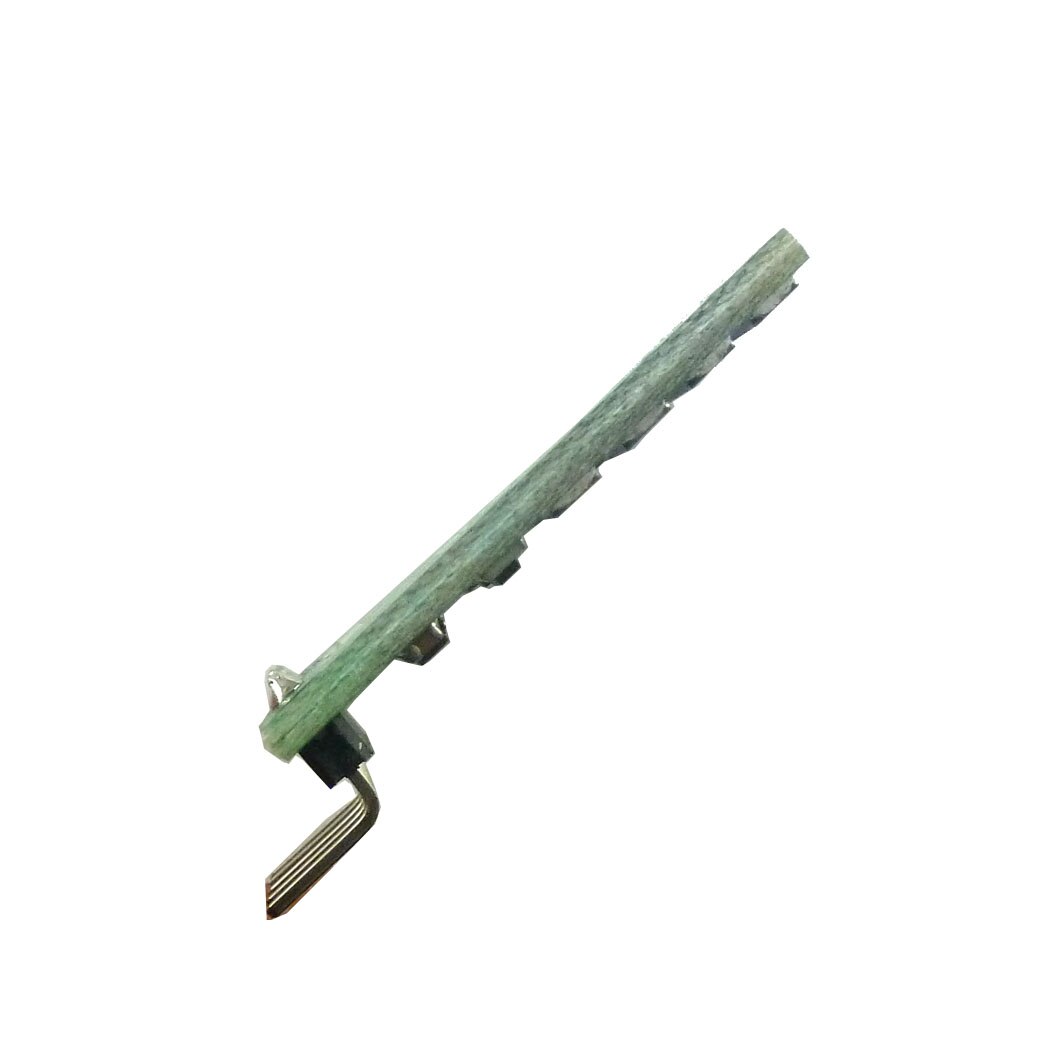

Size : 30mm x 28mm x 8mm
Weight : 3.5g

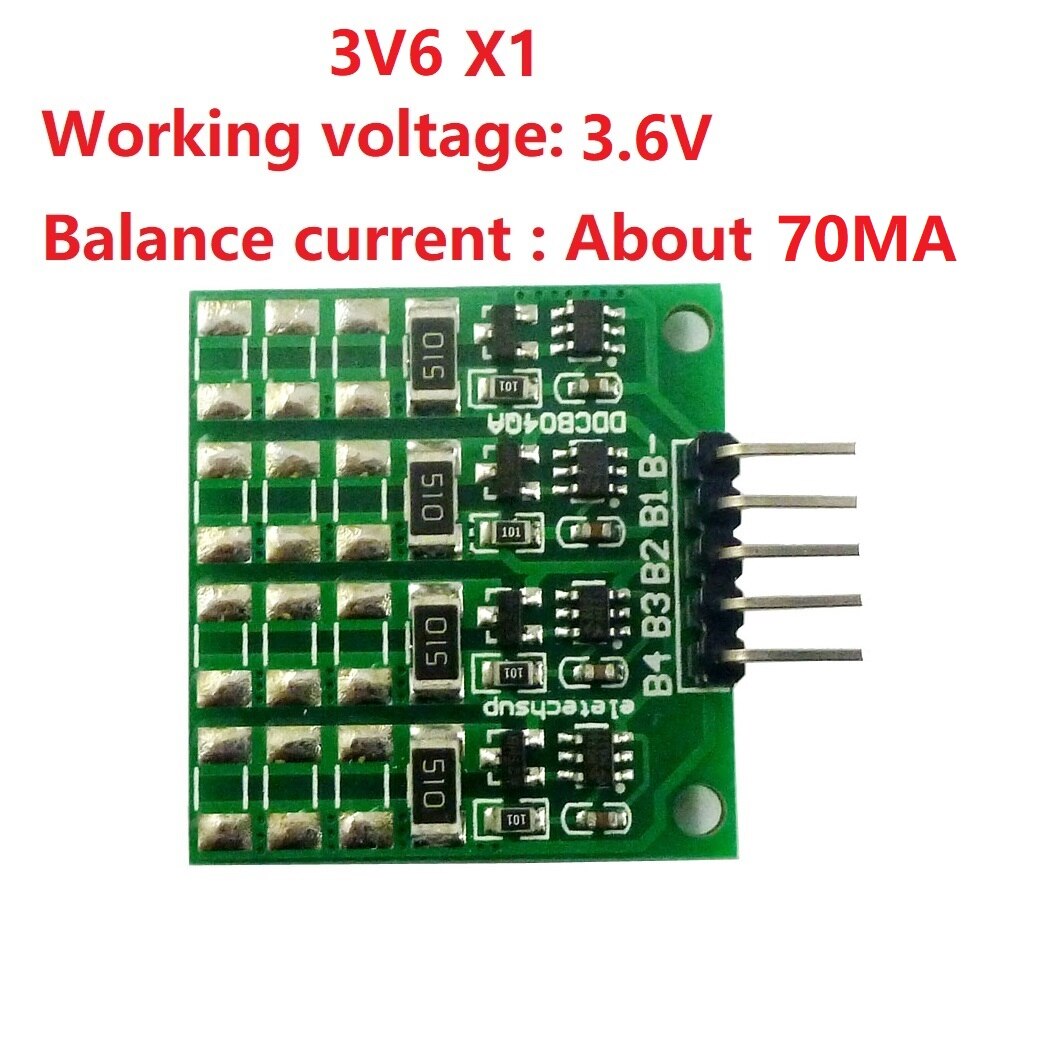

3.6V(3V6) version : Balance current(A)= 3.6/Rb

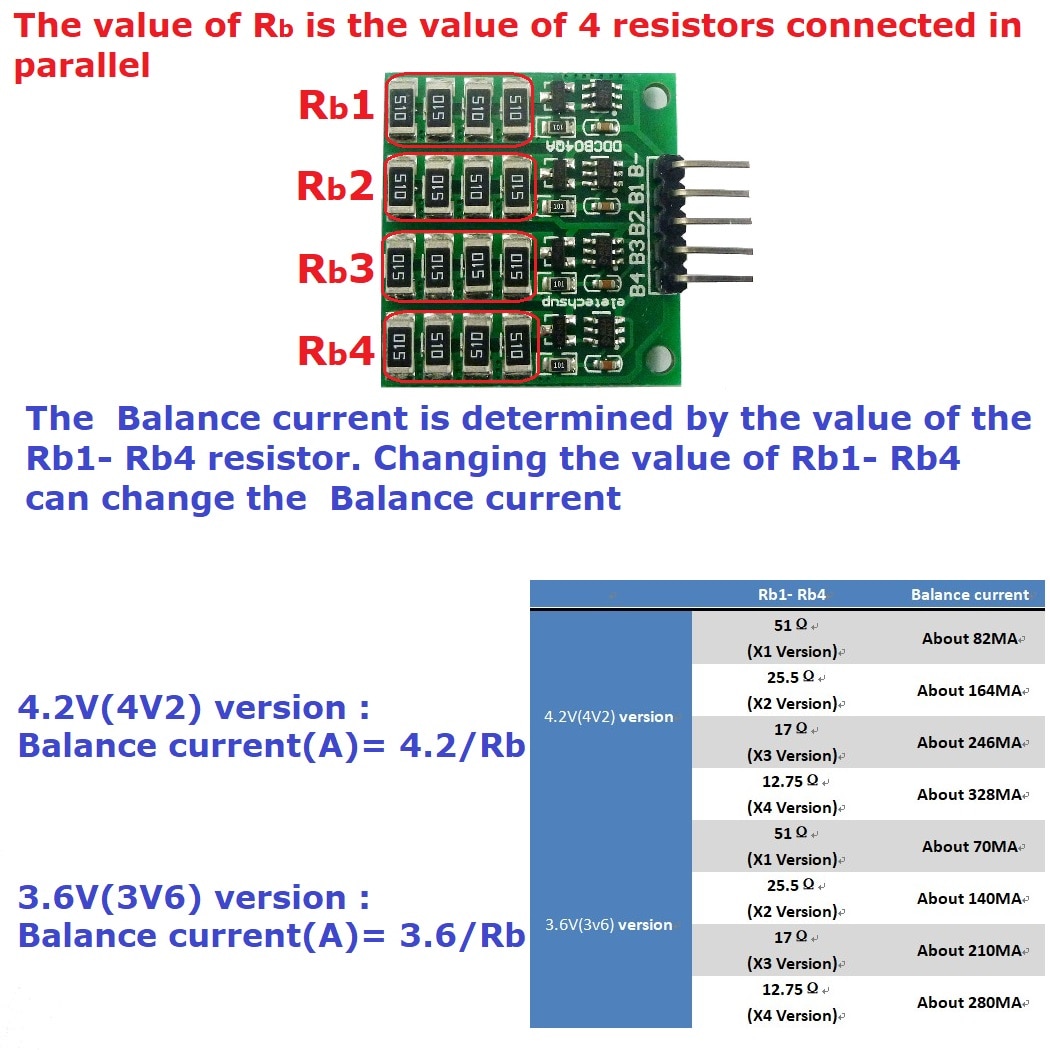

The value of Rb is the value of 4 resistors connected in parallel.
The? Balance current is determined by the value of the Rb1- Rb4 resistor. Changing the value of Rb1- Rb4 can change the? Balance current

Packing list:1 PCSMulti-cell Cell Li-ion/Polymer/LiFePO4 Battery Charge Balance Module
