20W DC 3.3-5V to 5-12V DC Boost Converter USB Module QC3.0 2.0 FCP Quick Charger

20W DC 3.3-5V to 5-12V DC Boost Converter USB Module QC3.0 2.0 FCP Quick Charger

Price	$26.75
	Collect 26 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:

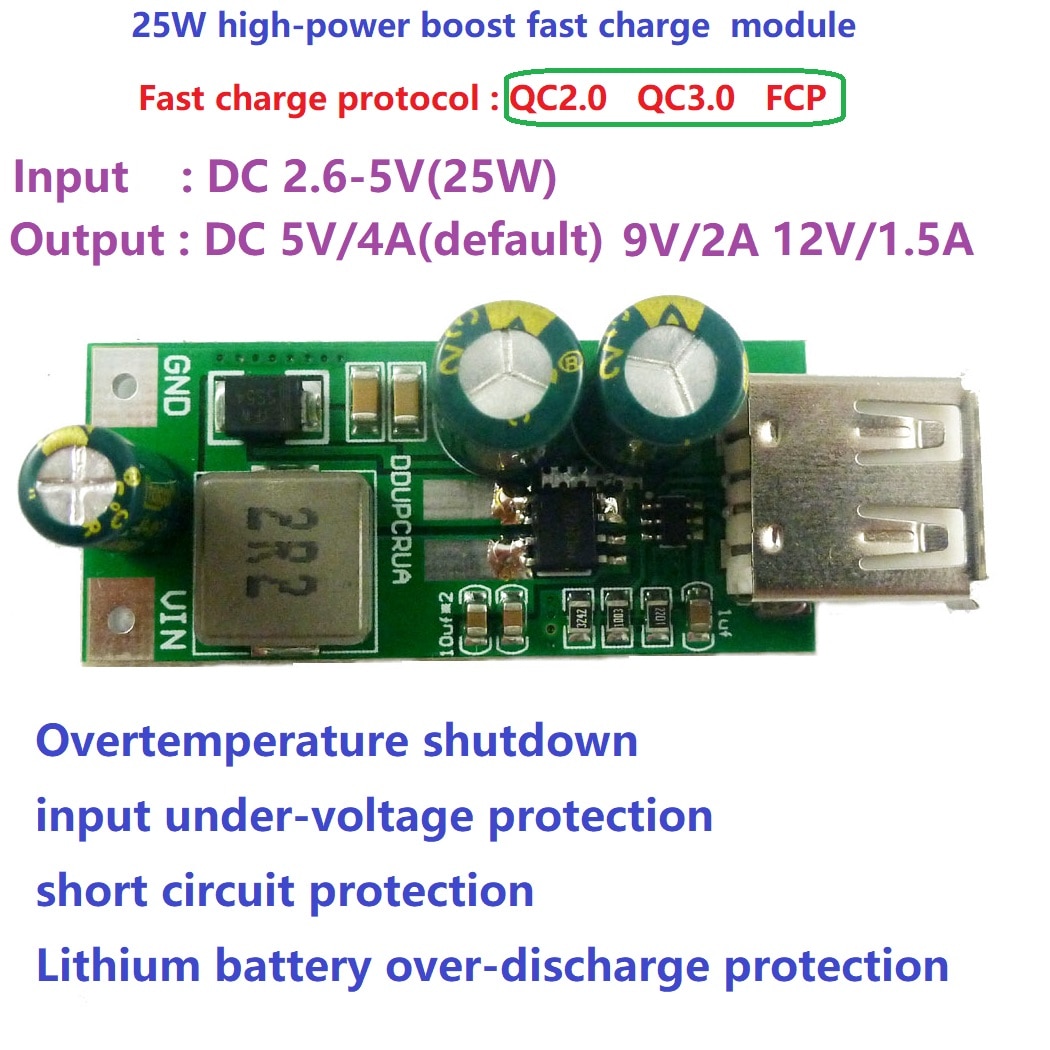

25W high-power boost fast Quick charge QC2.0/QC3.0/FCP module

Input DC 3.3-5V(25W),Output : DC 5V/4A(default),9V/2A,12V/1.5A(QC2.0/QC3.0)
Quiescent current: about 1MA
Efficiency : <=95%

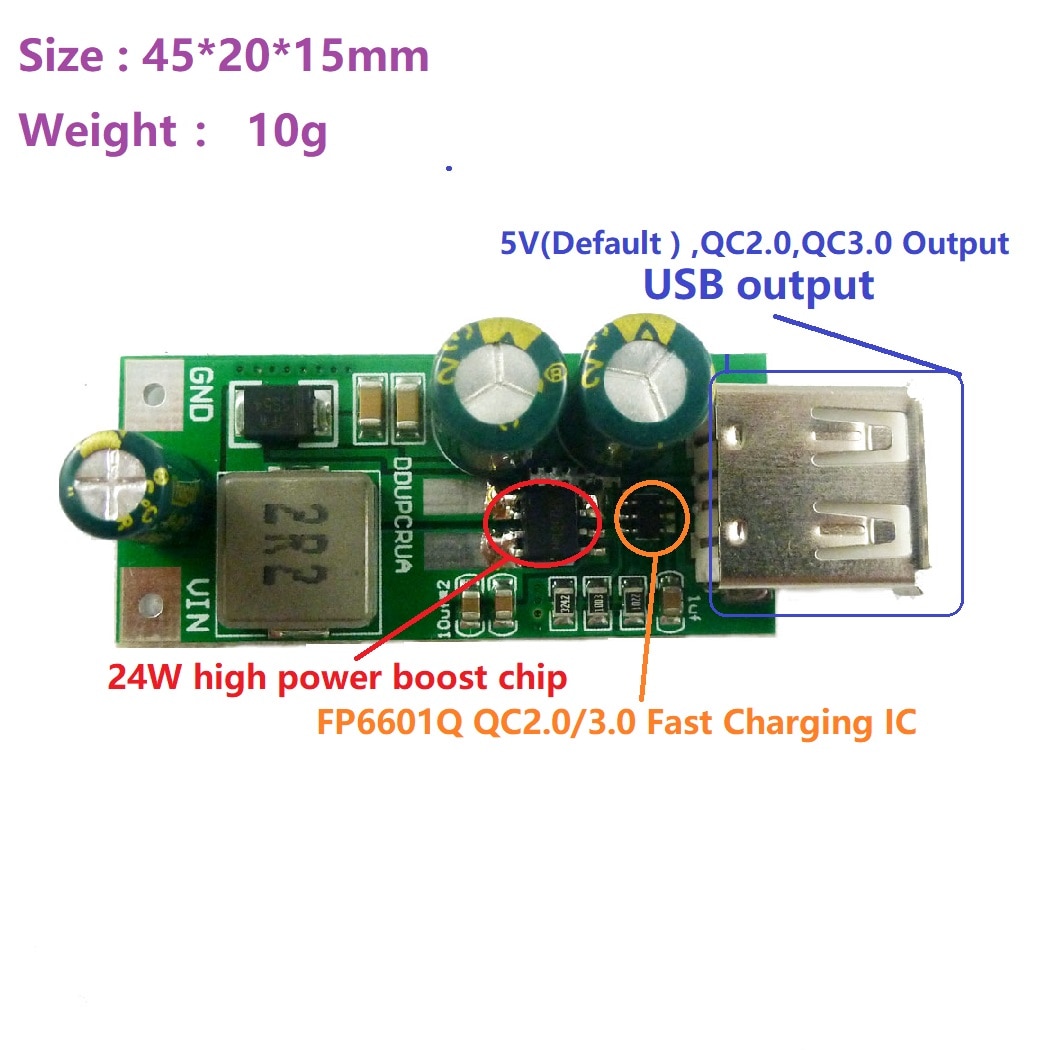

FP6601Q QC2.0/QC3.0/FCP Quick Fast Charging IC
Switching Frequency : 600KHz fixed
Overtemperature shutdown, input under-voltage protection and short circuit protection.
UVLO Low Threshold 2.6V,UVLO High Threshold 3.2V,suitable for 3.7V/3.8V/3.85V lithium battery power supply
Operating Ambient Temperature : -40 to 85 ��C
Storage Temperature : -55 to 150��C

Size : 45*20*15mm
Weight : 10g
???
Attention :
?
This is a high-power boost QC2.0/QC3.0/FCP Fast Charging module. Please pay attention to the following when using:

1 The power supply must be sufficient. Can at least 30W output power
2 The power and boost module leads must be thick enough (can pass 10A) and soldered well.

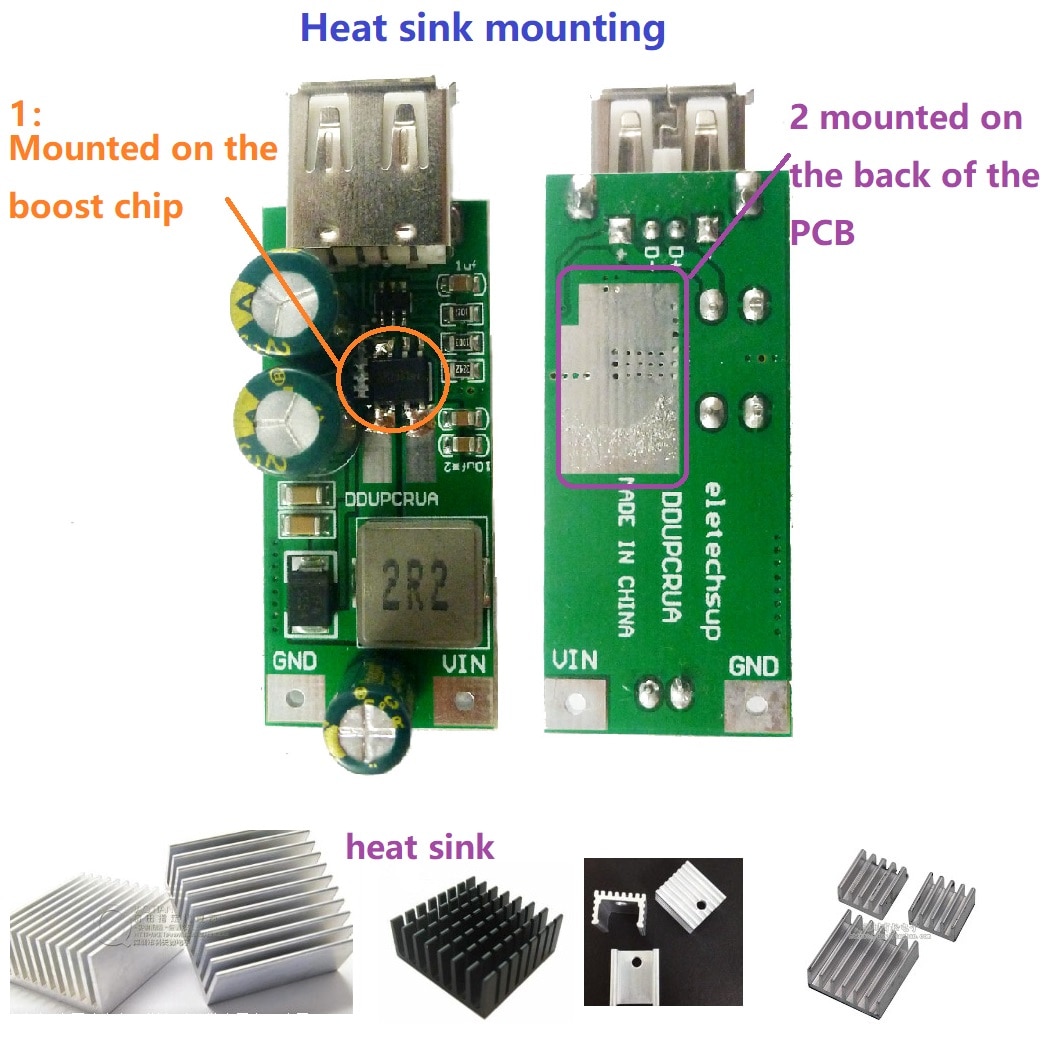

3 When charging quickly, the module generates a lot of heat. Please pay attention to ventilation and heat dissipation.It is recommended to add heat sink or fan to dissipate heat.

Applications:

QC2.0 QC3.0 FCP Fast Charging
Wall-Adapter, Smart Phones, Tablets, Notebooks
Mobile / Tablet Power Bank
Car Charger

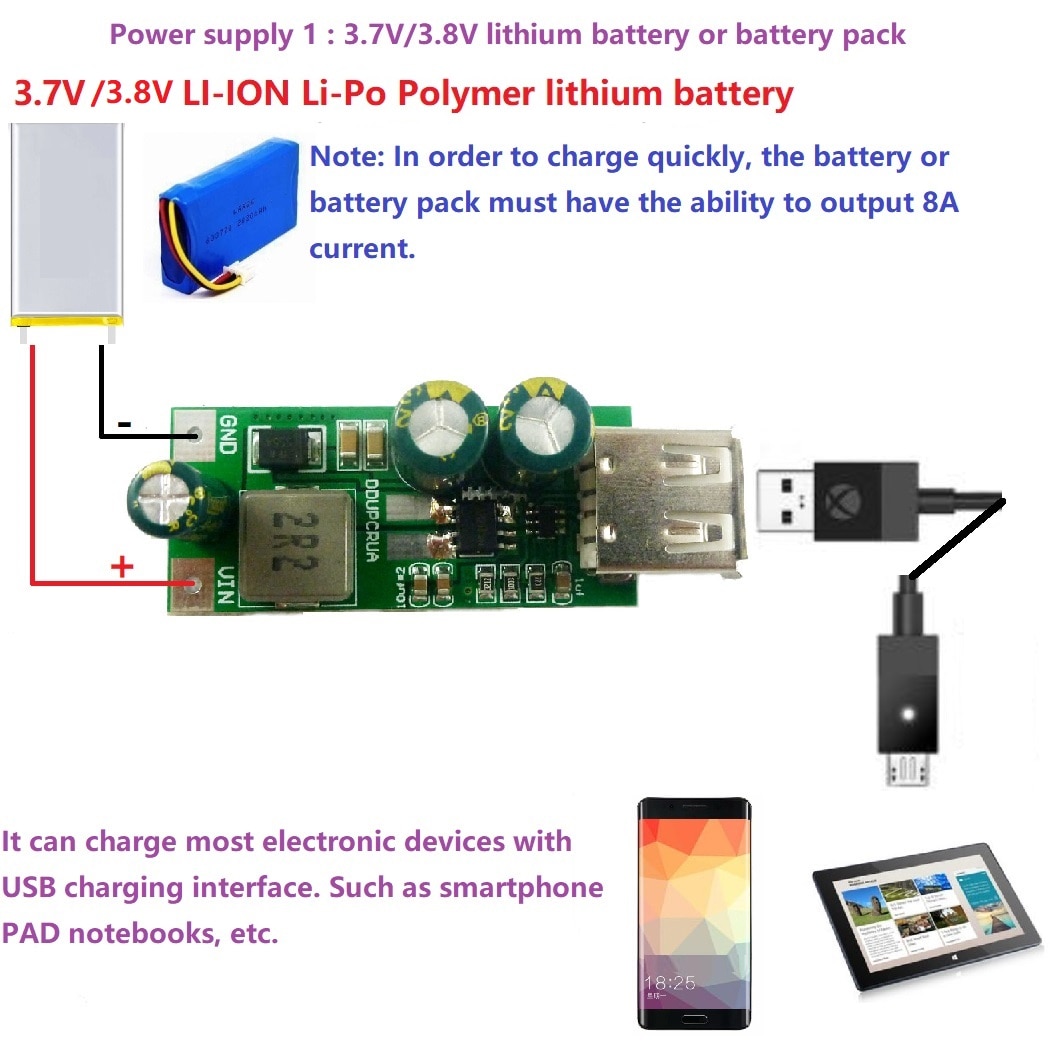

LI-ION Li-Po Polymer lithium battery Charger
USB Power Output Ports
PTZ CCTV IP camera
Smart home / home automation
WIFI Router Switch Network equipment

GTIN: 774048923491
