Dual Output Power Supply DC Step-up Boost-Buck Converter module no terminal

Dual Output Power Supply DC Step-up Boost-Buck Converter module no terminal

Price	$30.46
	Collect 30 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:
?
Input voltage 3.6~30V,output ��3~��30V adjustable
Maximum output power: 20W
Conversion efficiency :69-88%
Quiescent current: 3mA
?
20W DC-DC Boost-Buck Converter working frequency 180KHZ.
Operating ambient temperature : -40~+85 Degrees Celsius
?
Size : 60 x 34 x 15mm
Weight :?? 29g(no terminal)
?
High efficiency up to 88%
Built in Frequency Compensation
Built in Soft-Start Function
Built in Thermal Shutdown Function
Built in Current Limit Function
?
Note:
1 In order to obtain a more stable voltage, it is recommended that the output is greater than 15MA

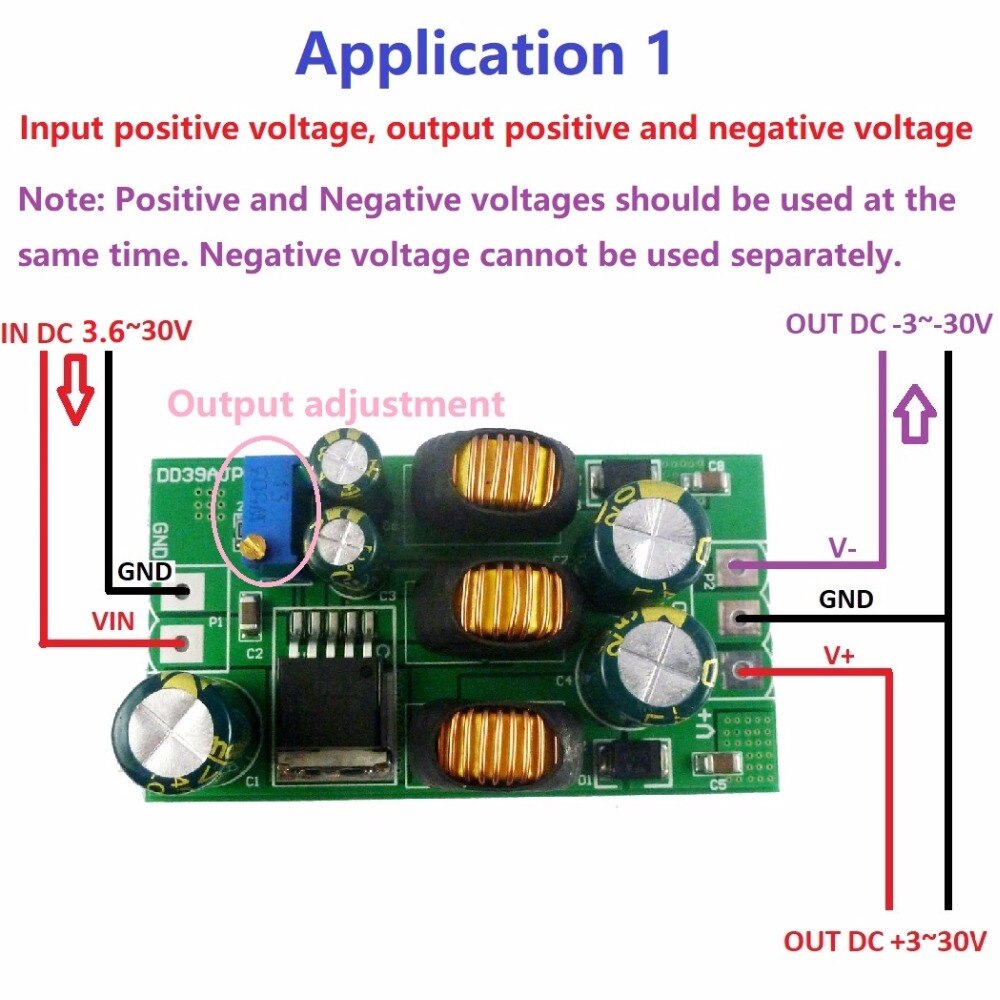

2? V- cannot be used alone, or no voltage output.But you can just use V+
3 The startup current of the module is 2.5-3 times the operating current.

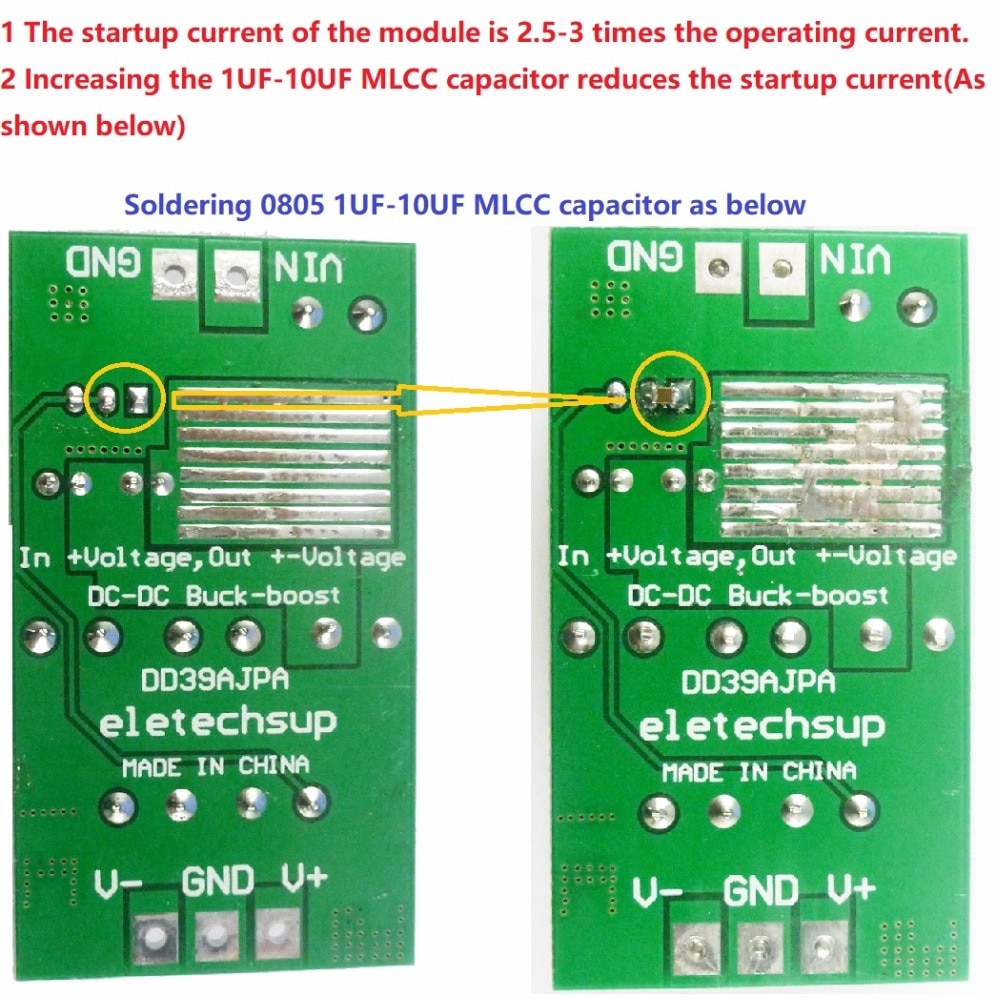

4 Increasing the 1UF-10UF MLCC capacitor reduces the startup current(As shown below)

GTIN: 774048923811
