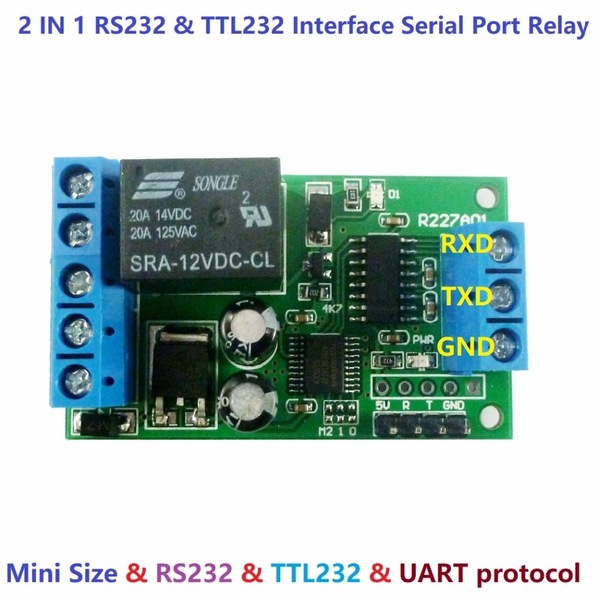

2 IN 1 RS232 & TTL232 Interface Serial Port Relay UART Switch PC USB MCU

2 IN 1 RS232 & TTL232 Interface Serial Port Relay UART Switch PC USB MCU

Price	$24.84
	Collect 24 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:
?
1 Channel UART Relay Module;
Working voltage : DC 12V.
Standby current (Relays closed) 17MA, relay open 48MA

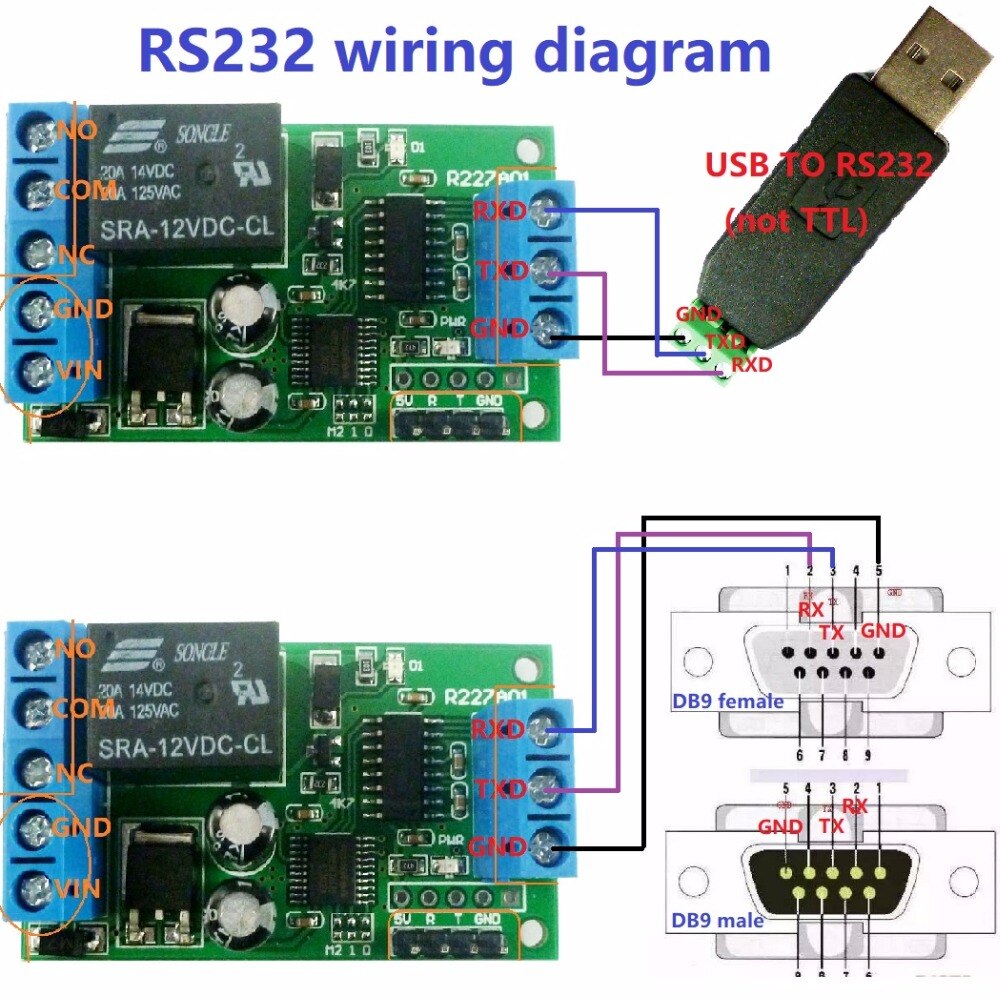

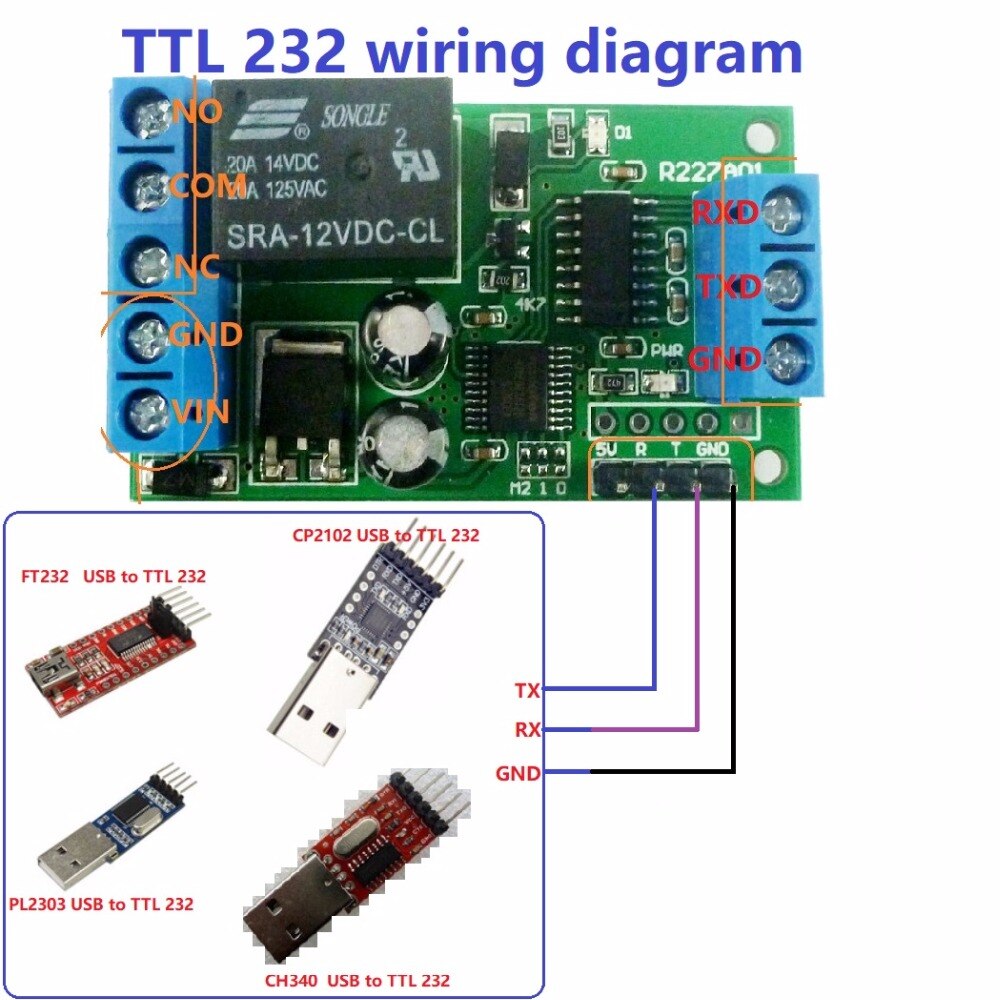

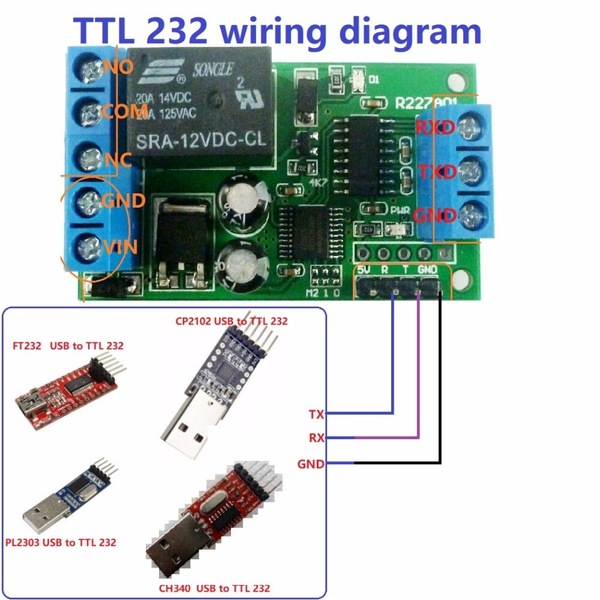

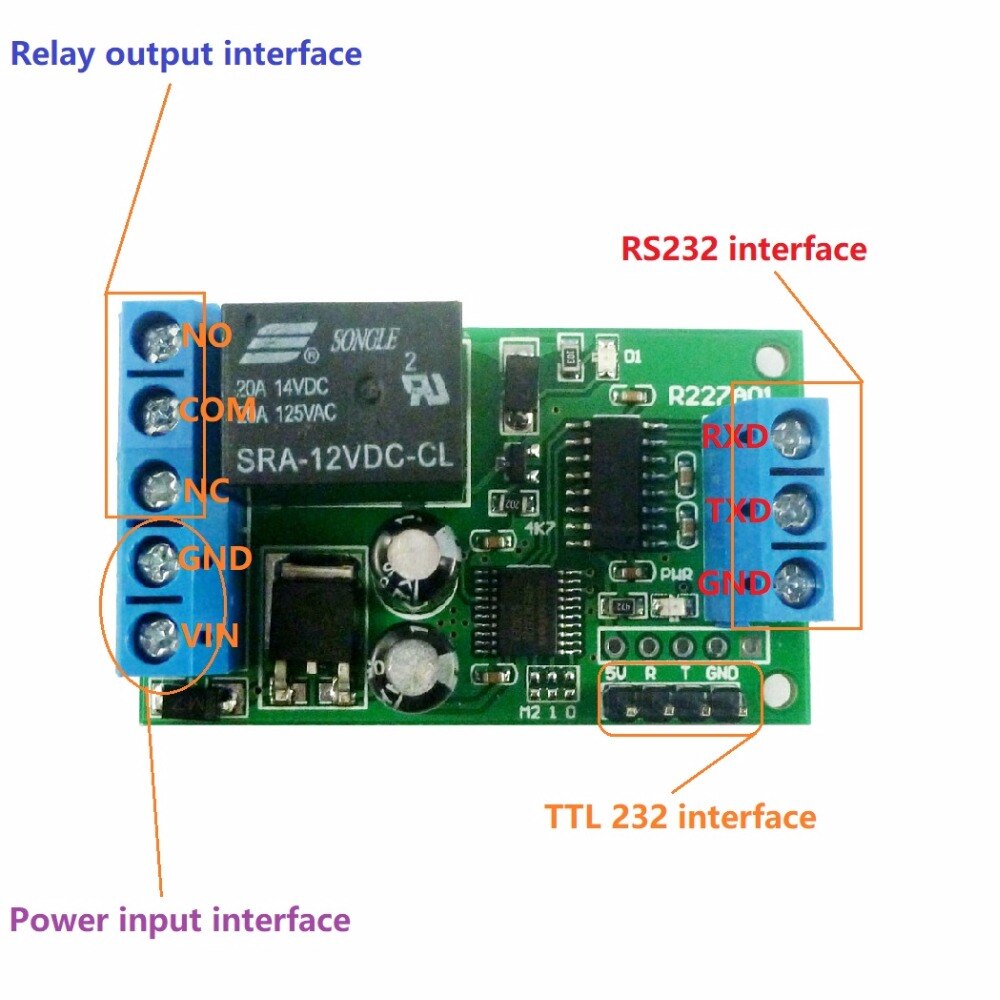

PC Serial ports RS232 Control Relay(RXD TXD GND),TTL232(5V R T GND)
Power indicator : LED lights;
Output indication : relay output with LED indicators,easy to see working status of the relay;
Communication protocol: UART protocol communication, baud rate 9600kpbs, 8 data bits, one stop bit, no parity. Each data frame contains eight bytes. Two-way data transmission.
Baud rate 9600kbps, 8 data bits, one stop bit, no parity. Each data frame contains eight bytes.
Size : 50mm*30mm*17mm
Weight : 18g

Application??

Remote control, remote measurement system;
Wireless meter;
Smart Home,Home Automation ,Wiser Home;
Access control ;
Identification system;
Data collection;
IT household appliance;
Intelligence household appliance;
Baby monitoring system;
PLC

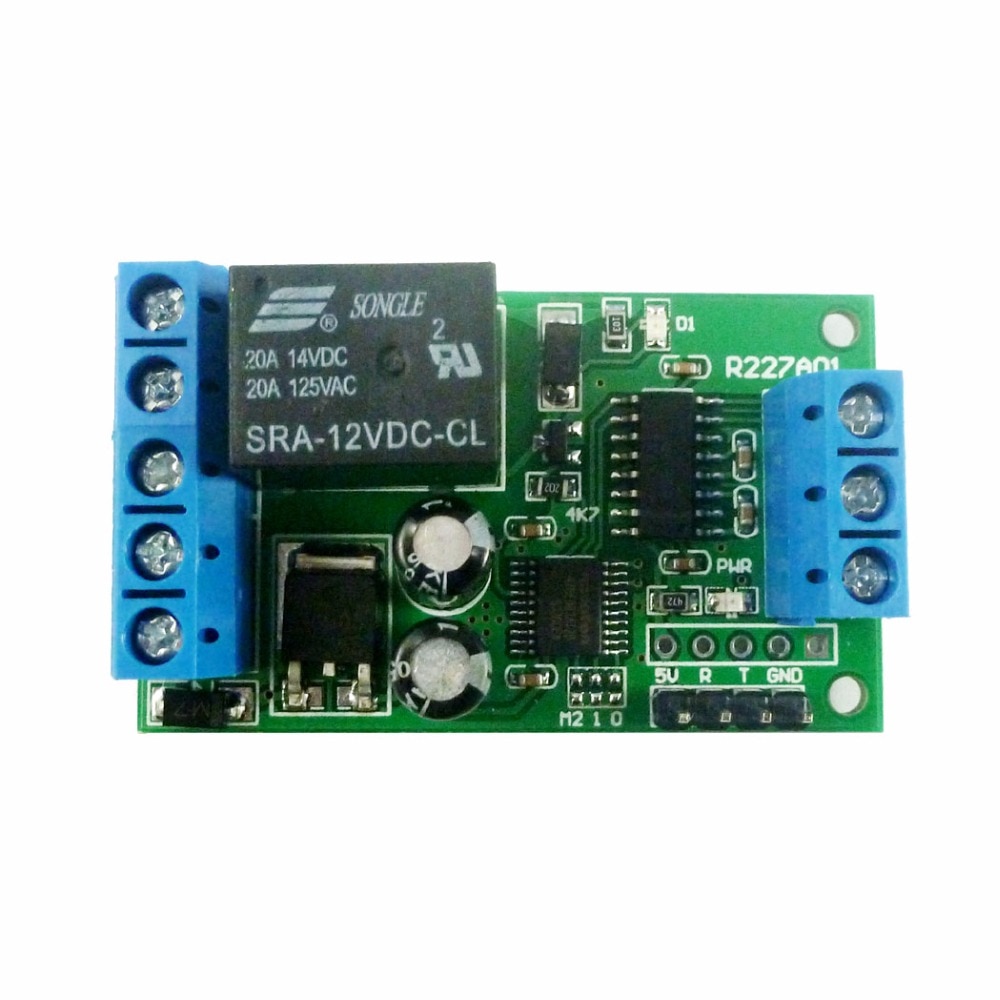

Package inlcuded:1 pcs 1 channel DC 12V RS232 Relay Board
