DC 12V Sensor Timer Delay Relay Board for Light bar Garage Door-PIR Sensor

DC 12V Sensor Timer Delay Relay Board for Light bar Garage Door-PIR Sensor

Price	$24.15
	Collect 24 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:

1 Working voltage: DC 12V
2 Working current: standby 7-8MA, Relay Open 64MA

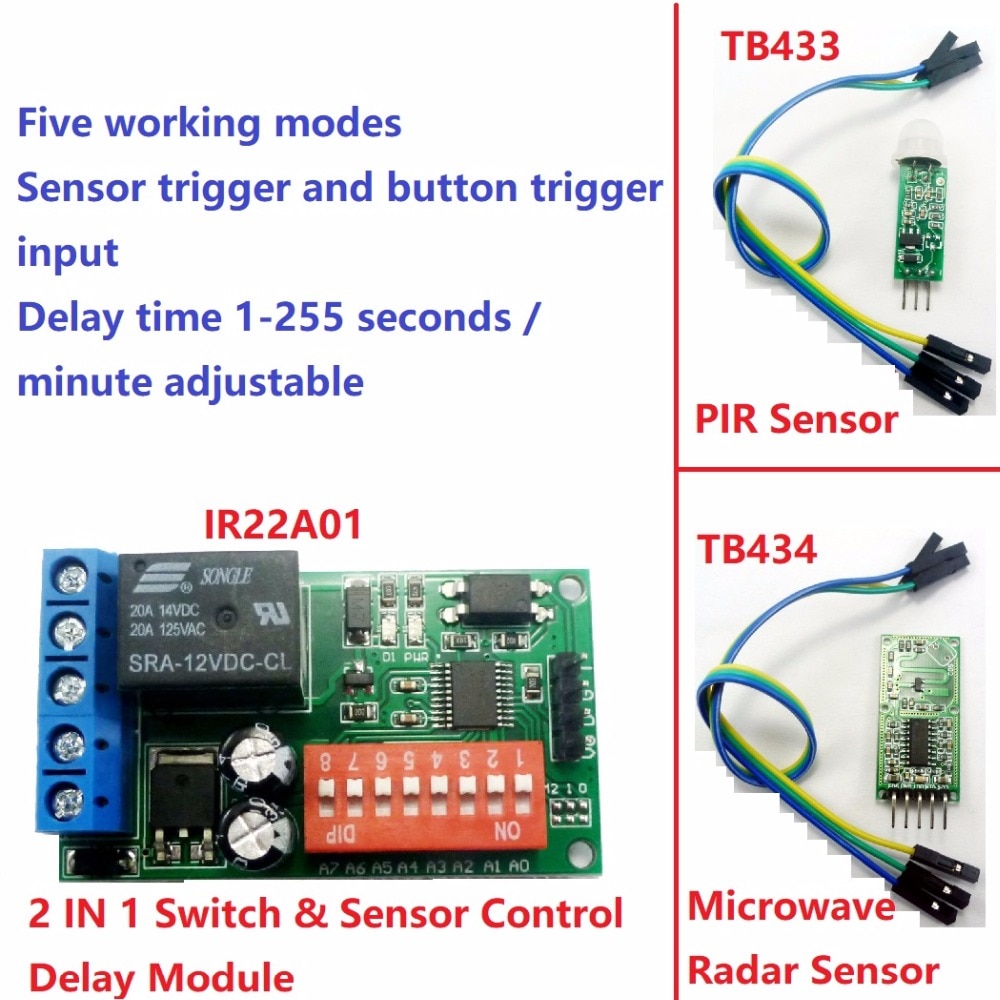

3 Working modes : Delay_1 (seconds), Non-locking (Momentary),Synchronization, Self-locking (Toggle),Delay_2 (minutes)
4 5V/50MA power output interface, Sensor Control interface (High level trigger), Switch control interface (Low level trigger)
5 Size: 52*30*18 mm
6 Weight: 18 grams
7 Maximum load: 20A/14VDC, 20A/125VAC

Function Description:

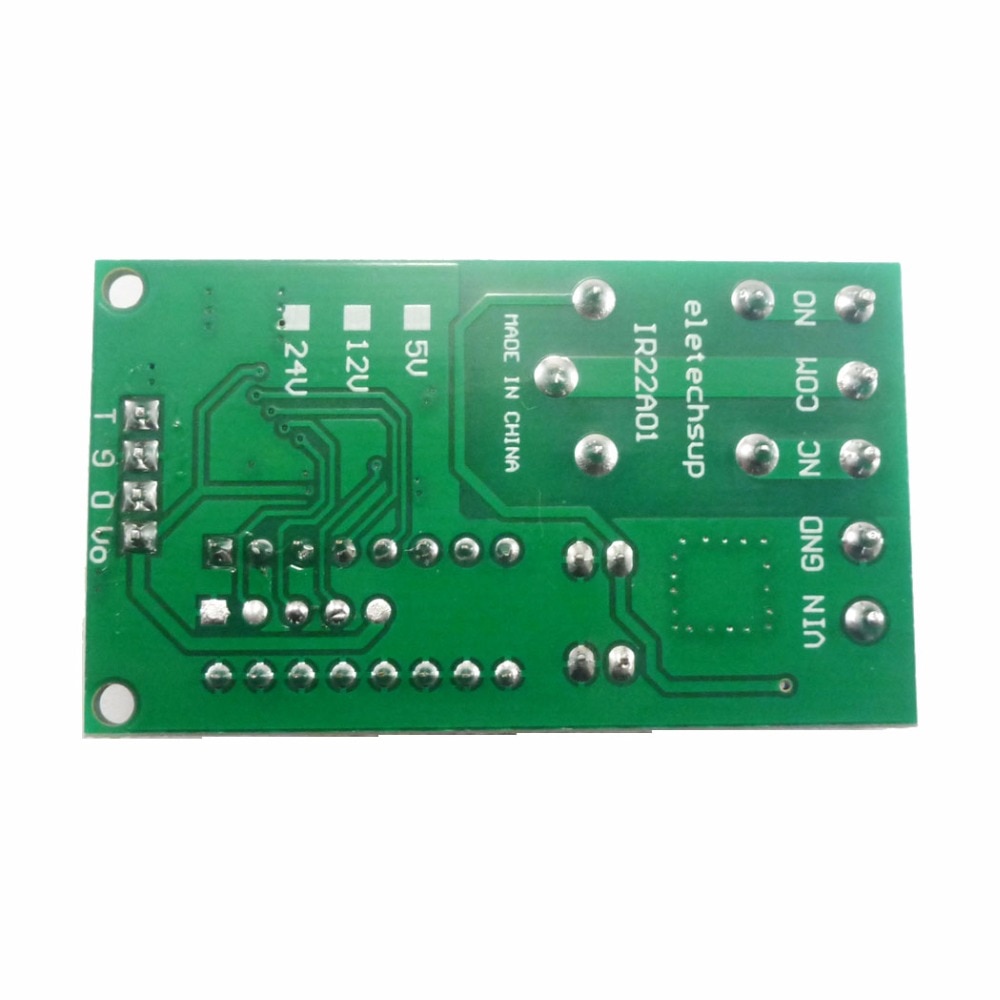

1 Pin Description
VIN : Power input positive
GND : Power input negative
NC : Relay normally closed
COM : Relay Common
NO : Relay normally open
Vo : 5V/50MA power output positive, power the sensor
D : Sensor Control Interface (high level trigger)
G : 5V/50MA power output negative
T : Switching control interface (low level trigger)

2 Mode selection
Relay open: COM connected NO but disconnected NC
Relay close: COM disconnected NO but NC connected COM.
IR22A01_13

3 Input control

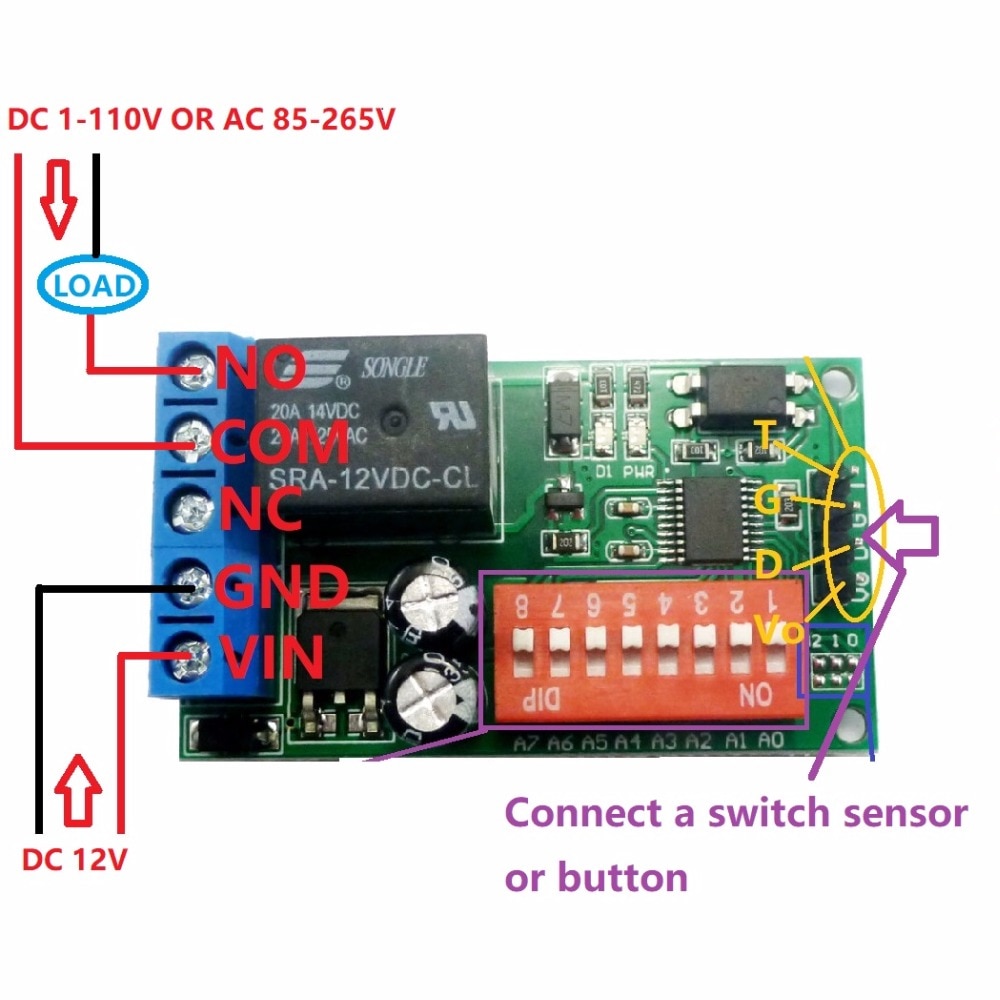

1 Switch control (low level trigger) wiring diagram
IR22A01_10
2 Switching Sensor control (high level trigger) wiring diagram
IR22A01_9

Supports the following (but not limited to) switching sensors :

RCWL-0516 Microwave radar sensor
HC-SR505 Infrared sensor
SW-420 Vibration sensor
Photosensitive sensor
Flame sensor
MQ-2 Smoke sensor
Microphone sensor
Touch sensor
Reed switch sensor

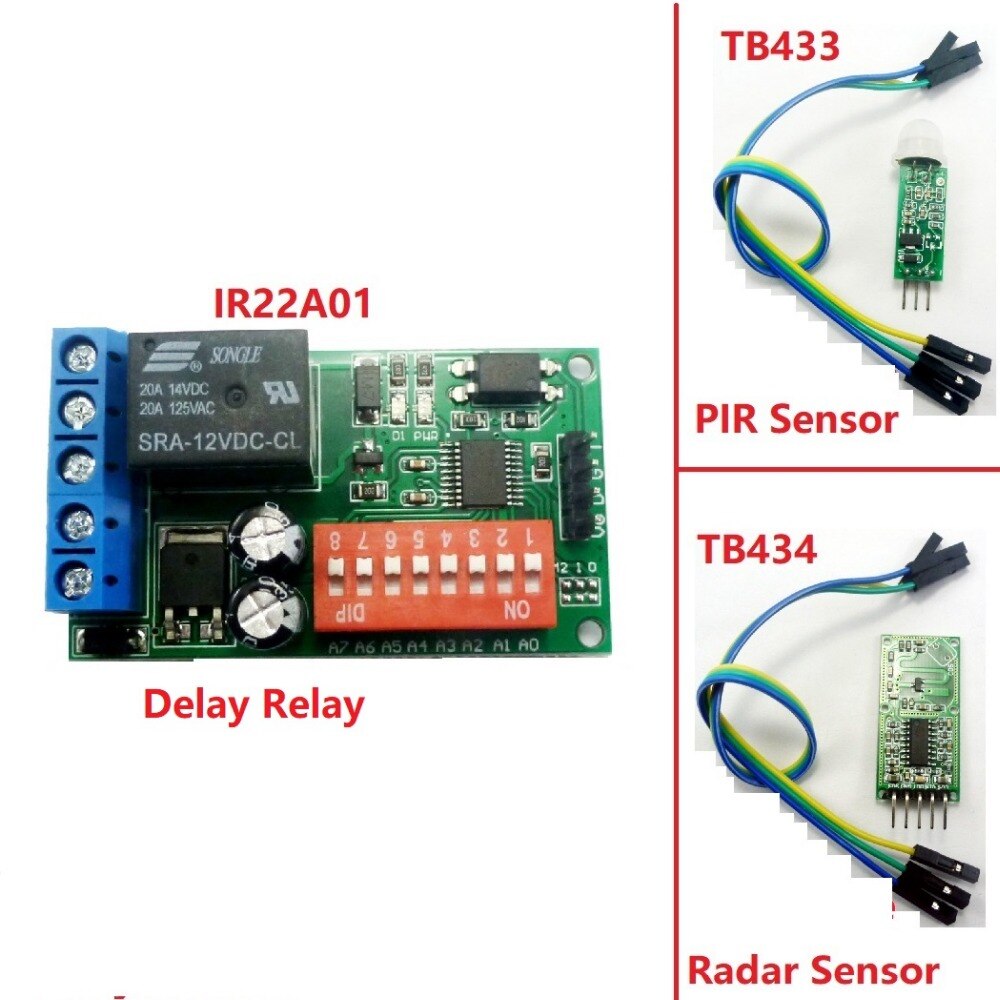

Packing list(Please choose the module you need when purchasing)

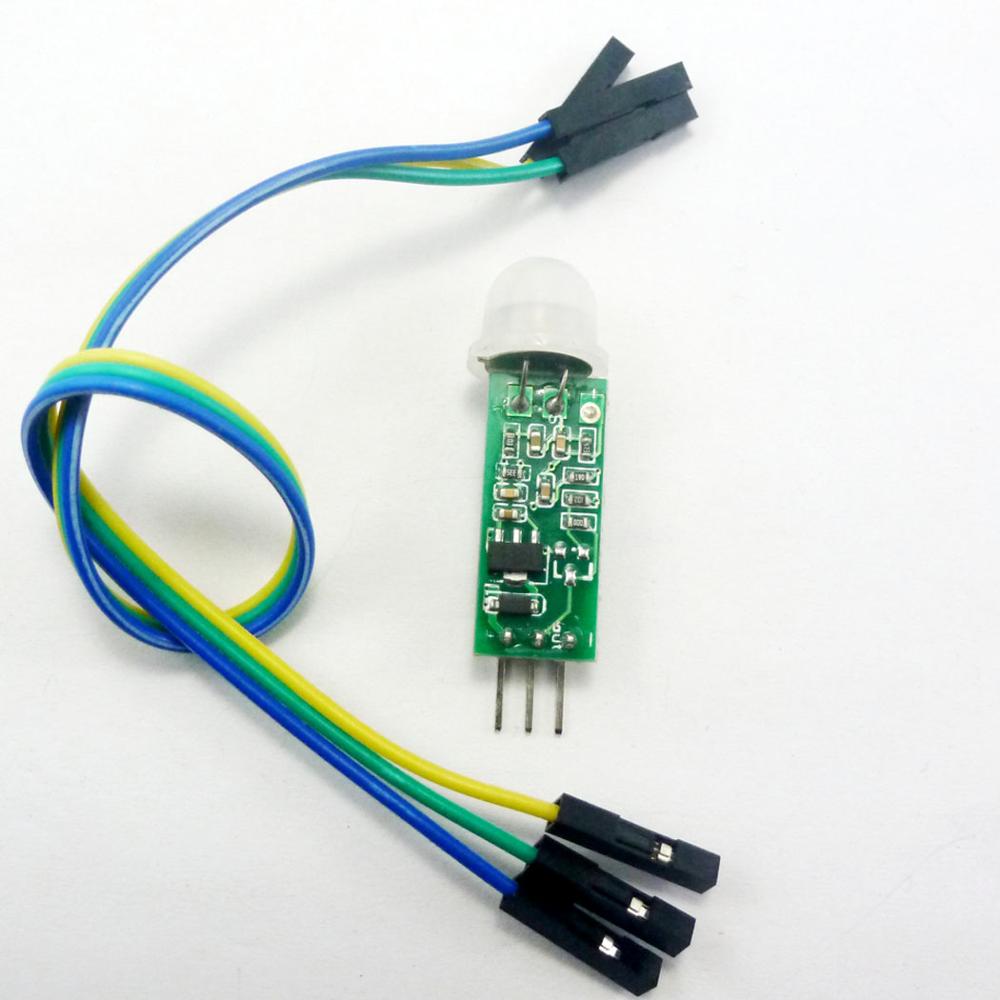

1 PCS Delay Relay OR 1 PCS PIR Sensor OR 1 PCS Radar Sensor
